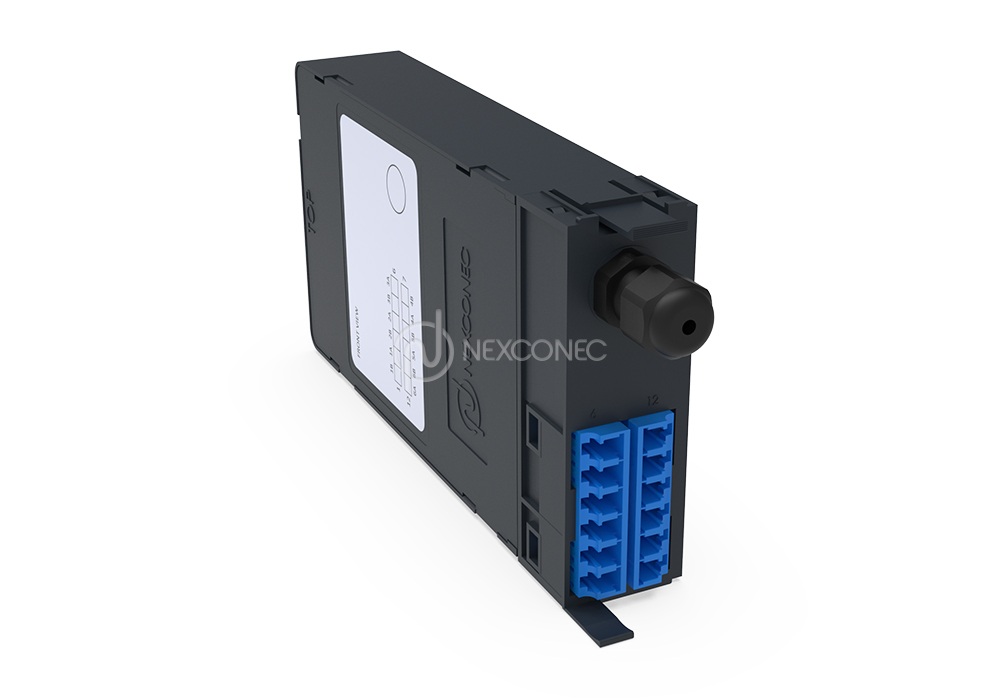

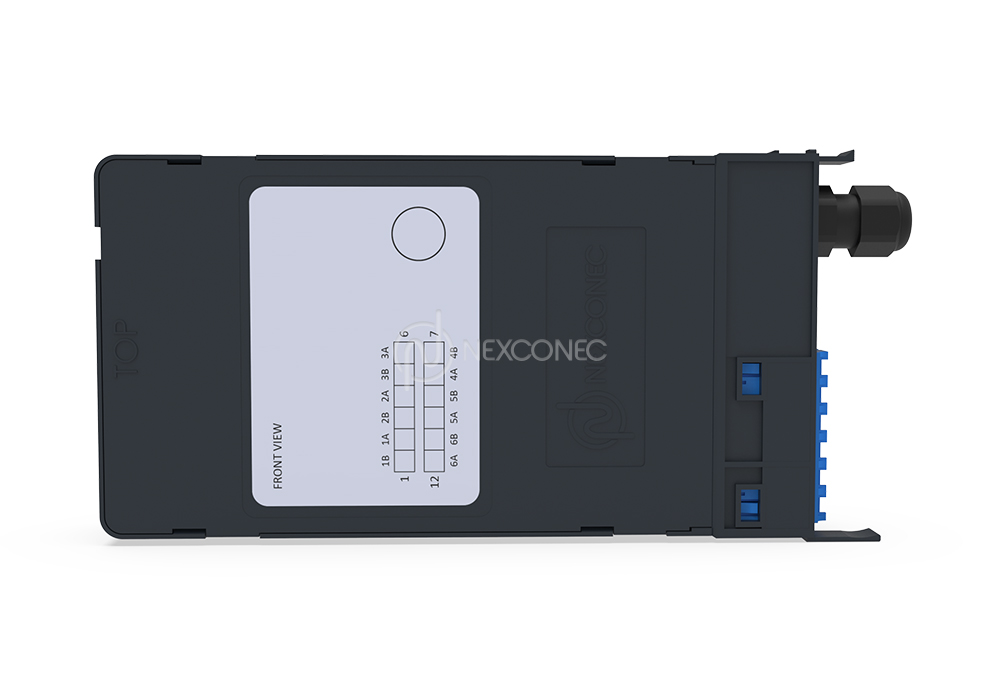

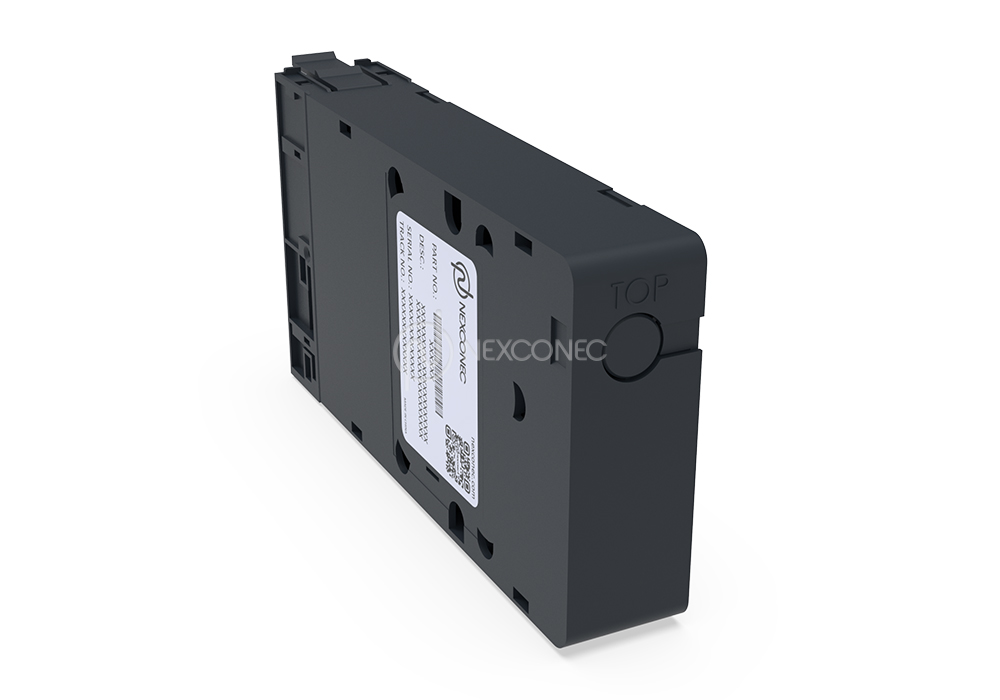

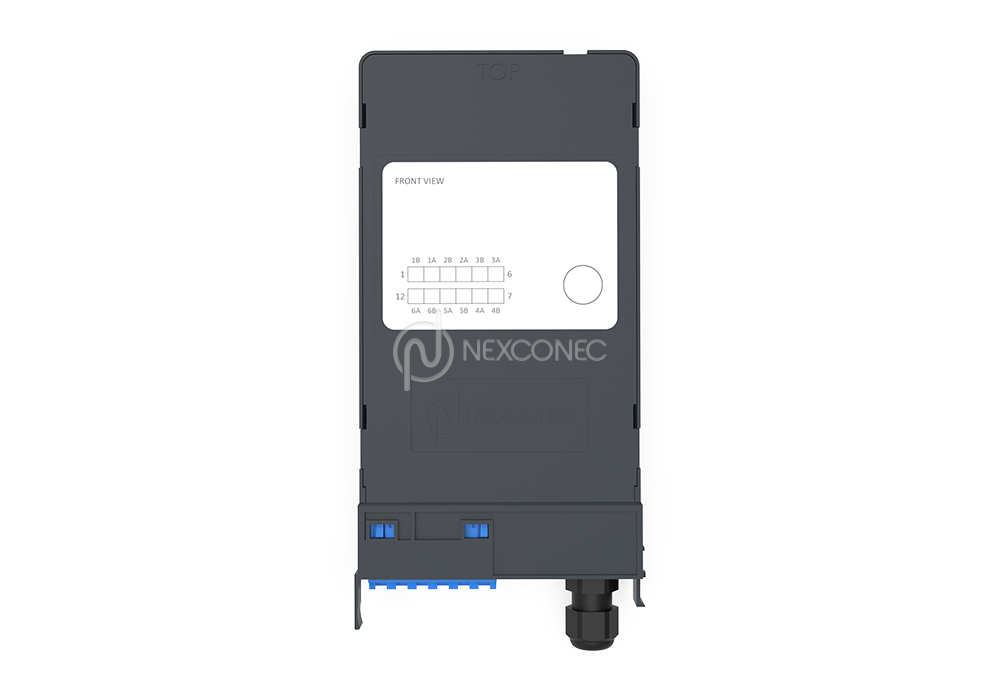

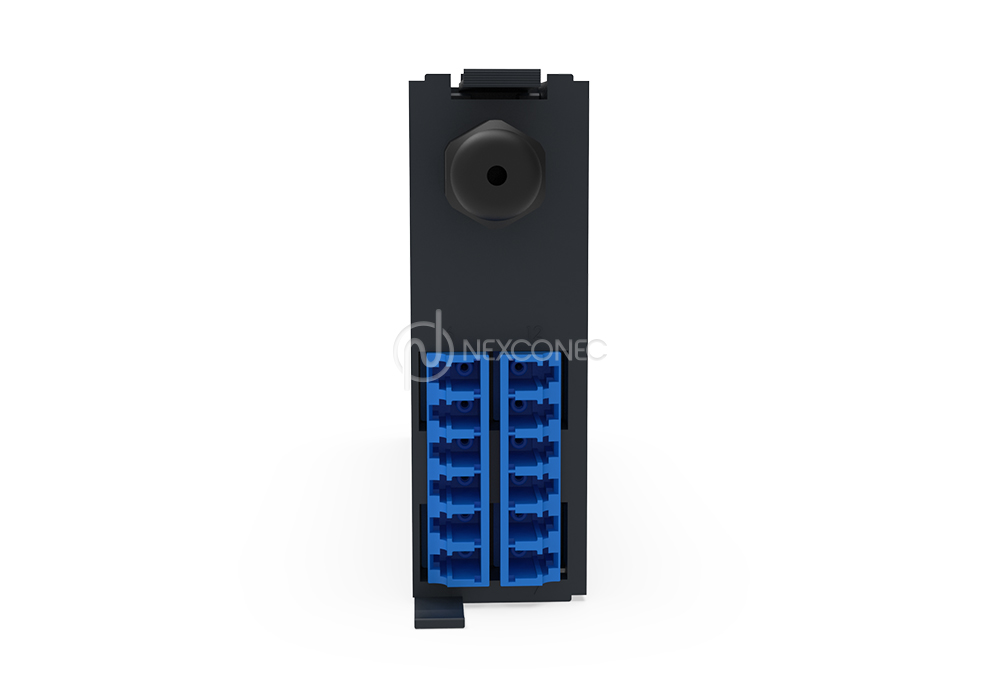

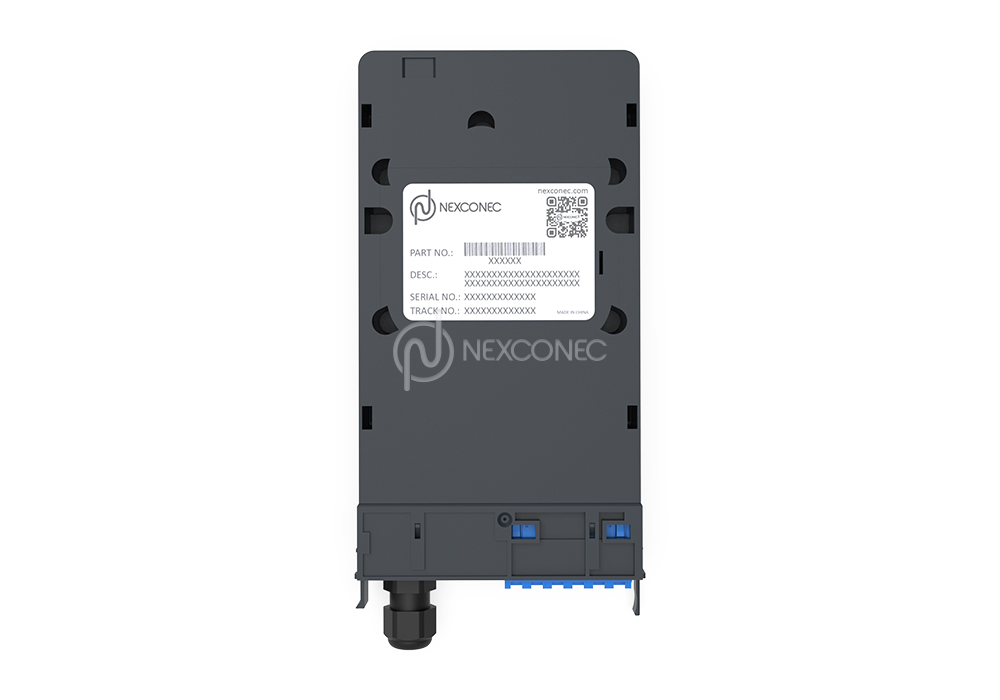

UPX SPLICE CASSETTE 12FO LC (FRONT/REAR PATCH) - UPXSPxx
NEXCONEC® UPX Fiber Optic front or rear patch splicing modules allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. For up to 12 splices in LC configuration. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon or sandwich (ANT) type.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters (LC and Splice Shuttered Ports)
- Available in standard Single mode and Multimode fiber options
- Up to 12 fiber capacity
- Single and Ribbon Fiber splice
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters (LC and Splice Shuttered Ports)
- Available in standard Single mode and Multimode fiber options
- Up to 12 fiber capacity
- Single and Ribbon Fiber splice
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | UPX |
| Dimensions (W x D x H) | 87.30 x 173 x 28.90 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Application | UPX Panels |
| Fiber Capacity | 12FO in LC |
| Incoming Cable Entries | 1x Cable Gland M12 (Front or Rear Entry) |
| Adapters Ports | 2x 6 Cores LC Adapters, Shuttered Ports |
| Fiber Glass | Raw Fiber 250um |
| Splice Holder | 40mm Heat Shrink Sleeves, Available in Ribbon |
| Max. Cable Diameter to Use | 8 mm |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM LC | MM LC |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.20/0.30 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.12/0.15 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Part Number | Product Description |
|---|---|
| UPXSP07 | UPX Splice Module LC/UPC 12FO (Front or Rear Patch) Pigtails SM, Shuttered Ports |
| UPXSP08 | UPX Splice Module LC/APC 12FO (Front or Rear Patch) Pigtails SM, Shuttered Ports |

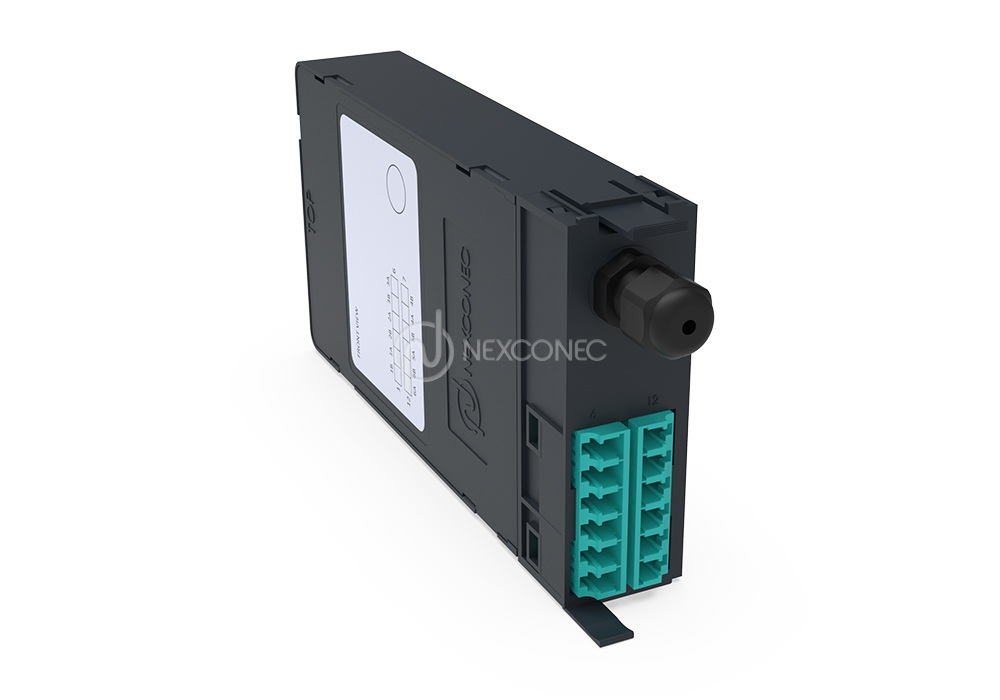

| UPXSP09 | UPX Splice Module LC/UPC 12FO (Front or Rear Patch) Pigtails MM OM3/4, Shuttered Ports |
* Standard FOTAG, for FT Orange color coding on request add FT. Standard 250um pigtails also available with Ribbon pigtails
