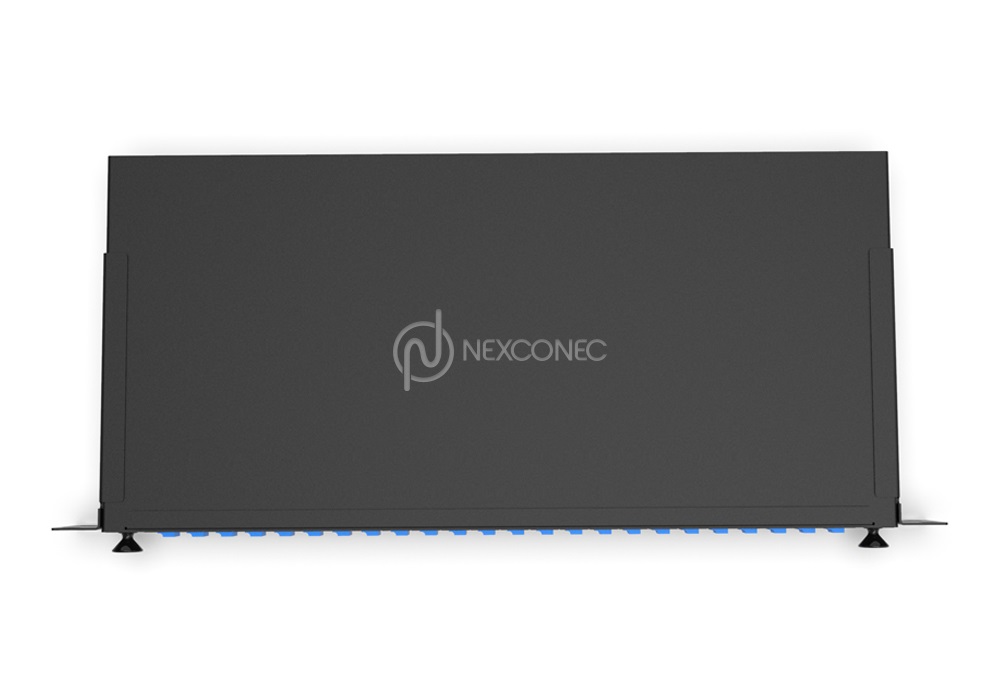

1U 24 Ports SC SX/LC DX Sliding Patch Panel - SPP24S

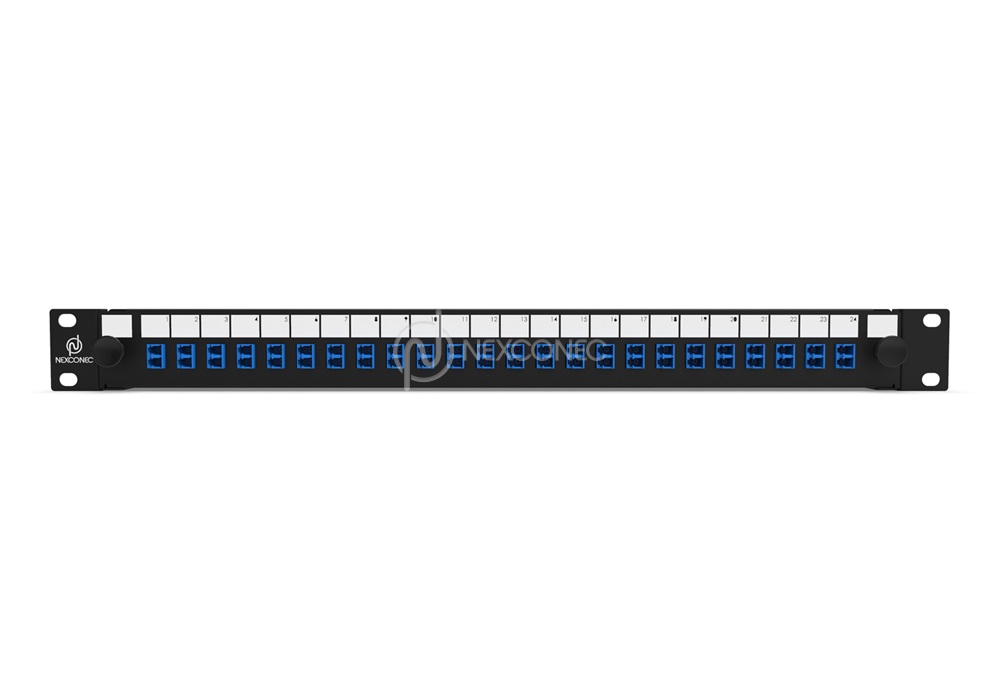

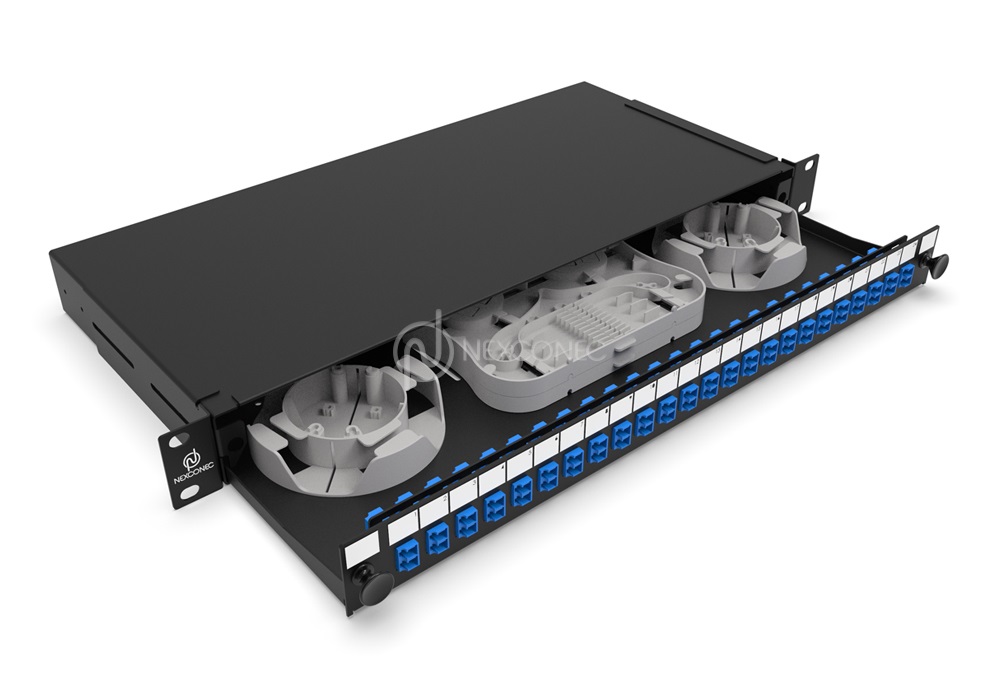

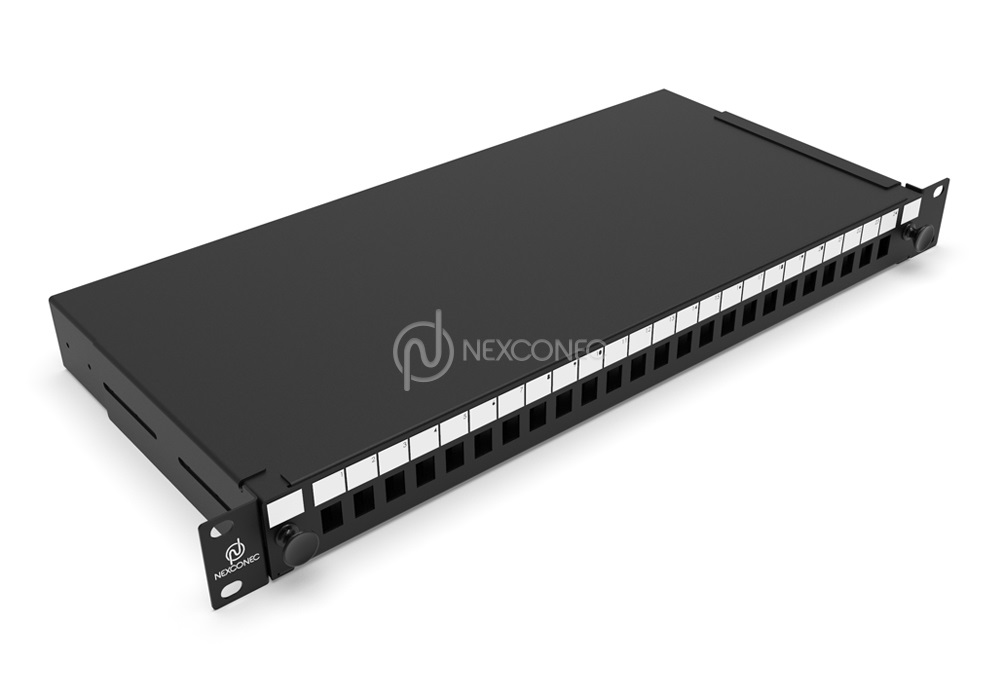

Nexconec sliding patch panel accepts 24 adapters SC Simplex or LC Duplex within 1U space. The panel can be pre-loaded completely with the required adapters or pre-loaded with pigtails and splice accessories. The tray is locked by 2 plastic latches and lowers to a 45deg angle when fully extended. Installation and labelling are simple and easy.
FEATURES AND APPLICATIONS
- Recessed panel bracket mounting
- Up to 48FO in 1U space

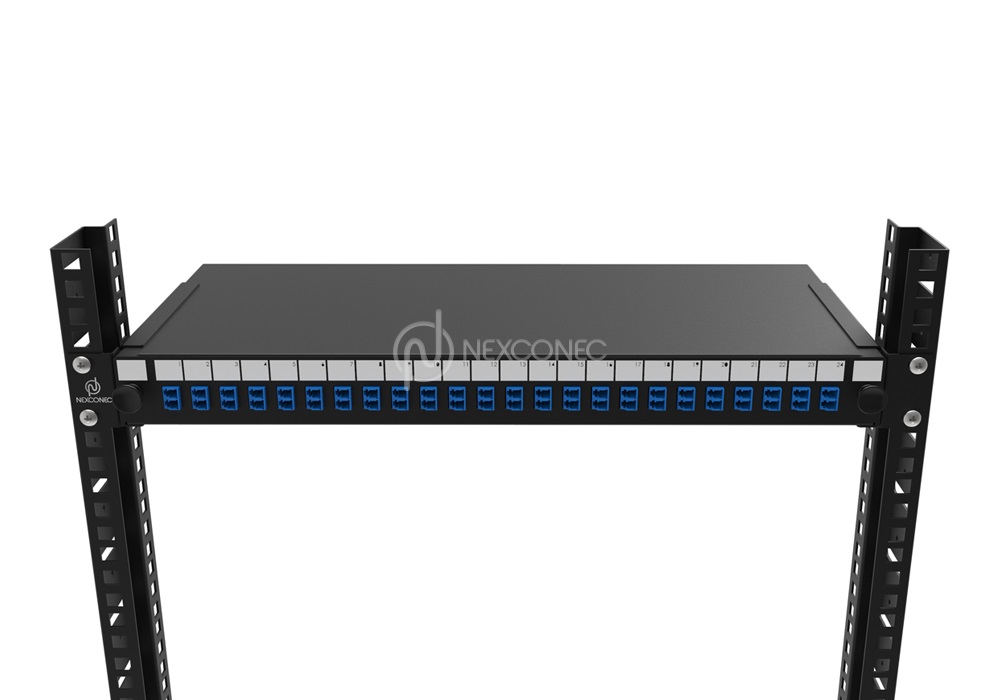

- Fits standard 19” rack

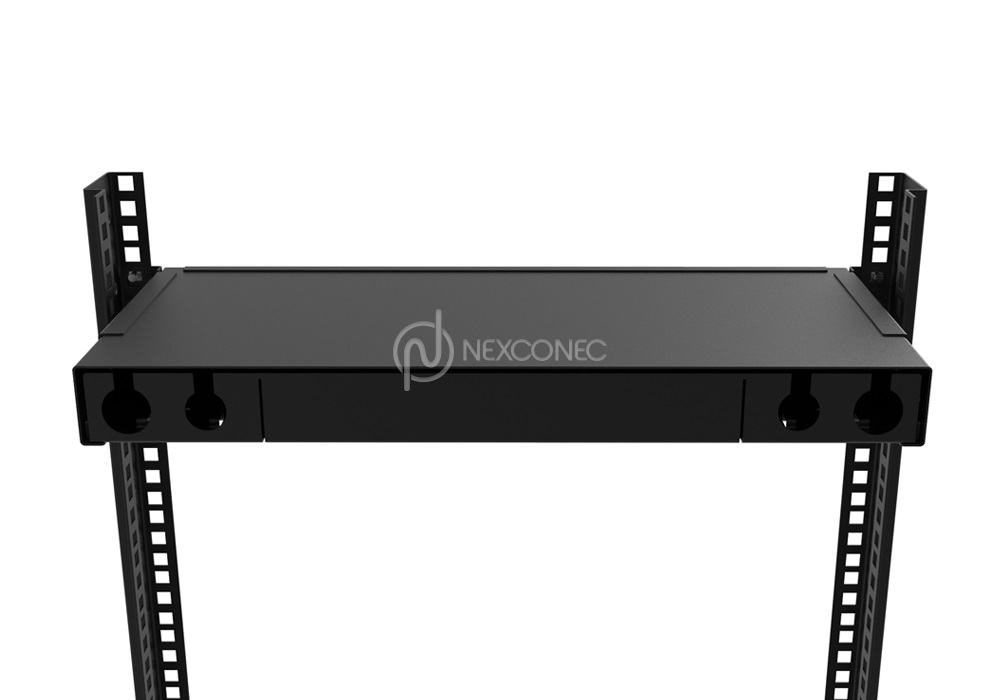

- 4 Rear Cable entries
- Enterprise network & Datacentre
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and conventional Splicing
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTRUCTION MANUAL.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 482 x 205 x 44.4 |
| Net Weight | 2.5Kg |

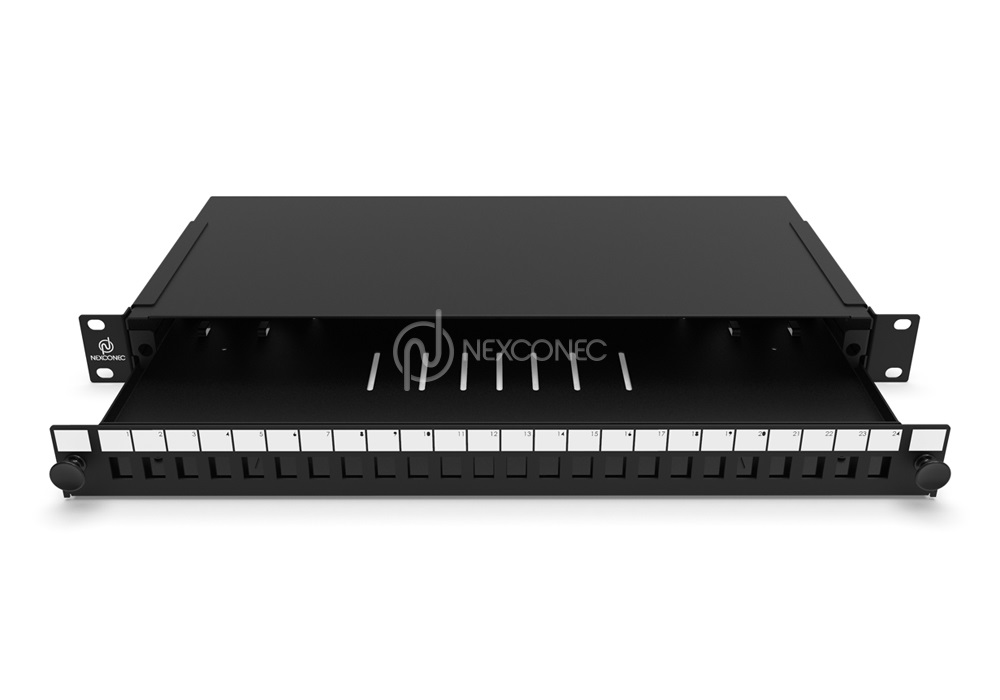

| Opening Type | Sliding tray |
|---|---|
| Access Type | Front access |
| Front Cable Management | Optional |
| Cable Entry Direction | Rear |

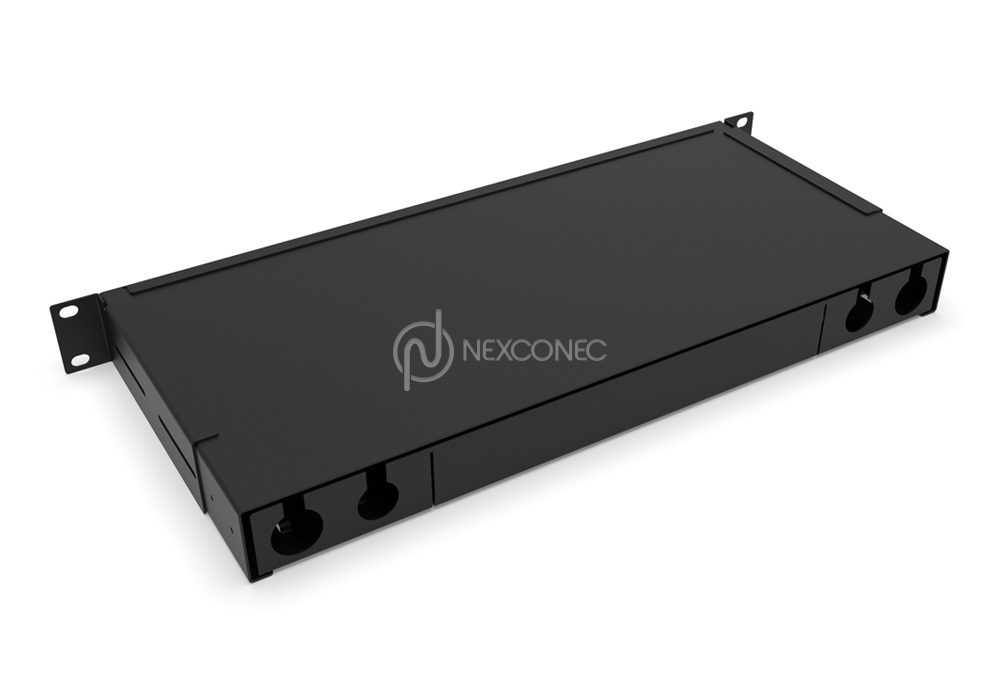

| Rear Cable Management | 4 Cable Entries (OD: 2x PG13.5 and 2x PG16 mm) |
| Slot Type | SC Simplex Footprint |
| Number of Slots | 24 |
| Fiber Capacity | 24 with SC , 48 with LC |
| Part Number | Product Description |
|---|---|
| SPP24S | 1U 24 Ports SC Simplex Sliding Patch Panel Unloaded |
