Lockable (Double Door) Indoor Wall Box 48 Ports SC - WP48D

WP48D WP48D WP48D WP48D WP48D WP48D WP48D WP48D WP48D WP48D WP48D WP48D WP48D

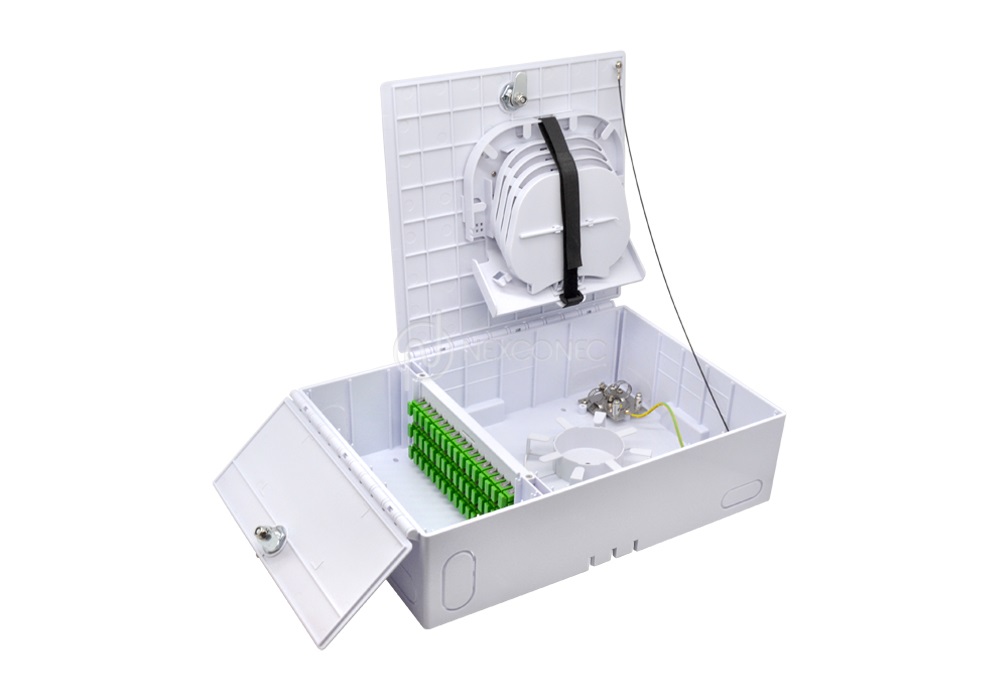

NEXCONEC® Lockable IP34 (double door) indoor fiber distribution wall box is supplied unloaded as standard, this distribution box can manage both single and bundle fiber cables for indoor use. It offers the ability to terminate up to 48 fibers housed in a robust ABS enclosure for indoor applications. There are SC & LC output interfaces optional and a large working space to integrate the pigtails, cables and adapters.

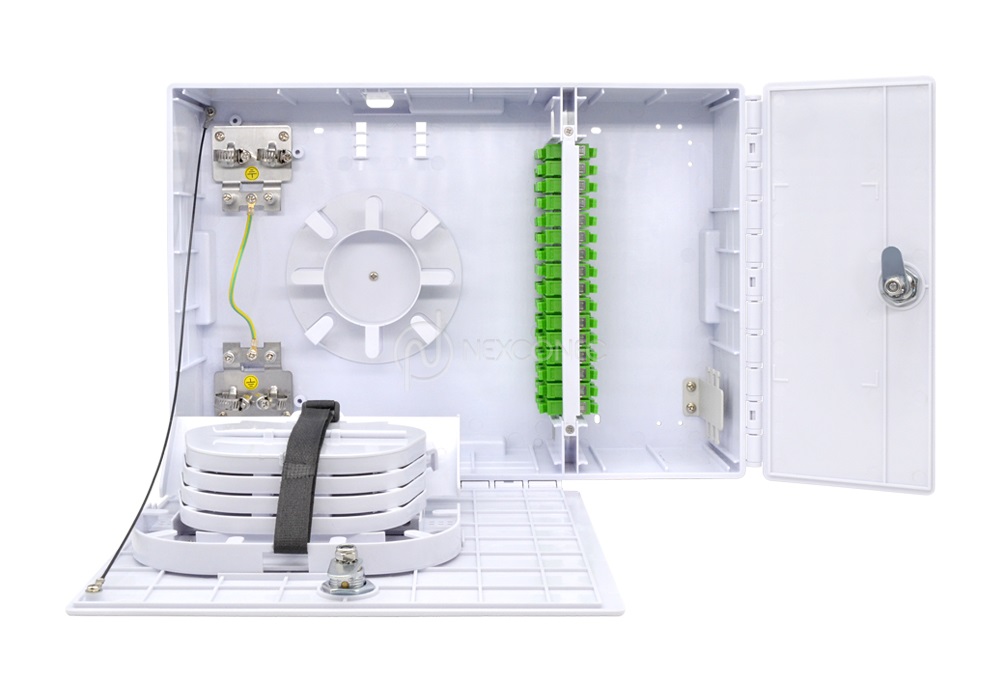

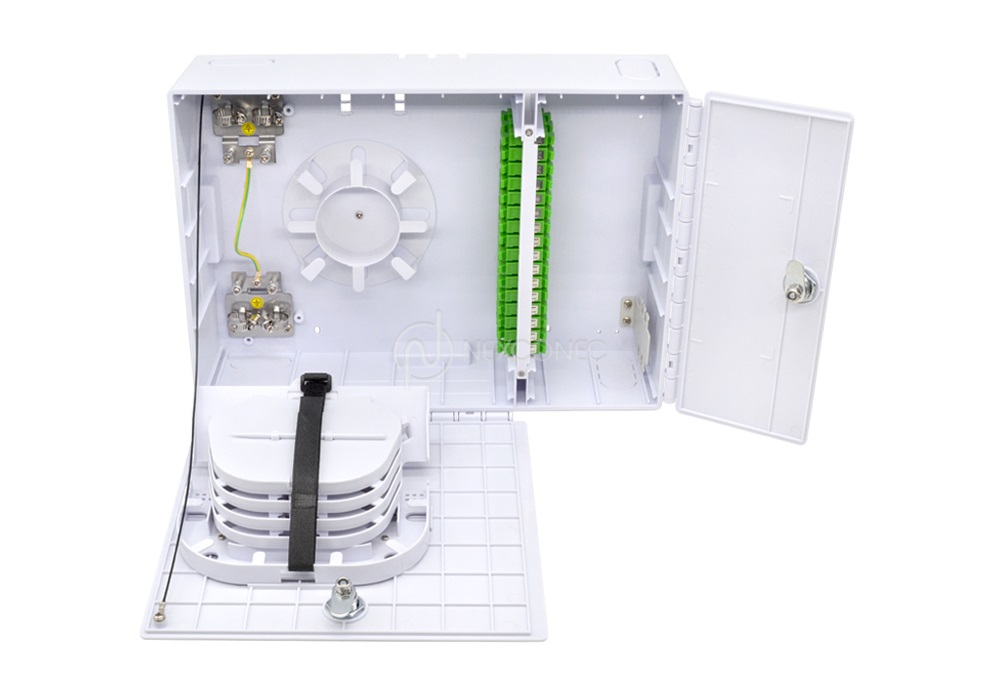

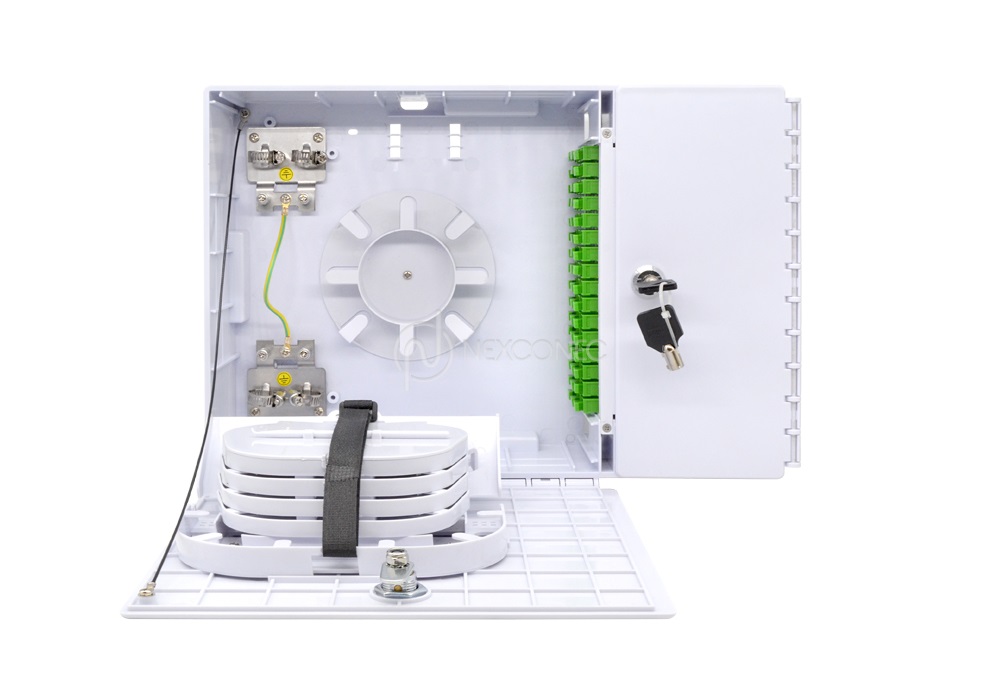

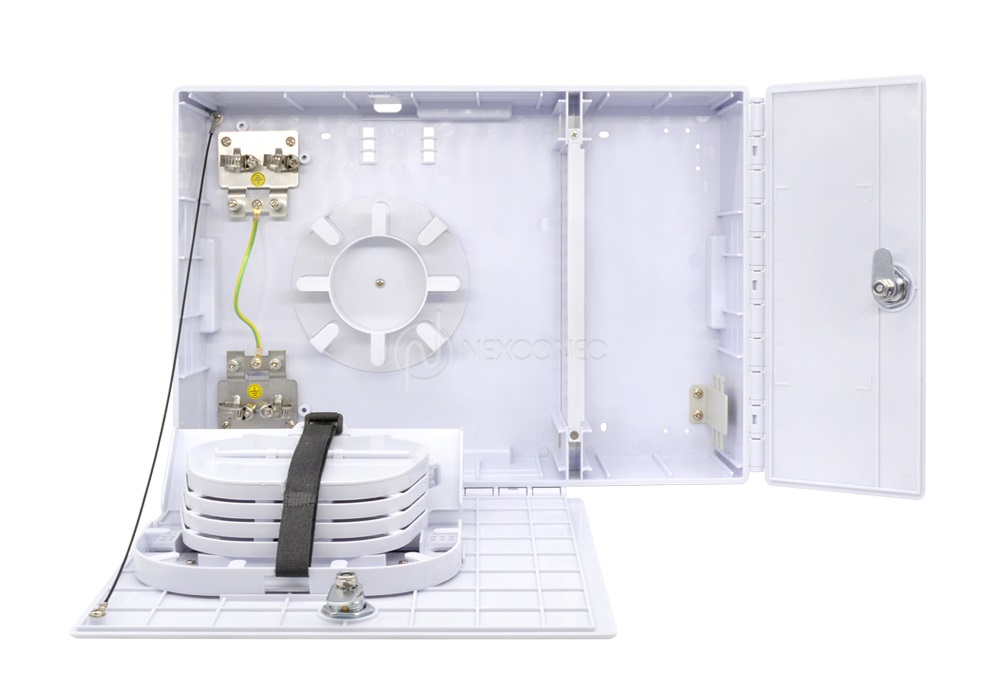

An internal detachable adaptor plate provides a neat and tidy solution for housing 48 SC simplex connections and splices. Integrated cable tie points are included to secure incoming cables. Locking feature for the doors, enhances the security of indoor fiber optic networks when it’s positioned in unsecure areas.

FEATURES AND APPLICATIONS
  • SC Simplex Adapter type

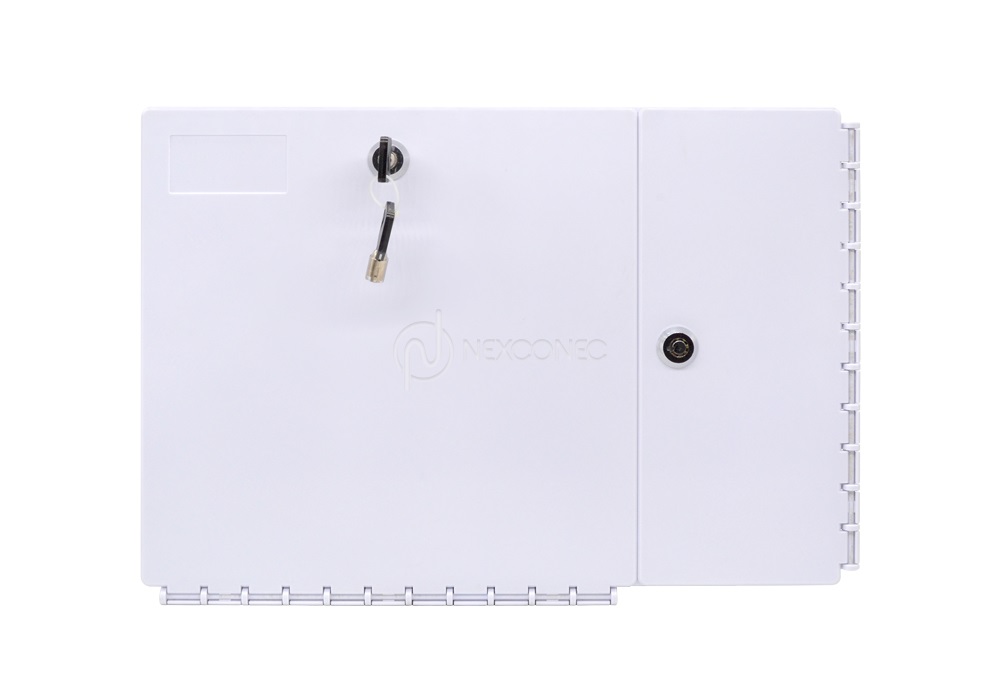

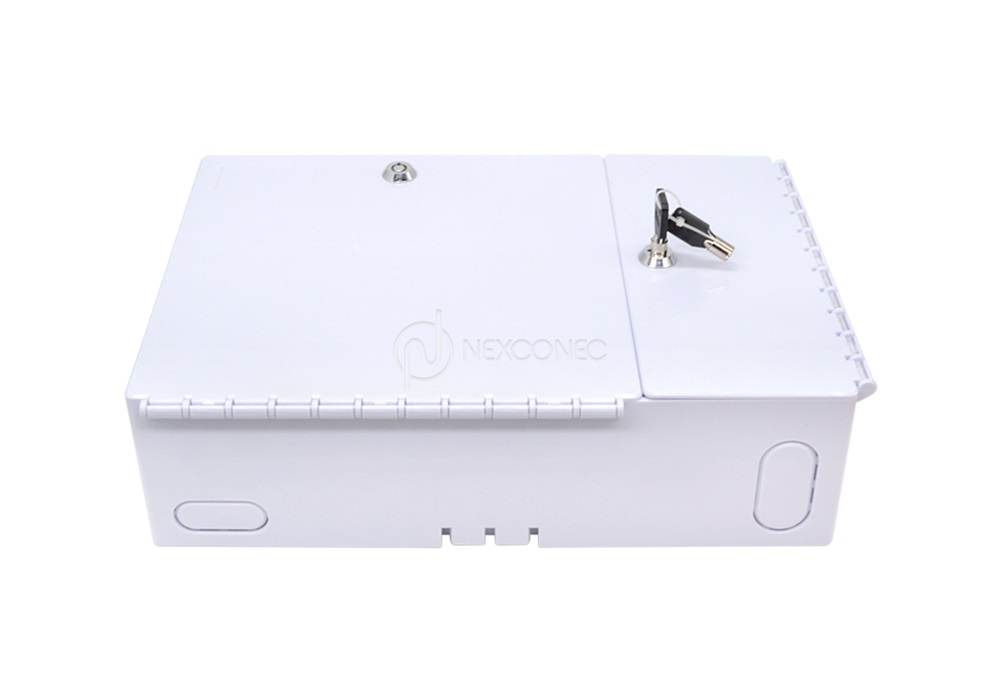

  • Lockable Double Door
  • IP34 rating & ABS Plastic material

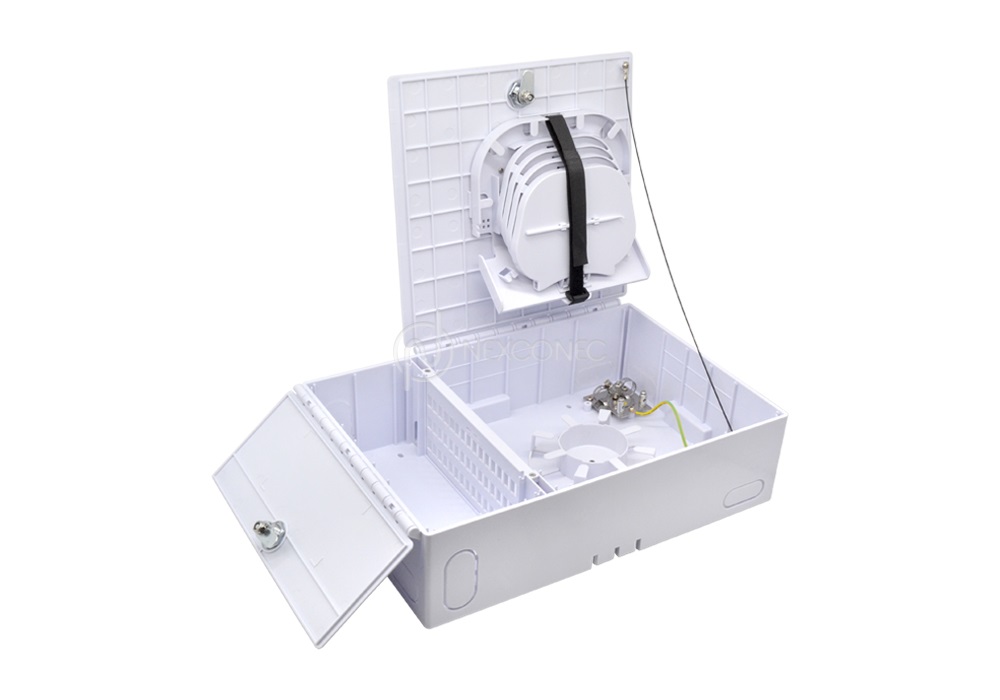

  • Removable splice tray for easy installation
  • Supports cable entry without cutting
  • FTTH / FTTx Networks
  • Data communication Networks
  • Indoor Applications

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
pdfINSTRUCTION MANUAL.pdf View Download
Parameters Value
Application Wall Mounted
Dimensions (W x H x D) 370 x 260 x 100 mm
Number of Ports 48 SC Simplex
Max. Splicing Capacity 48 Splices

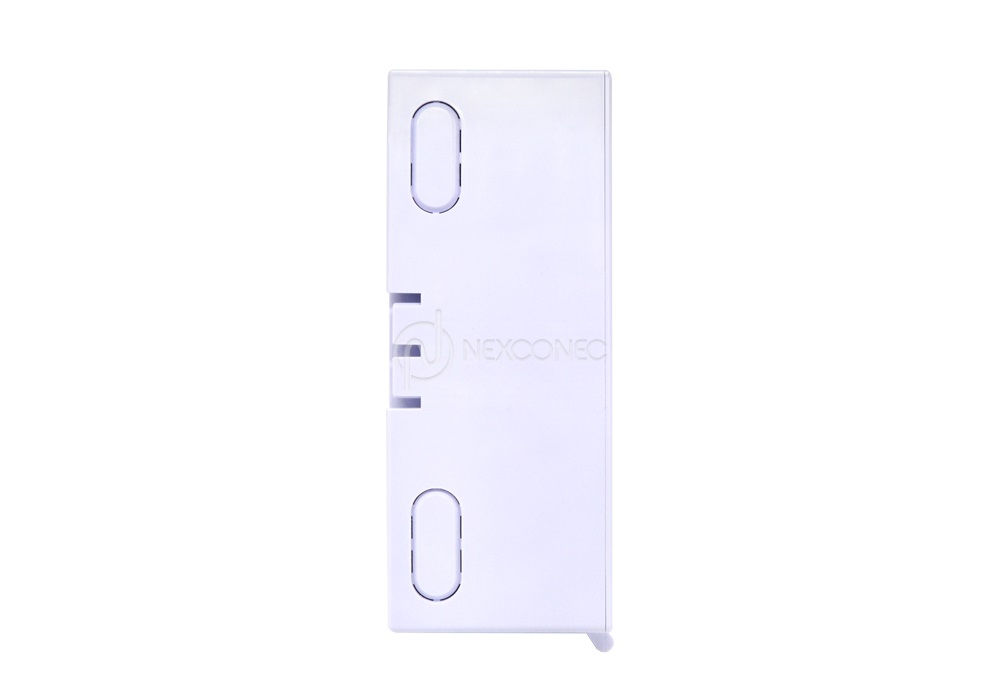

Number of Cables Entry 4x small oval ports, each oval port can hold 2x 18mm cables
Number of Cables Exit 4x large oval ports, each oval port can hold 2x 25mm cables
Material ABS Plastic
IP Rating IP34
Color White
Operating Temperature -20 °C ~ +60°C
Weight 2 Kg
Packing Information 1pc per Inner Carton, (380 x 270 x110 mm)
8pcs per Outer Carton, (550 x 450 x390 mm)
Part Number Product Description
WP48D Indoor Distribution Box 48ports SC Simplex, Lockable Double Door, Unloaded
