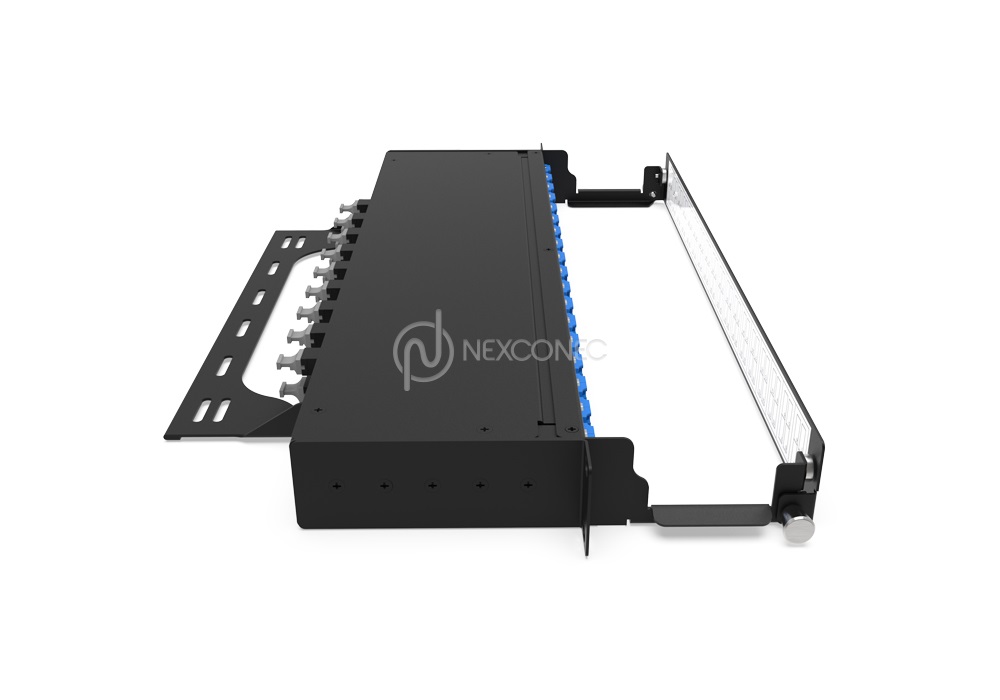

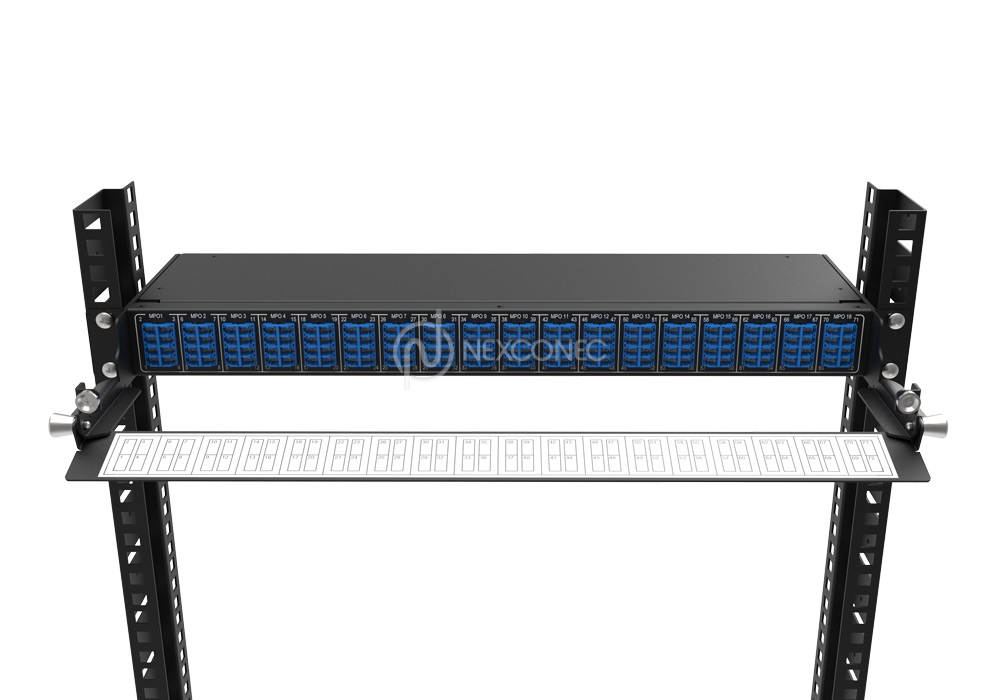

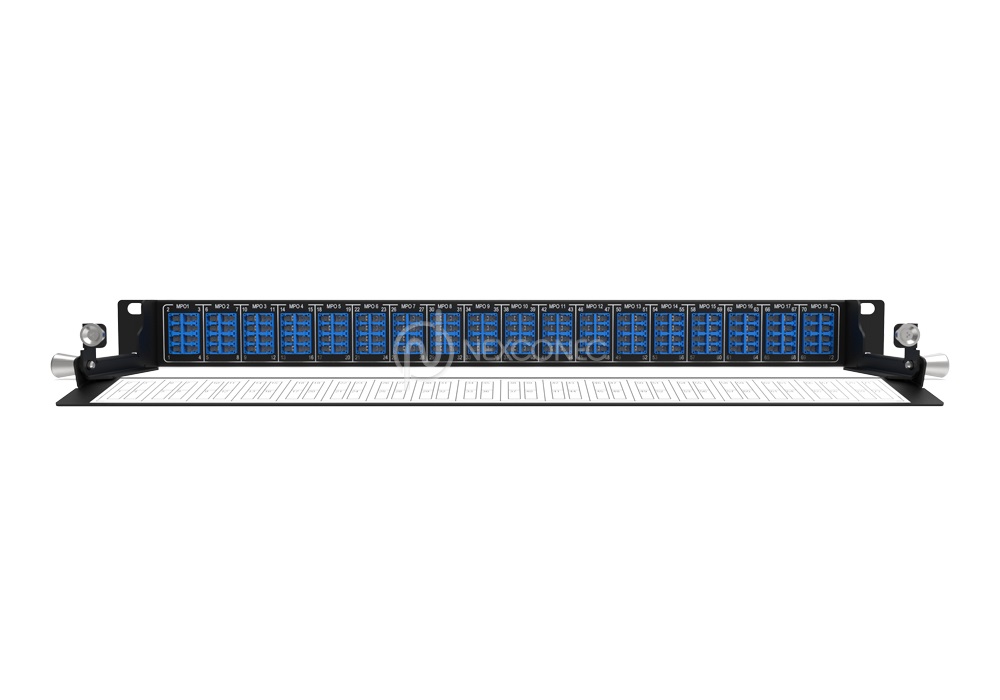

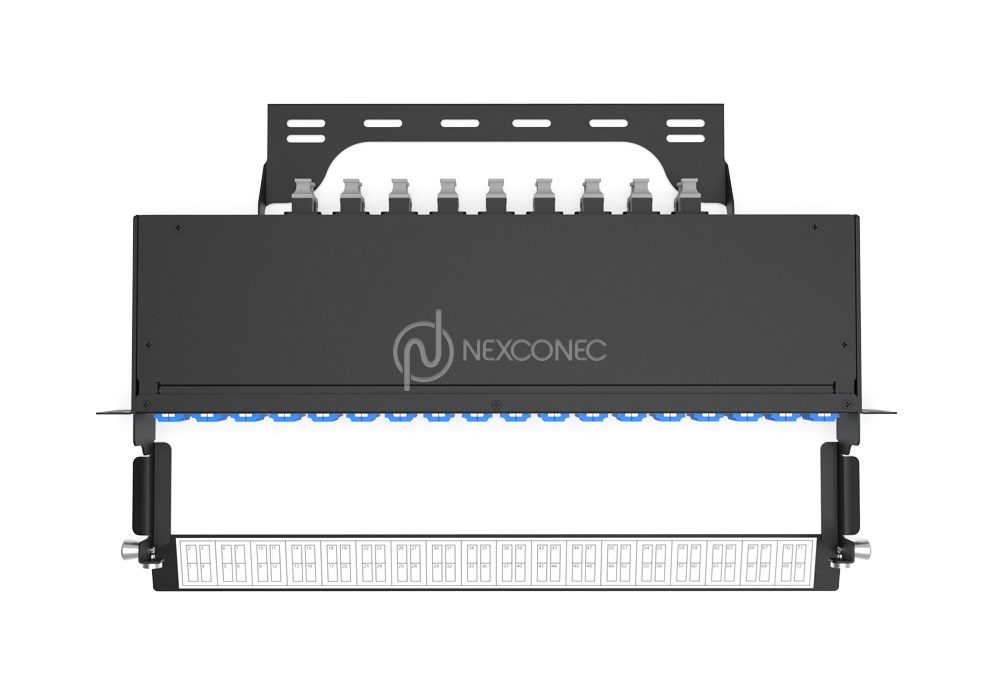

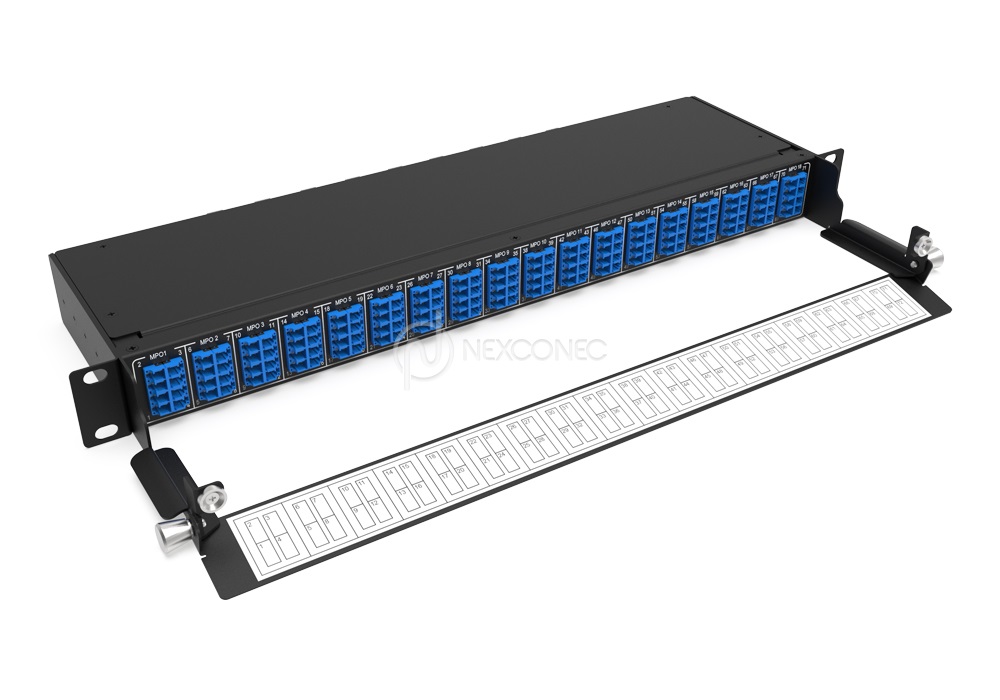

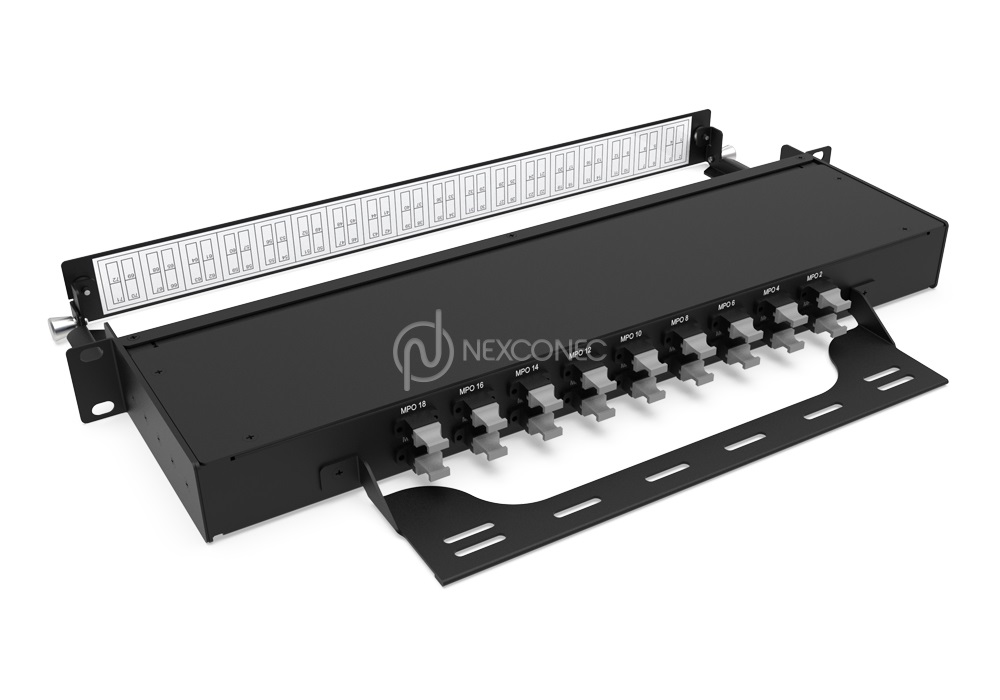

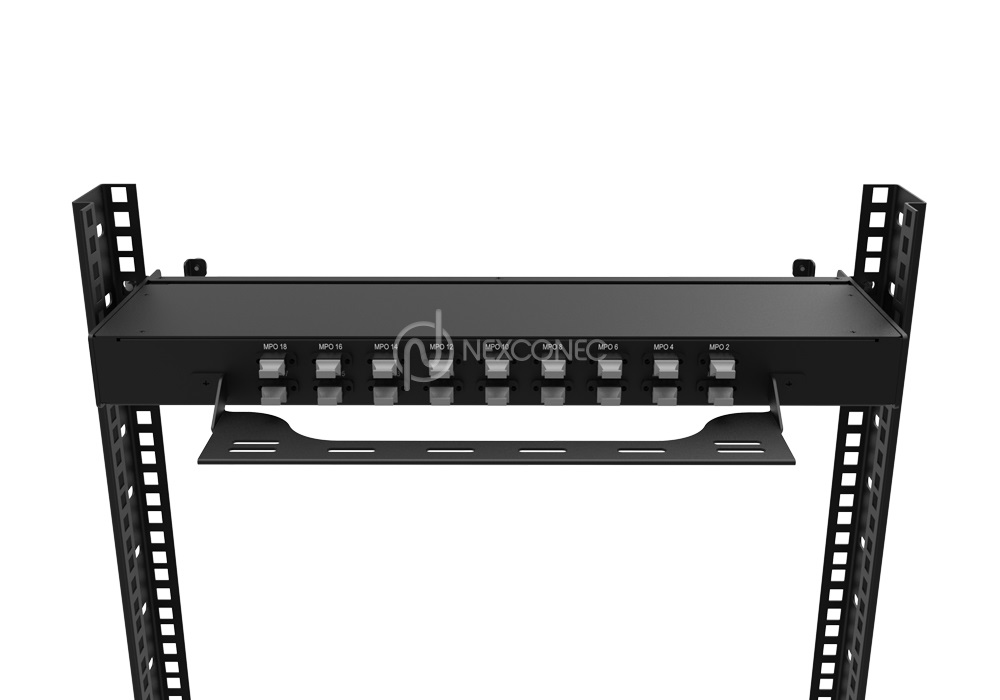

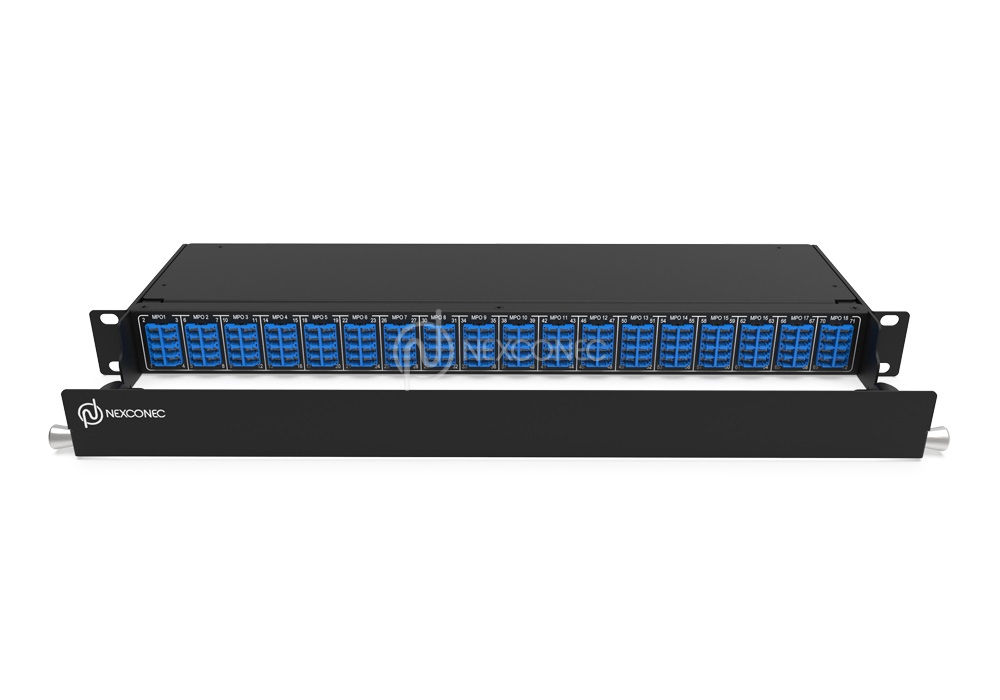

1U 144FO TRANSITION QSFP 40G TO SFP 10G BASE-8 BREAKOUT PANEL - QPF144xx

QPF144xx QPF144xx QPF144xx QPF144xx QPF144xx QPF144xx QPF144xx QPF144xx QPF144xx

NEXCONEC® High Density 144 Fibers 1U Breakout Fiber Patch Panel is designed to connect 40G QSFP ports with MTP®/MPO fiber cables, mapping to the back of the panel, then breaking out as 72x 10G on the front panel with LC fiber cables. The panel provides MPO and LC Premium terminations with remarkable low insertion losses, ensuring exceptional performance for high-speed networks with stringent low power budgets. All breakout panels meet the requirements of TIA/EIA, IEC standards.

PRODUCT HIGHLIGHTS
  • Up to 144FO with LC & 18x Base-8 MPO(Male) Elite connections on the back
  • Standard 19” Rack mounting type
  • Fixed panel with adjustable side brackets
  • Available in shuttered dust proof LC adapters
  • Flat and Angle option available
  • RoHS, REACH SvHC
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
FEATURES
  • Up to 144FO with LC and 18x Base-8 MPO(Male) Elite connections on the back
  • Standard 19” Rack mounting type
  • Fixed panel with adjustable side brackets
  • Easy front and rear access
  • Available in shuttered dust proof LC adapters
  • Flat and Angle option available
  • Easy rapid deployment
  • RoHS, REACH SvHC
APPLICATIONS
  • Datacenters, Premises installations, Enterprise networks
  • Indoor and data communication applications
  • Fiber Channel - Storage area network
  • Implementation in 40G/100G Networks
PERFORMANCE
Parameters Units SM MPO SM LC/SC MM MPO MM LC/SC
Avg/Max IL– Premium in dB dB ≤ 0.10/0.35 ≤ 0.12/0.15 ≤ 0.10/0.35 ≤ 0.12/0.15
Return Loss (PC/APC) dB ≥ 60 ≥ 60 NA NA
SPECIFICATIONS
Parameters Value
Mounting Type Rack 19”
Opening Type Fixed
Access Type Front and Rear access
Front Cable Management Front manager with Hinged drop-down door
Cable Entry Direction Rear
Rear Cable Management Cable manager bar
Number of Ports Front: 36x LC Quad
Rear: 18x MPO (Male) Base-8
Fiber Capacity 144FO in LC
Height Unit 1U
Dimensions (W x D x H in MM) 445.4 x 200 x 43.1 mm
Material Cold Rolled Steel & Stainless Steel
Housing Color Black
Compliance RoHS, REACH SvHC
Application Indoor IP20
Lockable No
Net Weight 3 Kg
Operating Temperature -20 ~ +60°C
Installation Temperature -20 ~ +60°C
Part Number Product Description
QPF144A1 1U 144F QSFP Breakout Flat Panel 18xMPO(M) Elite - LC Single mode OS2, Base-8

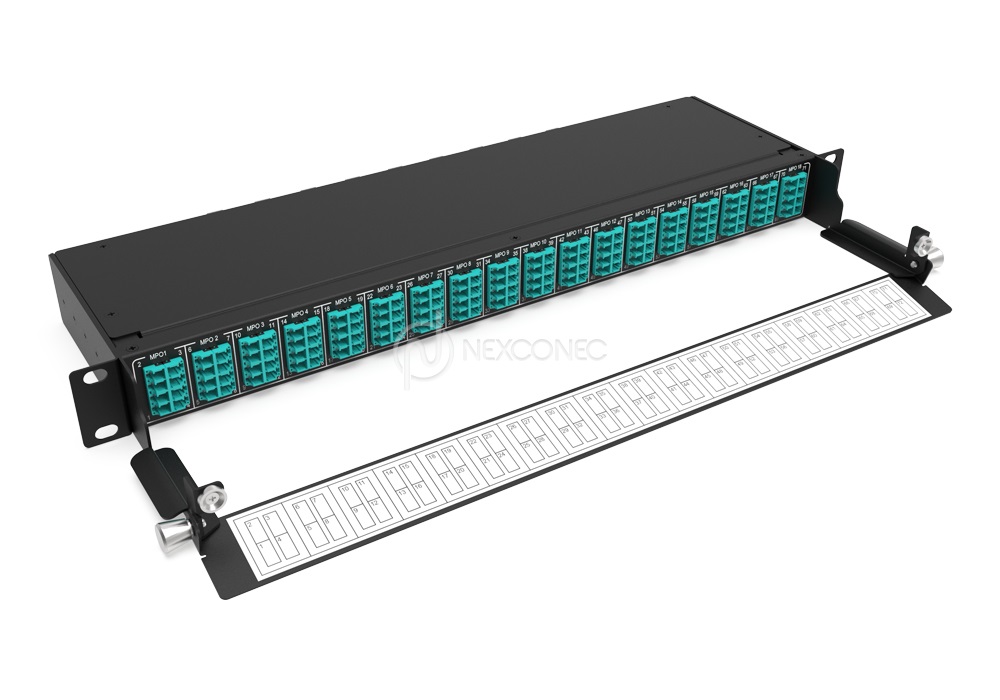

QPF144OM4 1U 144F QSFP Breakout Flat Panel 18xMPO(M) Elite - LC Multimode OM4, Base-8
