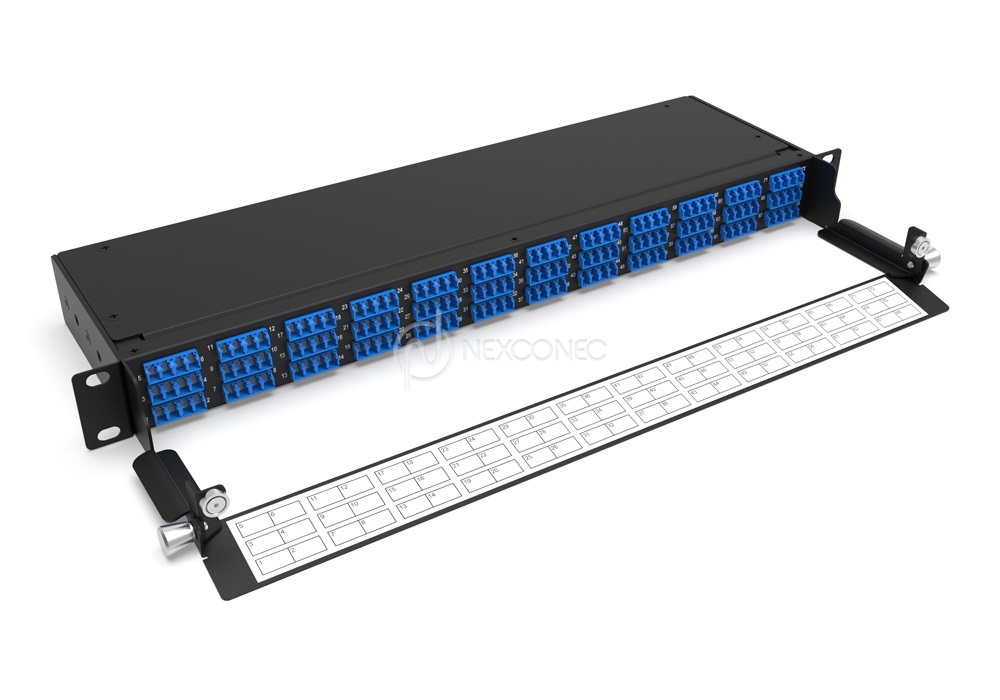

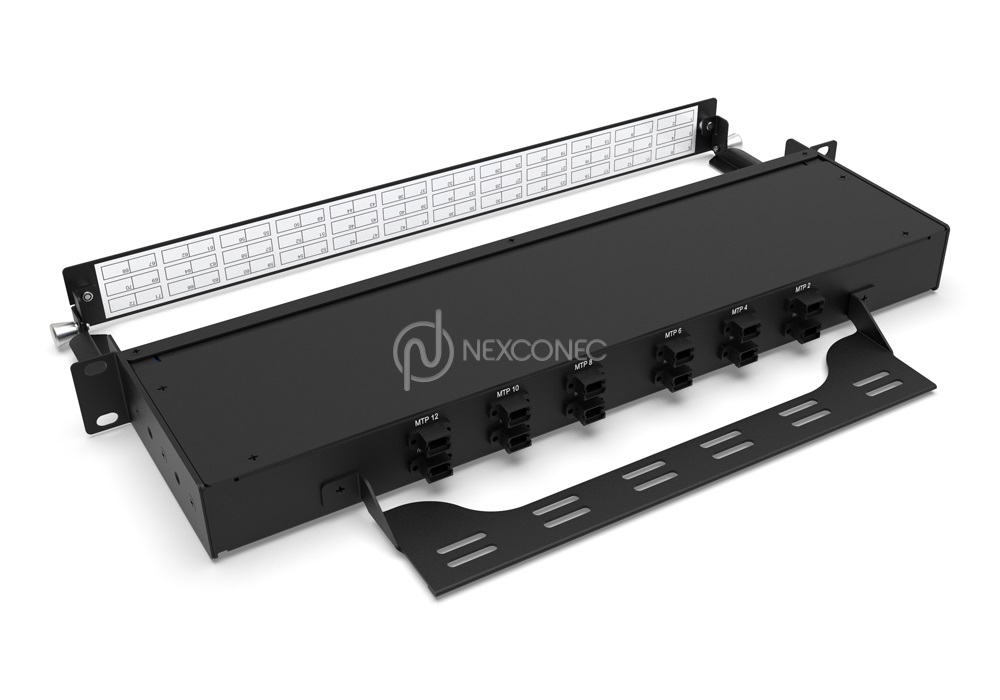

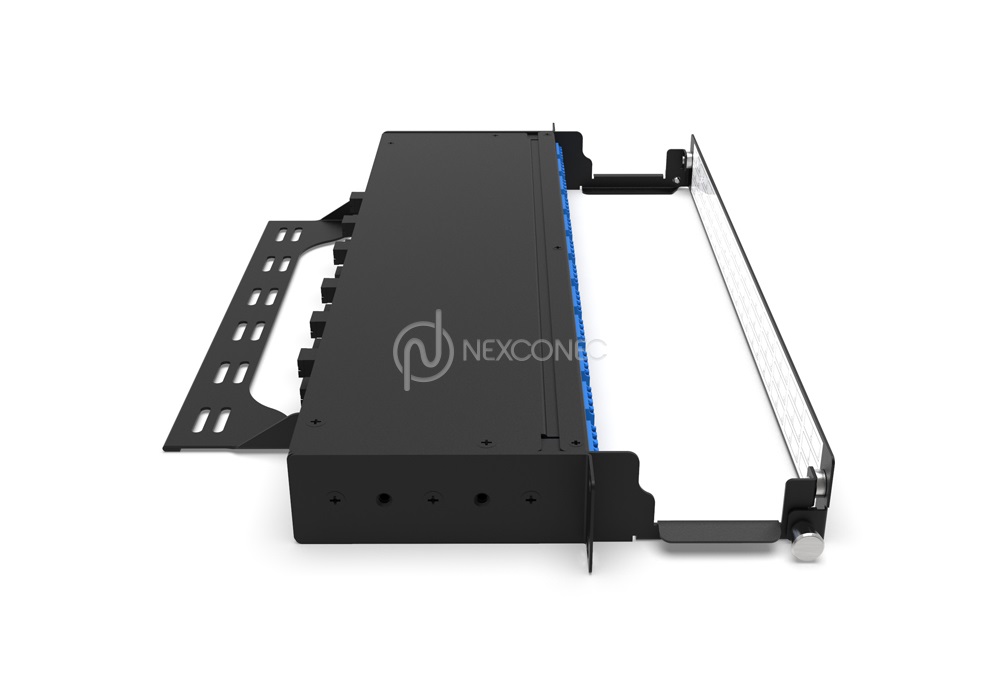

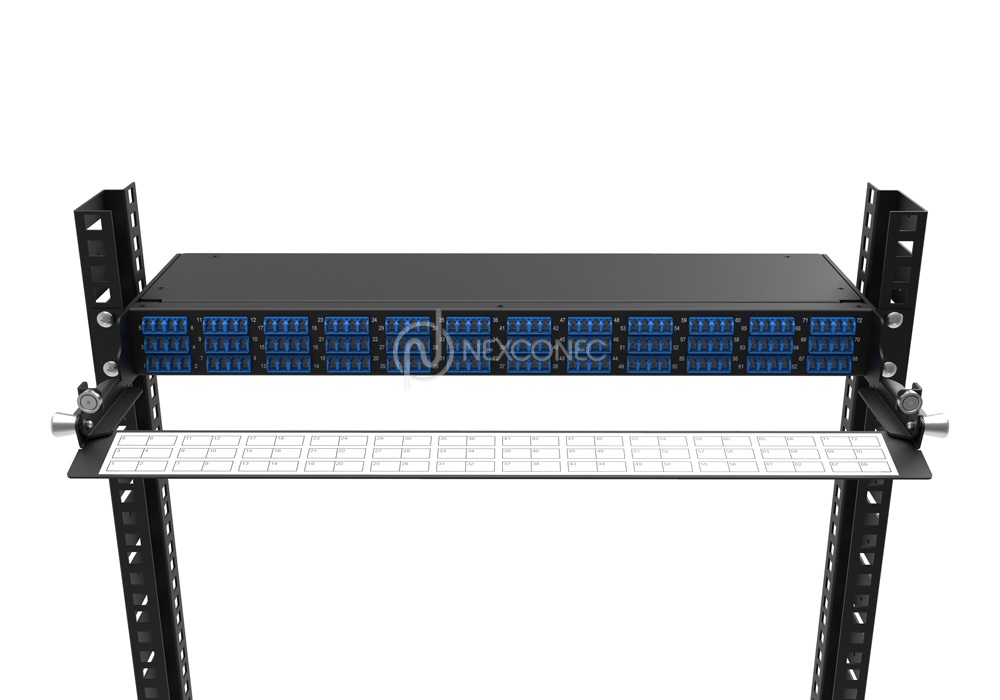

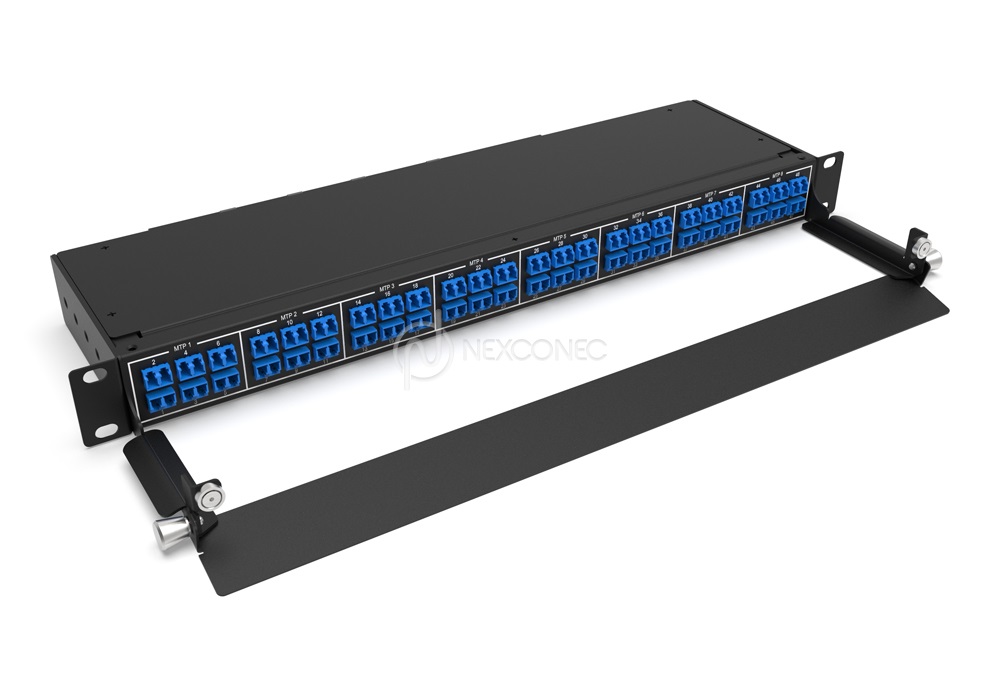

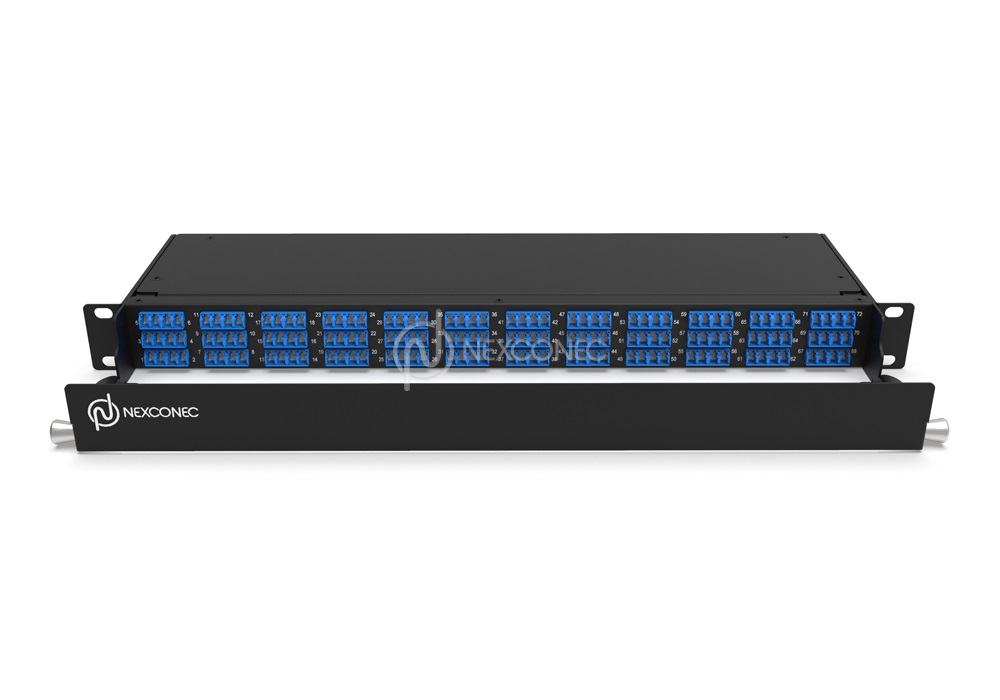

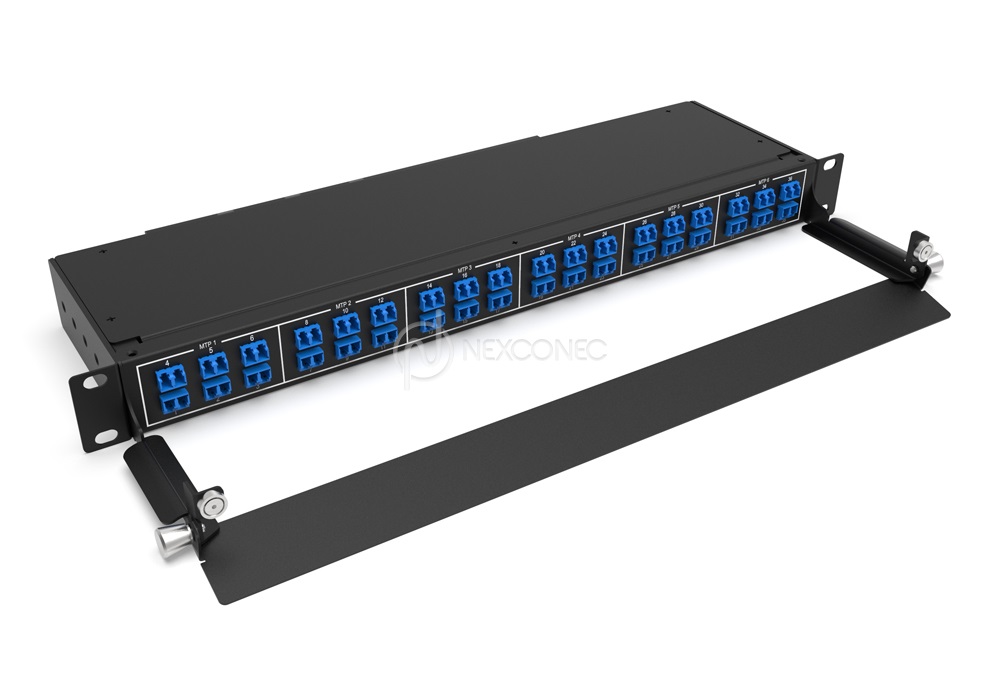

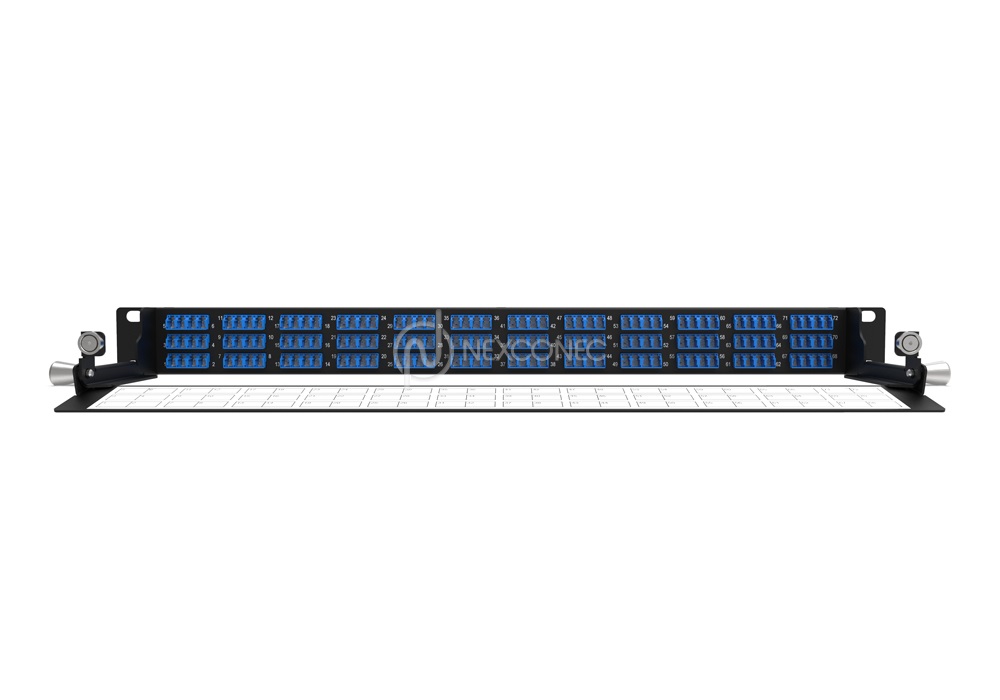

1U MPO-LC HIGH DENSITY BASE-12 BREAKOUT PATCH PANEL - PxxMOLCS

PxxMOLCS PxxMOLCS PxxMOLCS PxxMOLCS PxxMOLCS PxxMOLCS PxxMOLCS PxxMOLCS PxxMOLCS PxxMOLCS

Nexconec High Density MTP/MPO to LC breakout Patch Panel offers an expandable deployment, for implementations in 40G/100G networks, in the meantime, providing greater protection to the installed patch cords in main, horizontal and equipment area of data center. Up to 144 Fibers in only 1U space.

FEATURES AND APPLICATIONS
  • Standard 19” size, can be rack-mounted
  • Available in standard SM and MM options
  • Available with Elite MPO and premium LC connector only
  • RoHS, Reach and SvHC compliant
  • Compliant with IEC, TIA/EIA standards
  • Datacentre & Enterprise network
  • Indoor application
  • Telecommunication central office

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameter Value
Material Metal cold rolled with black powder coating
Max Fiber Capacity 144F MPO-LC in 1U
Dimension 490 x 303 x 44mm
Net Weight 2.94 Kg
Gross Weight 3.14 Kg
Insertion loss – MPO(male) Elite SM – 0.35 dB; MM – 0.35 dB
Insertion loss – LC premium SM – 0.15 dB; MM – 0.15 dB
Return Loss – MPO(male) Elite SM >60 dB; MM – NA
Return loss – LC premium SM (PC/APC) >55/65 dB; MM – NA
Opening Type Fixed
Access Type Front access

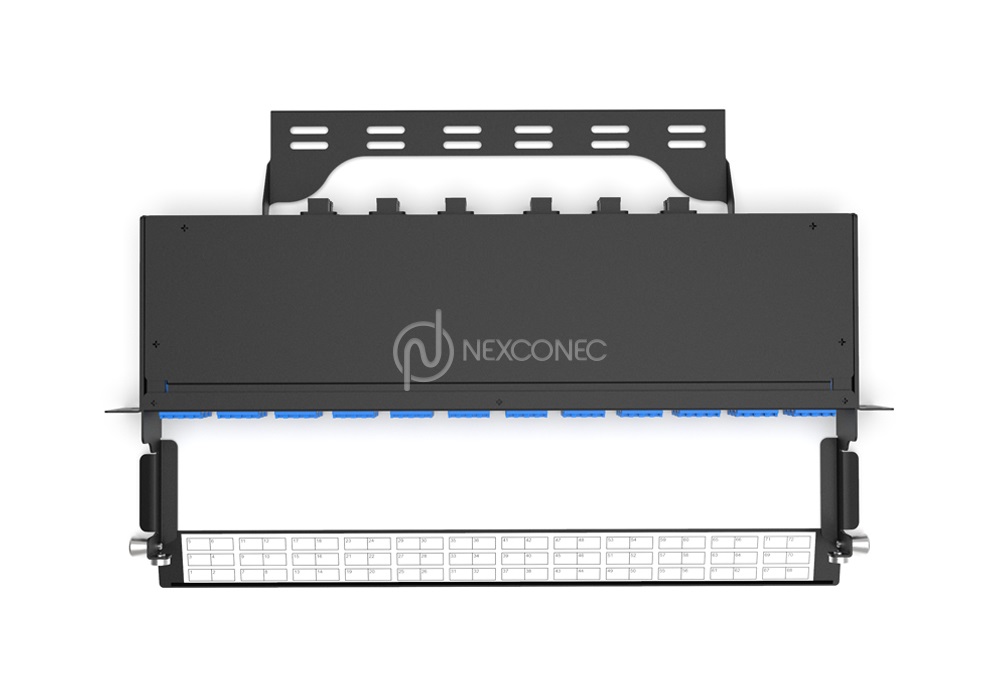

Front Cable Management Removable hinged door
Cable Entry Direction Rear

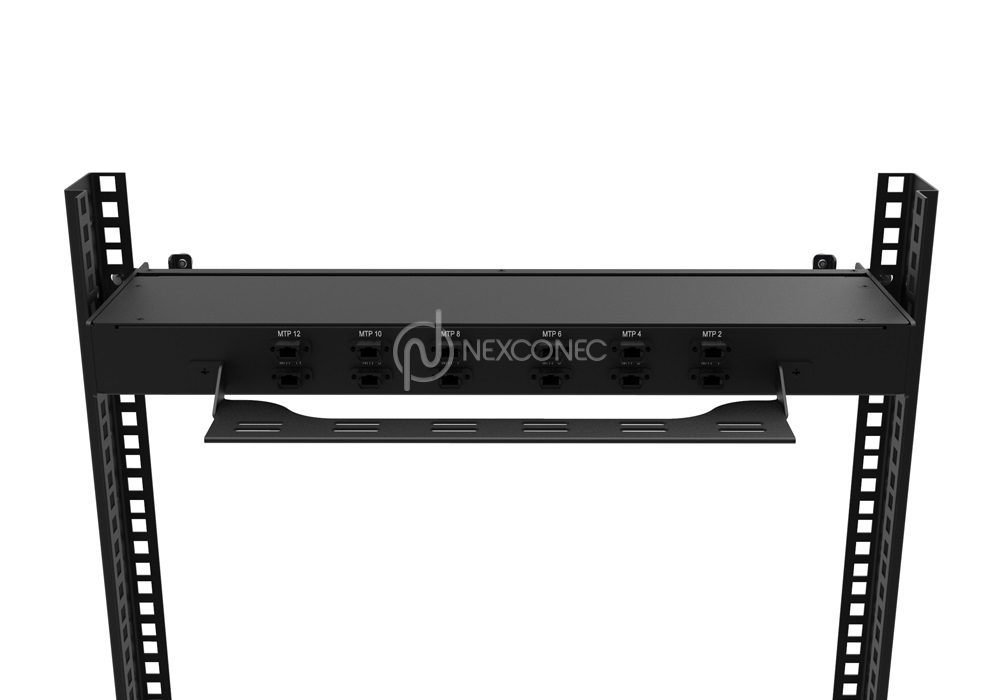

Rear Cable Management Support bar
Front Adapter Type LC Duplex
Rear Adapter Type MTP/MPO-12 Male (pinned)
Fibre Capacity Up to 144 in LC
Fiber Mapping Polarity A
Part Number Product Description
P72MOLCS 1U HD PANEL 6xMPO(M) ELITE-LC 72FO SM G657A1
P72MOLCM 1U HD PANEL 6xMPO(M) ELITE-LC 72FO Multimode OM3/OM4, Pol A/C Base-12
P96MOLCS 1U HD PANEL 8xMPO(M) ELITE-LC 96FO SM G657A1
P96MOLCM 1U HD PANEL 8xMPO(M) ELITE-LC 96FO Multimode OM3/OM4, Pol A/C Base-12
P144MOLCS 1U HD PANEL 12xMPO(M) ELITE-LC 144FO SM G657A1
P144MOLCM 1U HD PANEL 12xMPO(M) ELITE-LC 144FO Multimode OM3/OM4, Pol A/C Base-12
