1U 96FO TRANSITION QSFP 40G TO SFP 10G BASE-8 BREAKOUT PANEL - QPF96xx

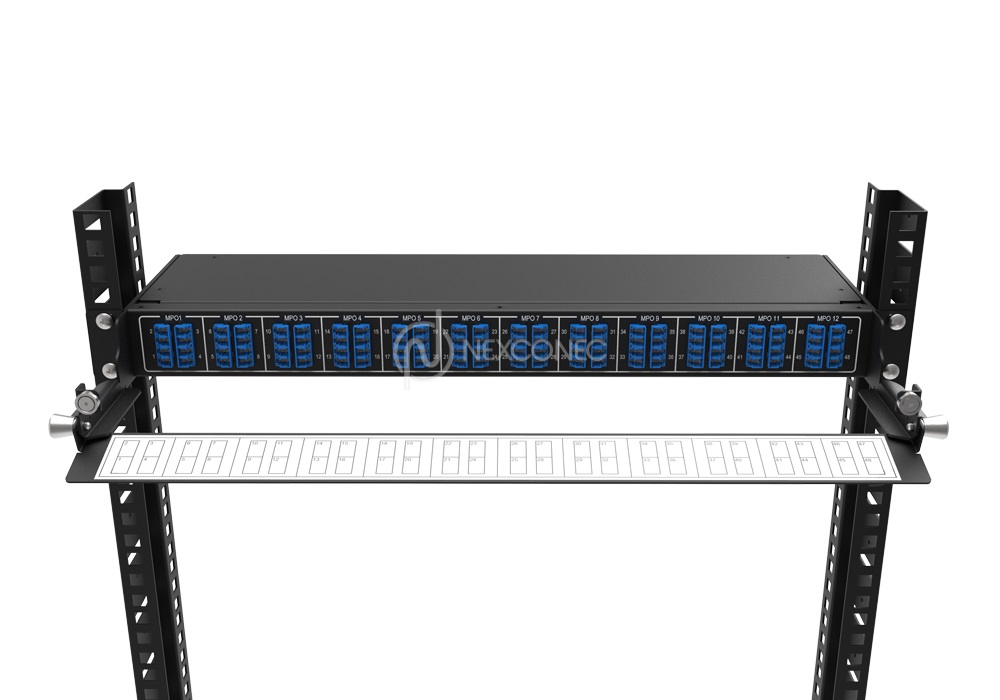

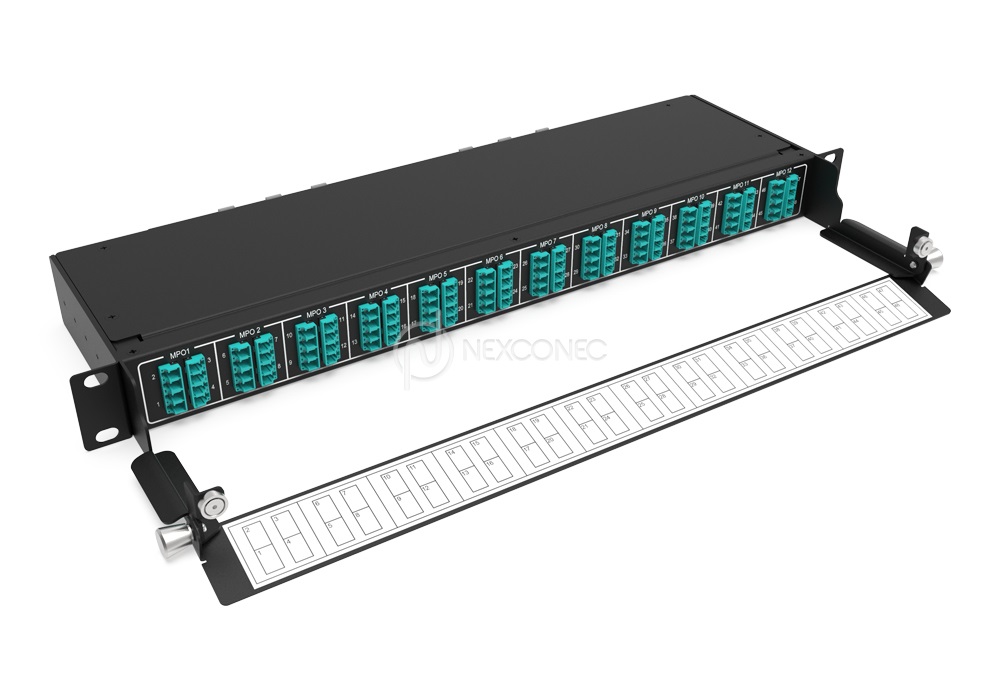

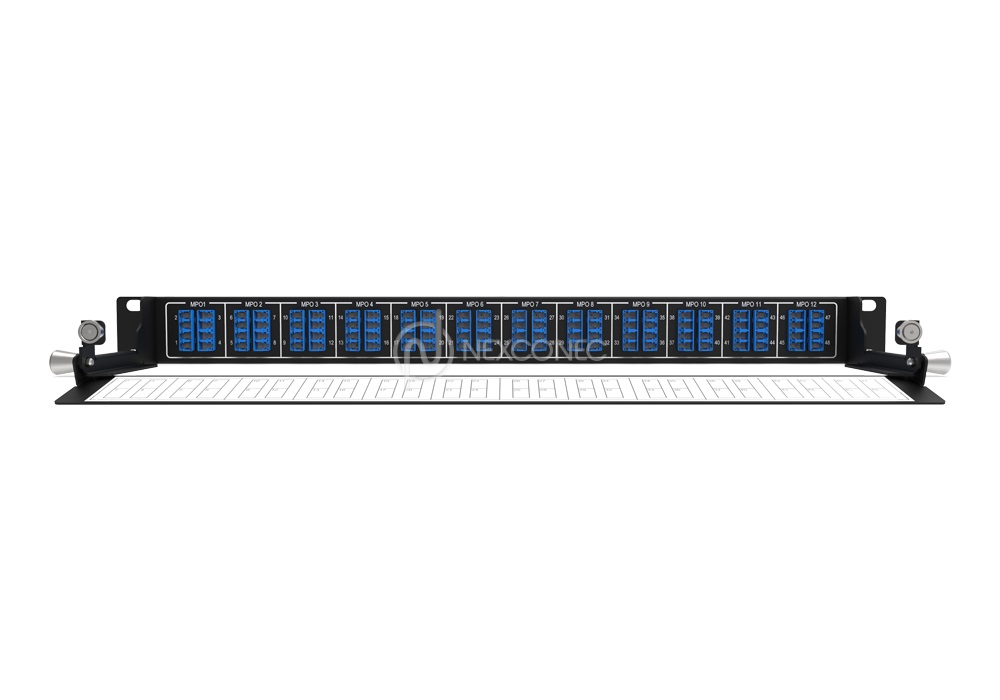

Nexconec High Density 96 Fibers 1U Breakout Fiber Patch Panel is designed to connect 40G QSFP ports with MTP/MPO fiber cables, mapping to the back of the panel, then breaking out as 48x 10G on the front panel with LC fiber cables. All breakout panels meet the requirements of TIA/EIA, IEC standards.
FEATURES AND APPLICATIONS
- Up to 96FO with LC and 12 MPO(Male) Elite connections on the back
- Fixed panel with adjustable side brackets
- Easy front and rear access
- Flat and Angle option available
- Datacentre & Enterprise network
- Indoor application
- Implementation in 40G/100G Networks
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| FIBER MAPPING.pdf |
View | Download |
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Height Unit | 1U |
| Material | Cold rolled steel & Stainless Steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Dimensions (W x D x H in MM) | 445.4 x 297.9 x 43.1 |
| Net Weight | 2.94 Kg |
| Gross Weight | 3.14 Kg |
| Operating Temperature | -20~+60°C |
| Opening Type | Fixed |
|---|---|

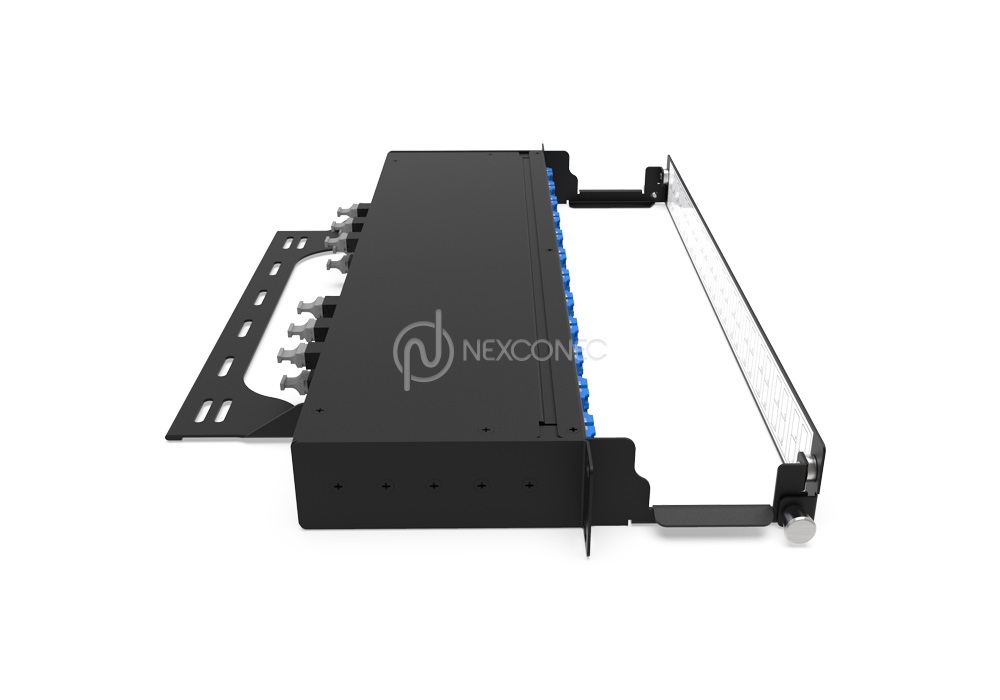

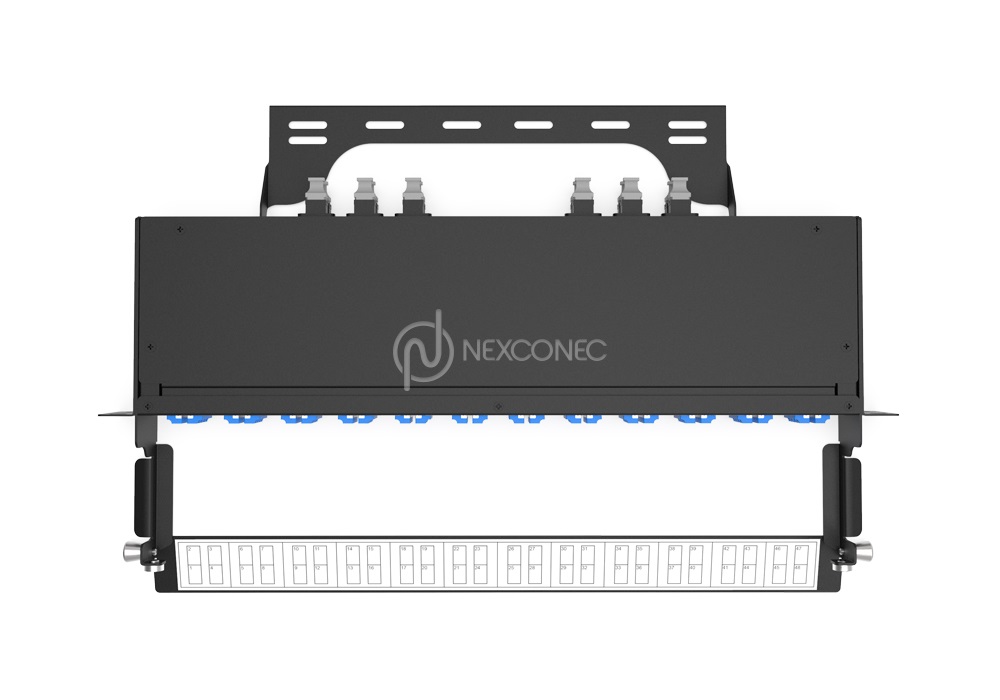

| Front Cable Management | Removable front door |
| Cable Entry Direction | Rear |

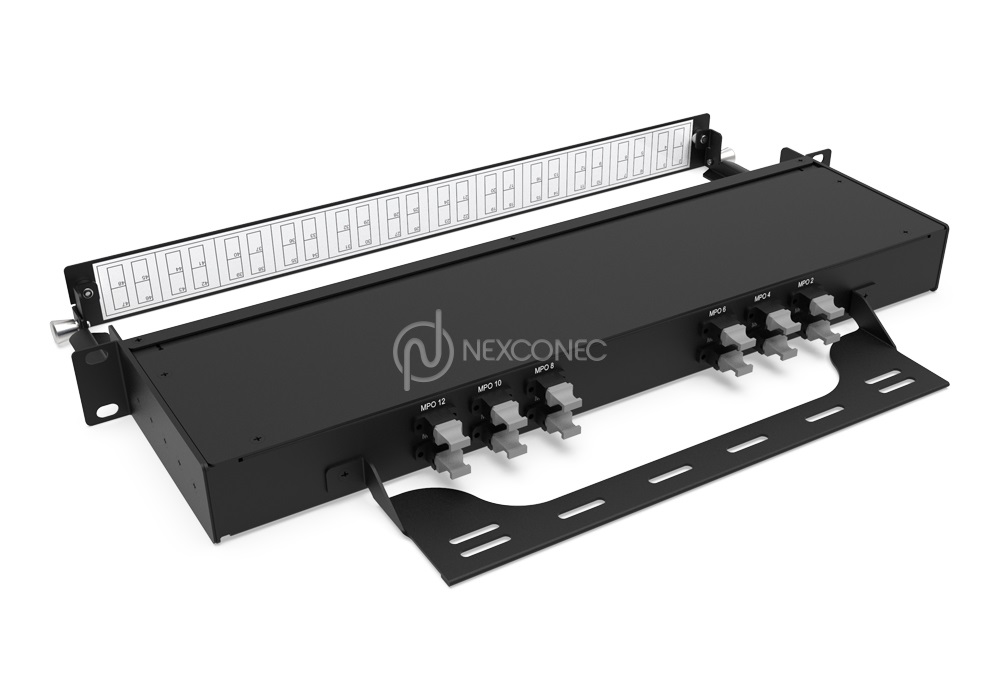

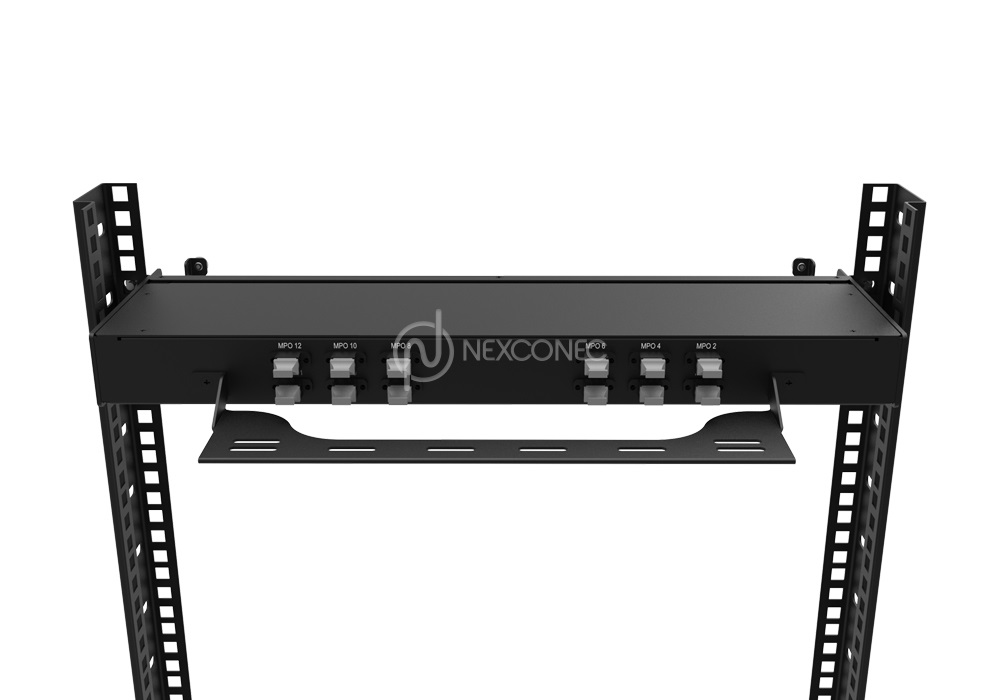

| Rear Cable Management | Cable Manager |
| Fibre Capacity | 12 MPO Male on the rear and 96F LC in the front |
| Parameters | Units | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL– Premium in dB | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return loss (PC/APC) | dB | ≥ 60 | ≥ 60 | NA | NA |
| Part Number | Product Description |
|---|---|
| QPF96A1 | 1U 96F QSFP BREAKOUT FLAT PANEL 12xMPO(M) Elite - LC Singlemode OS2 , Base-8 |
| QPF96OM4 | 1U 96F QSFP BREAKOUT FLAT PANEL 12xMPO(M) Elite - LC MM OM4, Base-8 |
