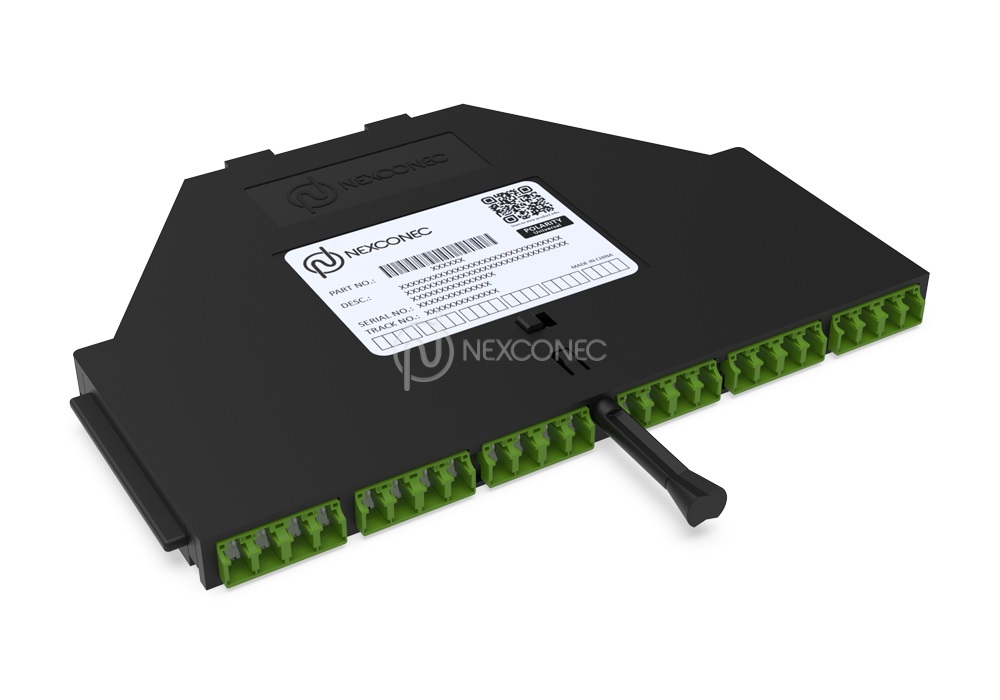

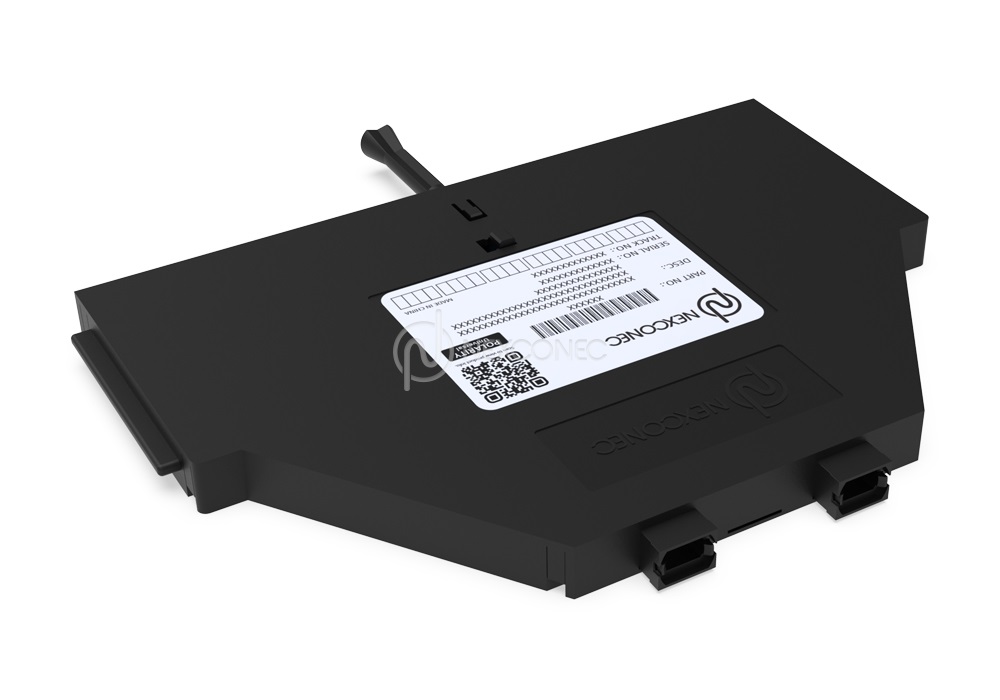

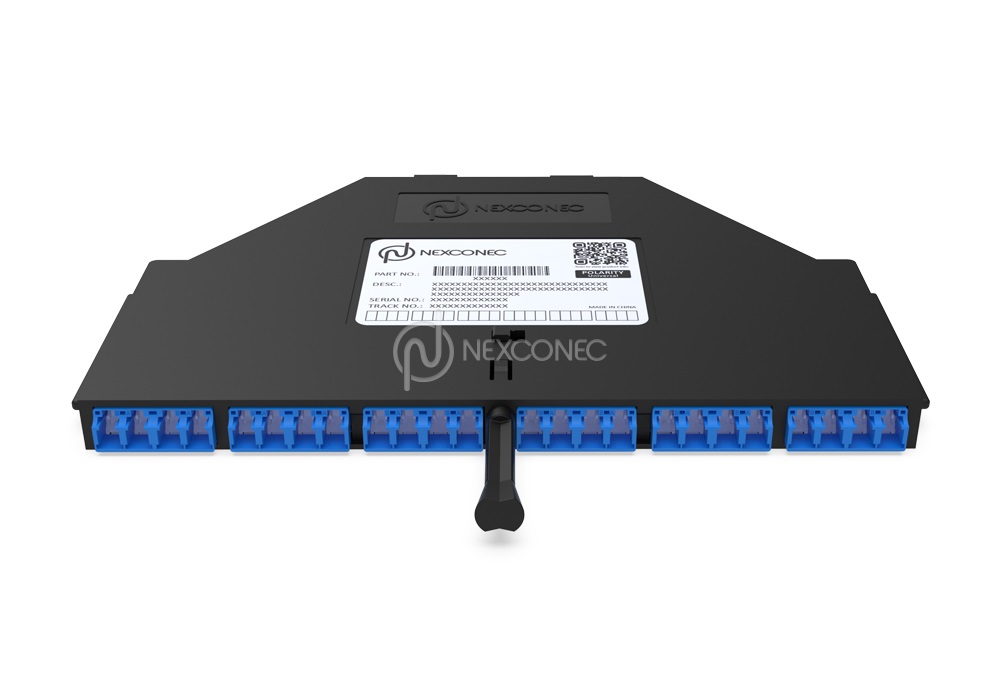

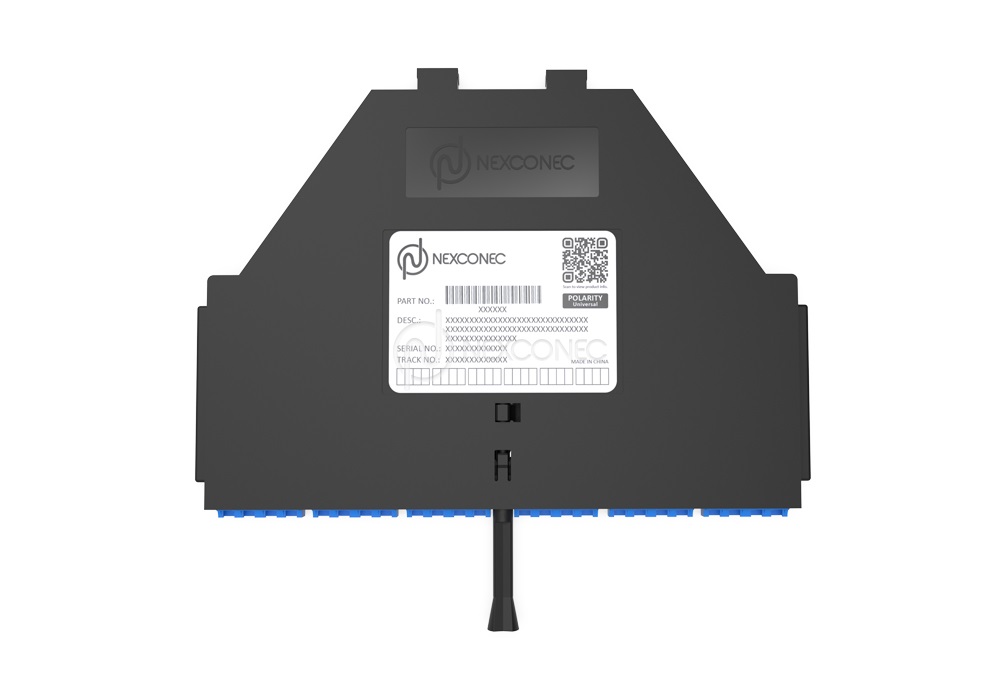

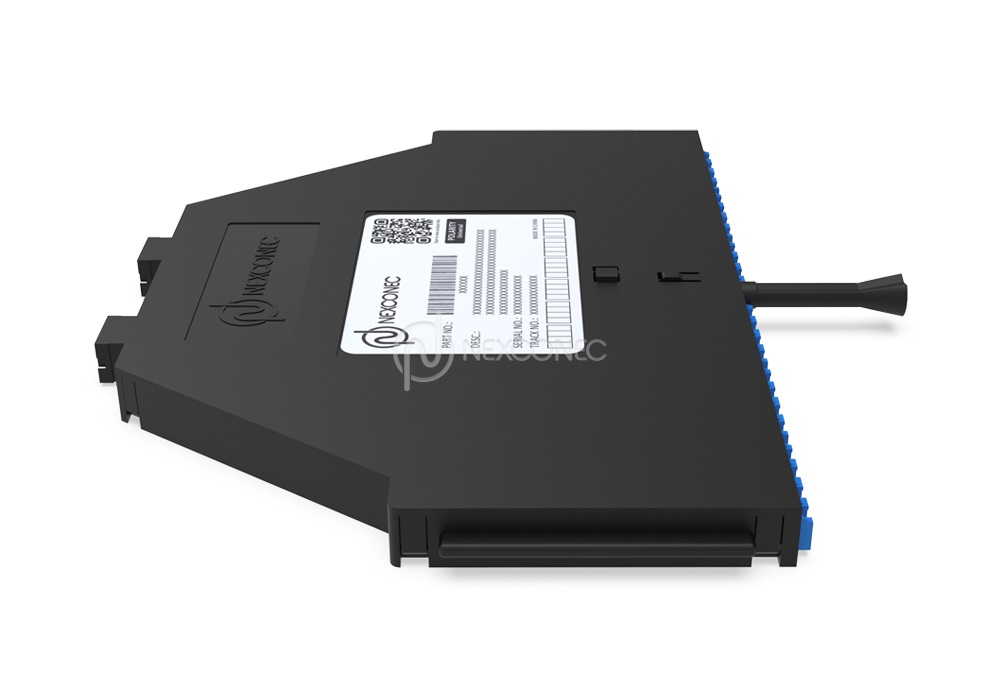

NGX CASSETTE MTP®/MPO (Type-B) - NGXCAxxU
The NEXCONEC® NGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144FO.
The cassettes eliminate the need for splicing, reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater to the customer’s power budget requirements.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 12, and 24 fiber count
- Polarity B as per TIA/EIA-568-C.3 with Alpha/Beta cassettes
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 12, and 24 fiber count
- Polarity B as per TIA/EIA-568-C.3 with Alpha/Beta cassettes
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant PC+ABS material
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | NGX |
| Dimensions (WxDxH) | 191.20 x 130 x 12.60 mm |
| Material | PC+ABS |
| Housing Color | Black |
| Application | NGX Panels |
| Fiber Capacity | Up to 24FO |
| Front Adapter Type | 6x LC Quad |
| Rear Adapter Type | 2x MTP®/MPO Base-12 |
| Polarity | Polarity B as per TIA/EIA-568-C.3 with Alpha/Beta cassettes (Universal) |
| Compliance | RoHS, REACH & SvHC |
| Operating Temperature | -10 ~ +60°C |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| NGXCA01U | NGX Module MPO (ELITE) M-LC/UPC Premium 24FO SMF OS2 Polarity B (Universal) |
| NGXCA02U | NGX Module MPO (ELITE) M-LC/APC Premium 24FO SMF OS2 Polarity B (Universal) |
| NGXCA03U | NGX Module MPO (ELITE) M-LC Premium 24FO MM OM3/4 Polarity B (Universal) |
| NGXCA07U | NGX Module MPO (ELITE) M-LC Premium 24FO MM OM5 Polarity B (Universal) |
