1U NGX Hybrid Fiber & Copper Modular Panel – NGXPP03

NGXPP03 NGXPP03 NGXPP03 NGXPP03 NGXPP03 NGXPP03 NGXPP03 NGXPP03 NGXPP03 NGXPP03

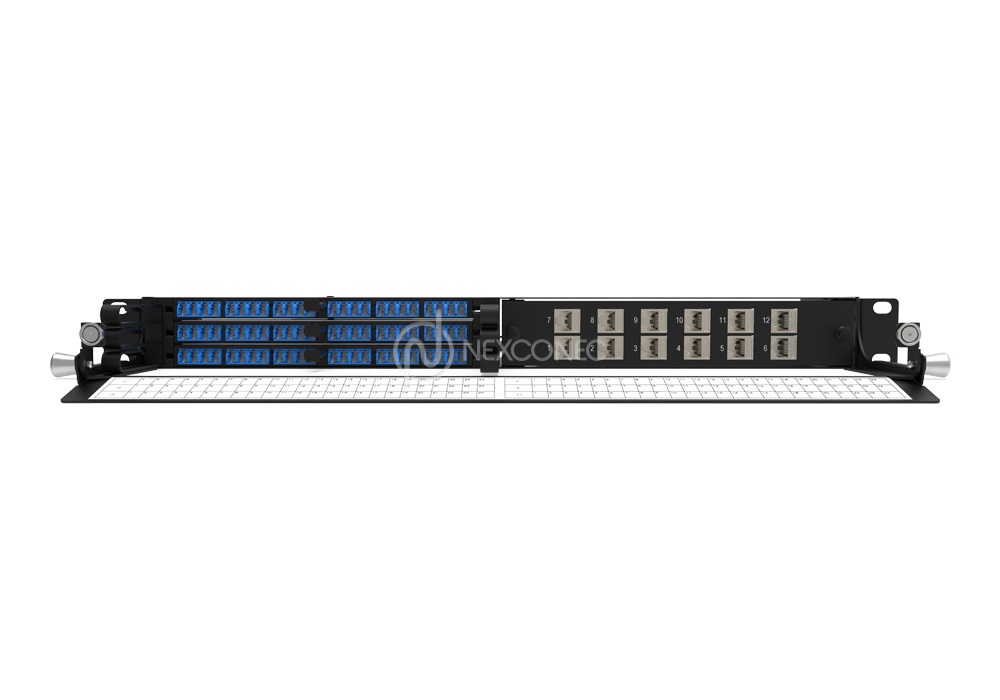

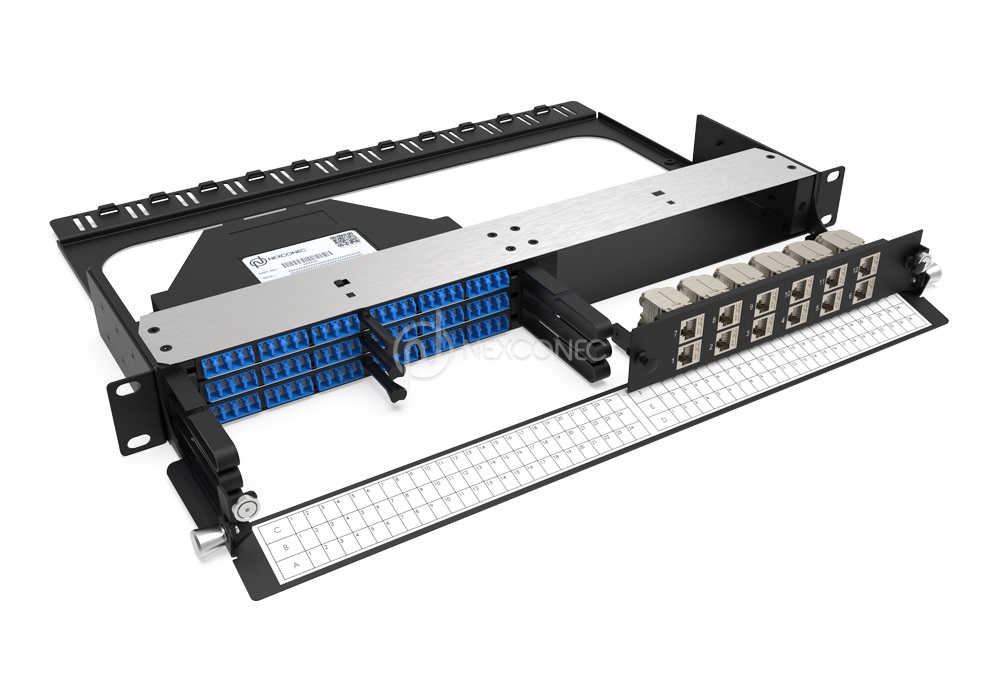

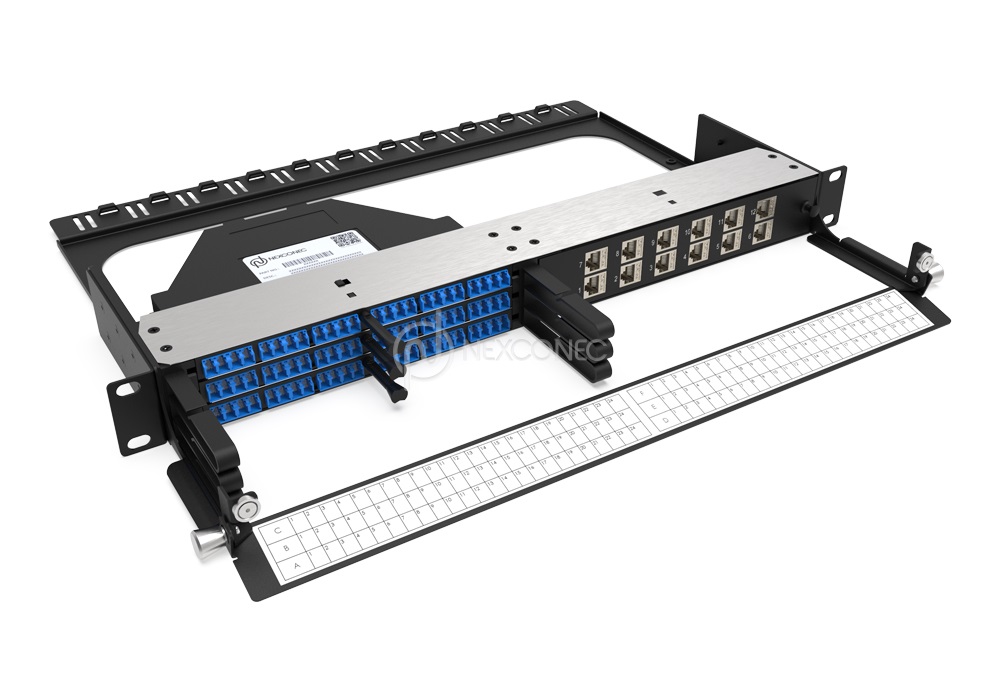

Nexconec NGX High-Density Frame accepts up to 3 NGX Modules for a total of 72FO with LC configuration and 12 Keystone jacks. Modular Fiber panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Copper module available with Cat6, Cat6A Shielded & Unshielded.

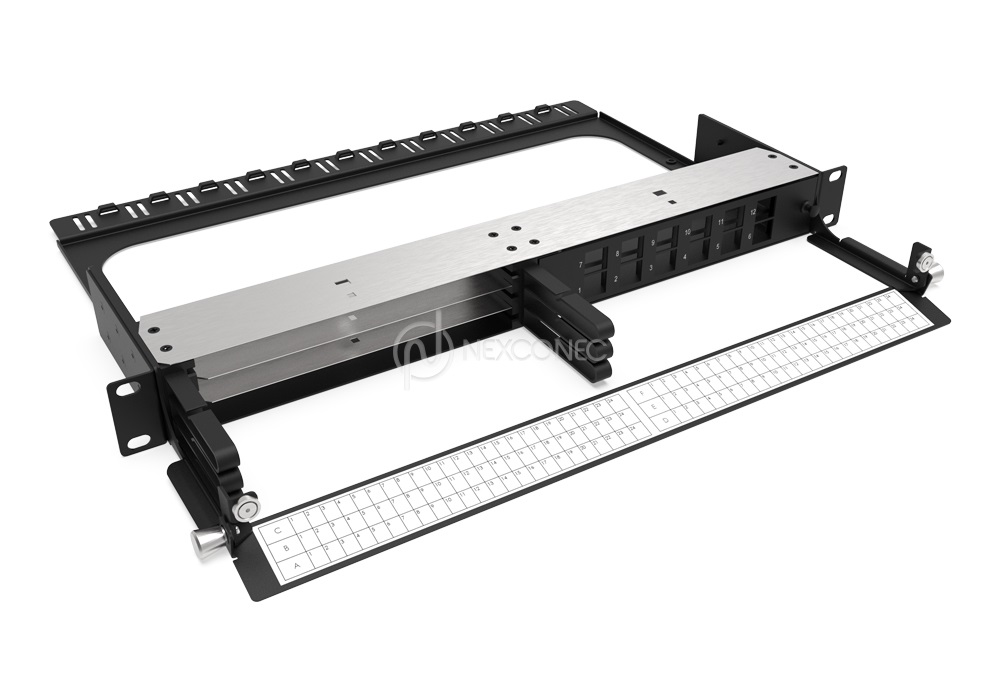

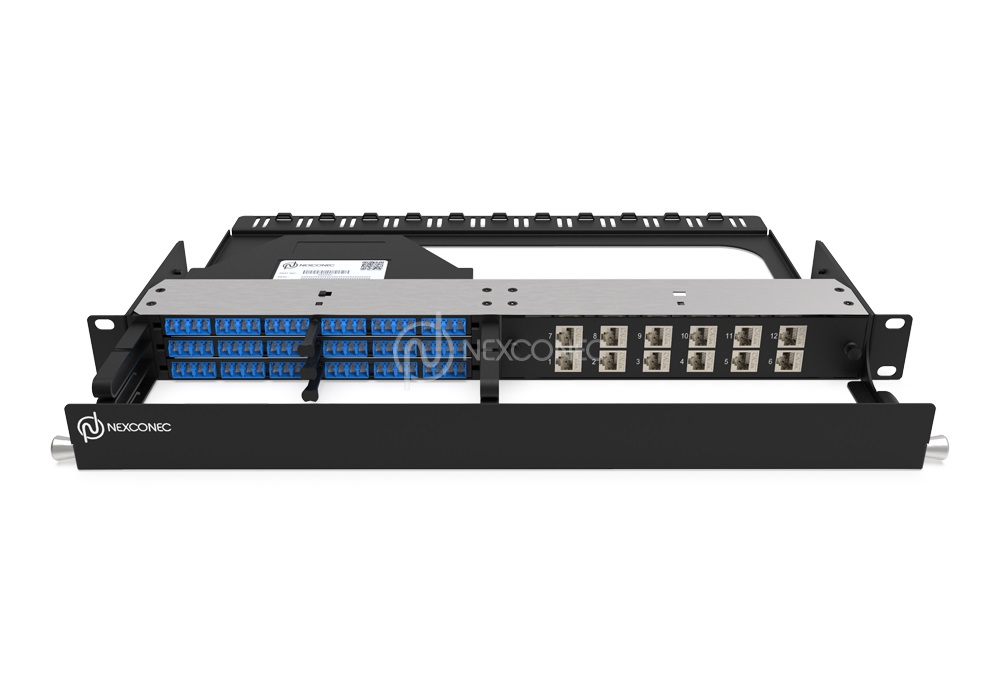

Easy front access with cable manager and removable hinged door, which provides protection of the patch cords as well as labelling. The NGX panels are supplied unloaded and the modules and plates supplied separately.

FEATURES AND APPLICATIONS
  • 3 Fiber slots NGX in 1U space
  • Up to 72FO with LC
  • Up to 12 Keystones Jacks 6/6A UTP & STP
  • Modular Fiber connectivity with MTP/MPO, Splicing, Direct Patching, Pre-terminated module

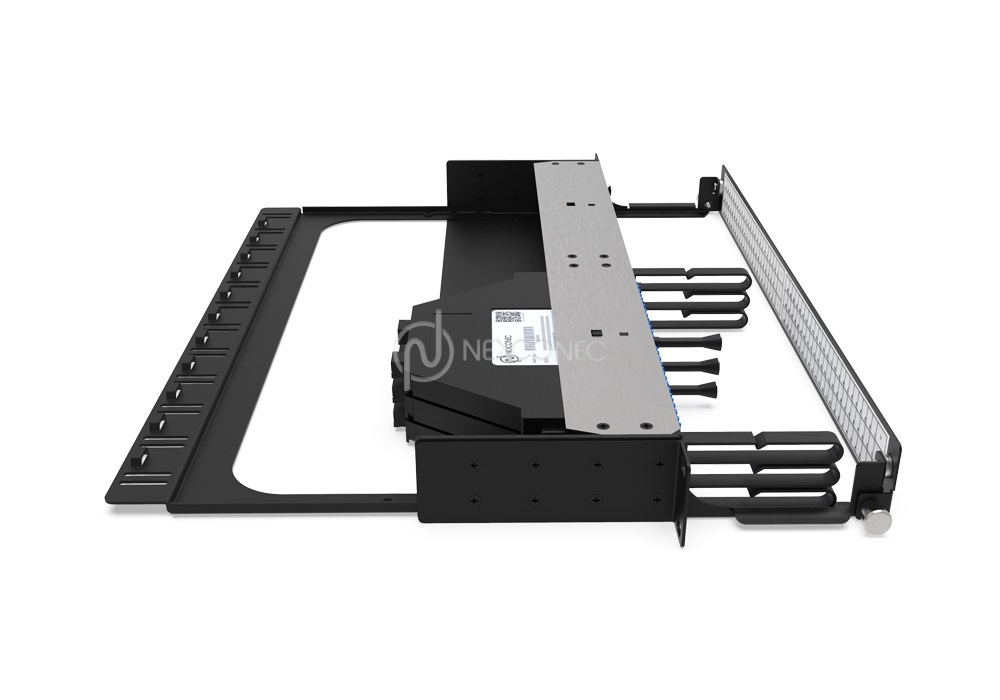

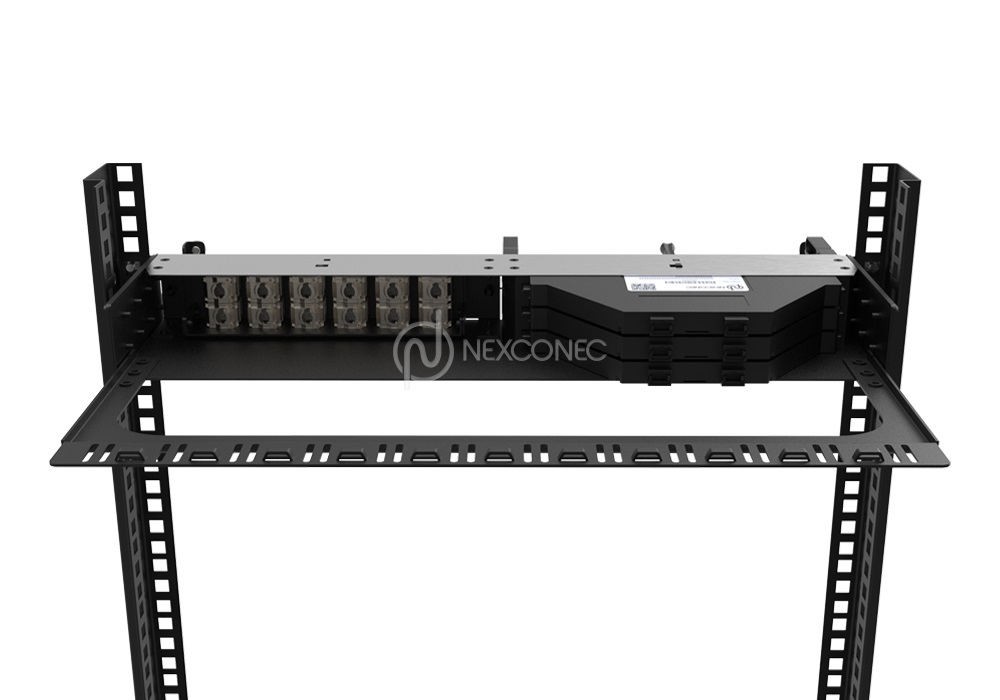

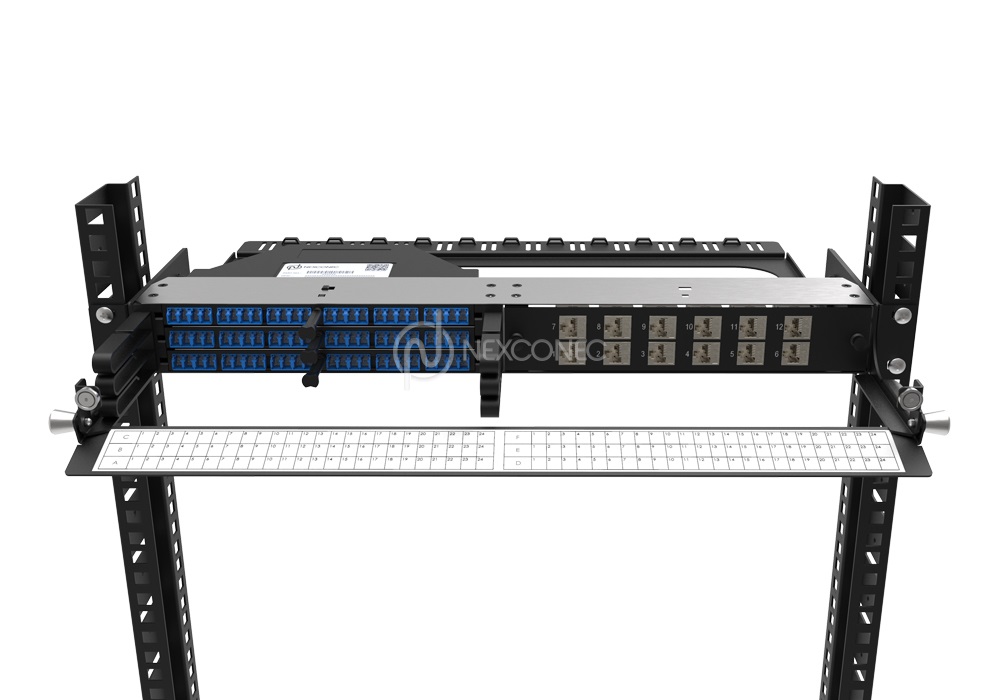

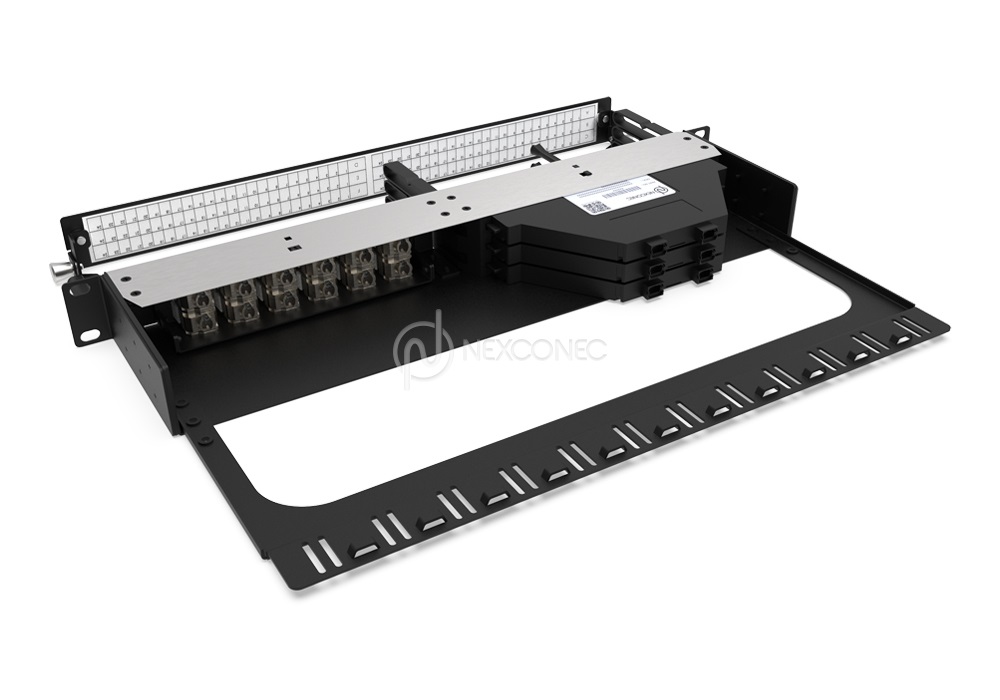

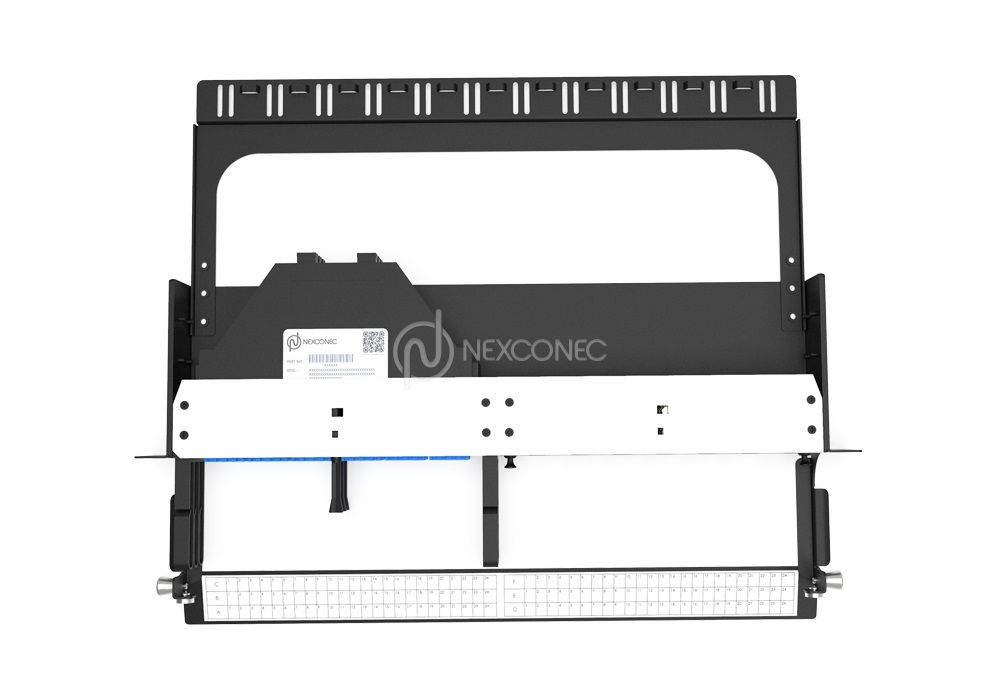

  • Open chassis free access module installation with front and rear access
  • Datacenter & Enterprise network
  • Indoor application
  • Accepts Indoor and Outdoor Cables
  • Patent pending

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Mounting Type Rack 19”
Height Unit 1U
Material Cold rolled steel & Stainless Steel
Housing Color Black & Silver
Application Indoor IP20
Dimensions (W x D x H in MM) 485 x 365.4 x 44
Net Weight 5KG
Opening Type Fixed Tray
Access Type Front & Rear loading of modules
Front Cable Management Hinged drop down door
Cable Entry Direction Removable rear manager
Rear Cable Management Cable manager
Slot Type NGX Modules
Number of Slots 3 NGX Fiber Module / 12Ports Keystone Jacks
Fiber Capacity 72 in LC
Part Number Product Description
NGXPP03 1U 6 Slots NGX Hybrid Modular Patch Panel Unloaded
