1U NGX HD Angled Modular Panel (up to 144FO) - NGXPP02

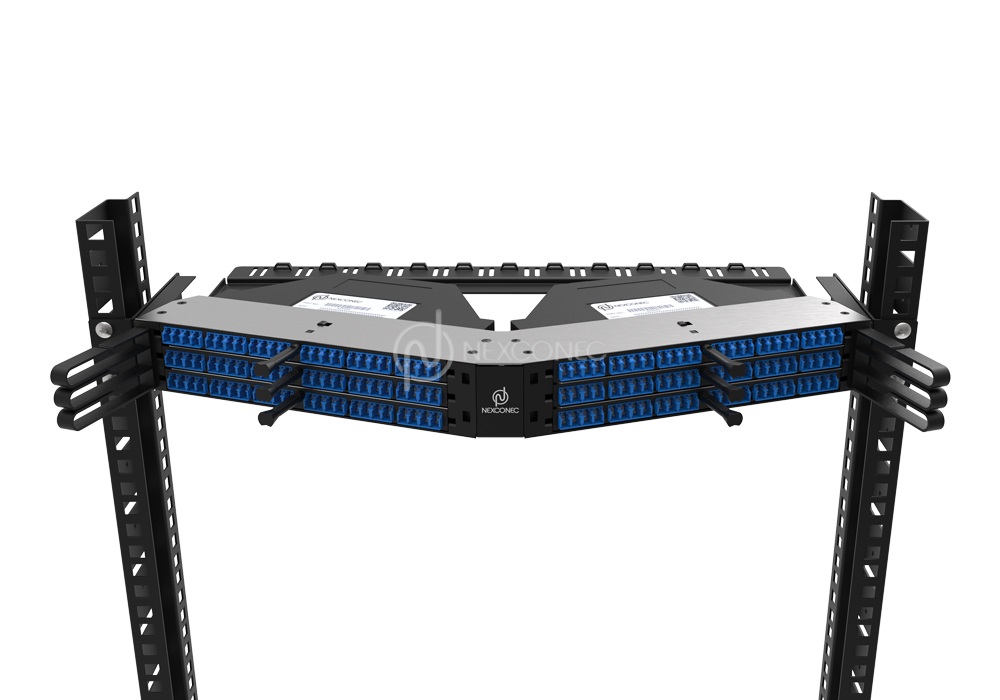

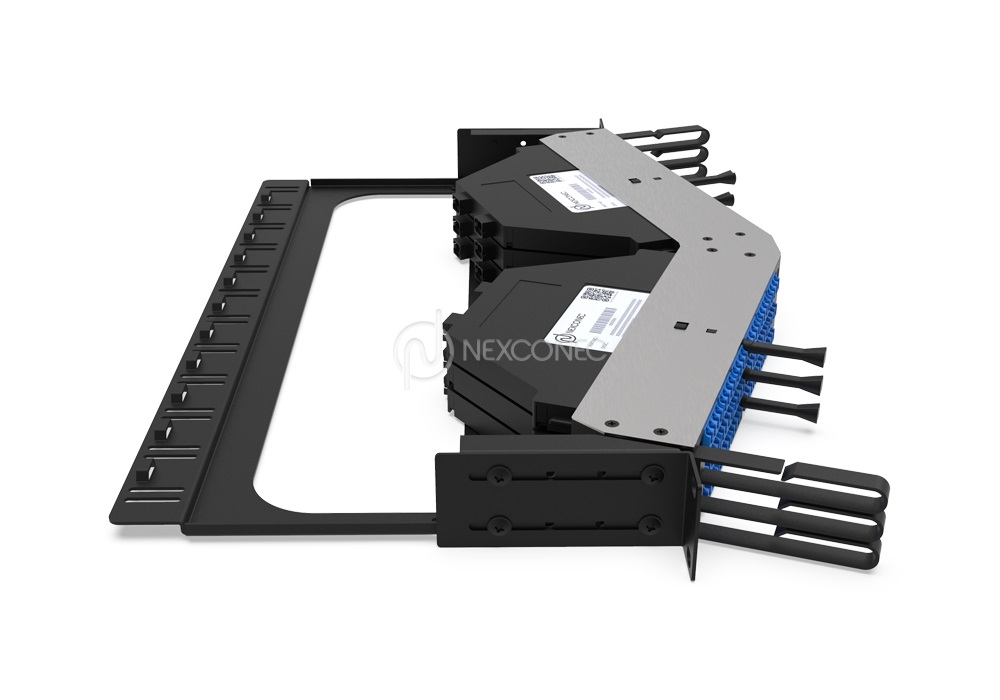

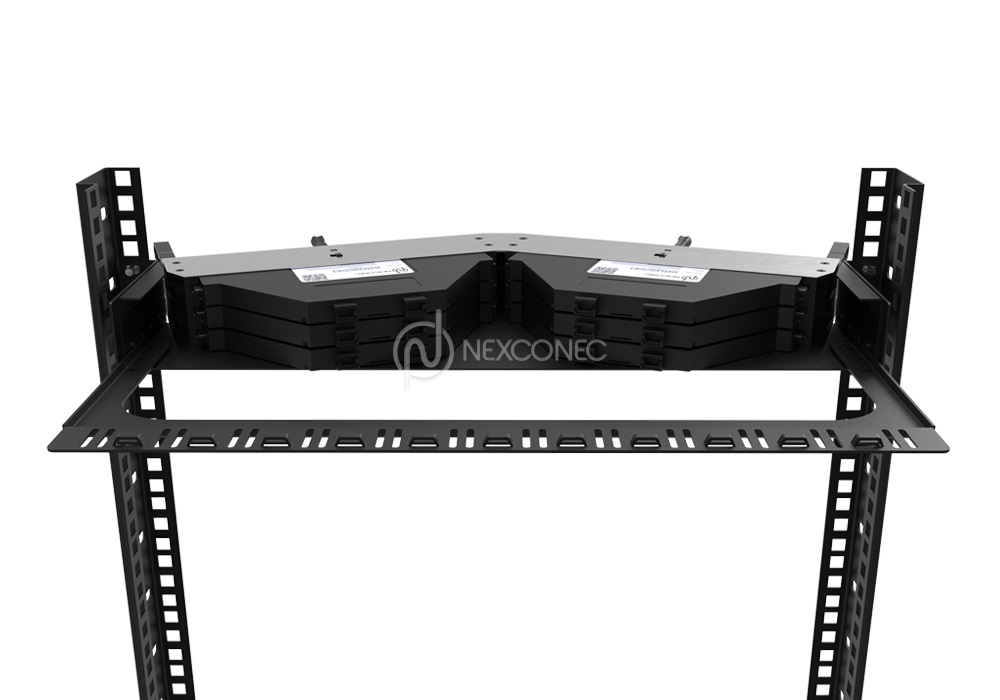

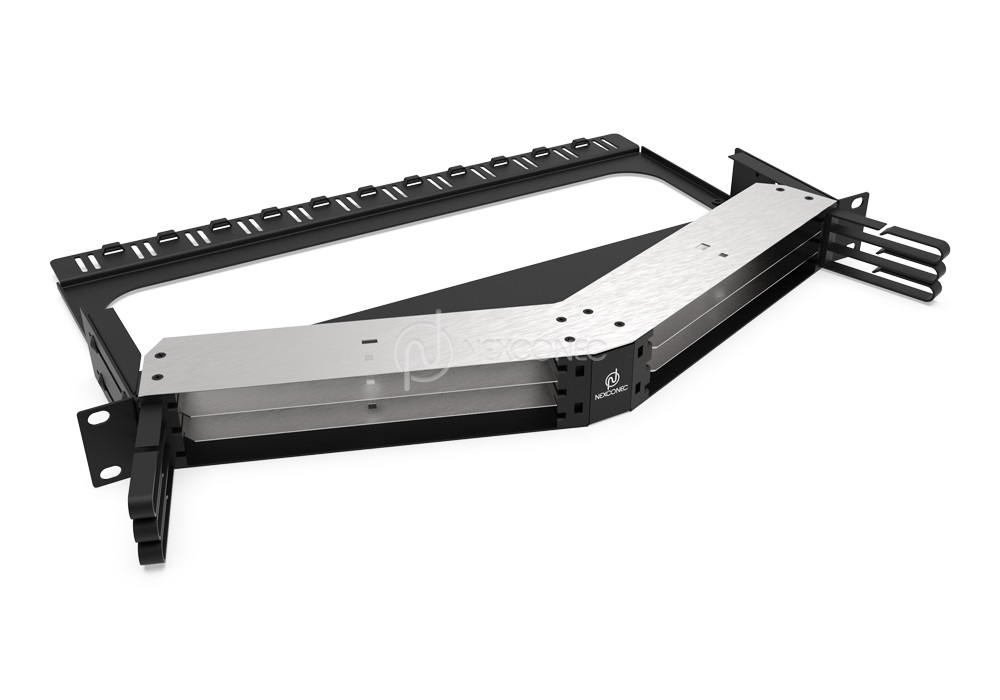

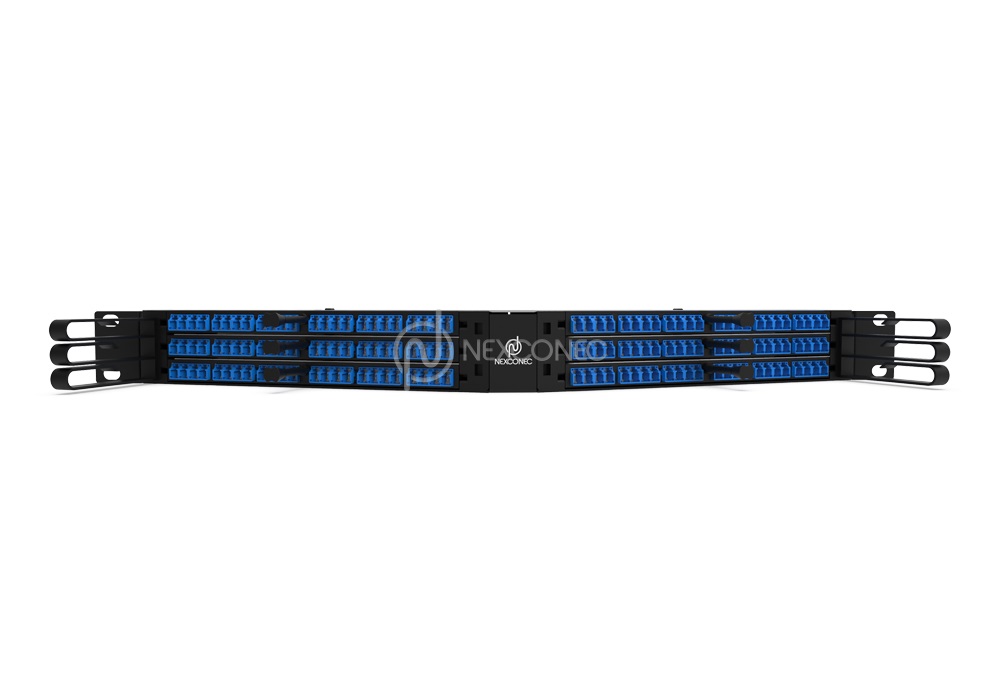

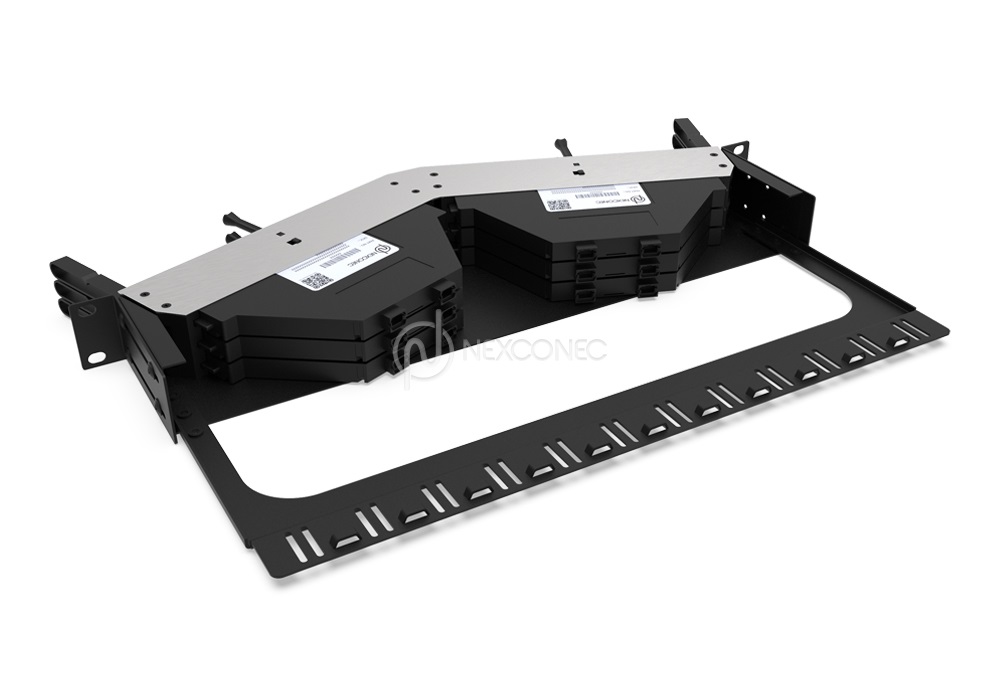

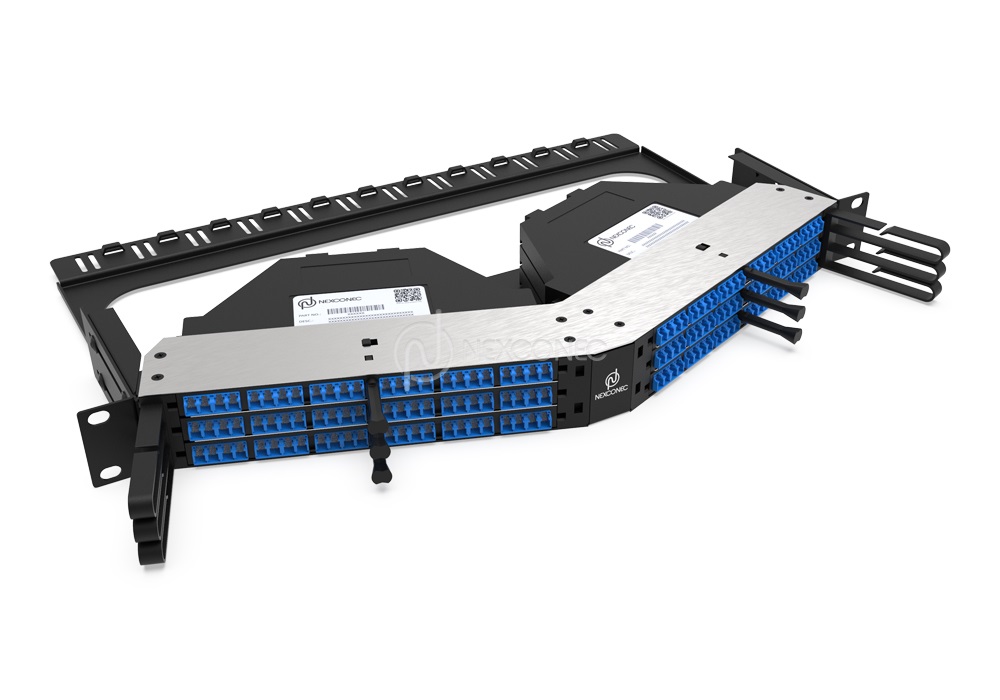

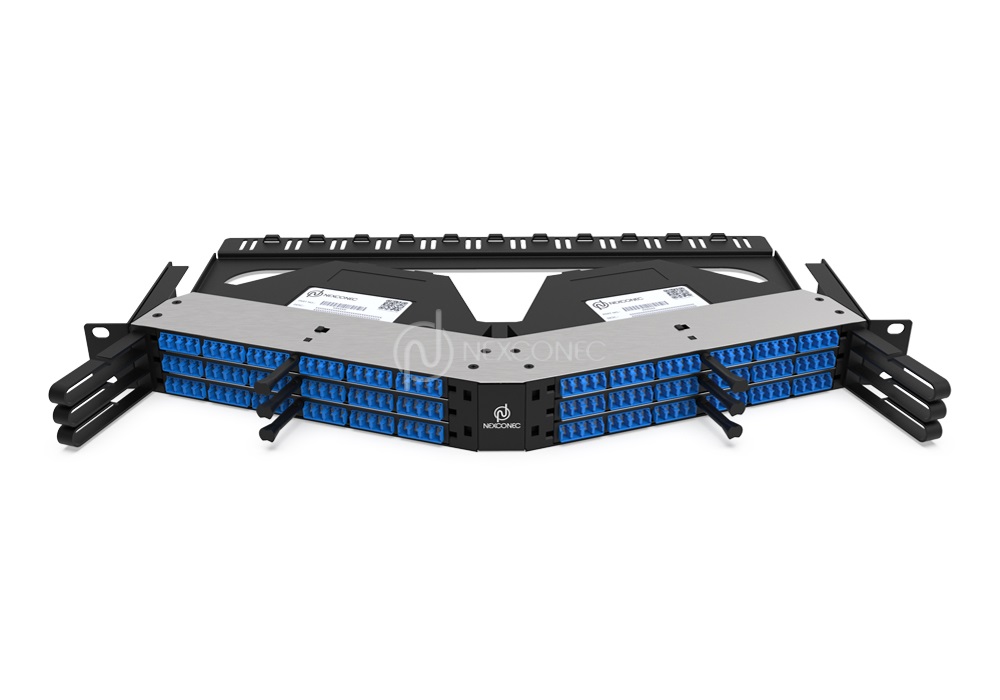

Nexconec NGX Angled High-Density Frame accepts up to 6 NGX Modules for a total of 144FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Angled front with side manager for a better routing of the cabling.
Panel is supplied unloaded and the modules and plates are supplied separately.
FEATURES AND APPLICATIONS
- 6 Slots NGX in 1U space
- Up to 144FO with LC
- Modular with MTP/MPO, Splicing, Direct Patching, Pre-terminated module or Copper module
- Open chassis free access module installation with front and rear access
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Cables
- Patent pending
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel & Stainless Steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | Optional |
| Dimensions (W x D x H in MM) | 488 x 316.6 x 44 |
| Net Weight | 4.5KG |
| Opening Type | Fixed tray |
|---|---|
| Access Type | Front & Rear loading of modules |
| Front Cable Management | Side cable manager |
| Cable Entry Direction | Rear |
| Rear Cable Management | Cable manager |
| Slot Type | NGX Modules |
| Number of Slots | 6 |
| Fibre Capacity | 144 in LC |
| Part Number | Product Description |
|---|---|
| NGXPP02 | 1U 6 slots NGX Angled Modular Patch Panel Unloaded |
