2U NGX HD Modular Panel (up to 288FO) - NGXPP21

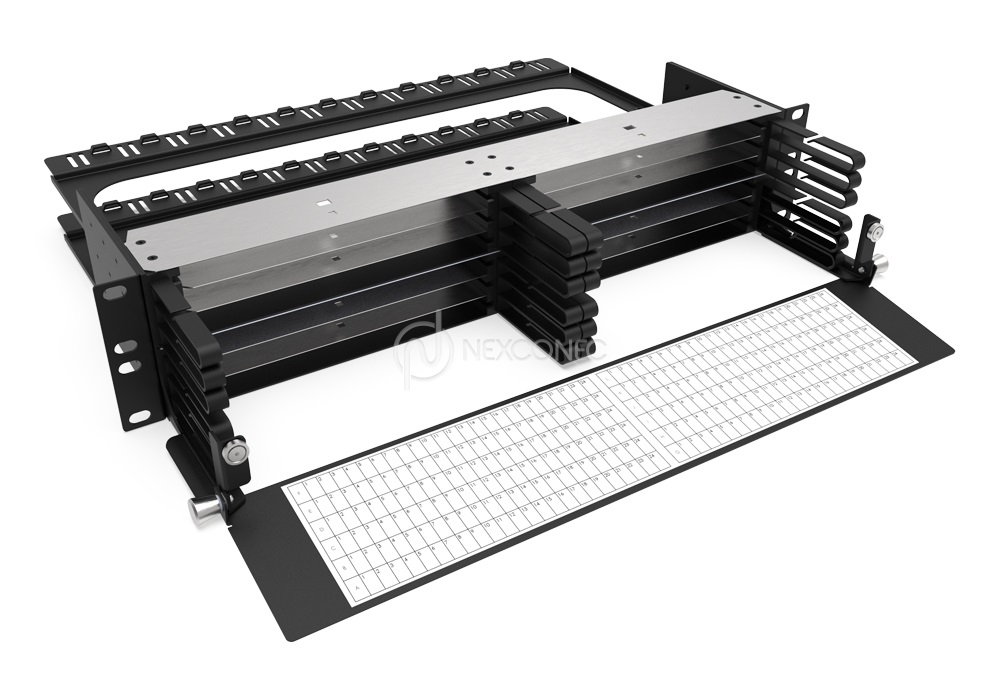

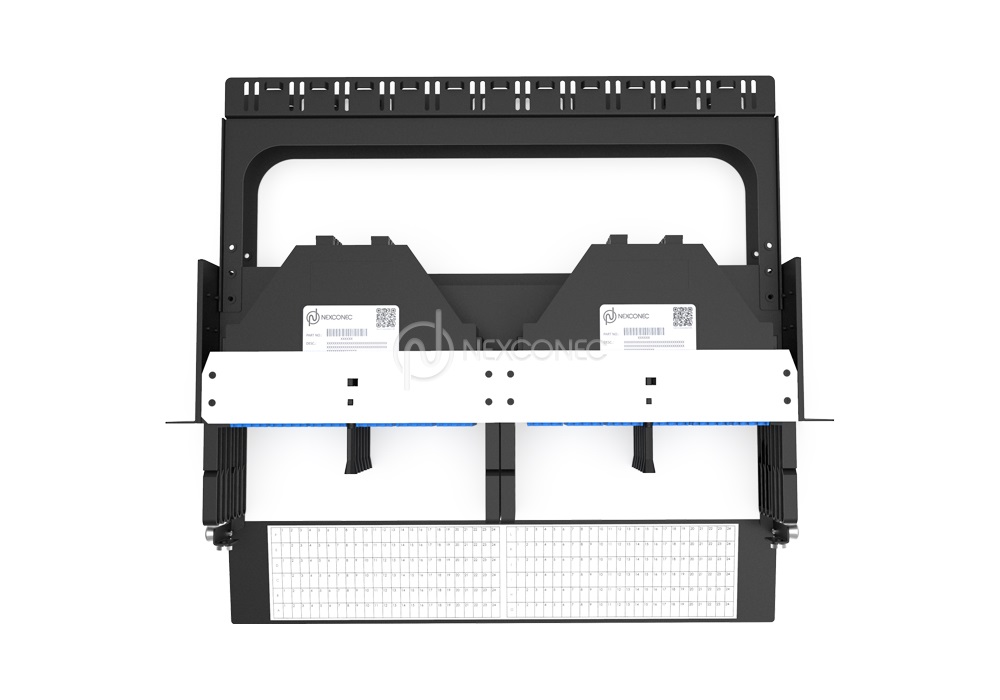

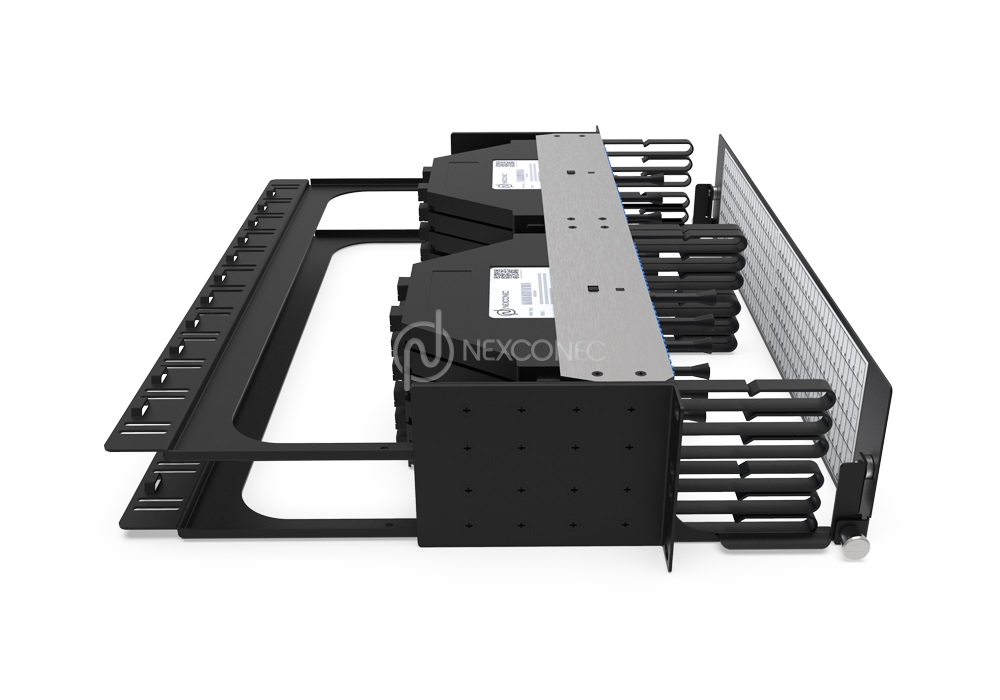

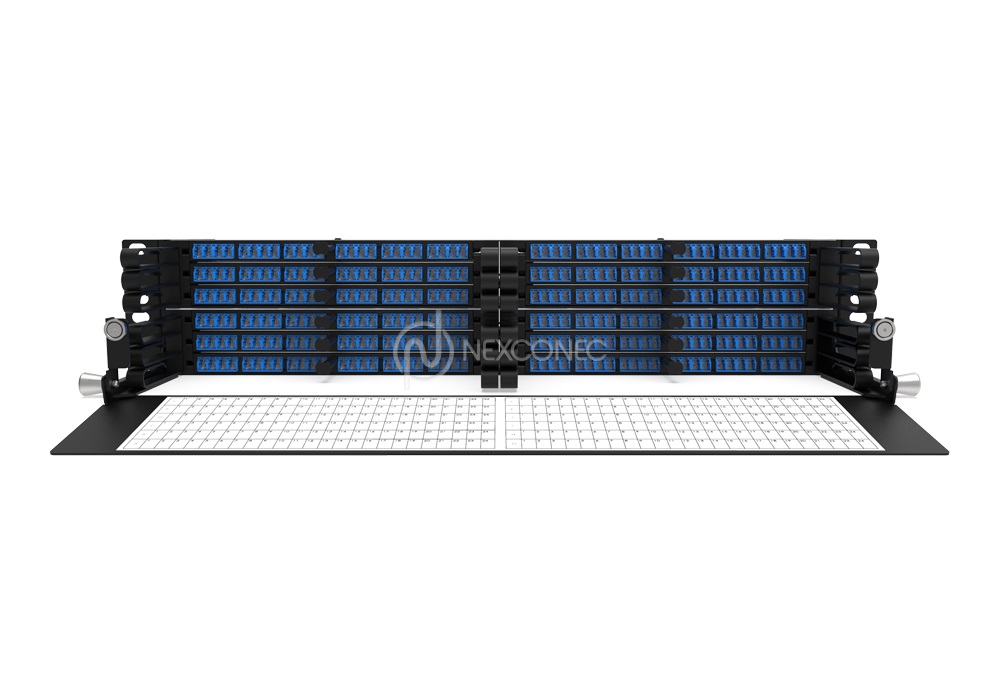

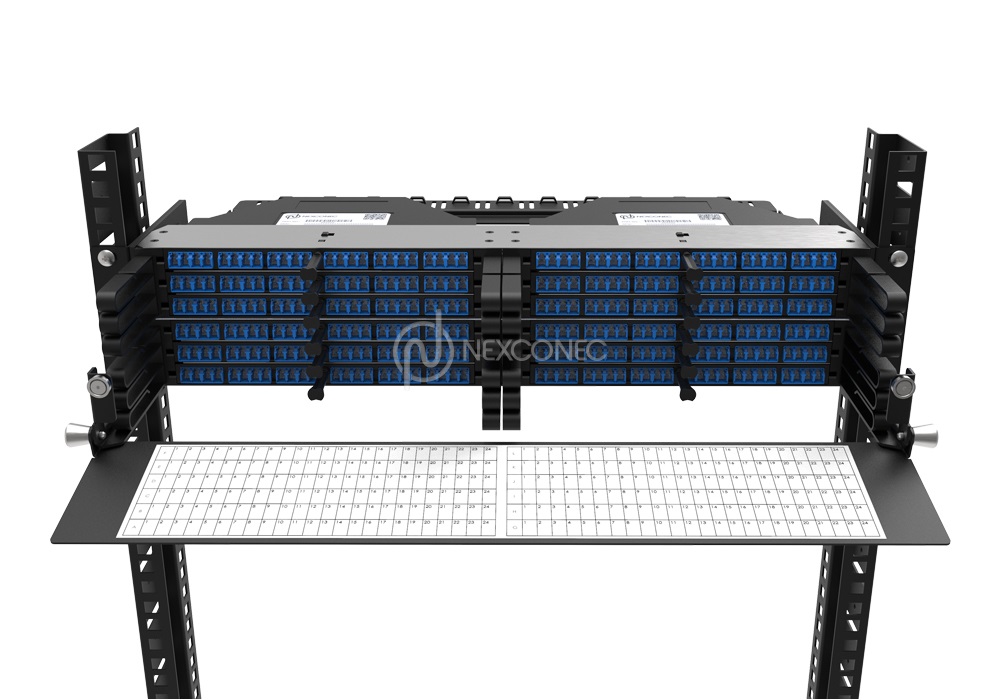

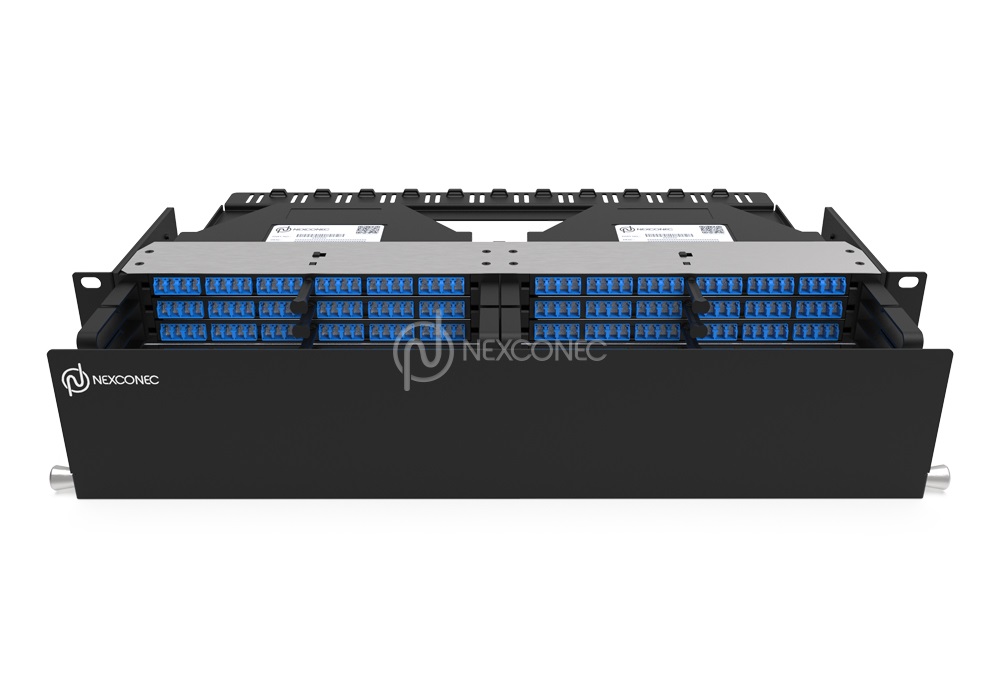

Nexconec NGX High-Density Frame accepts up to 12 NGX Modules for a total of 288FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing.
Easy front access with cable manager and hinged front door which provides protection of the patch cords as well as labelling. Panel is supplied unloaded and the modules and plates are supplied separately.
FEATURES AND APPLICATIONS
- 12 Slots NGX in 1U space
- Up to 288FO with LC
- Modular with MTP/MPO, Splicing, Direct Patching, Pre-terminated module or Copper module
- Open chassis free access module installation with front and rear access
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Cables
- Patent pending
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 2U |
| Material | Cold rolled steel & Stainless Steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | Optional |
| Dimensions (W x D x H in MM) | 485 x 365.4 x 88 |
| Net Weight | 5KG |
| Opening Type | Fixed tray |
|---|---|
| Access Type | Front & Rear loading of modules |
| Front Cable Management | Removable Hinged drop-down door |
| Cable Entry Direction | Removable rear manager |
| Rear Cable Management | Cable manager |
| Slot Type | NGX Modules |
| Number of Slots | 12 |
| Fibre Capacity | 288 in LC |
| Part Number | Product Description |
|---|---|
| NGXPP21 | 2U 12 slots NGX Modular Patch Panel Unloaded |
