NGX Zero RU Bracket - NGXBK01

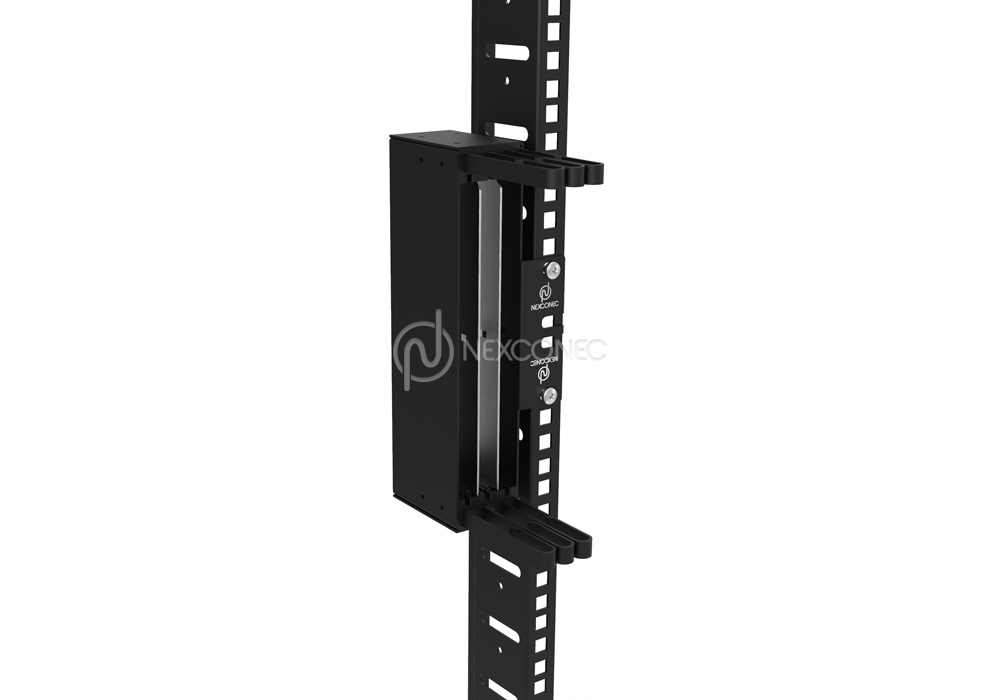

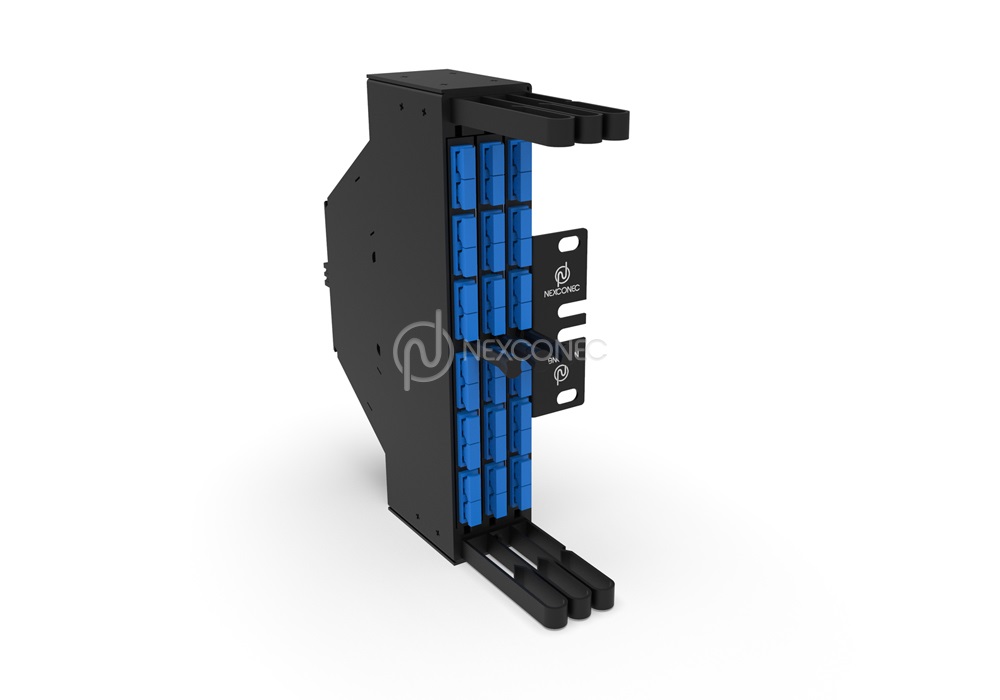

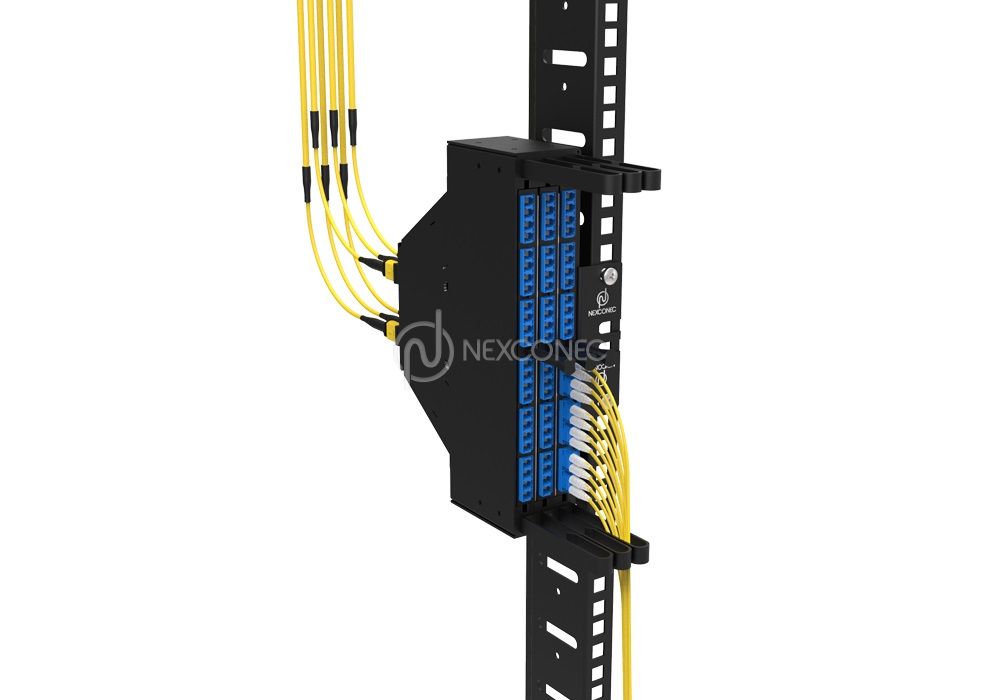

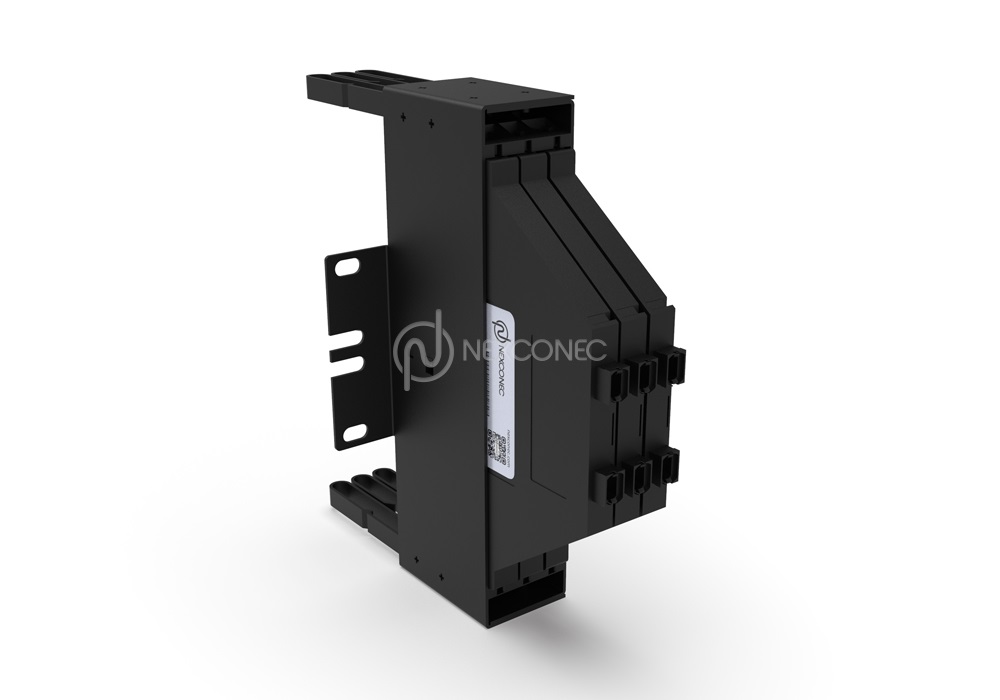

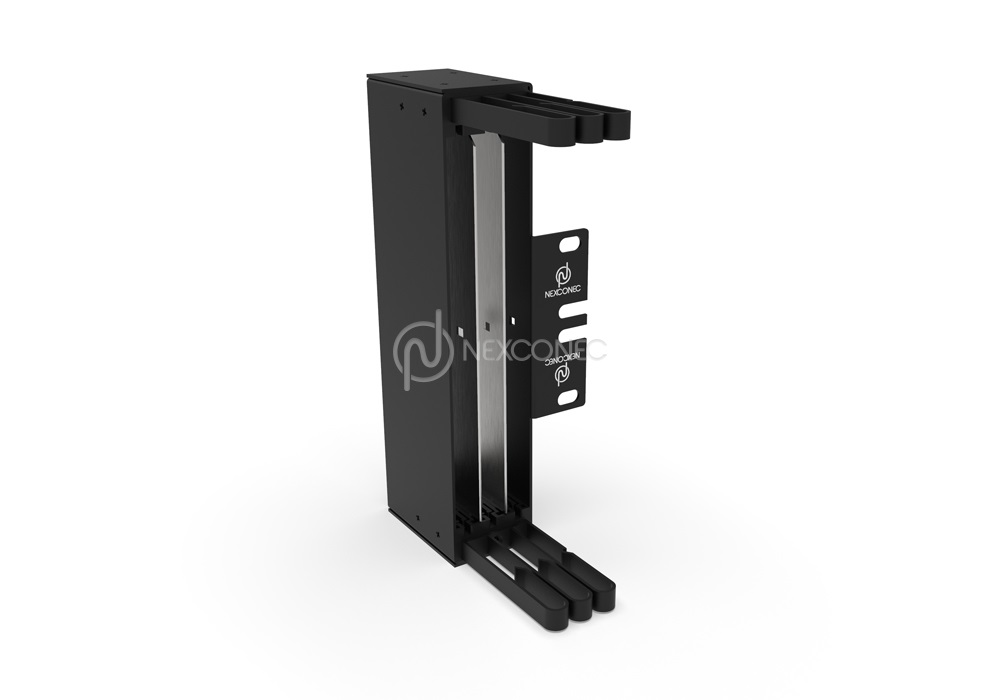

The Zero U Panel adds an additional patch panel location to free up extra space in the cabinet. The zero U panel is installed vertically in the cabinet rail and creates a convenient point for distribution of patch cables within the vertical racking system. The Zero RU bracket accepts up to 3 Nexconec NGX modules. The Bracket is supplied unloaded and the modules are supplied separately.
FEATURES AND APPLICATIONS
- Zero RU Mounting
- 3 Slots NGX (Up to 72FO in LC)
- Modular with MPO, Patching, Transition or Patching modules
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Mounting Type | Vertical Left and right rack mounting |
|---|---|
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 74.1 x 142.5 x 222 |
| Net Weight | 0.3KG |
| Access Type | Front access and rear access |
|---|---|
| Cable Entry Direction | Rear |
| Cable Management | Vertical up and down cable managers |
| Slot Type | NGX |
| Number of Slots | 3 |
| Fiber Capacity | 72 in LC / 36 in SC |
| Part Number | Product Description |
|---|---|
| NGXBK01 | Zero RU NGX Bracket, 3 Slots Unloaded |
