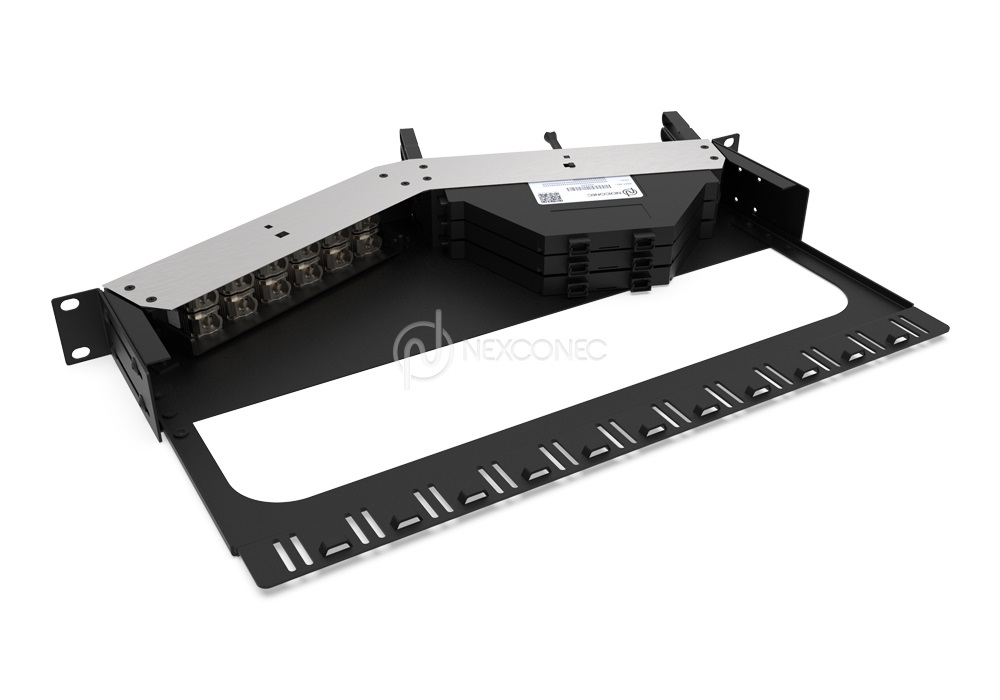

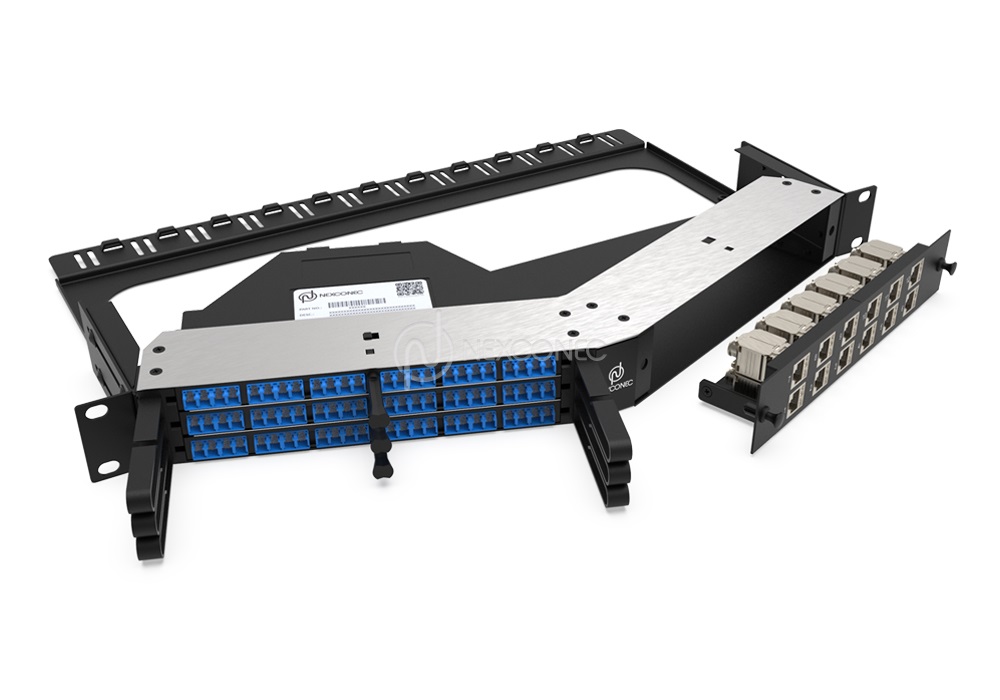

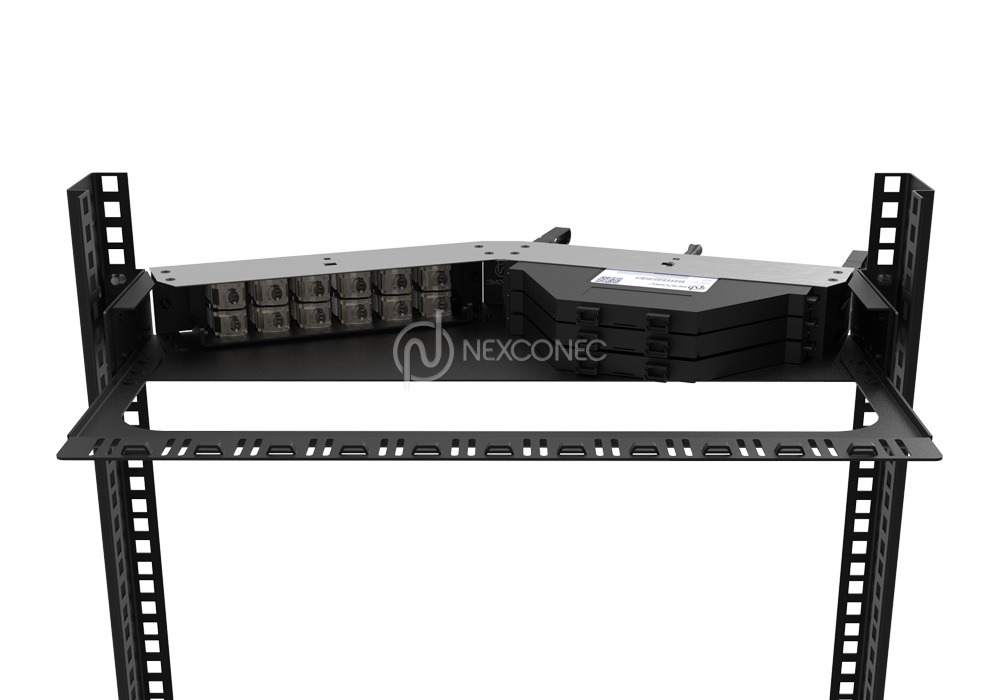

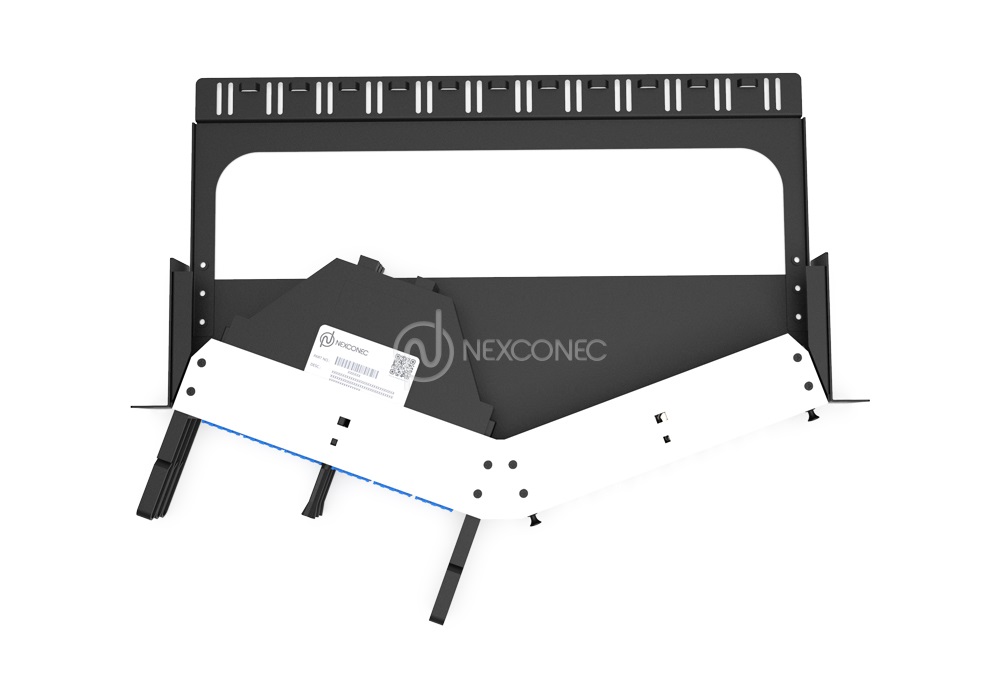

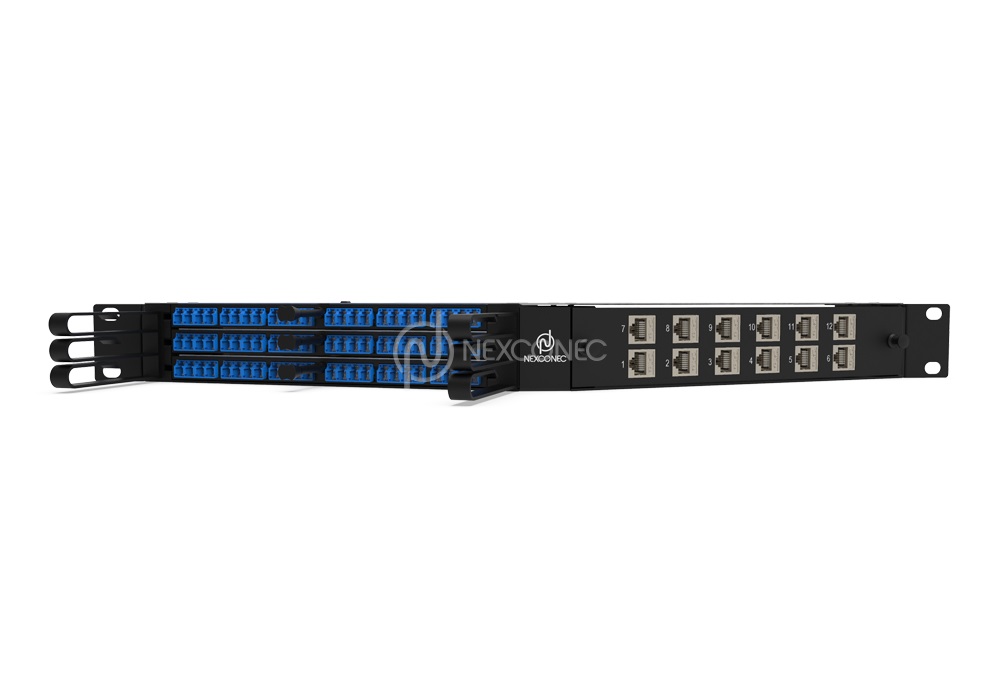

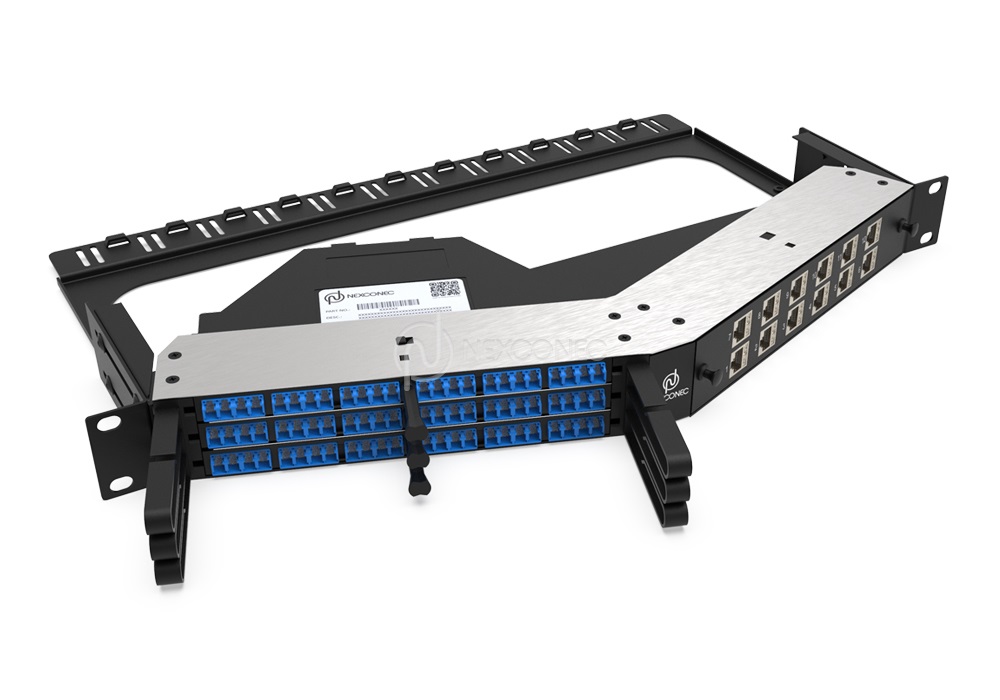

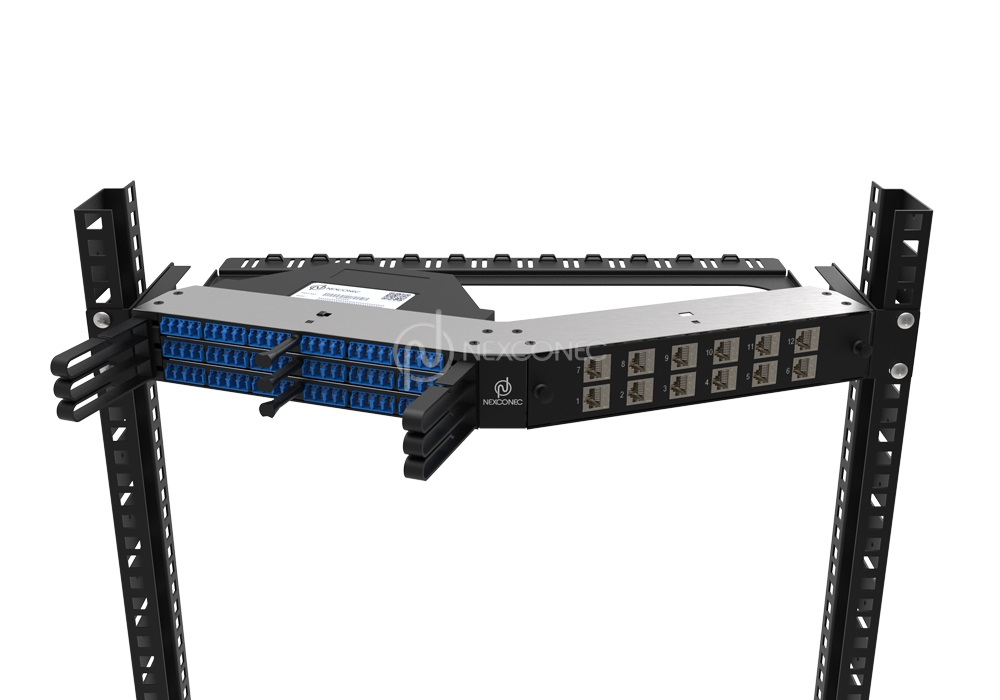

1U NGX Hybrid Fiber & Copper Angled Modular Panel – NGXPP04
Nexconec NGX Angled High-Density Frame accepts up to 3 NGX Modules for a total of 72FO with LC configuration and 12 Keystone jacks. Modular Fiber panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru, Next-Gen Transition modules 40G-10G, or conventional splicing. Copper module available with Cat6, Cat6A Shielded & Unshielded.

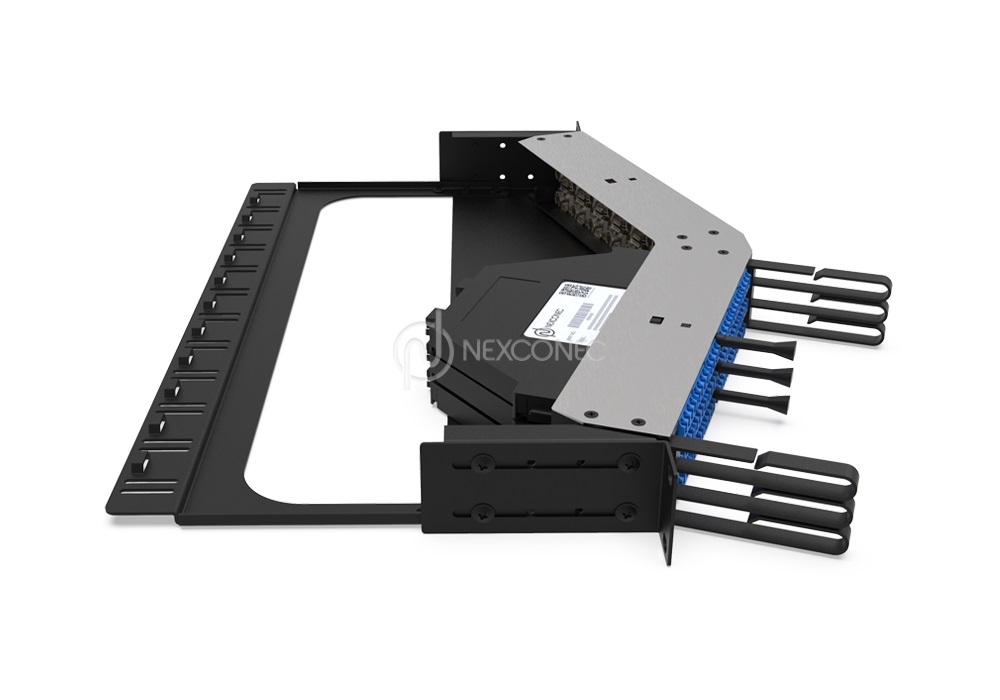

Angled front with side manager for a better lateral routing of the cabling. Panel supplied unloaded and the modules and plates supplied separately.
FEATURES AND APPLICATIONS
- 3 Fiber slots NGX in 1U space
- Up to 72FO with LC
- Up to 12 Keystones Jacks 6/6A UTP & STP
- Modular Fiber connectivity with MTP/MPO, Splicing, Direct Patching, Pre-terminated module
- Open chassis free access module installation with front and rear access
- Datacenter & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Cables
- Patent pending
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel & Stainless Steel |
| Housing Color | Black & Silver |
| Application | Indoor IP20 |
| Dimensions (W x D x H in MM) | 488 x 307 x 44 |
| Net Weight | 4.5KG |
| Opening Type | Fixed Tray |
|---|---|
| Access Type | Front & Rear loading of modules |
| Front Cable Management | Side Cable Manager |
| Cable Entry Direction | Rear |
| Rear Cable Management | Cable manager |
| Slot Type | NGX Modules |
| Number of Slots | 3 NGX Fiber Module / 12Ports Keystone Jacks |
| Fiber Capacity | 72 in LC |
| Part Number | Product Description |
|---|---|
| NGXPP04 | NGX Hybrid Angled Modular Chassis 1U Fiber/Copper (6 Fiber NGX Slots / 12P KJ) Unloaded |
