NGX Cassette Transition 16FO Base-8 MPO-LC - NGXCA05Q

01 02 03 04 05 06 07

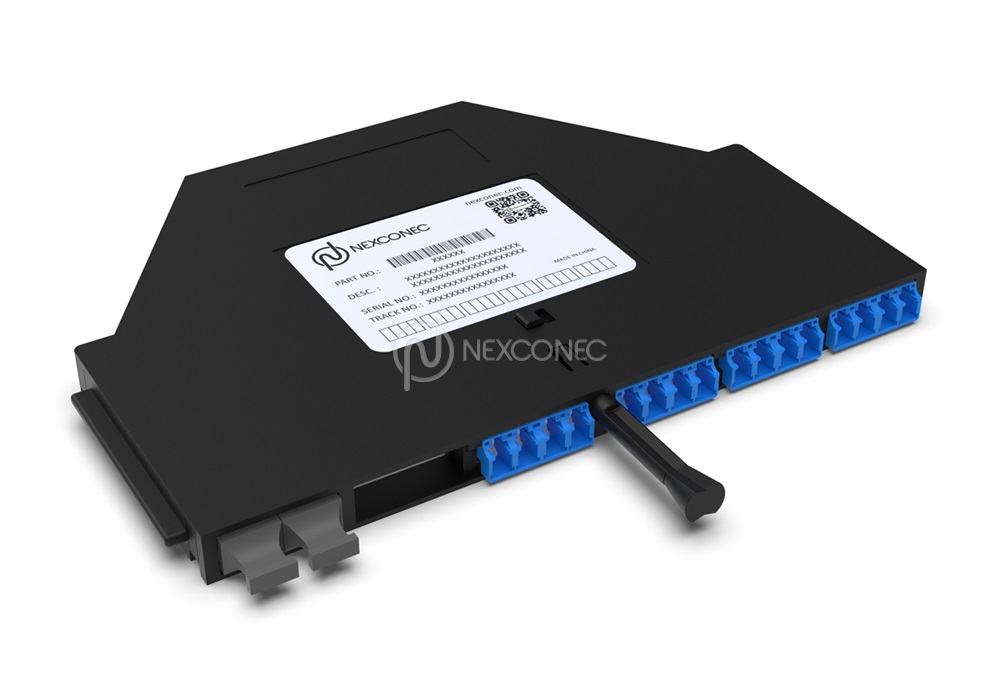

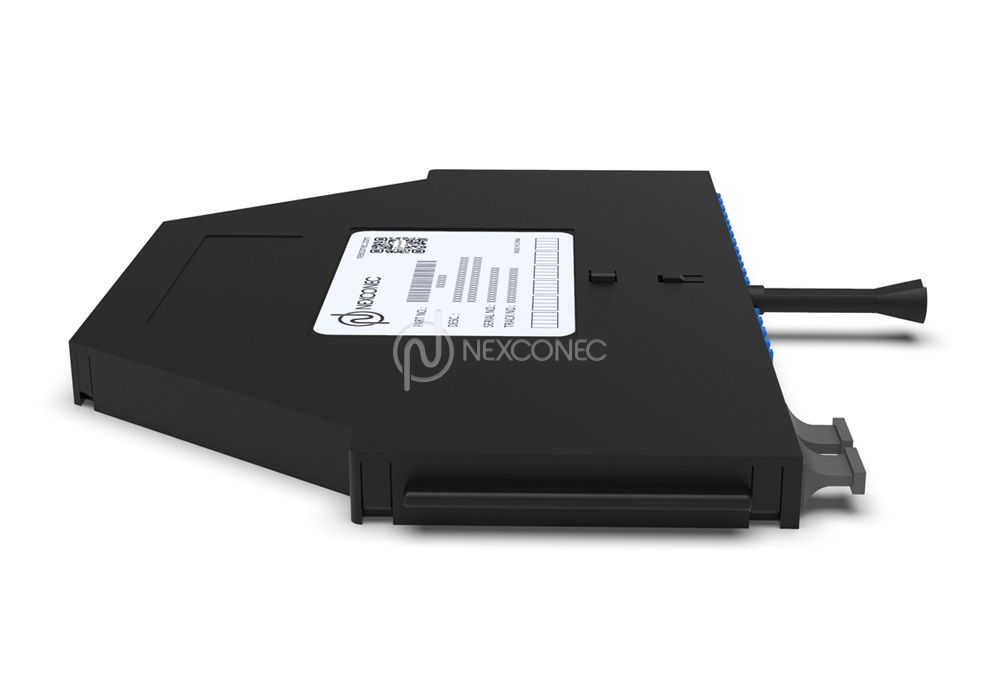

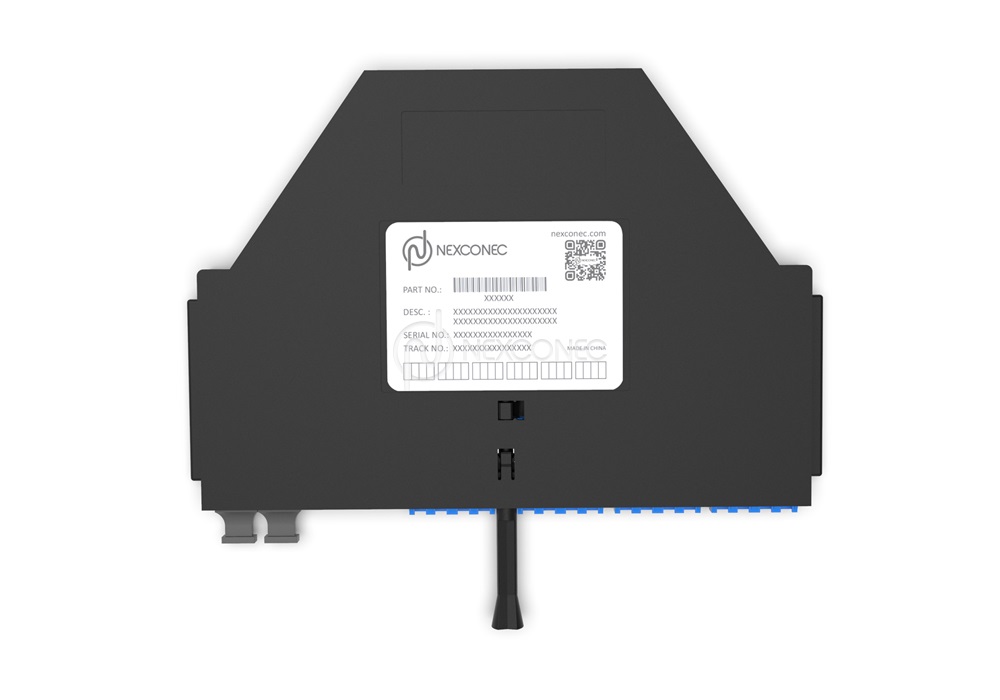

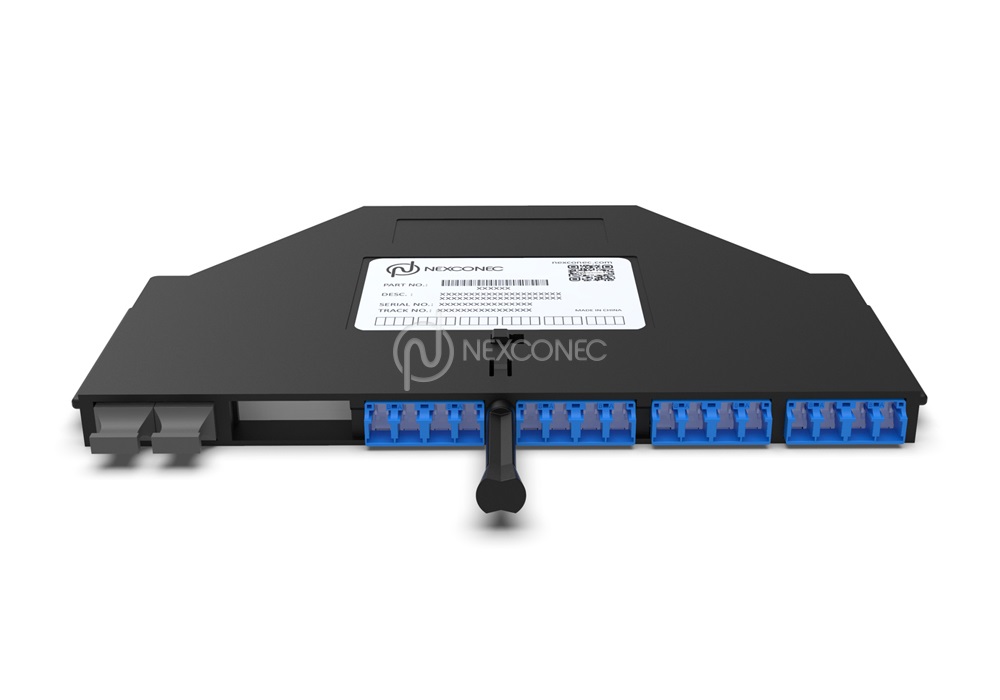

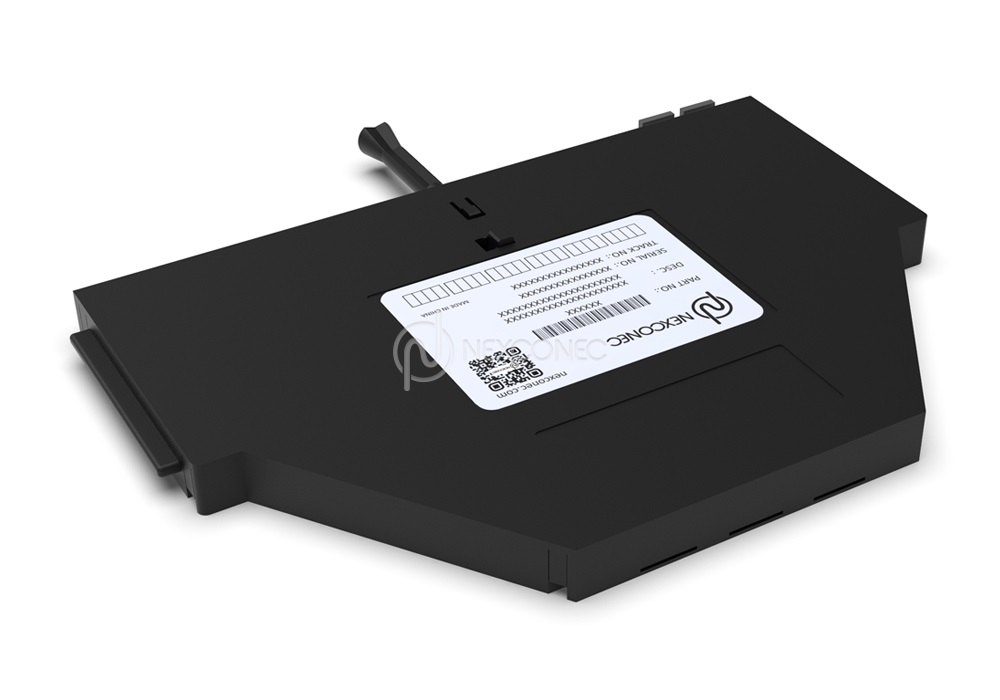

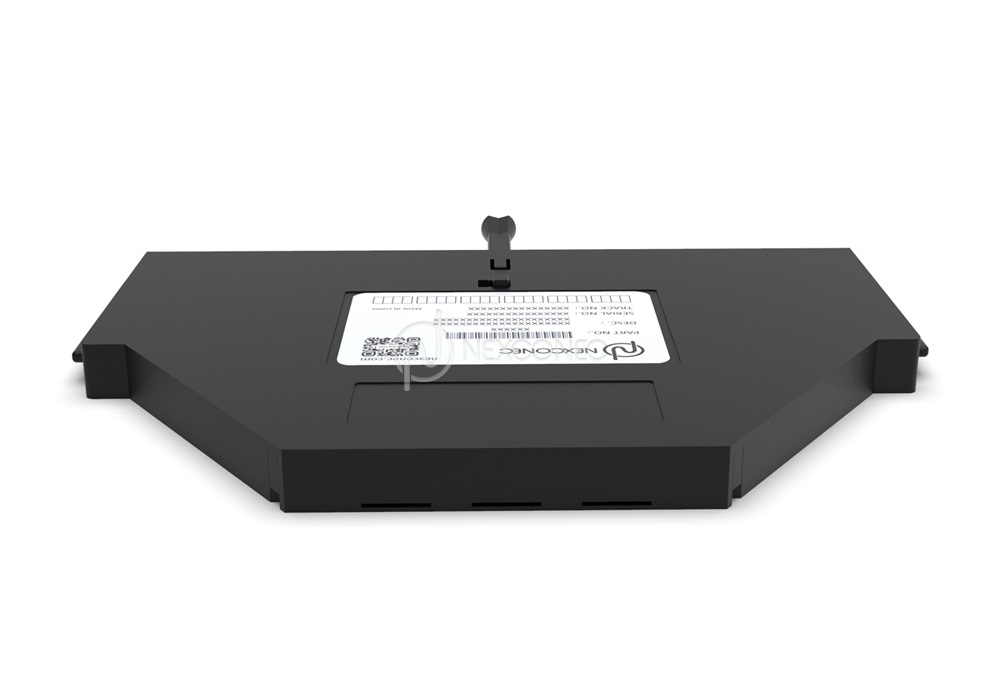

NEXCONEC MPO TRANSITION NGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 40G/100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 40G to 10G version, each cassette can hold 2x 8f MPO-LC fanouts, The MPO and LC ports can be accessed from the front.

FEATURES AND APPLICATIONS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • Shuttered dust proof LC adapters
  • Available in standard Singlemode and Multimode fiber options
  • Suitable for 40G to 10G and 100G to 25G transition
  • Available in Polarity A/B/C as per TIA/EIA-568-C.3
  • RoHS, REACH & SVHC compliant, Materials Conflict compliant
  • Flame retardant ABC+PC material
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus Wide Network
  • Broadband network
  • Supports SFP, QSFP, CFP applications
  • Supports SFP, QSFP, CFP applications

Product Information

pdfDATASHEET.pdf View Download
microsoft visioVISIO.vsdx Download
Parameters Units SM MPO SM LC MM MPO MM LC
Avg/Max IL – Standard dB ≤ 0.25/0.75 ≤ 0.20/0.30 ≤ 0.20/0.60 ≤ 0.18/0.30
Return Loss (PC/APC) dB ≥ 60 ≥ 60/65 NA NA
Avg/Max IL– Premium dB ≤ 0.10/0.35 ≤ 0.12/0.15 ≤ 0.10/0.35 ≤ 0.12/0.15
Return Loss (PC/APC) dB ≥ 60 ≥ 60/65 NA NA
Part Number Product Description
NGXCA05Q NGX Transition Module 40G-10G 16FO SMF OS2 LC 2xMPO(M) Elite 8FO Front
NGXCA06Q NGX Transition Module 40G-10G 16FO MM OM4 LC 2xMPO(M) Elite 8FO Front
