NGX CASSETTE TRANSITION 24FO BASE-24 MPO-LC - NGXCAxxX

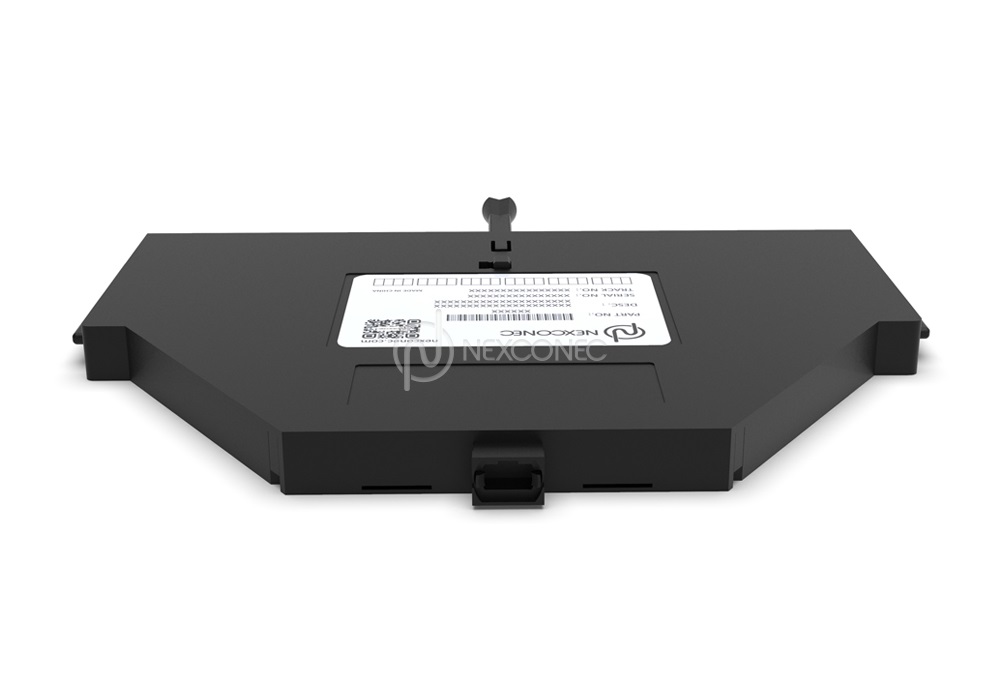

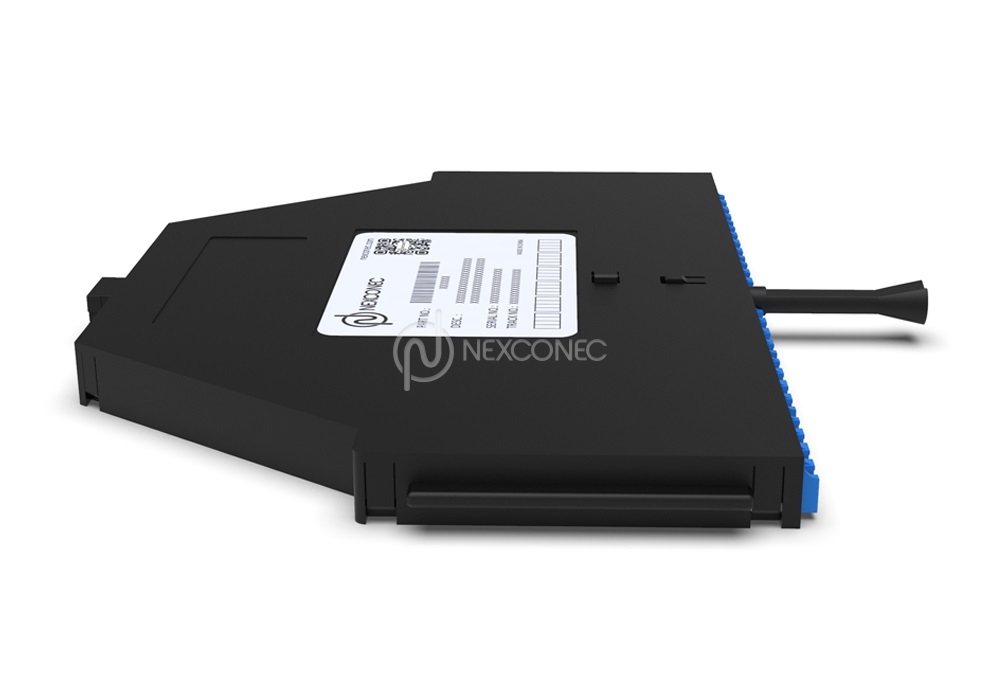

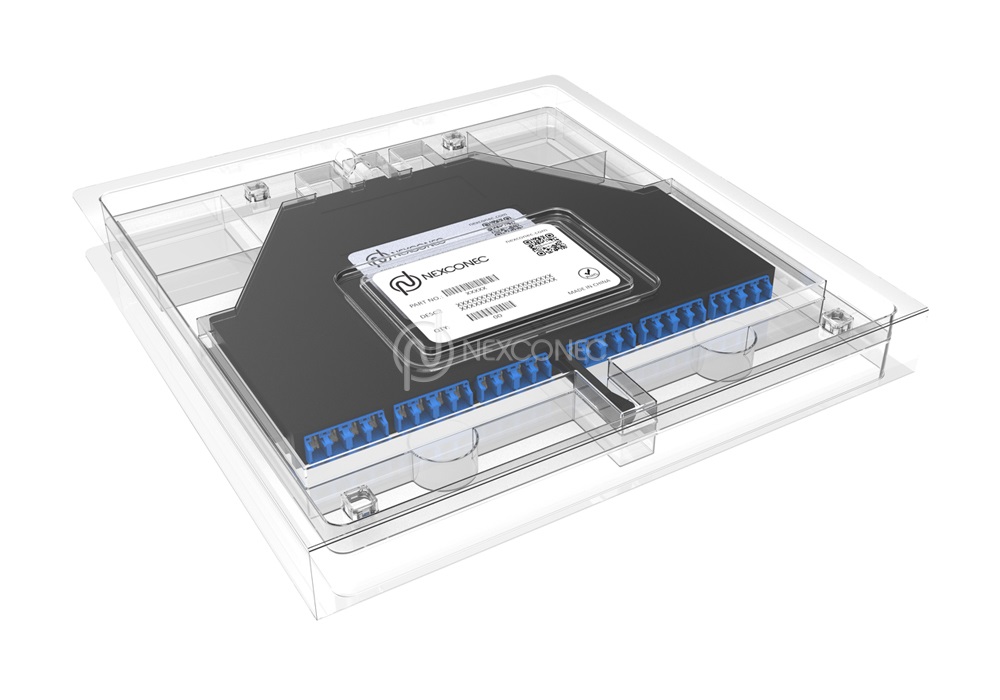

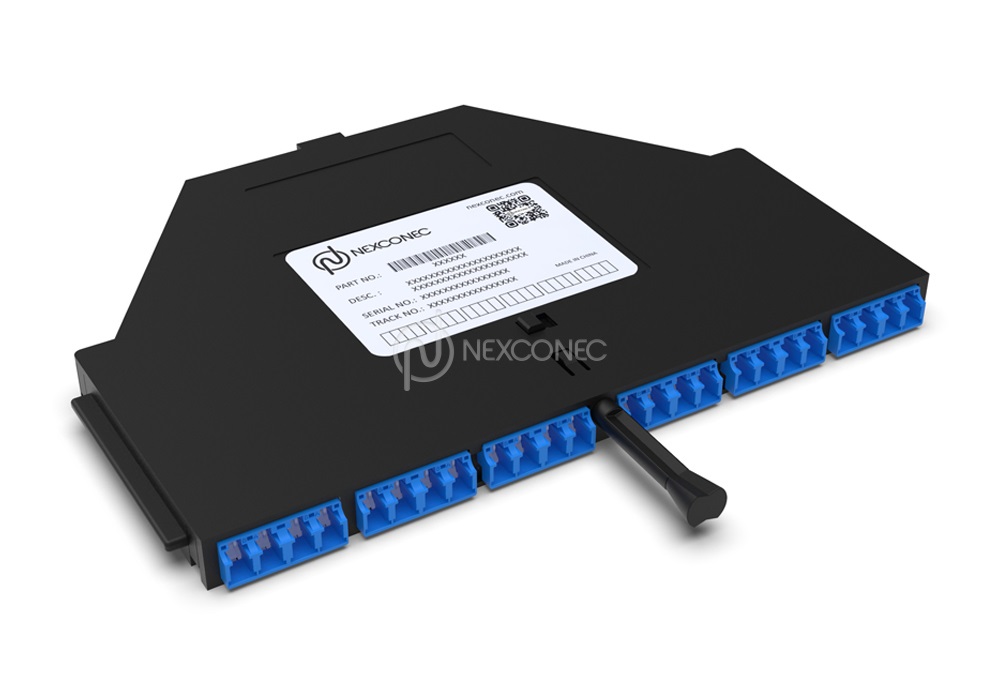

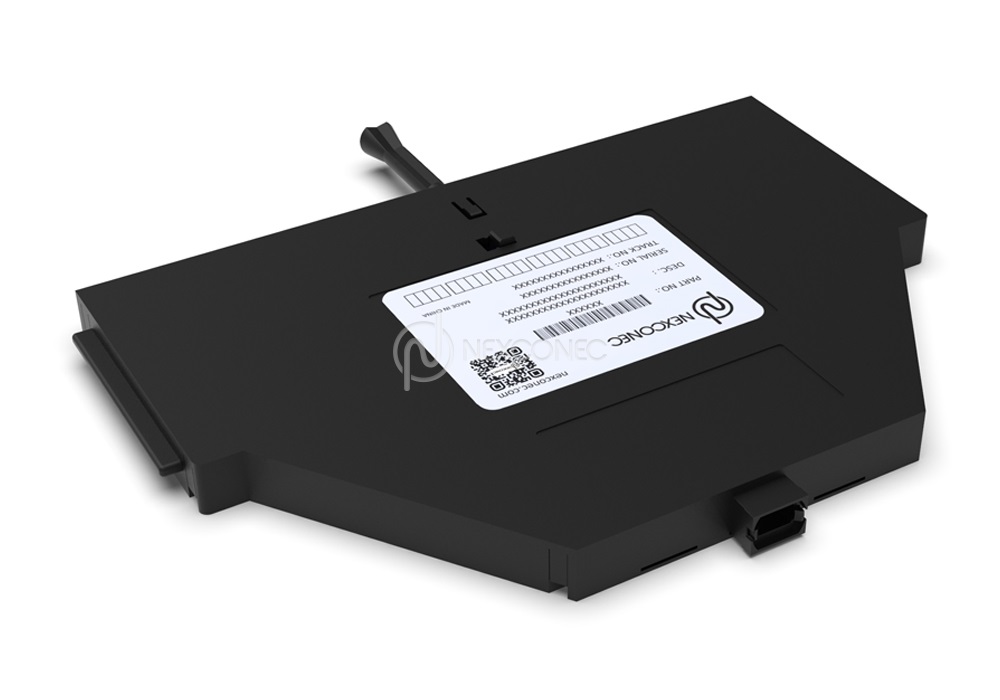

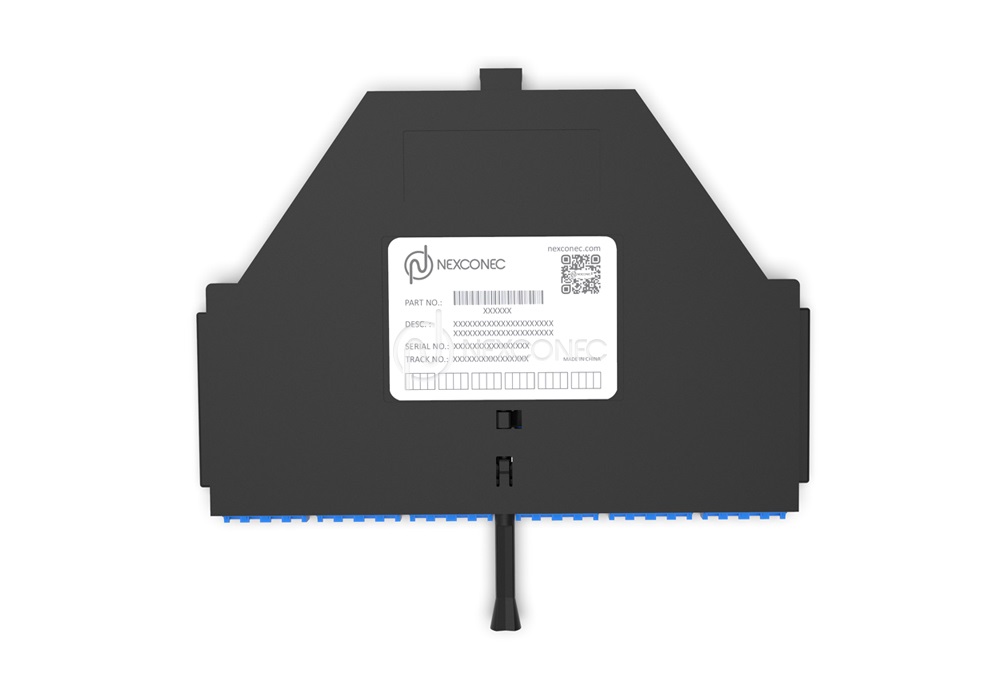

NEXCONEC® MPO TRANSITION NGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For the 40G to 10G version, each cassette can hold 3x 8f MPO Base-8 LC fanouts, while the 100G to 10G version can hold 1x 24F MPO Base-24 LC fanout.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Available in 40G to 10G and 100G to 10G versions
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant ABC+PC material
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
| Parameters | Units | SM MPO | SM LC | MM MPO | MM LC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| NGXCA01X | NGX Module 1xMPO-24 (ELITE) M-LC/UPC 24FO SMF OS2 100G to 10G Base-24 (Blue) |
| NGXCA02X | NGX Module 1xMPO-24 (ELITE) M-LC/APC 24FO SMF OS2 100G to 10G Base-24 (Green) |
| NGXCA03X* | NGX Module 1xMPO-24 (ELITE) M-LC/UPC 24FO MM OM3/OM4 100G to 10G Base-24 (Aqua) |
* Add ‘V’ at the end of the Part Number for LC Adapters in Erika Violet color. (Example: NGXCA03XV).
Note: MTP®/MPO from Usconec available on request.
