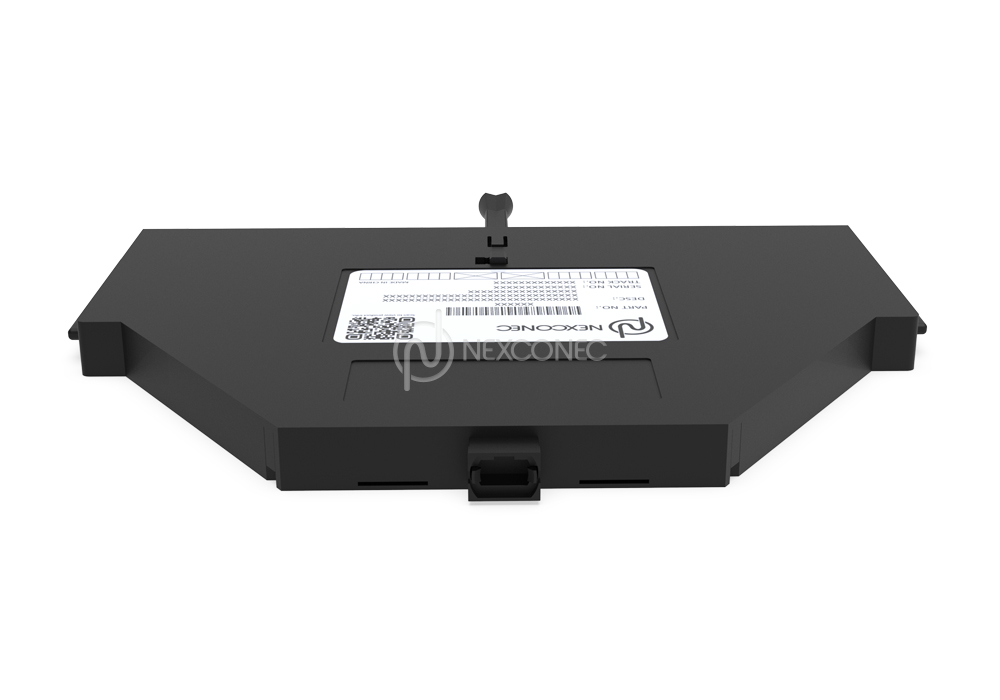

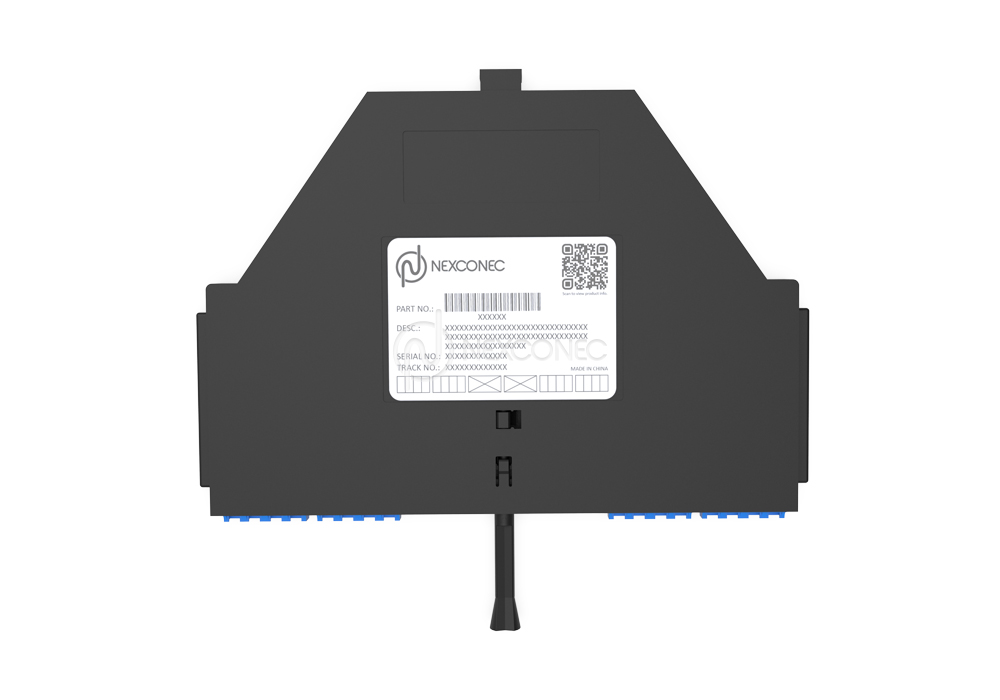

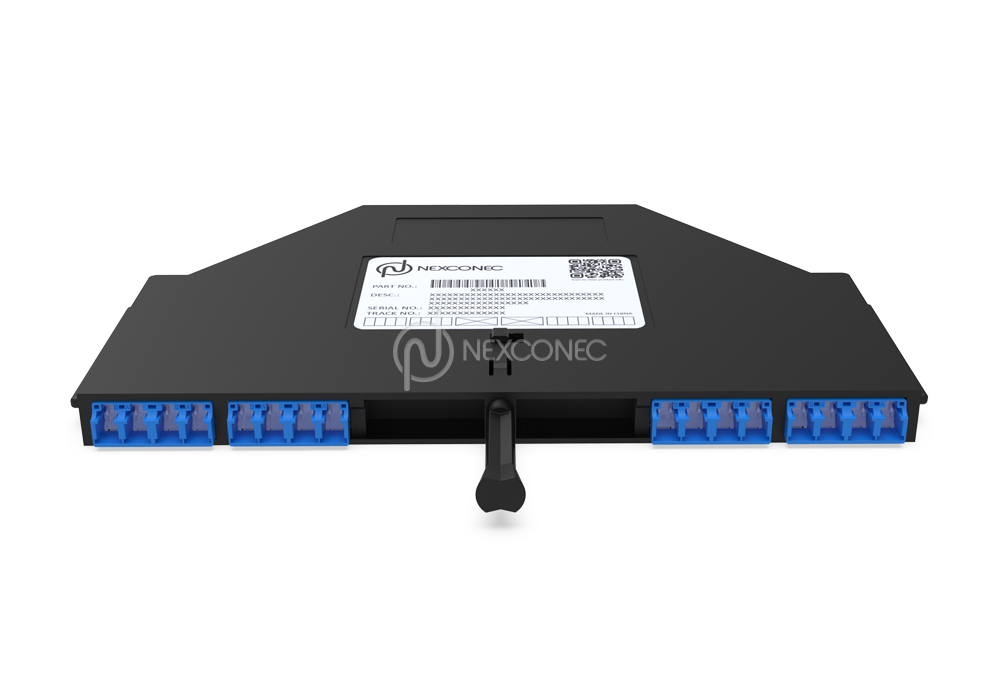

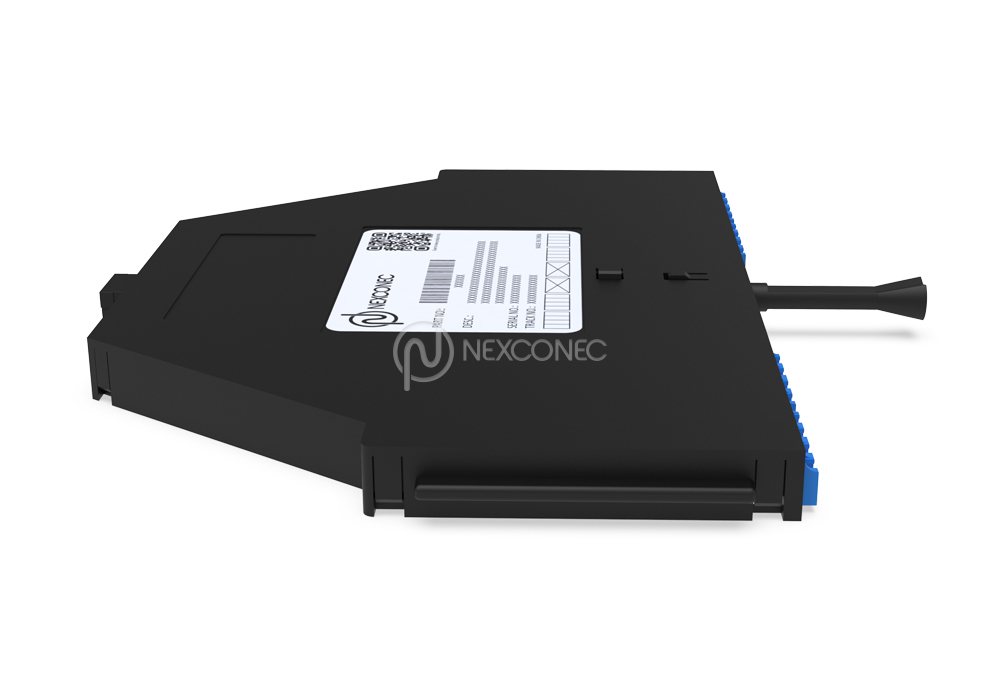

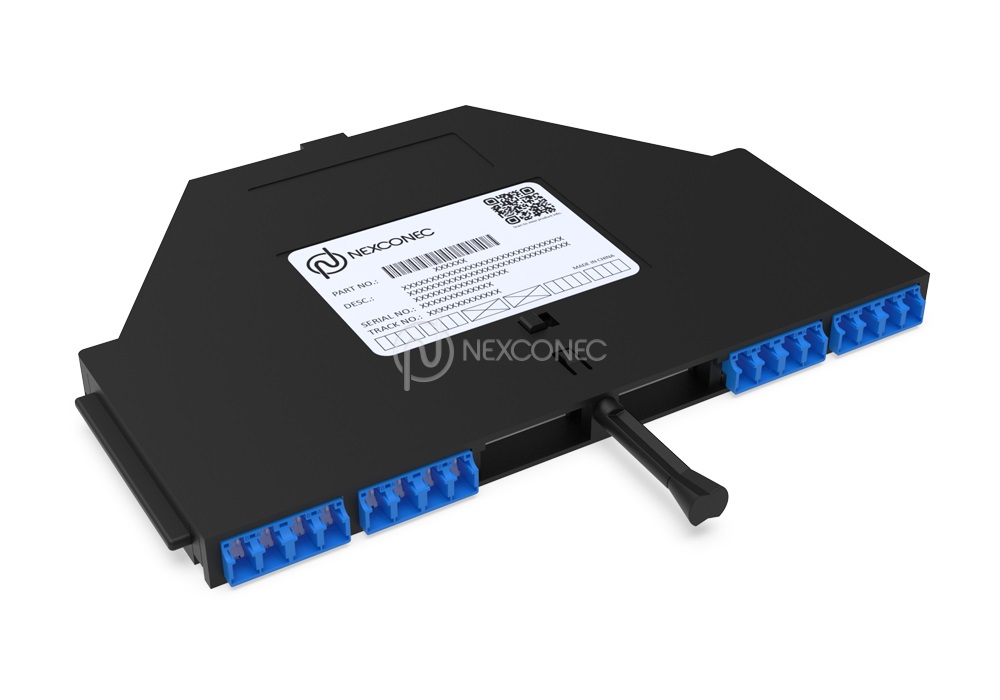

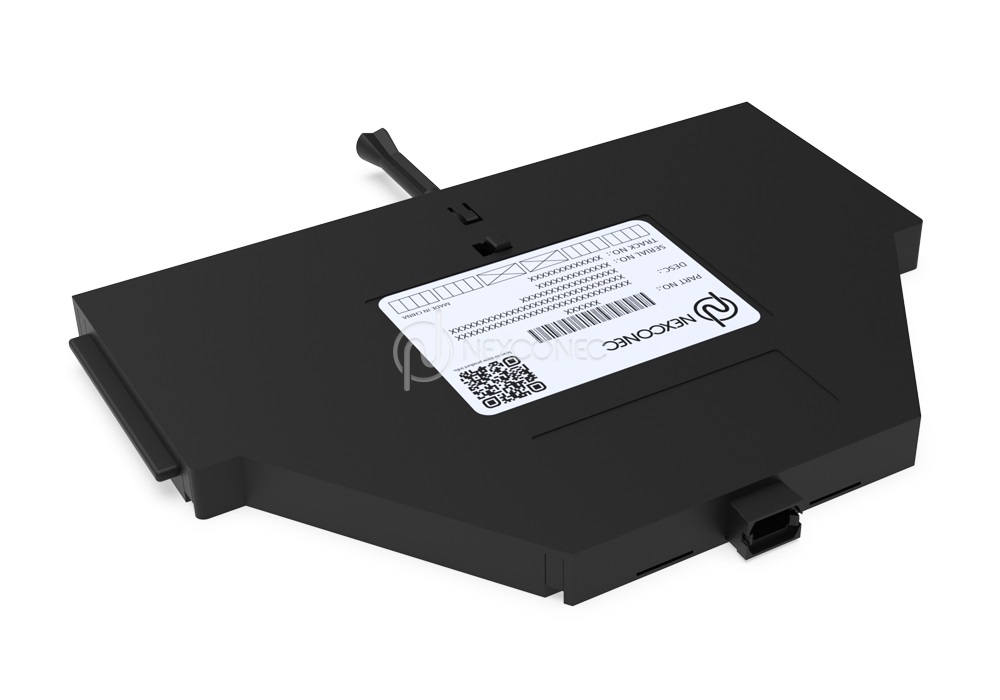

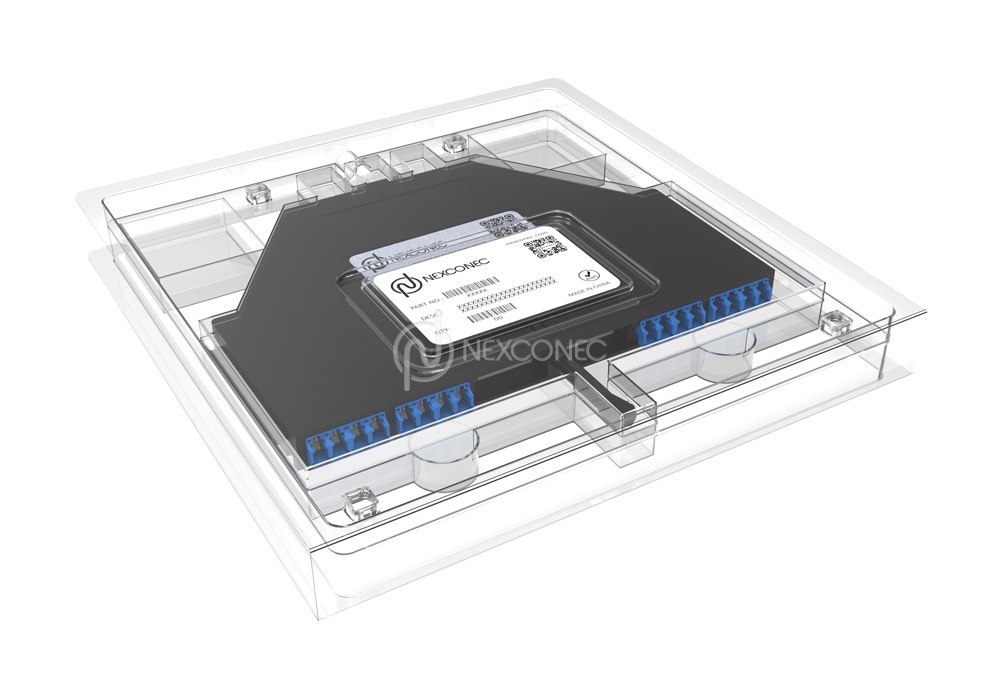

NGX CASSETTE 16FO 1x(BASE-16) MPO-LC - NGXCA08K
NEXCONEC® MPO NGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 800G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easy plug into NEXCONEC NGX 1U 6 slot panel. The MPO and single ferrule connectors are offered with Elite performance to meet customer’s tight power budget requirement.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Polarity Tx/Rx (“Method B”)
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Supports 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics direct connection and supporting 800G transmission for Hyperscale Data Center
- 800G to 100G transition
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Polarity Tx/Rx (“Method B”)
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant ABS+PC material
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 optics direct connection and supporting 800G transmission for Hyperscale Data Center
- 800G to 100G transition
SPECIFICATIONS
| Parameters | Units | SM MPO | SM LC | MM MPO | MM LC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.40/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 55/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.20/0.35 | ≤ 0.12/0.15 | ≤ 0.20/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 55/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| NGXCA08K | NGX Transition Module 16FO 1x(Base-16) MPO(M)Elite-LC SM OS2 |
| NGXCA09K | NGX Transition Module 16FO 1x(Base-16) MPO(M)Elite-LC/APC SM OS2 |
| NGXCA10K | NGX Transition Module 16FO 1x(Base-16) MPO(M)Elite-LC MM OM3/4 Aqua |
