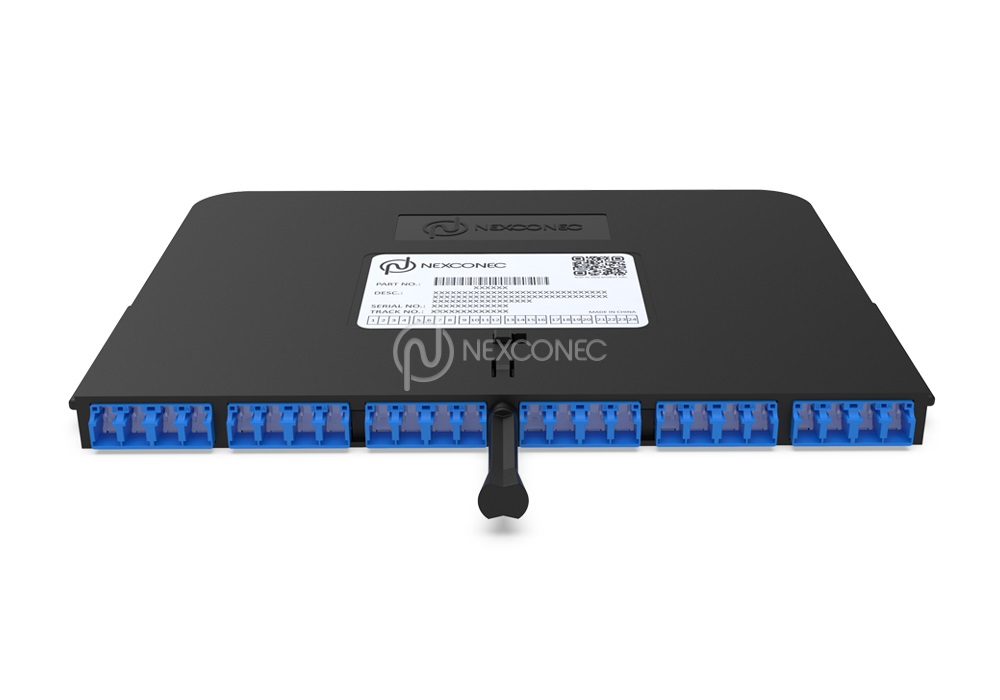

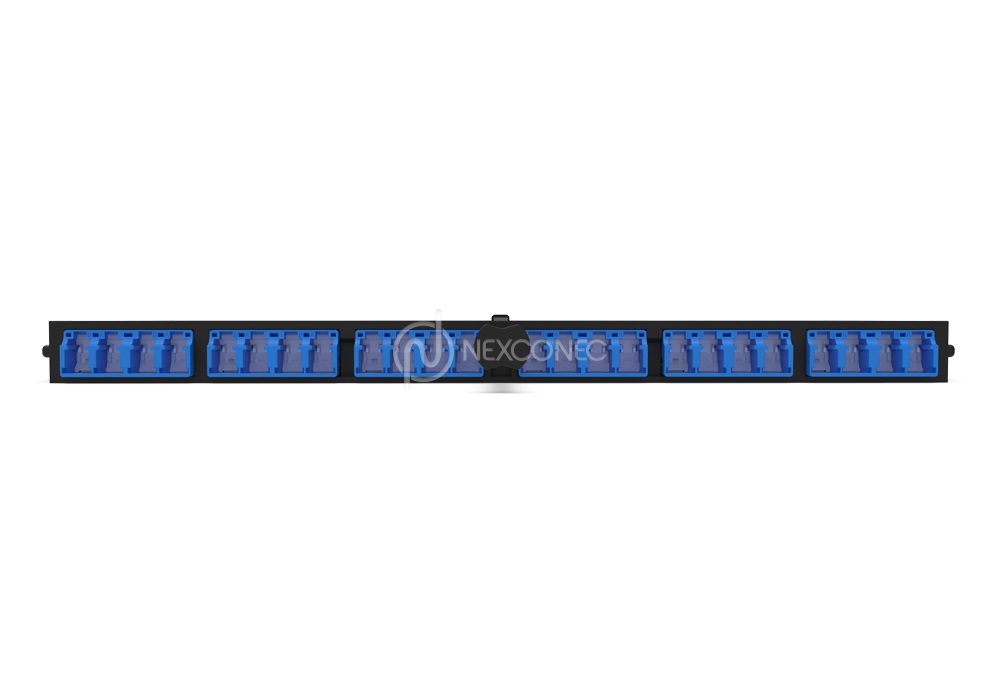

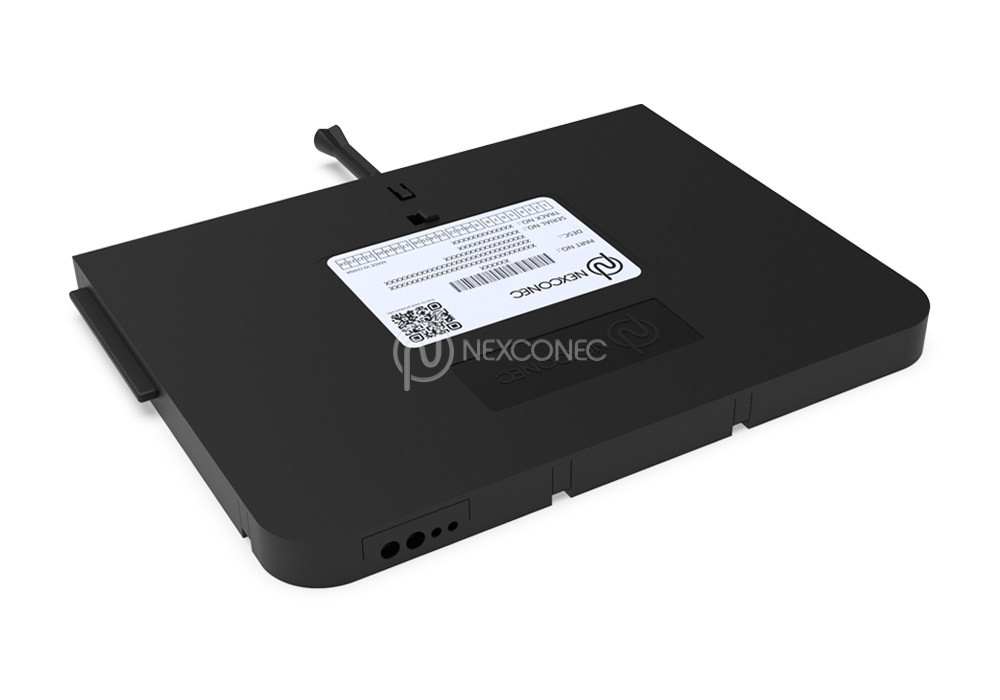

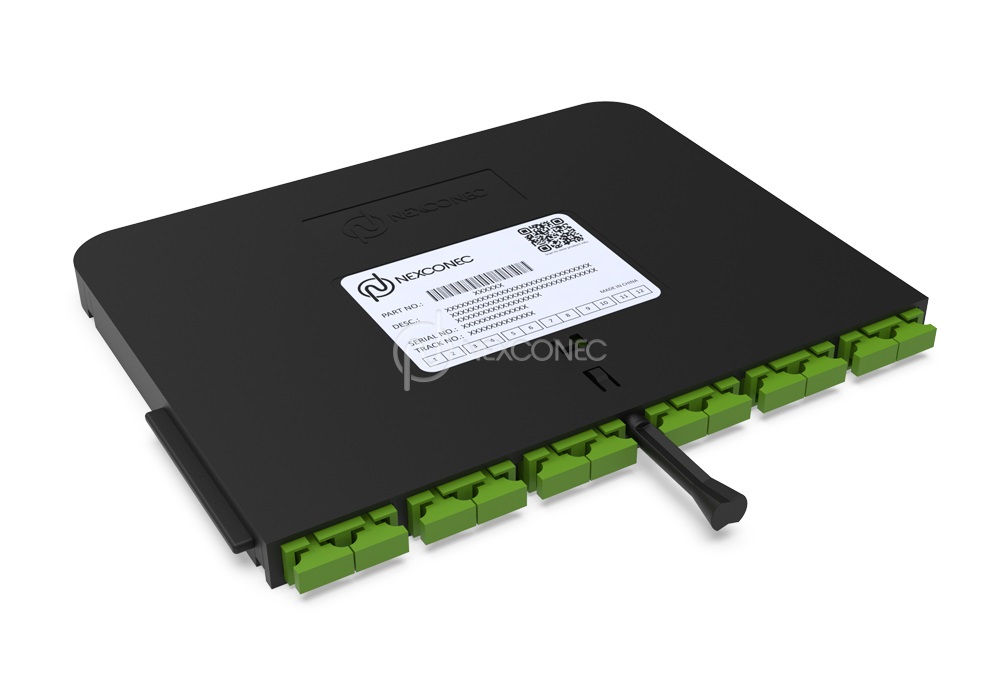

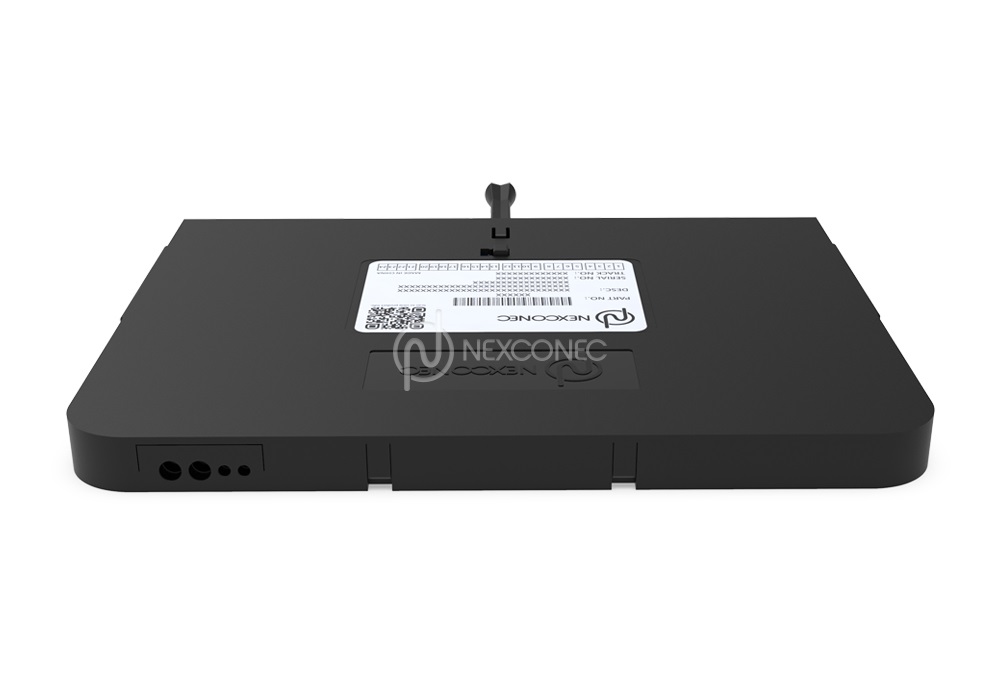

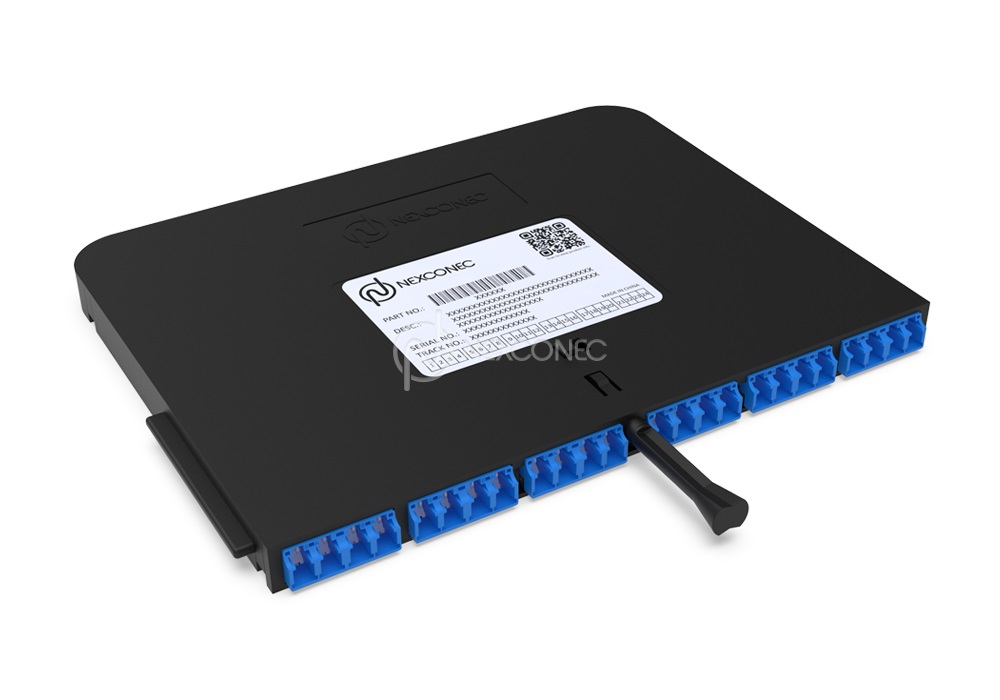

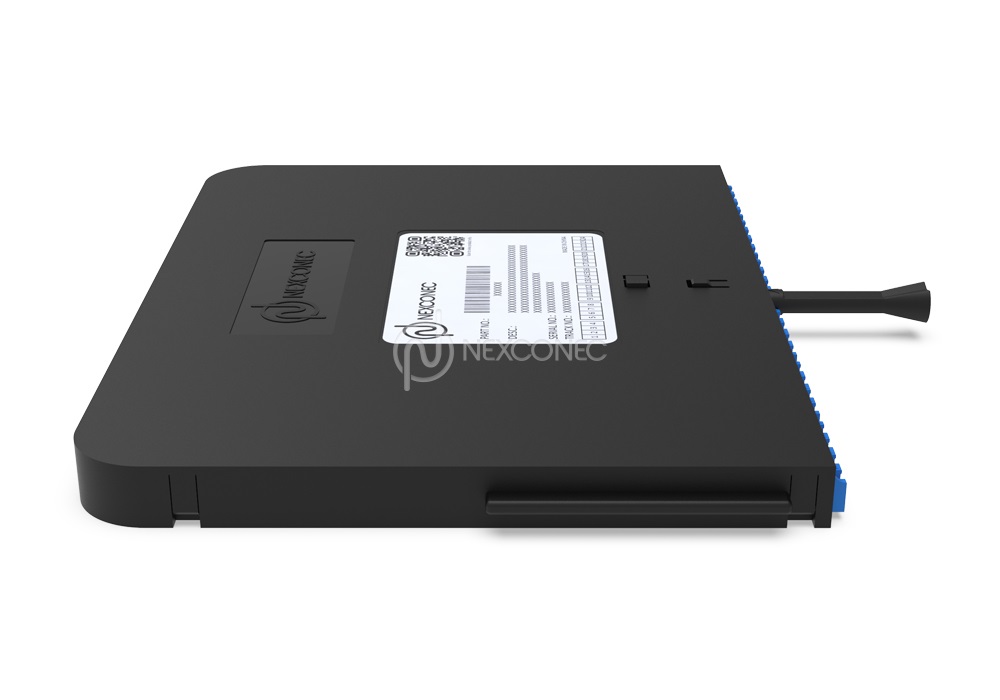

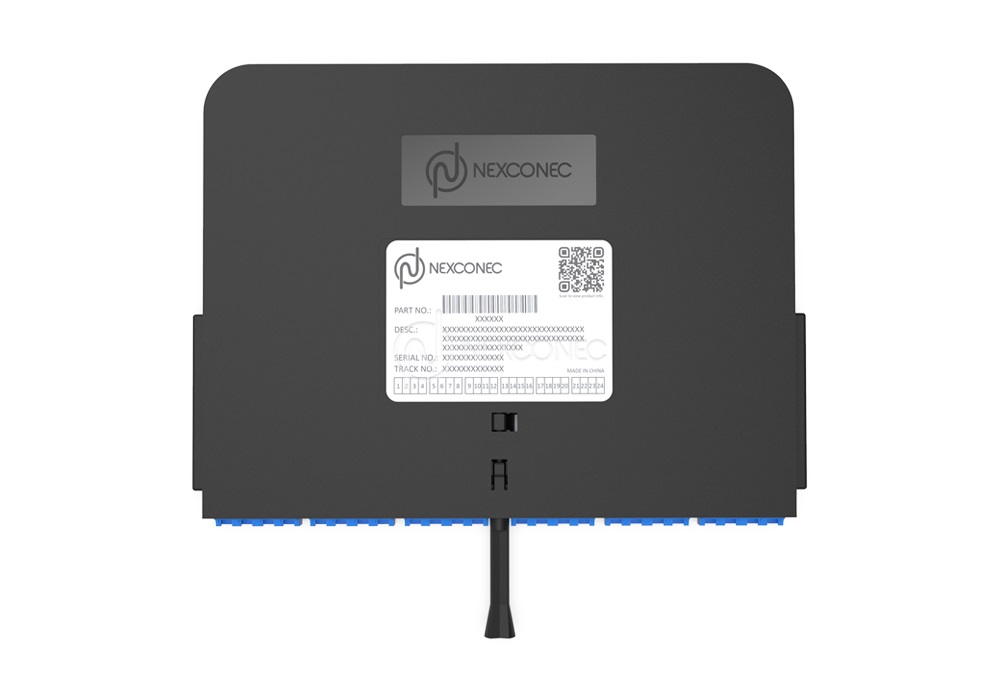

NGX SPLICE CASSETTE - NGXSPxx

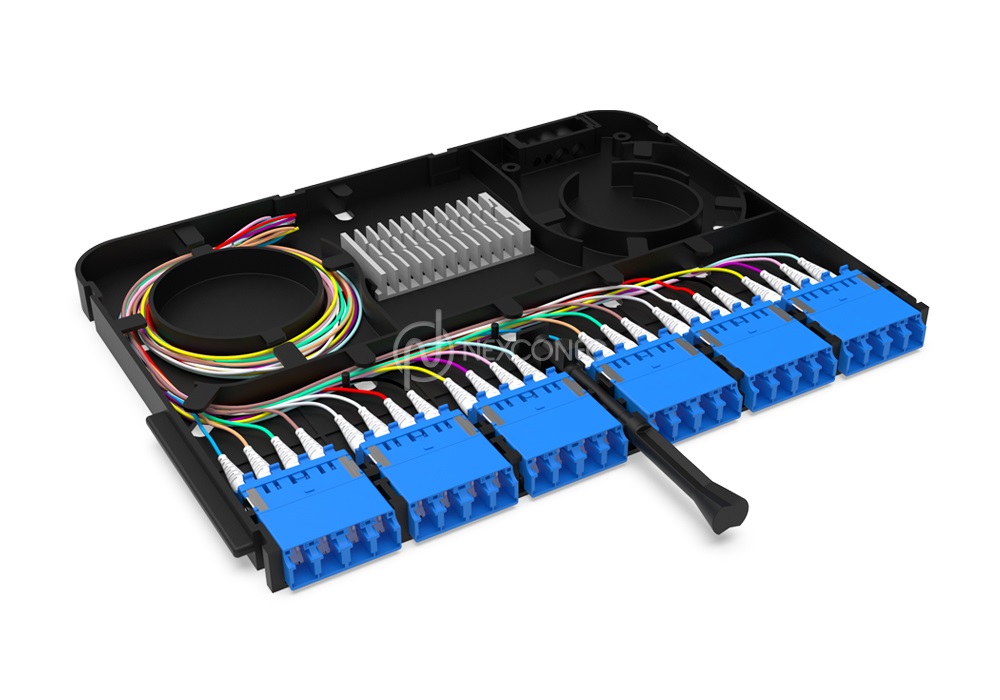

NEXCONEC NGX SPLICING cassettes are designed for splicing up to 24F in a cassette. The NGX fiber splice cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F with LC and 72F with SC. The high density splice cassettes are preloaded with adaptors and pigtails supplied with splicing accessories.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in 12F and 24F options
- Available in Single and Multimode options
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant ABS+PC material
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTRUCTION MANUAL.pdf |
View | Download |
| Footprint | NGX |
|---|---|
| Dimensions (WxDxH) | 182.2 x 140 x 12.6 mm |
| Material | ABS + PC |
| Housing Color | Black |
| Application | NGX Panels |
| Fiber Capacity | 24FO in LC / 12FO in SC |
| Splice Holder | 40MM Heat Shrink Sleeves, Available in Crimp Style or Ribbon |
| Max. Cable Diameter to Use | 5.5 mm |
| Weight | 0.25 Kg |
| Parameters | Units | SM LC/SC | MM LC/SC |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.20/0.30 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.12/0.15 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Part Number | Product Description |
|---|---|
| NGXSP01 | NGX Splice Module for 24FO LC SM Incl. Premium Pigtails SM LSZH |
| NGXSP02 | NGX Splice Module for 24FO LC/APC SM Incl. Premium Pigtails SM LSZH |
| NGXSP03 | NGX Splice Module for 24FO LC MM Incl. Premium Pigtails OM4 RBS LSZH |
| NGXSP04 | NGX Splice Module for 12FO SC SM Incl. Premium Pigtails SM LSZH |
| NGXSP05 | NGX Splice Module for 12FO SC/APC SM Incl. Premium Pigtails SM LSZH |
| NGXSP06 | NGX Splice Module for 12FO SC MM Incl. Premium Pigtails OM4 RBS LSZH |
| NGXSP07 | NGX Splice Module for 24FO LC MM Incl. Premium Pigtails OM5 RBS LSZH |
| NGXSP08 | NGX Splice Module for 12FO SC MM Incl. Premium Pigtails OM5 RBS LSZH |
Notes: Ribbon splice and sandwich (ANT) type are available on request.
*Add ‘-FT’ for France Telecom color coding. (Example: NGXSP01-FT)
*Add ‘-FT’ for France Telecom color coding. (Example: NGXSP01-FT)
