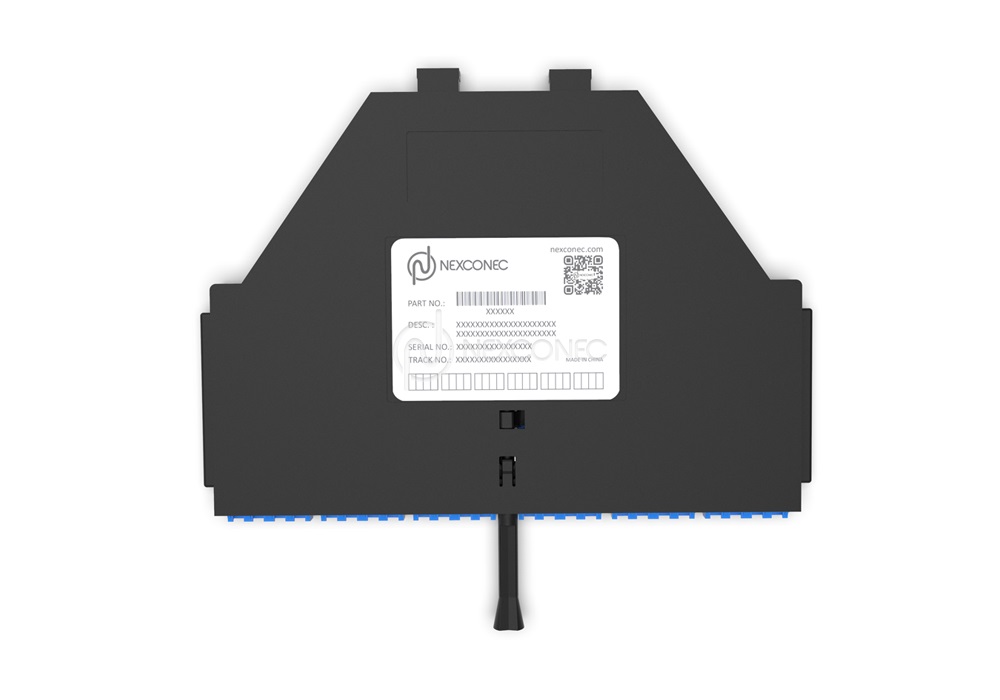

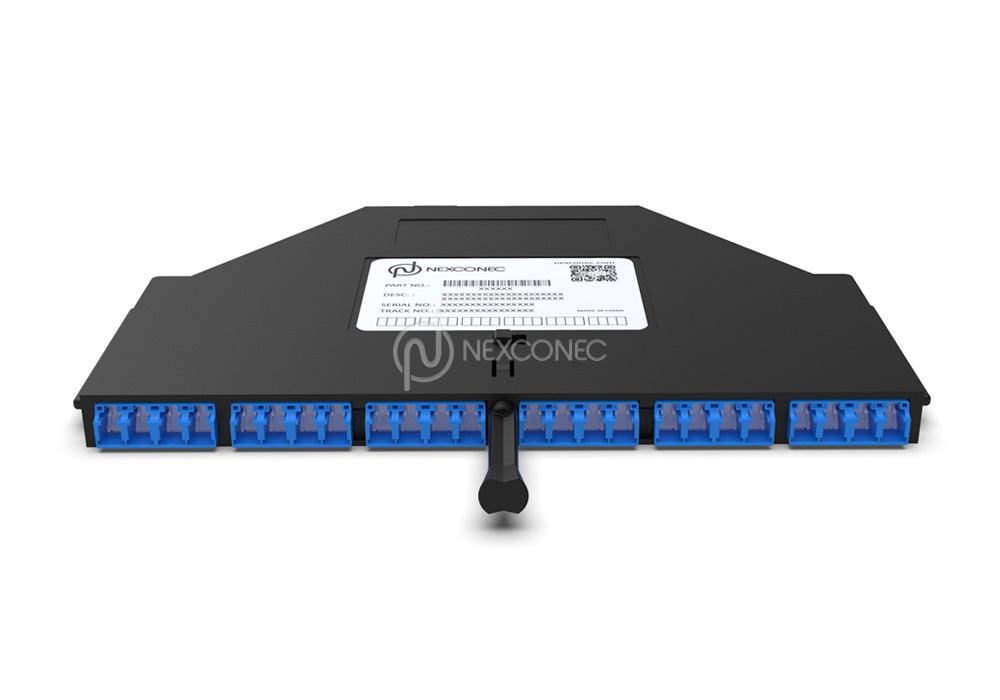

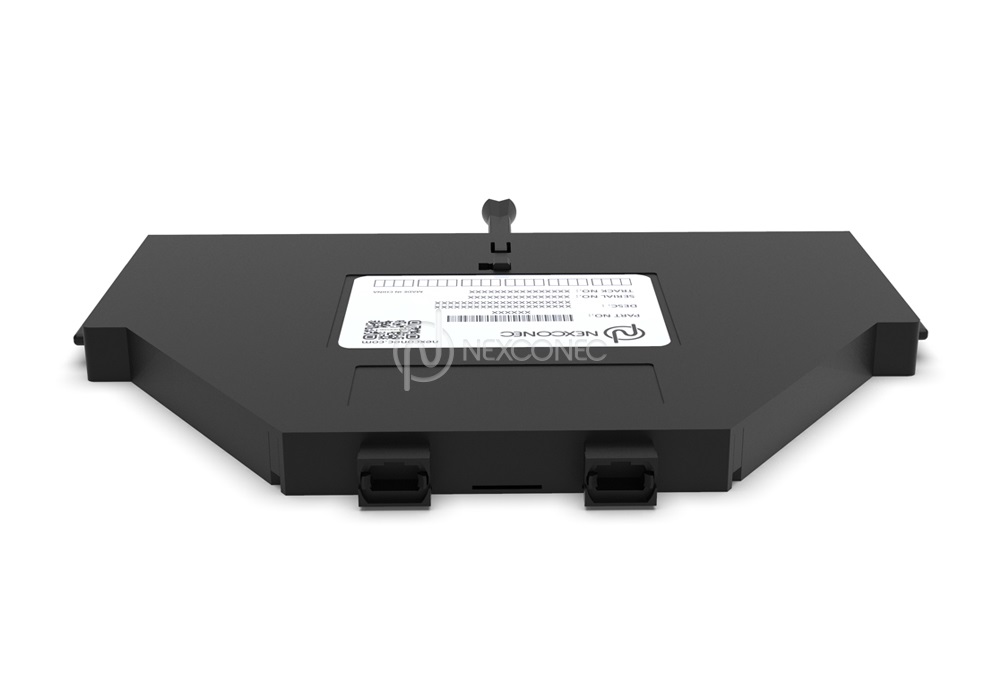

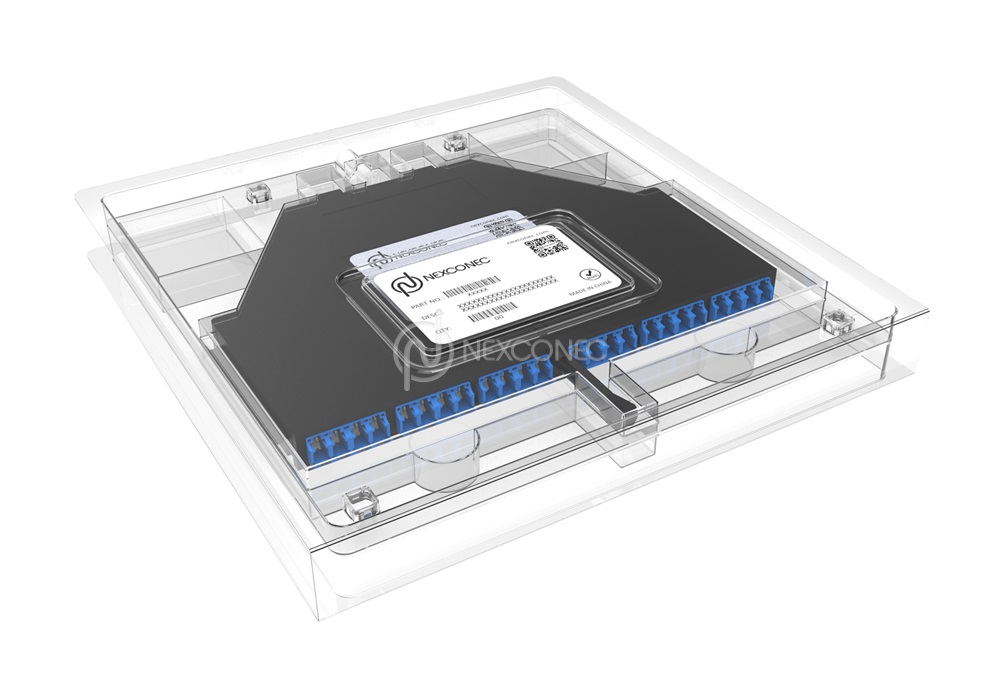

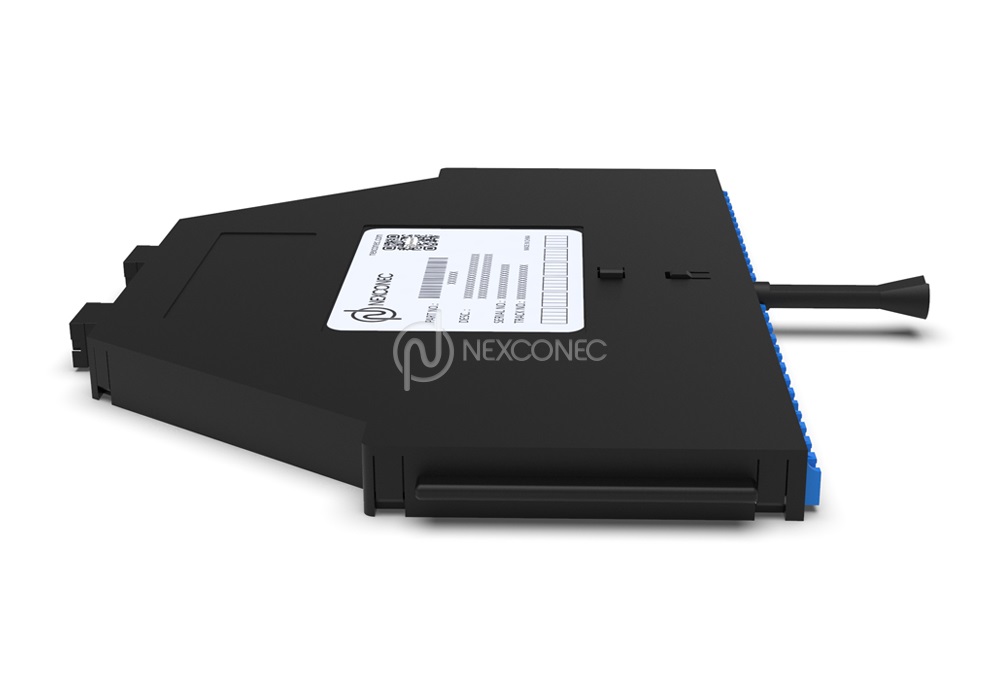

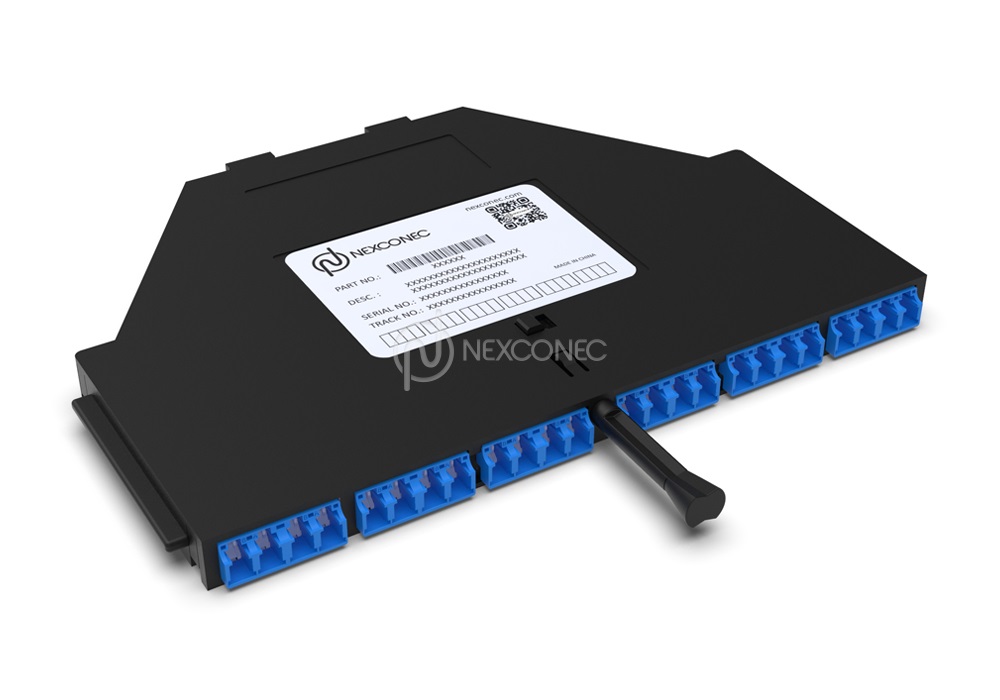

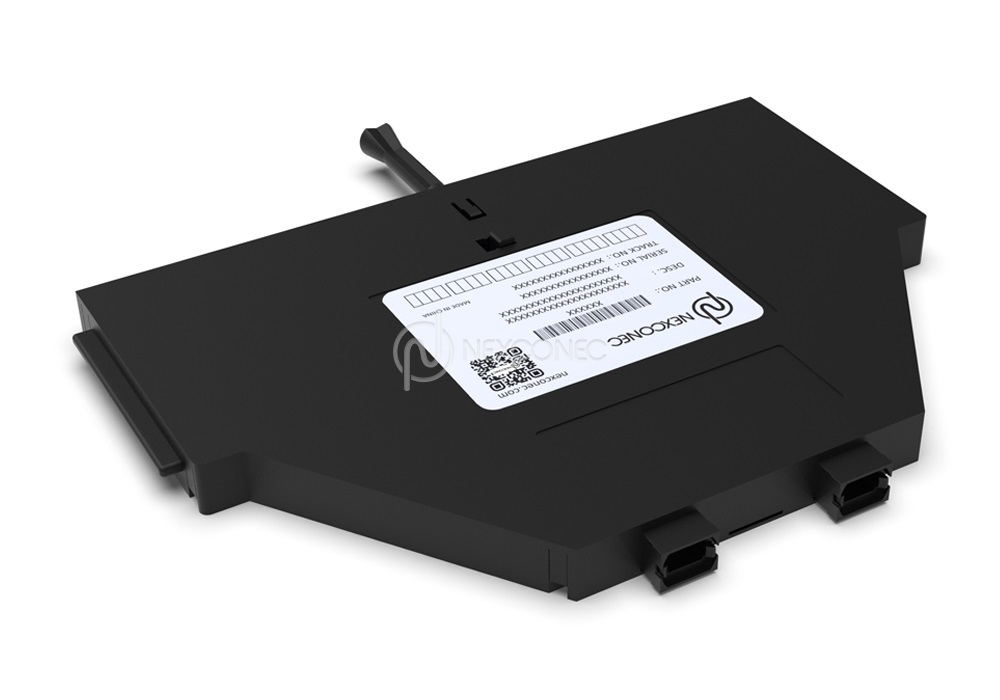

NGX CASSETTE MTP®/MPO BASE-12 - NGXCAxx
NEXCONEC NGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Available in 12, and 24 fibre count
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant ABS+PC material
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
Product Information
 DATASHEET.pdf |
View | Download |
| INSTALLATION GUIDE.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Parameters | Units | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| NGXCA01 | NGX Module MPO (ELITE) M-LC/UPC Premium 24FO SMF OS2 Polarity A/C Base-12 |
| NGXCA02 | NGX Module MPO (ELITE) M-LC/APC Premium 24FO SMF OS2 Polarity A/C Base-12 |
| NGXCA03 | NGX Module MPO (ELITE) M-LC Premium 24FO MM OM3/4 Polarity A/C Base-12 |
| NGXCA04 | NGX Module MPO (ELITE) M-SC/UPC Premium 12FO SMF OS2 Polarity A/C Base-12 |
| NGXCA05 | NGX Module MPO (ELITE) M-SC/APC Premium 12FO SMF OS2 Polarity A/C Base-12 |
| NGXCA06 | NGX Module MPO (ELITE) M-SC Premium 12FO MM OM3/4 Polarity A/C Base-12 |
| NGXCA07 | NGX Module MPO (ELITE) M-LC Premium 24FO MM OM5 Polarity A/C Base-12 |
