NGX PATCHING CASSETTE - NGXPTxx

NGXPTxx NGXPTxx NGXPTxx NGXPTxx NGXPTxx NGXPTxx NGXPTxx NGXPTxx NGXPTxx

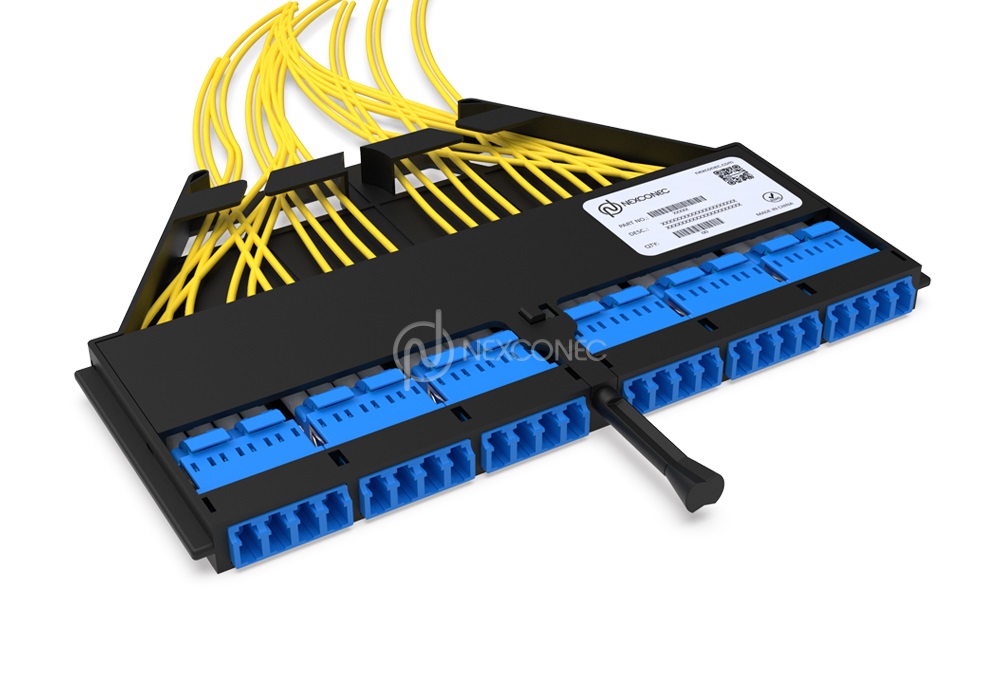

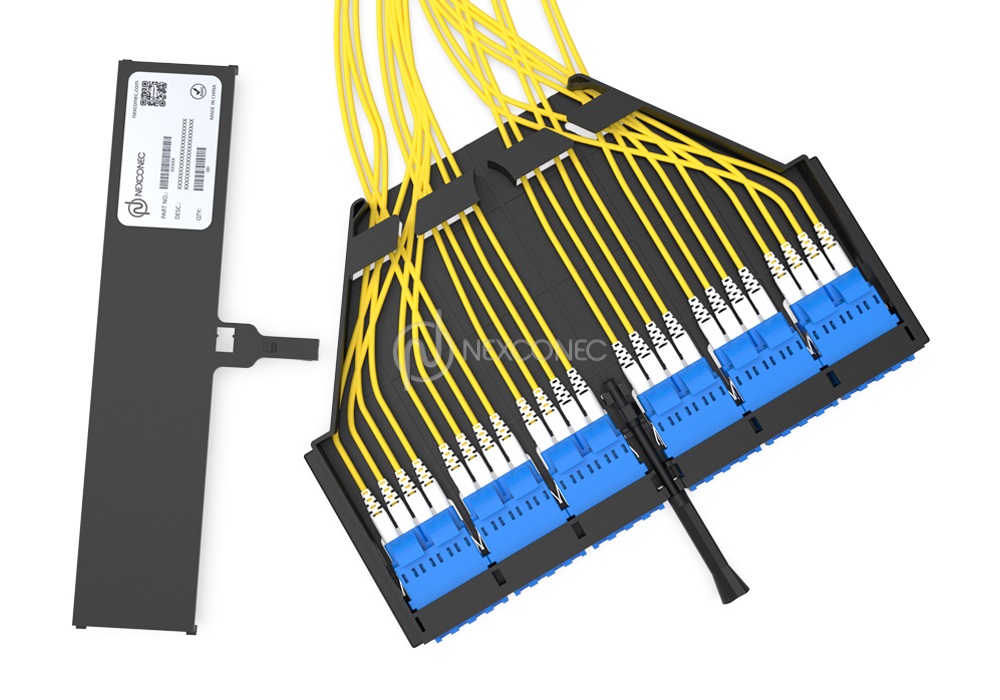

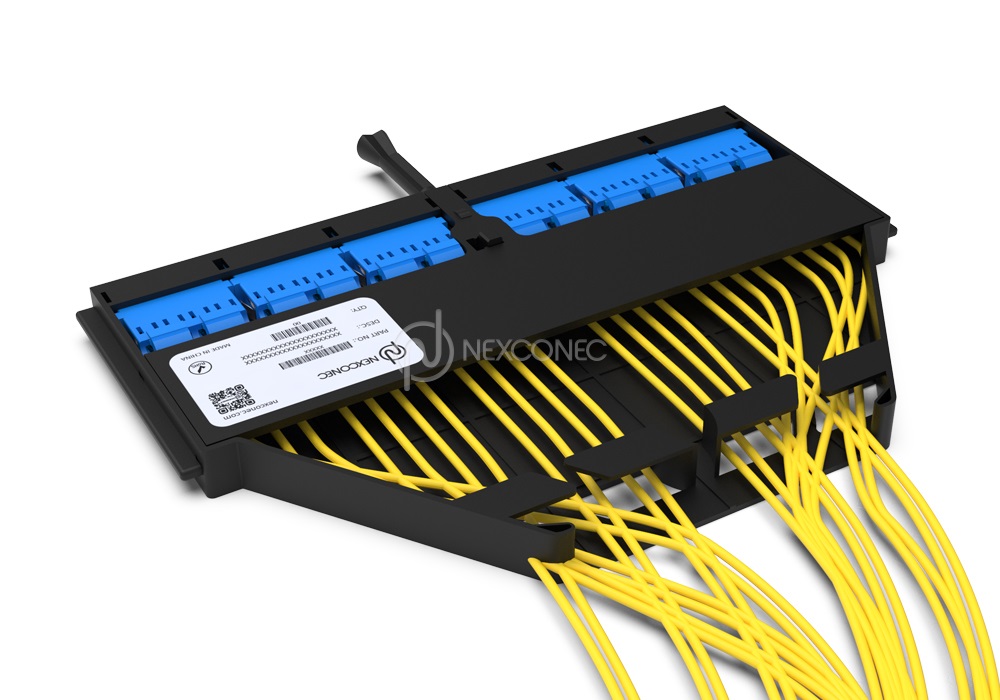

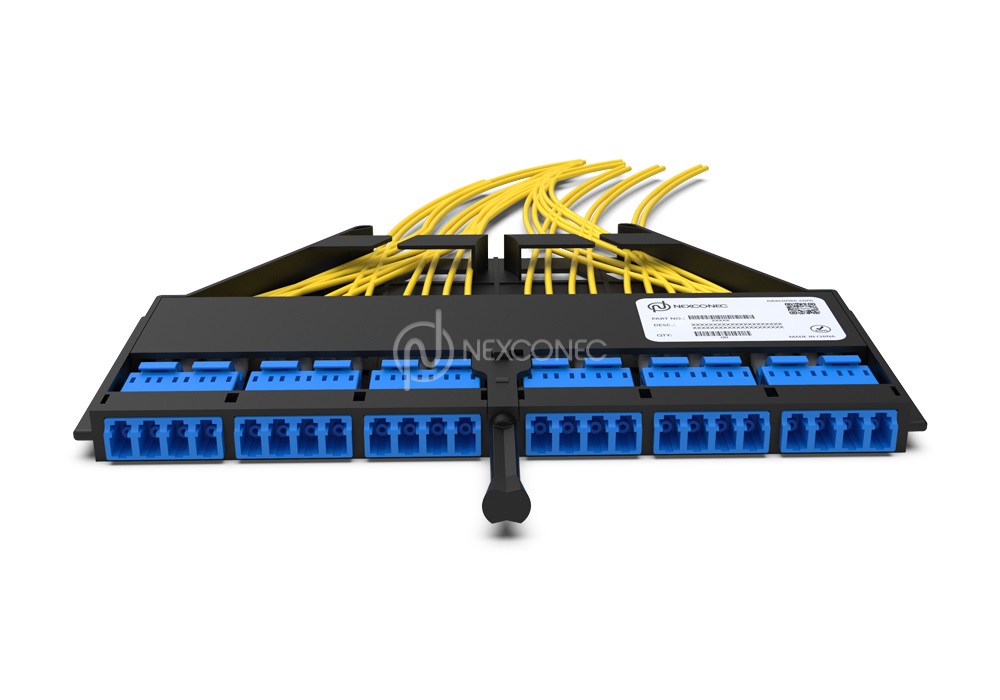

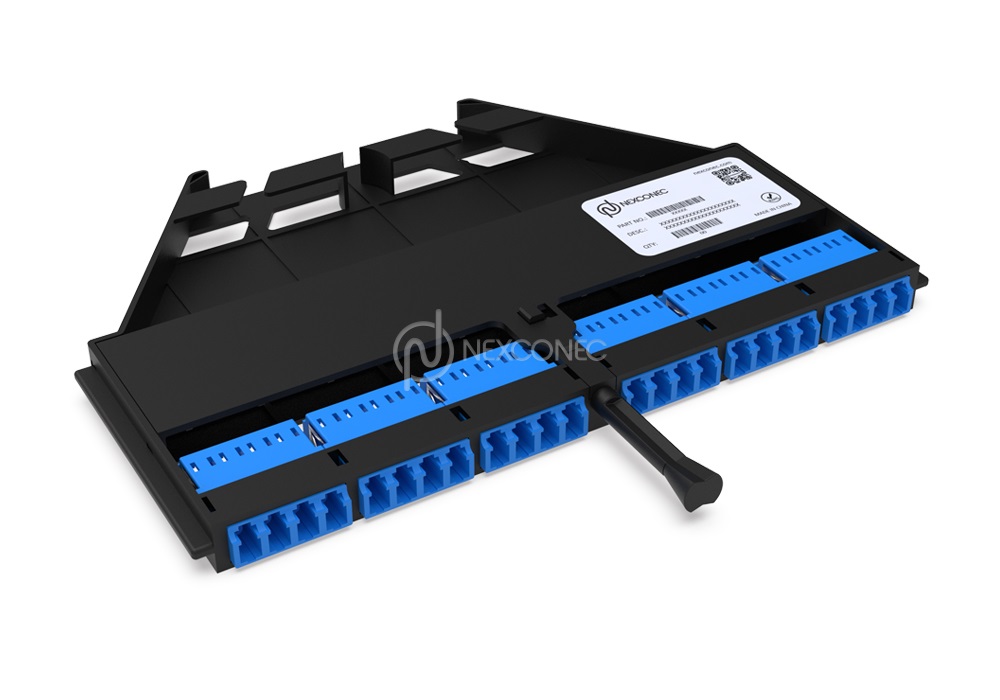

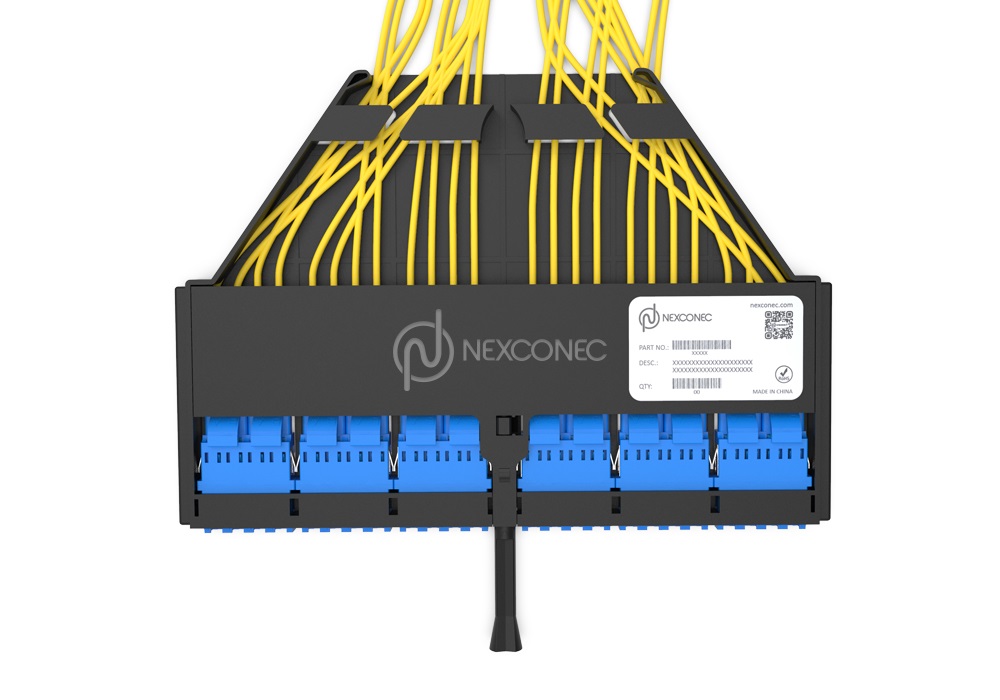

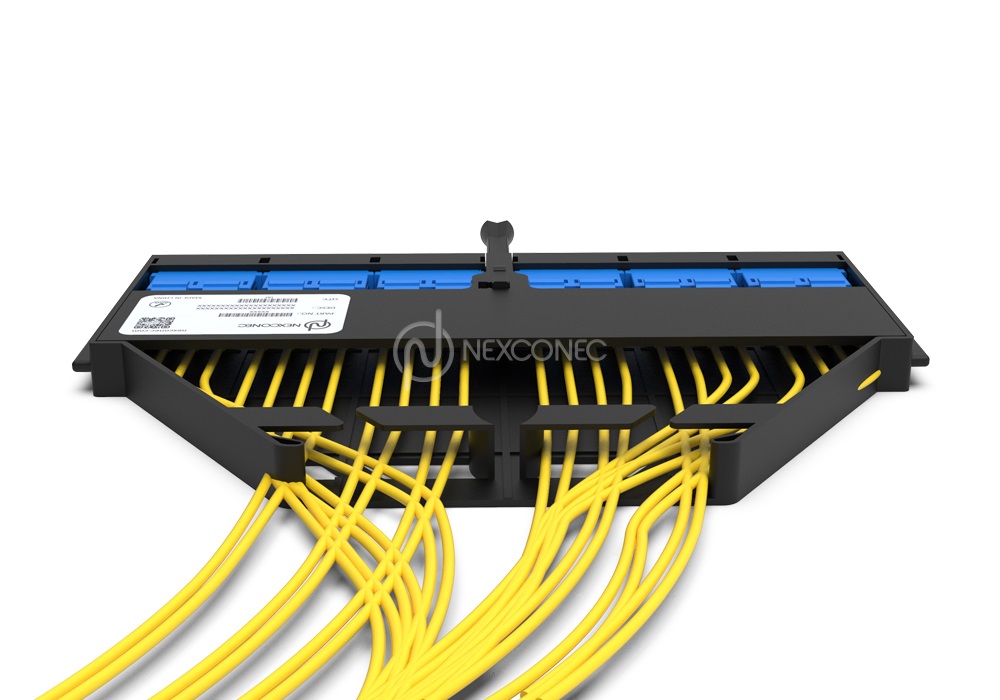

NEXCONEC NGX PATCHING cassette are designed for direct patching of assemblies with no need for transition or splicing thereby saving on additional link losses. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F with LC and 72F with SC. The cassettes are preloaded with adaptors such as LC, SC.

FEATURES AND APPLICATIONS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • Shuttered dust proof LC adapters
  • Available in LC, SC
  • RoHS, REACH & SVHC compliant, Materials Conflict compliant
  • Flame retardant ABS+PC material
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus Wide Network
  • Broadband network
  • Supports SFP, QSFP, CFP applications

Product Information

pdfDATASHEET.pdf View Download
pdfINSTRUCTION MANUAL.pdf View Download
Part Number Product Description
NGXPT01 NGX Patching Module for 24FO LC SM Blue Adapters
NGXPT02 NGX Patching Module for 24FO LC SM Green Adapters
NGXPT03 NGX Patching Module for 24FO LC MM Aqua Adapters
NGXPT04 NGX Patching Module for 12FO SC SM Blue Adapters
NGXPT05 NGX Patching Module for 12FO SC SM Green Adapters
NGXPT06 NGX Patching Module for 12FO SC MM Aqua Adapters
