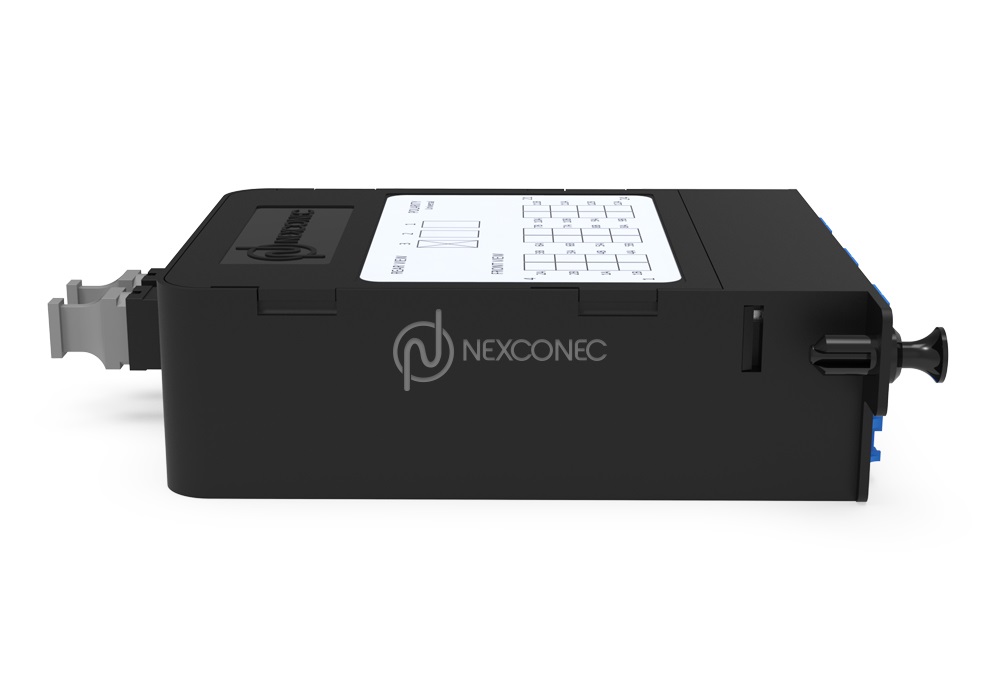

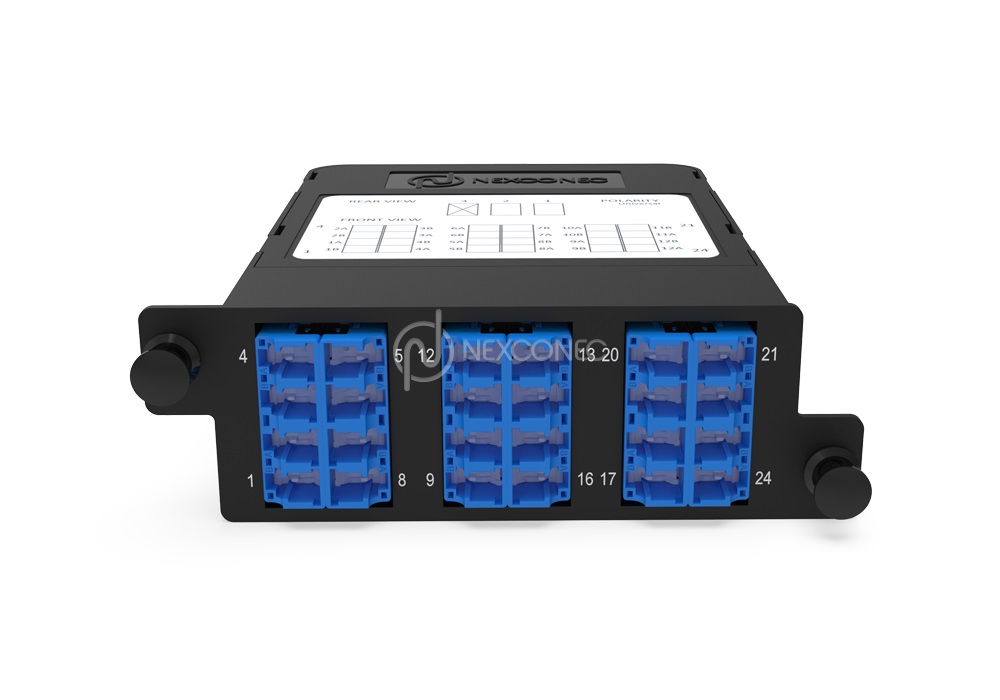

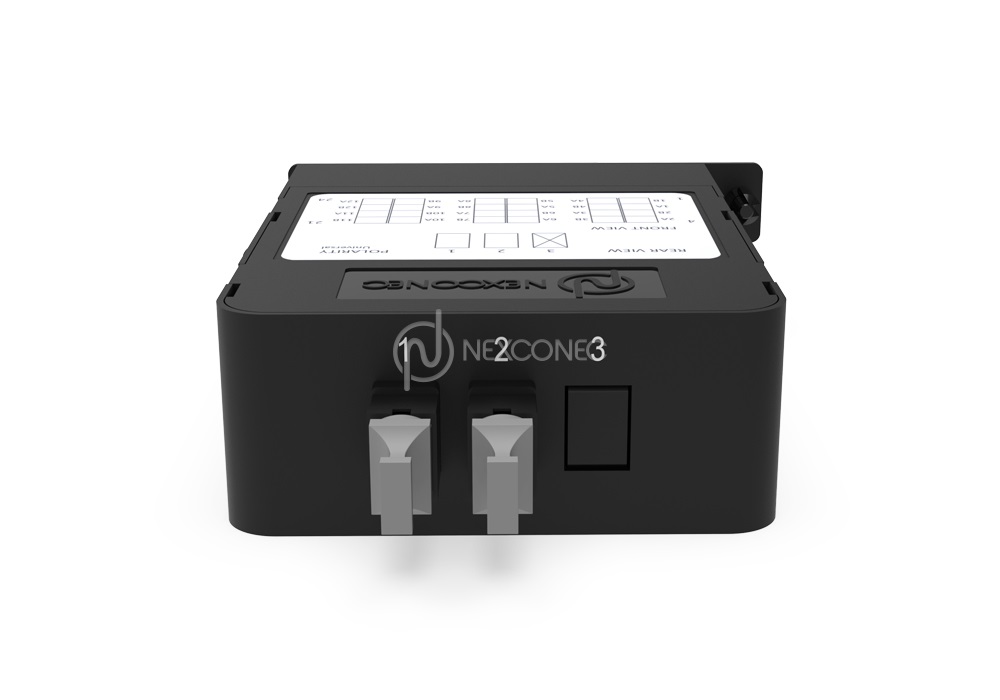

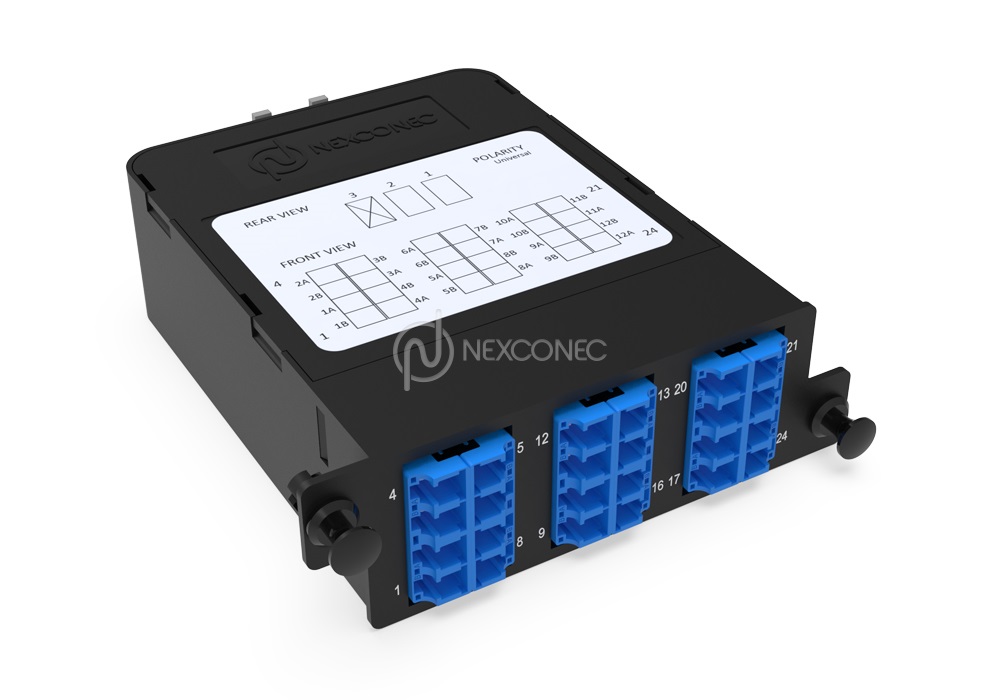

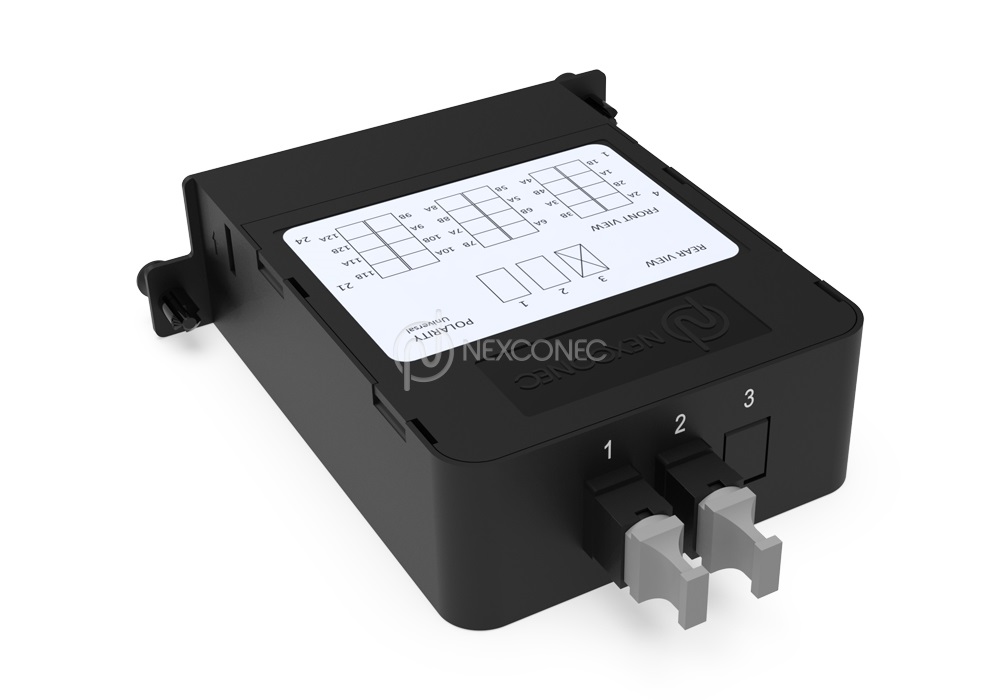

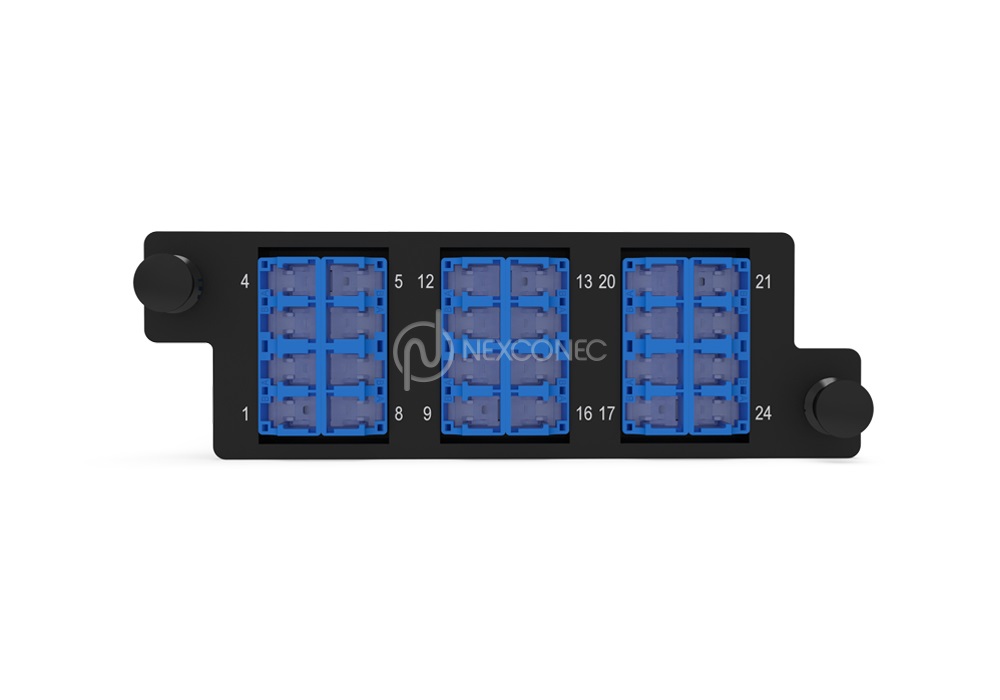

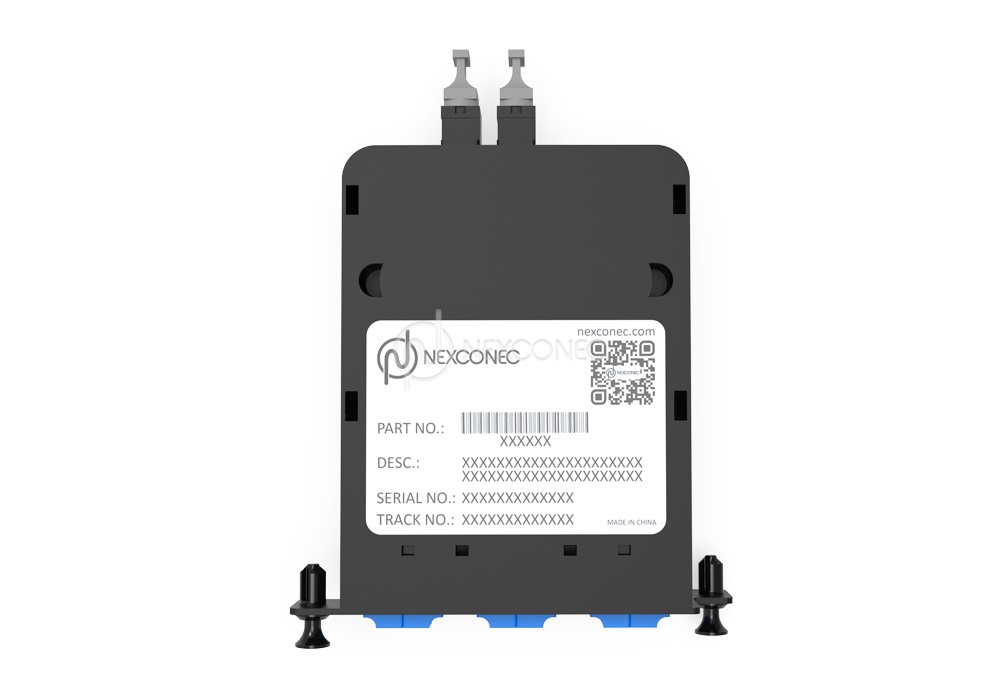

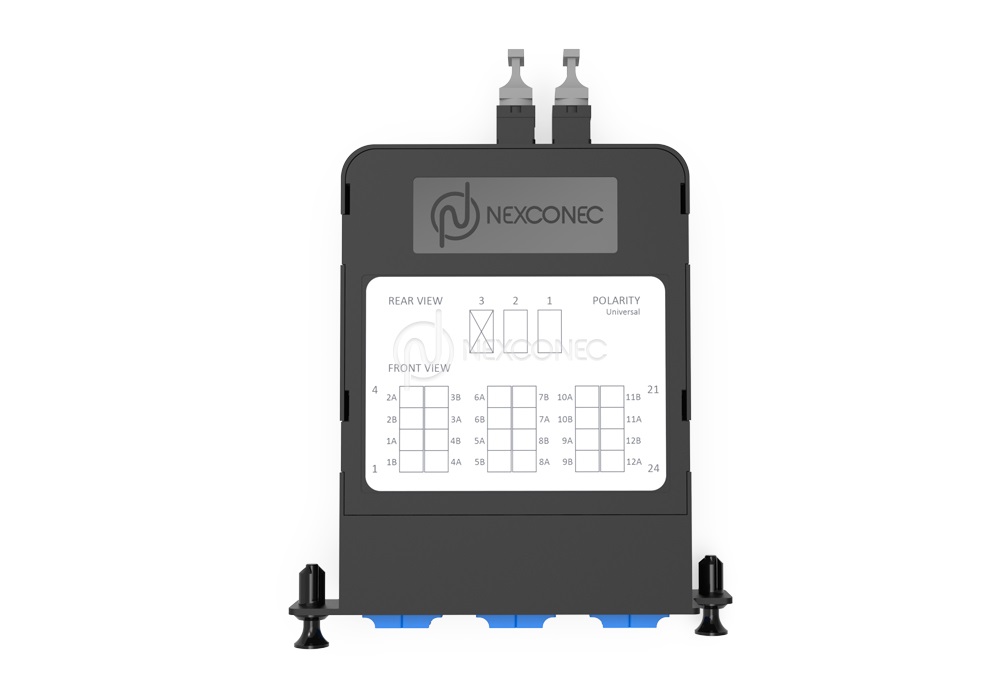

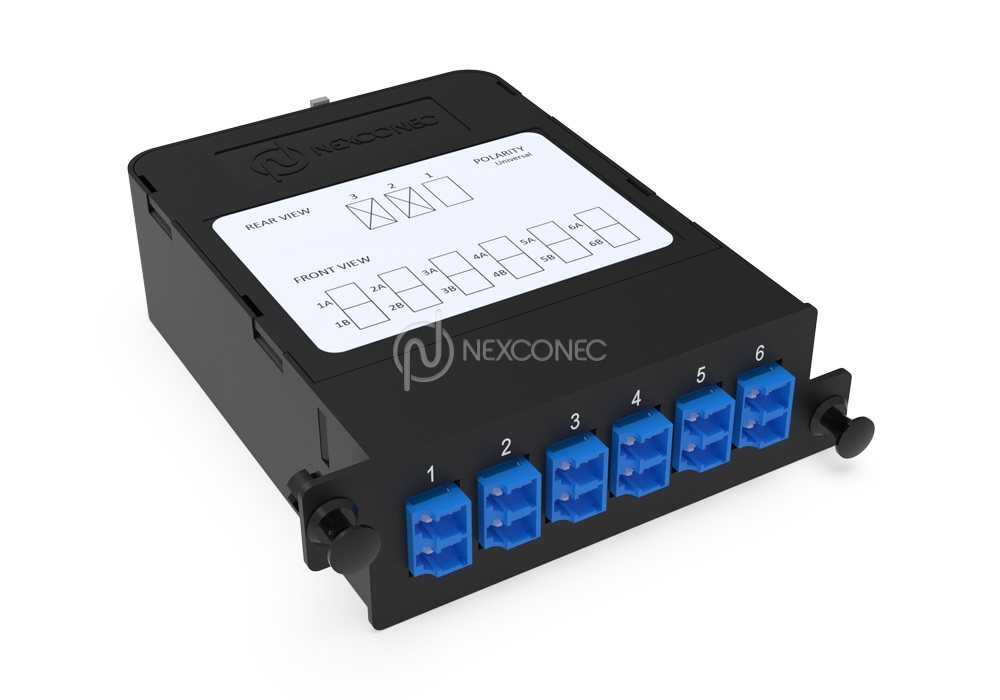

HD CASSETTE MTP®/MPO (Type-B) - MP4CAxxU
NEXCONEC HD cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The HD cassettes are designed to easily plug into NEXCONEC HD 1U 4 slot chassis and each chassis can populate up to 96F.
The cassettes eliminate the need for splicing reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Available in 12, and 24 fiber count
- Available in Polarity B as per TIA/EIA-568-C.3 with Alpha/Beta cassettes
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTALLATION GUIDE.pdf |
View | Download |
| FIBER MAPPING.pdf |
View | Download |
| Footprint | HD MP4 |
|---|---|
| Material | ABS + PC |
| Housing Color | Black |
| Application | HD Panels |
| Fiber Capacity | 24FO in LC / 12FO in SC |
| Adapters Ports | Shuttered laser & Dust proof LC Adapters |
| Dimensions (WxDxH in mm) | 106 x 110 x 33.60 |
| Weight KG | 0.25 |
| Parameters | Units | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| MP4CA01U | HD Module MPO-LC Elite 24FO SM Pol B Universal |
| MP4CA02U | HD Module MPO-LC/APC Elite 24FO SM Pol B Universal |
| MP4CA03U | HD Module MPO-LC Elite 24FO MM OM3/4 Pol B Universal |
| MP4CA07U | HD Module MPO-LC Elite 12FO SM Pol B Universal |
| MP4CA08U | HD Module MPO-LC/APC Elite 12FO SM Pol B Universal |
| MP4CA09U | HD Module MPO-LC Elite 12FO MM OM3/4 Pol B Universal |
