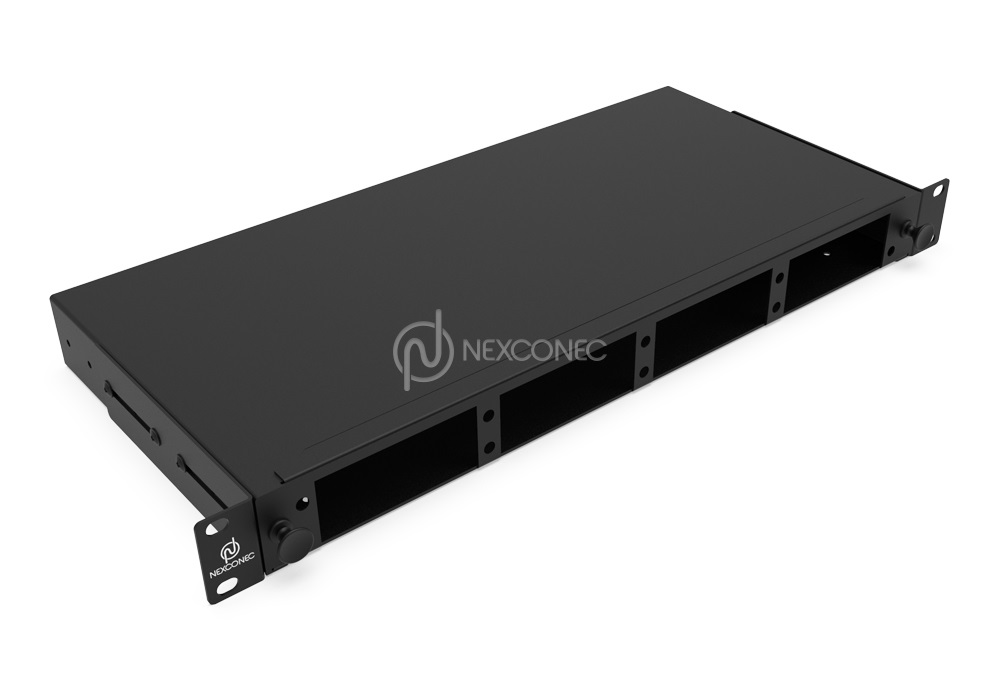

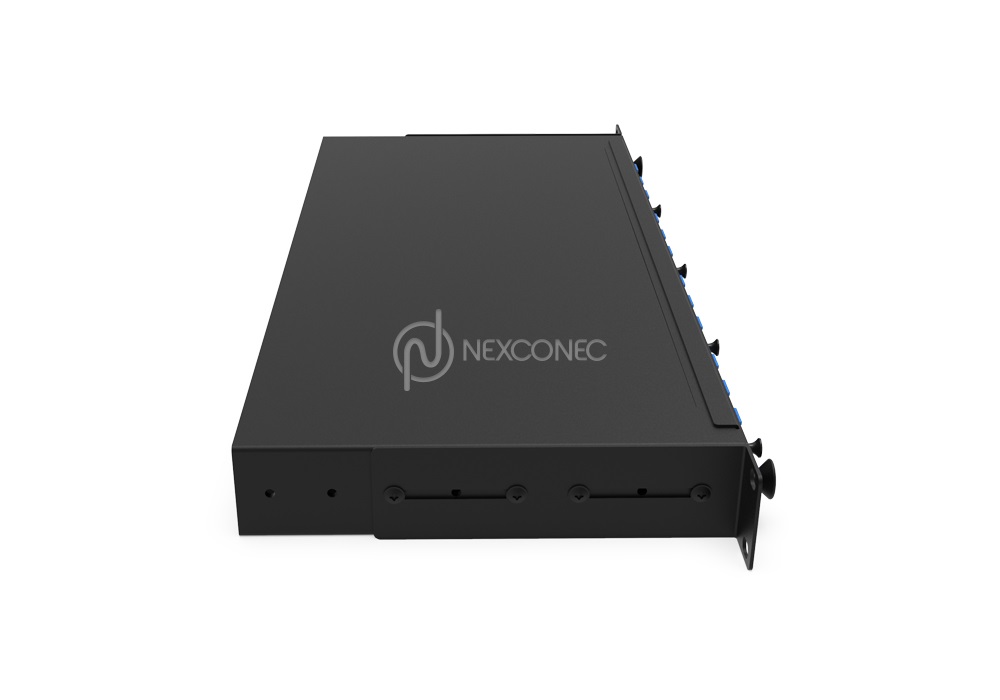

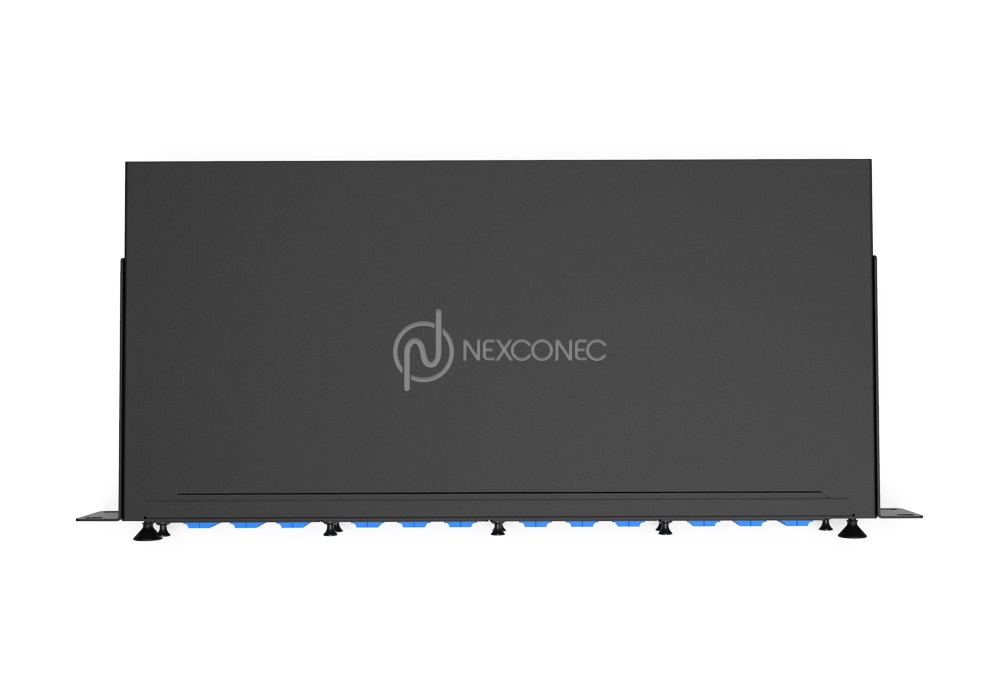

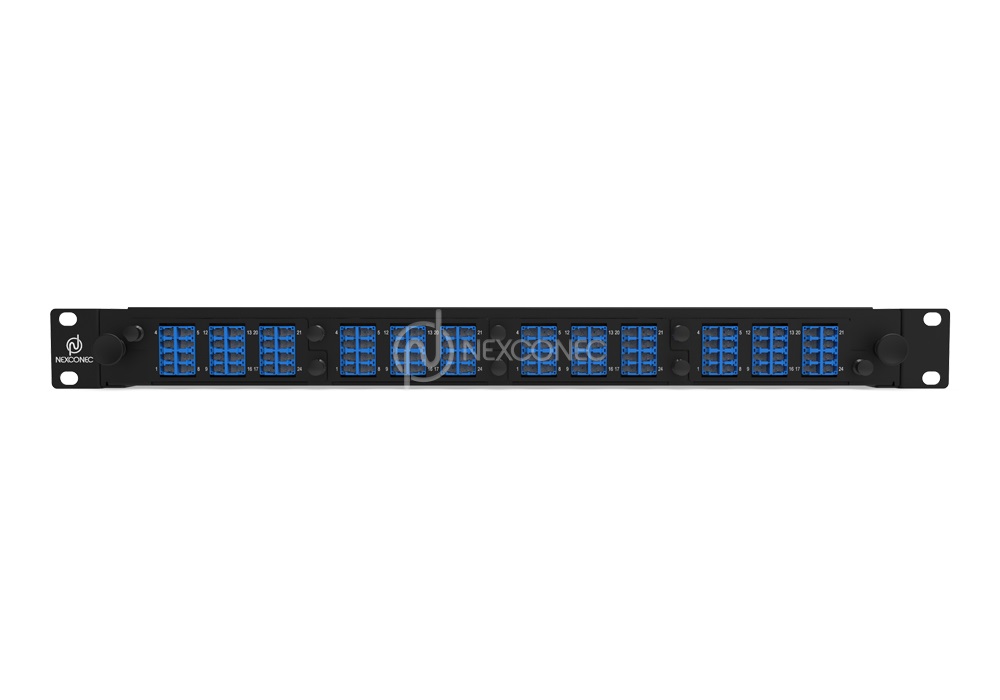

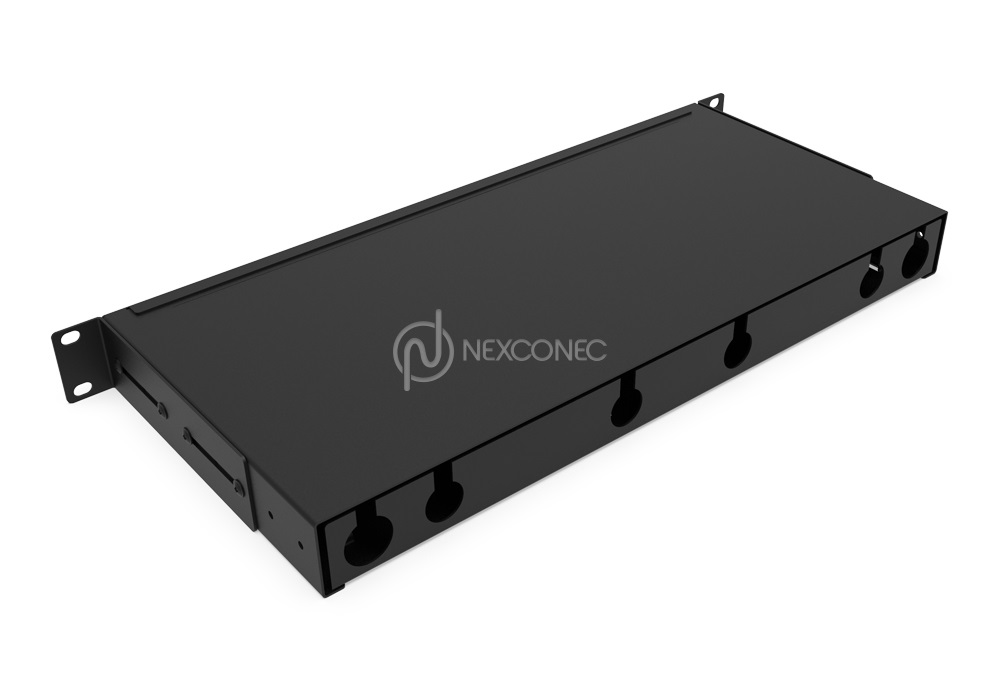

1U 4 Slots HD Modular Sliding Panel - MP4PP02

MP4PP02 MP4PP02 MP4PP02 MP4PP02 MP4PP02 MP4PP02 MP4PP02 MP4PP02 MP4PP02 MP4PP02 MP4PP02

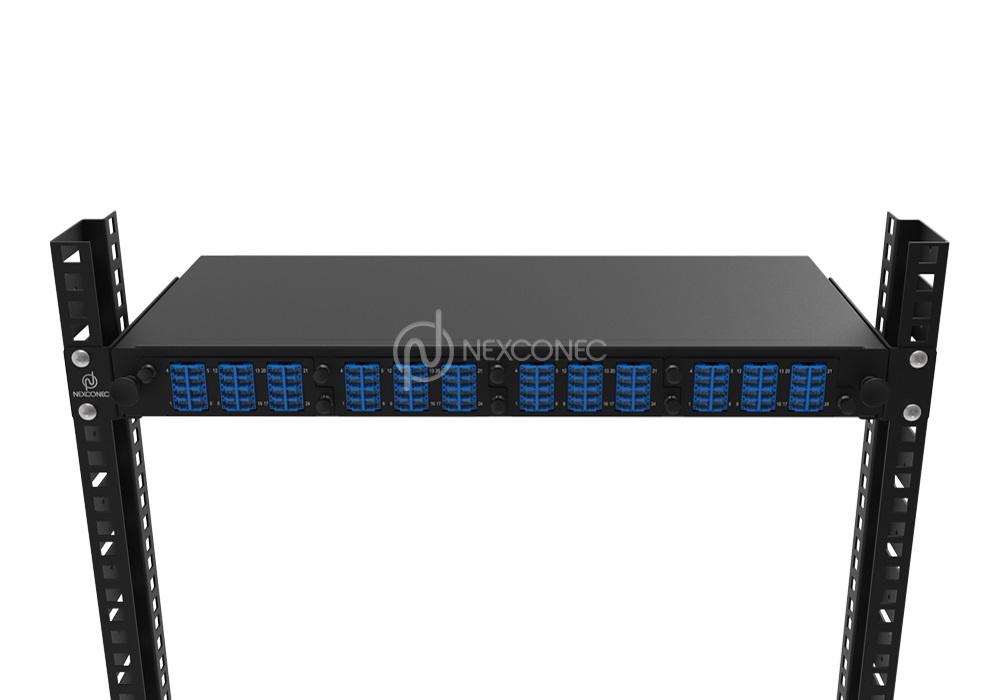

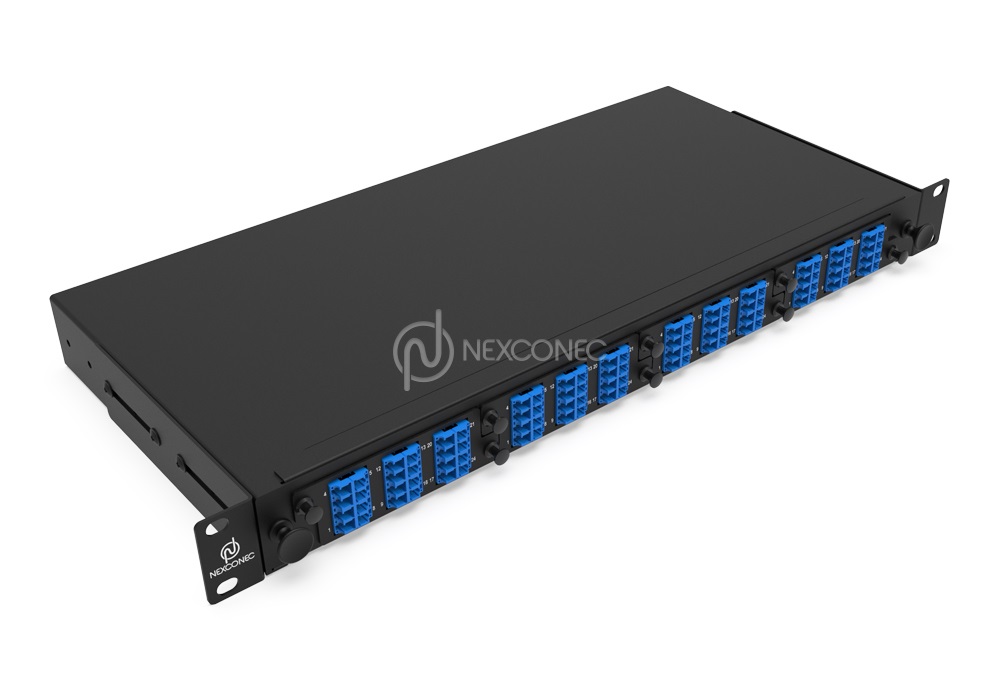

Nexconec high density modular sliding patch panel accepts up to 4 HD Modules or HD pass-thru adapter plates for a total of 96FO with LC & 48FO with SC configuration. HD optical fiber modular panel for multi-application with MPO System, Pre-terminated cables or conventional splicing.

Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling. Sliding patch panel is supplied unloaded and the modules and adapters plates are supplied separately.

FEATURES AND APPLICATIONS
  • 4 Slots HD in 1U space
  • Up to 96FO in LC / 48FO in SC
  • Modular with MPO, Splice Cassettes or Adapter plates
  • RoHS, REACH and SVHC
  • Datacentre & Enterprise network
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing

Product Information

datasheetDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
microsoft visioVISIO.vsdx Download
Mounting Type Rack 19”
Height Unit 1U
Material Cold rolled steel
Housing Colour Black
Application Indoor IP20
Lockable No
Dimensions (W x D x H in MM) 482 x 205 x 44
Net Weight 3KG

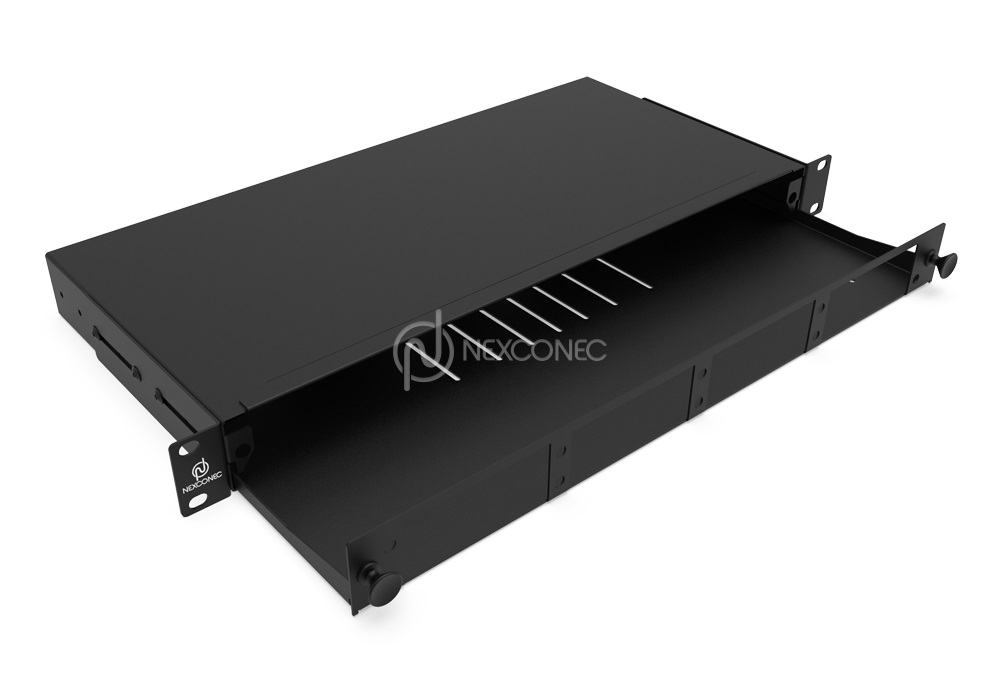

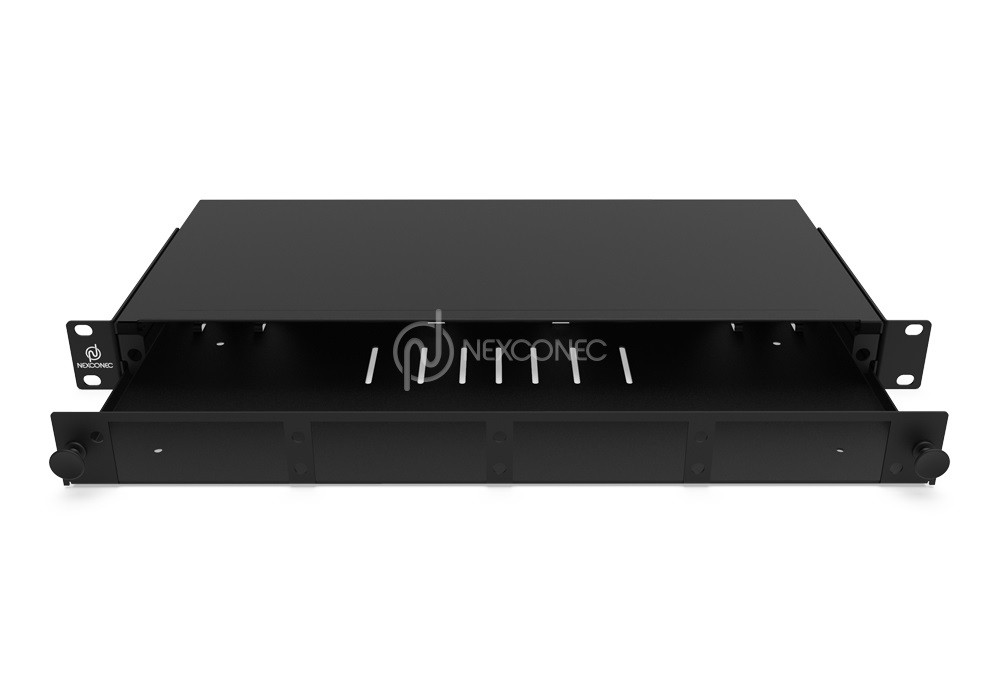

Opening Type Sliding tray with 45° open working angle
Access Type Front access
Front Cable Management Optional hinged drop-down door
Cable Entry Direction Rear

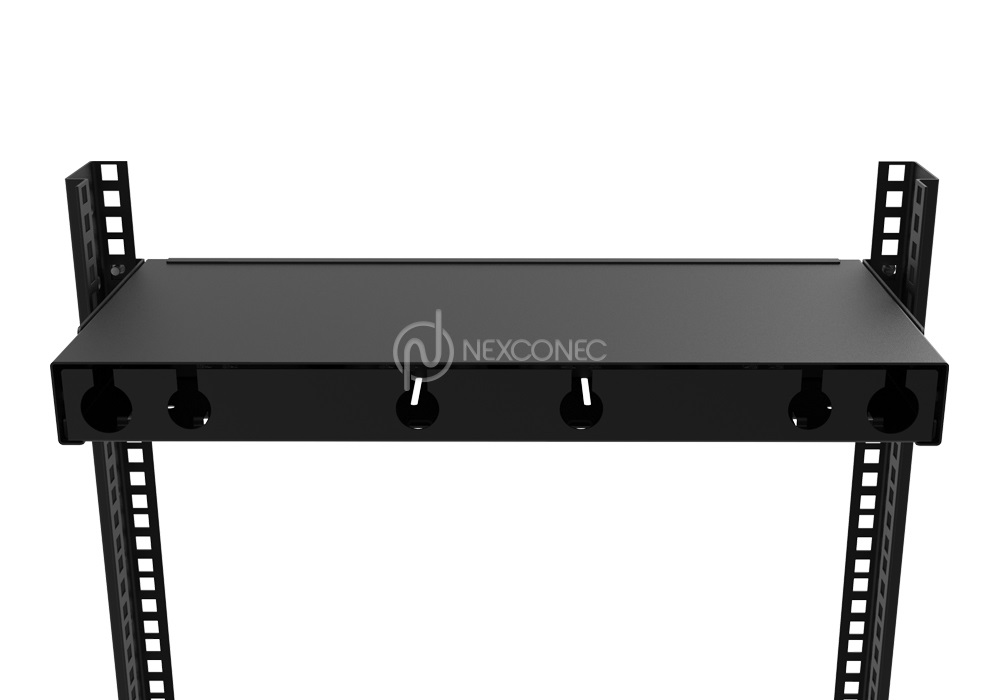

Rear Cable Management 6 cable entries
Slot Type HD Modules and HD Plates
Number of Slots 4
Fibre Capacity 96 in LC
Part Number Product Description
MP4PP02 1U 4 slots HD Modular Sliding Patch Panel Unloaded (No front Management)
