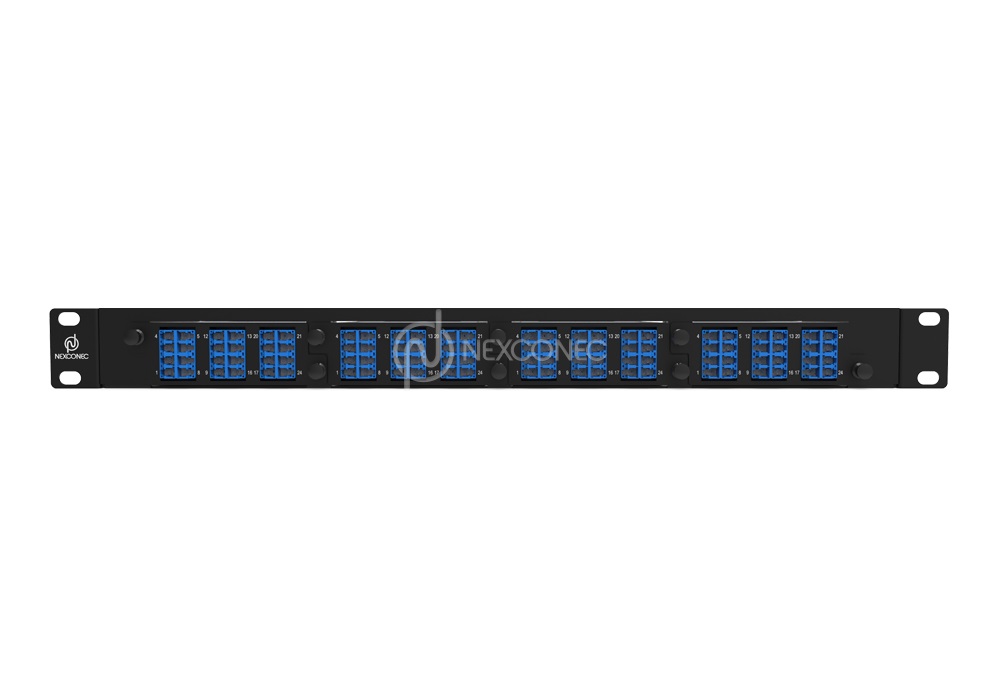

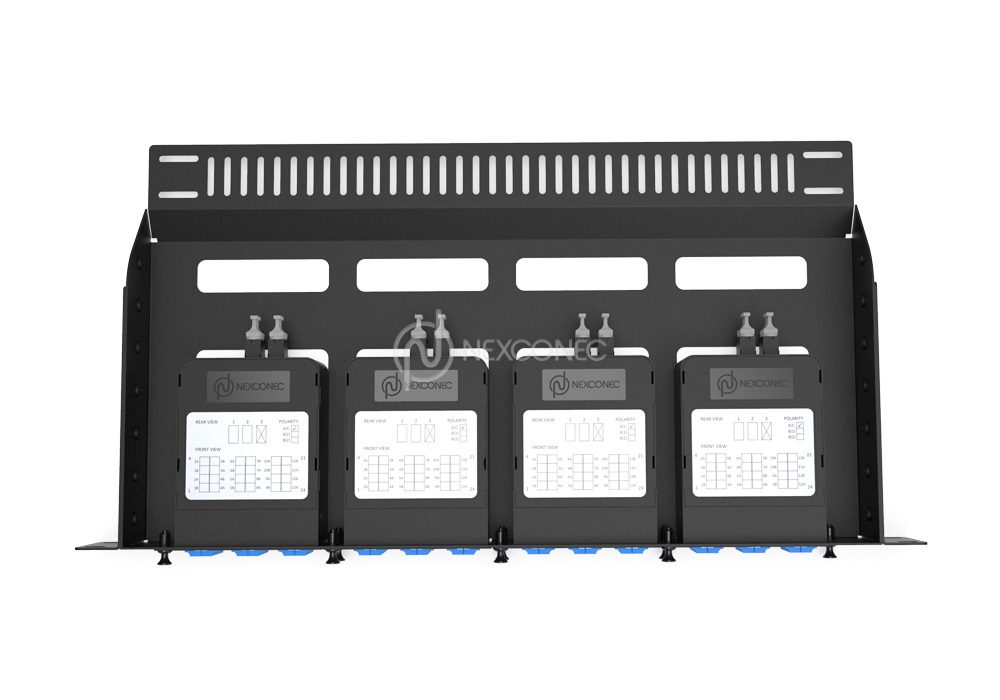

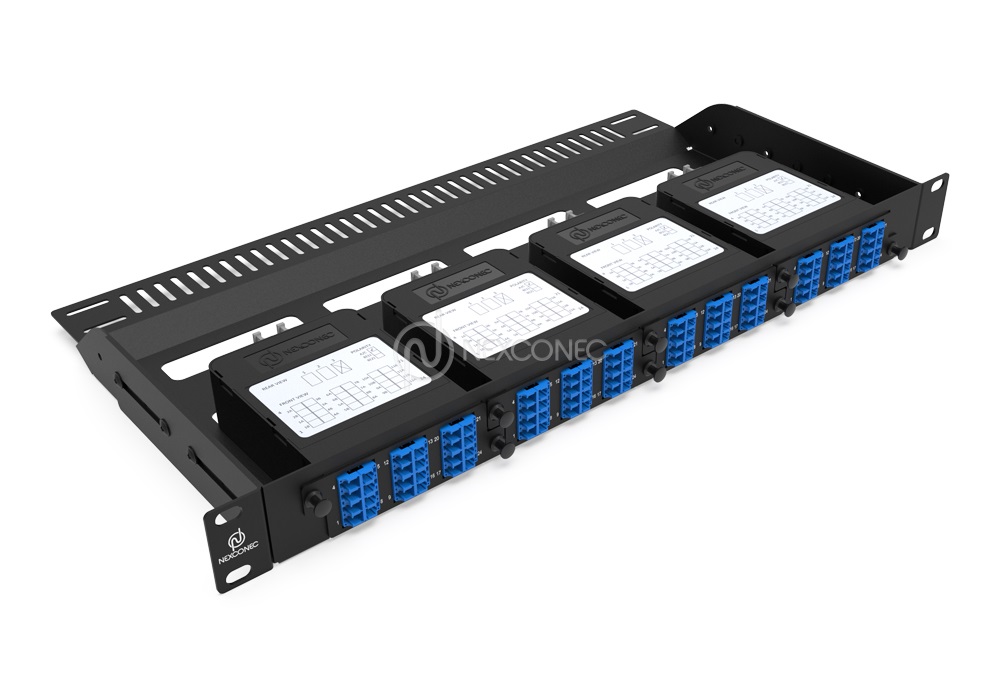

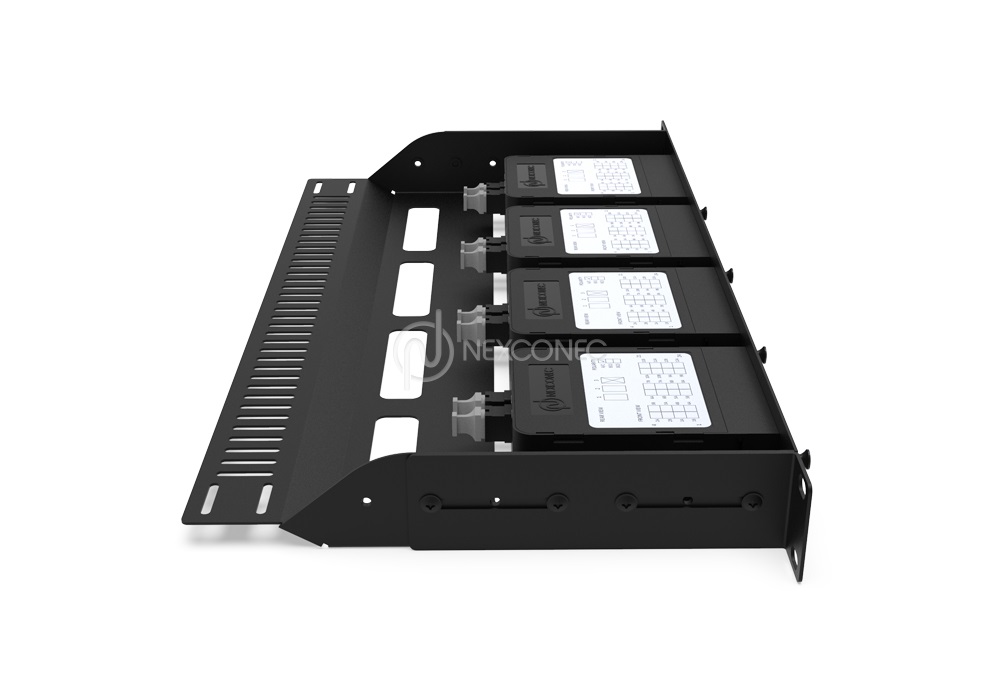

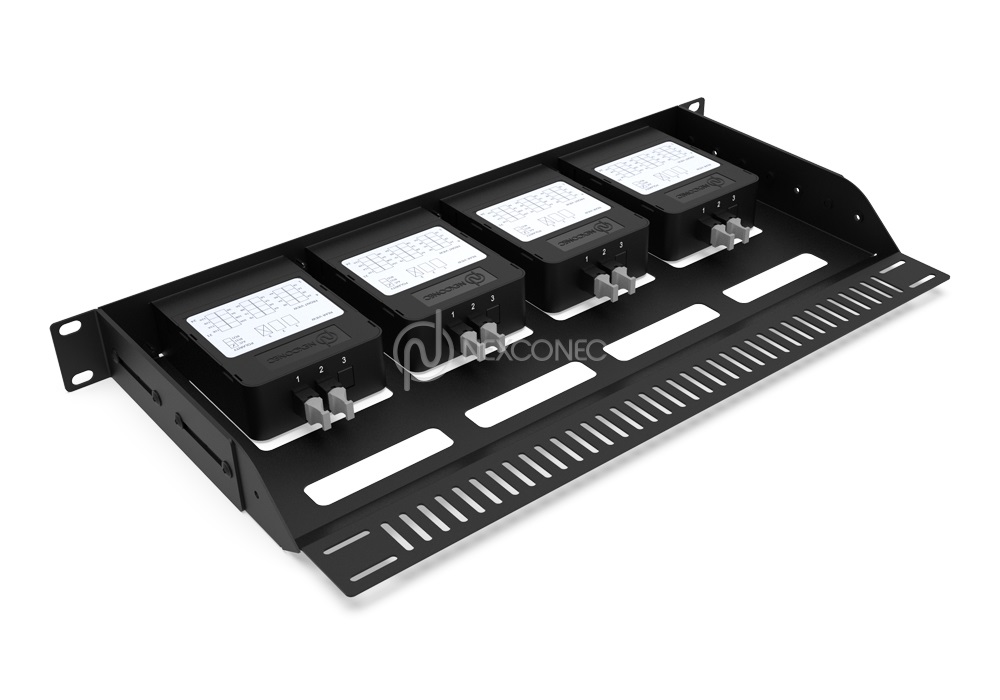

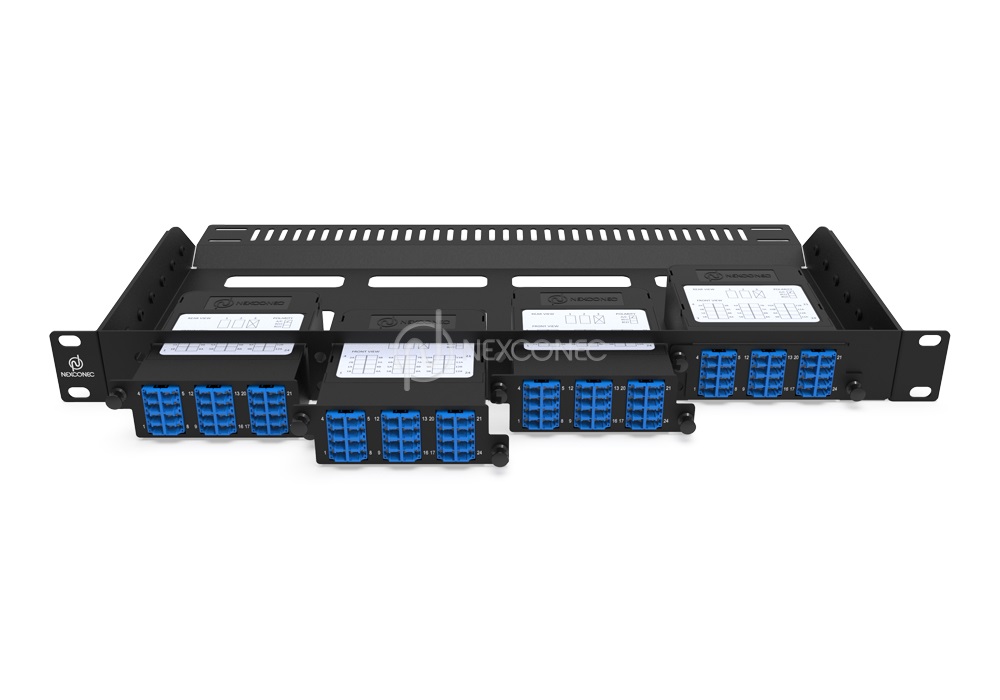

1U 4 Slots HD Modular Fixed Frame - MP4PP01

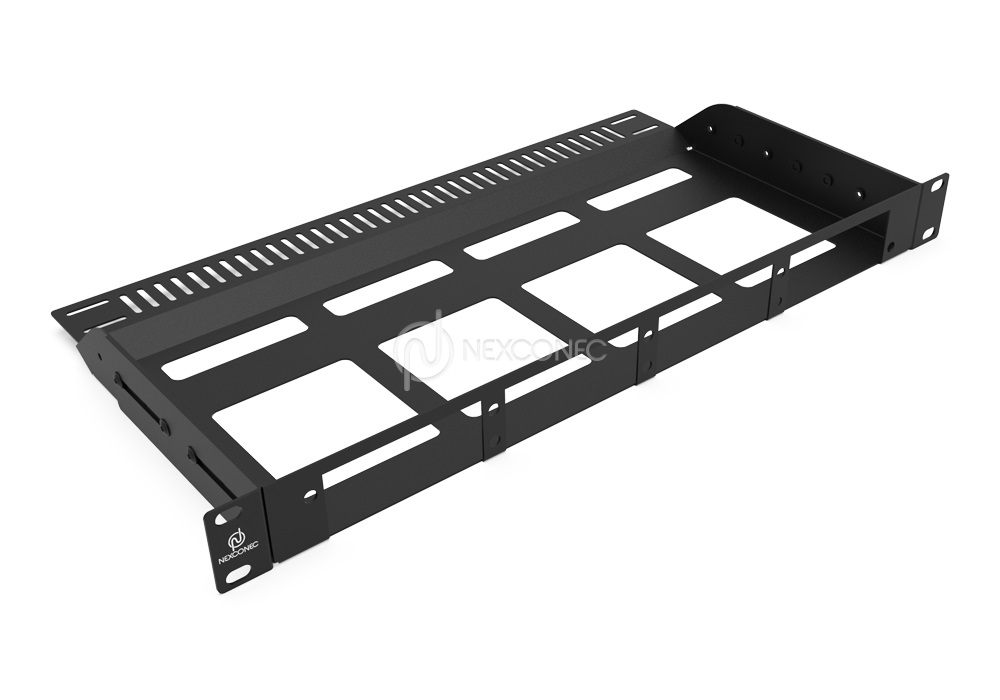

Nexconec high density fixed frame accepts up to 4 HD Modules or HD pass-thru adapter plates for a total of 96FO with LC configuration. Panel is supplied unloaded and the modules and plates are supplied separately.
FEATURES AND APPLICATIONS
- 4 Slots HD in 1U space
- Up to 96FO in LC
- Modular with MPO Cassette or Adapter plates
- RoHS, REACH and svHC
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |

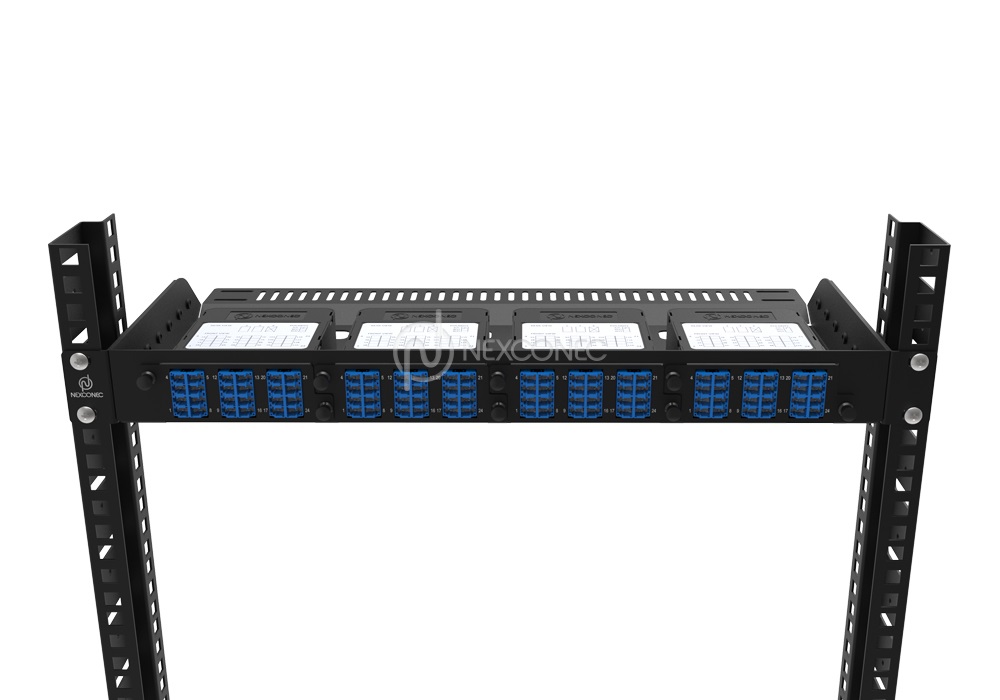

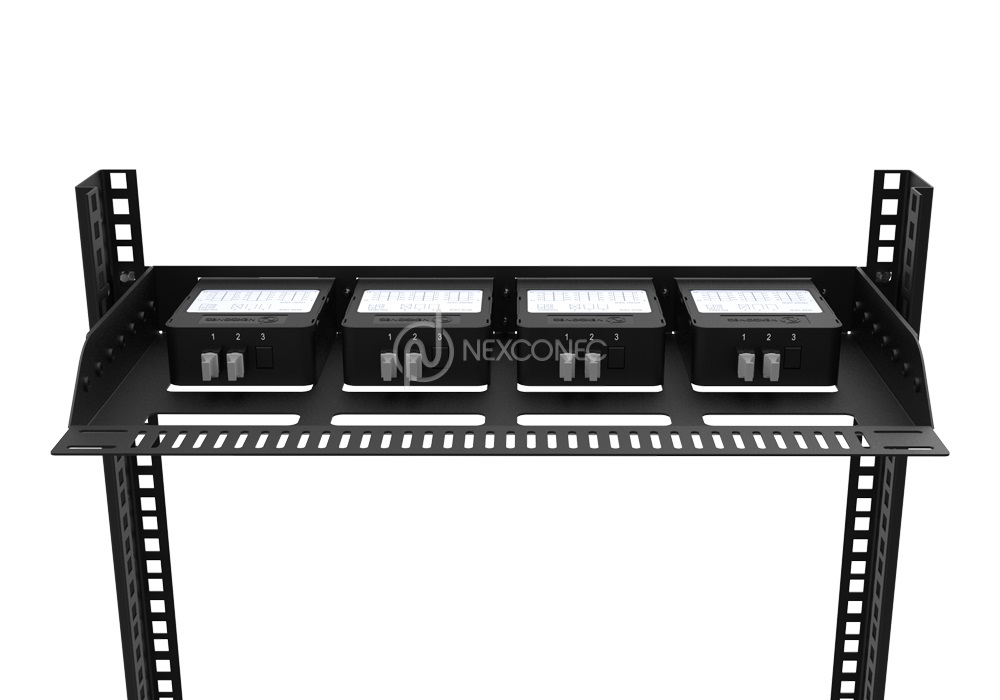

| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 482 x 240 x 43.50 |
| Net Weight | 2KG |
| Opening Type | Fixed |
|---|---|
| Access Type | Front access |
| Front Cable Management | No |
| Cable Entry Direction | Rear |
| Rear Cable Management | Support bar |
| Slot Type | HD Modules and HD Plates |
| Number of Slots | 4 |
| Fibre Capacity | 96 in LC |
| Part Number | Product Description |
|---|---|
| MP4PP01 | 1U 4 slots HD Modular Fixed Frame |
