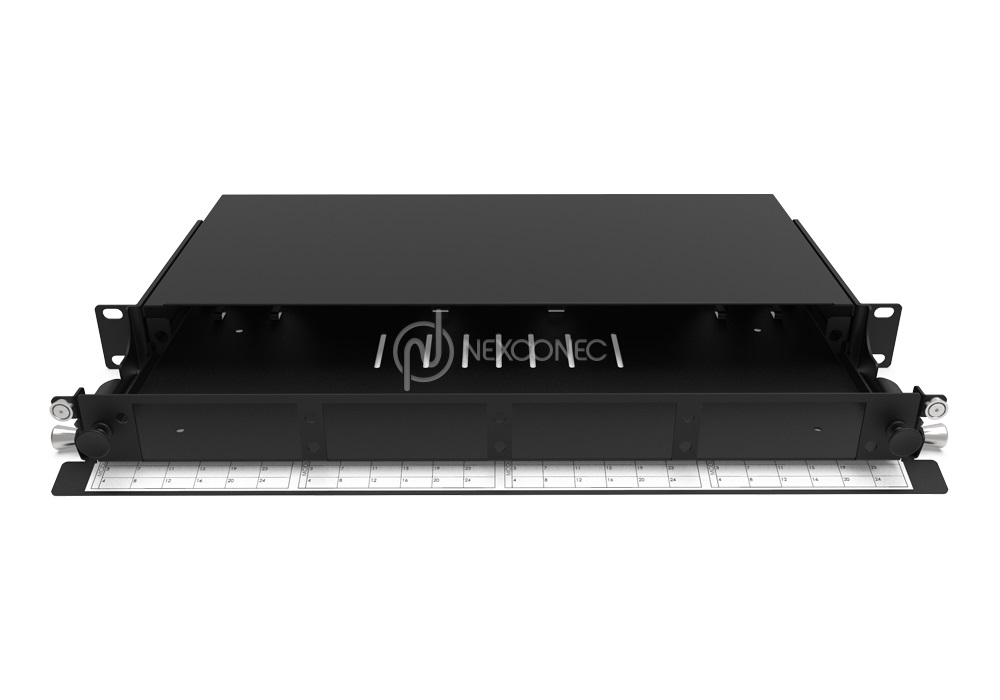

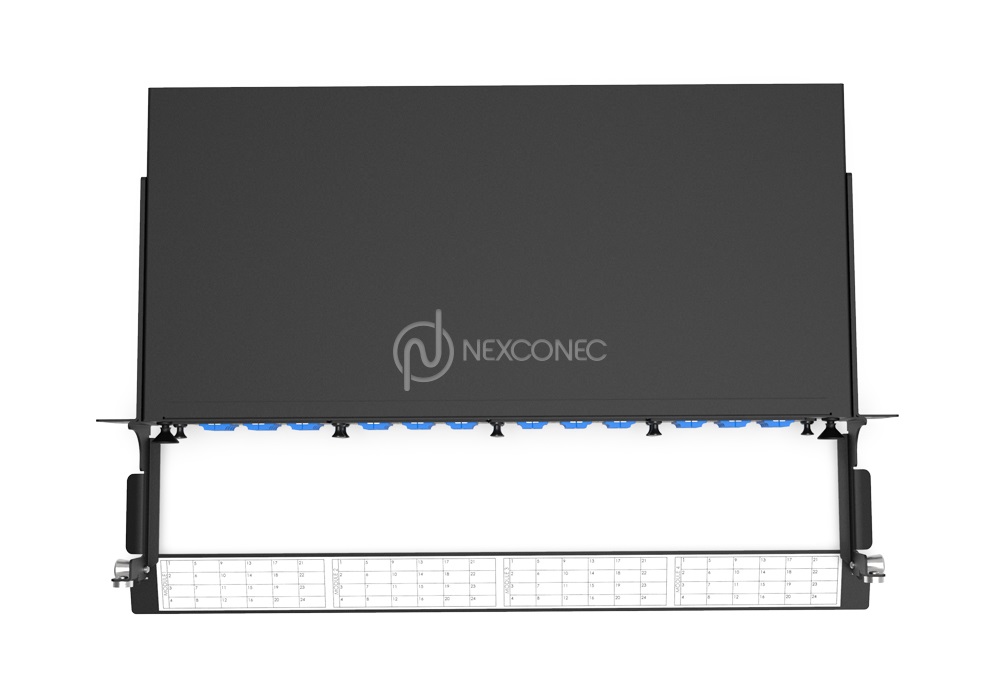

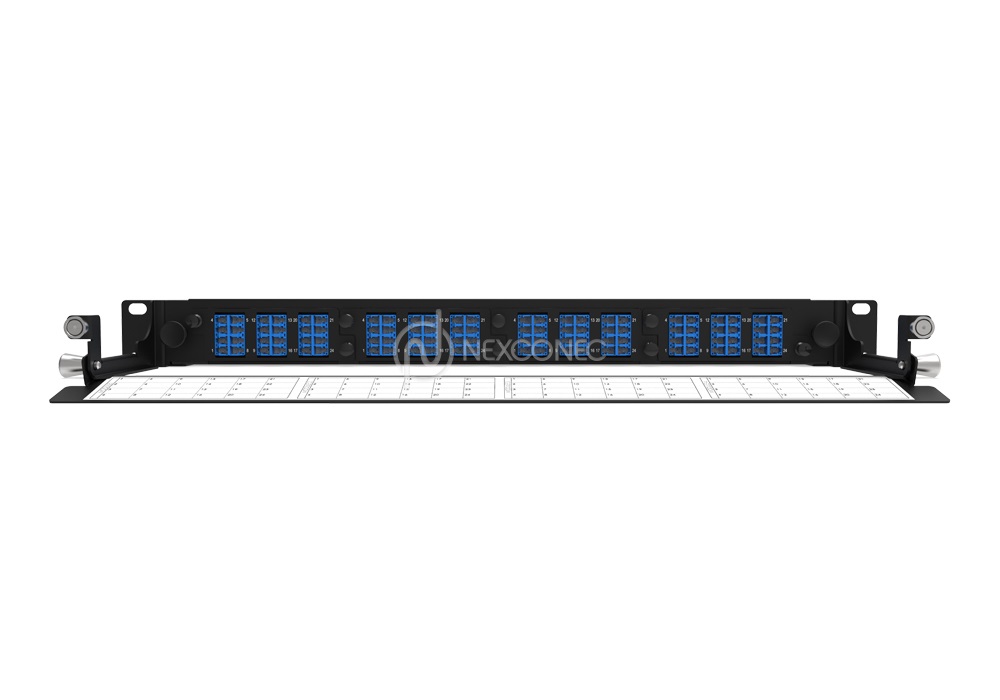

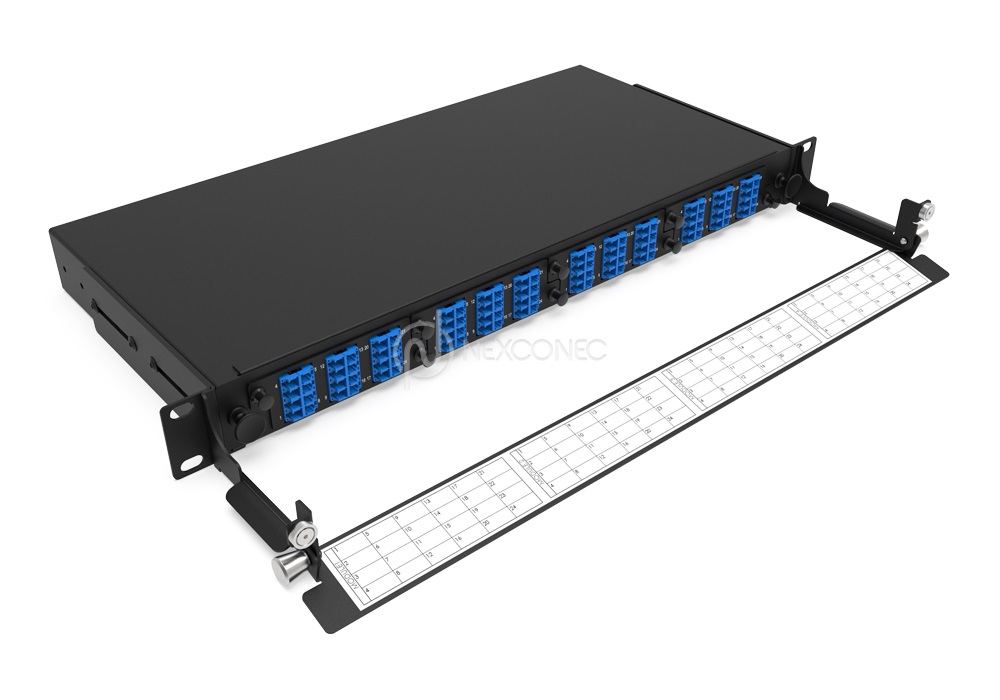

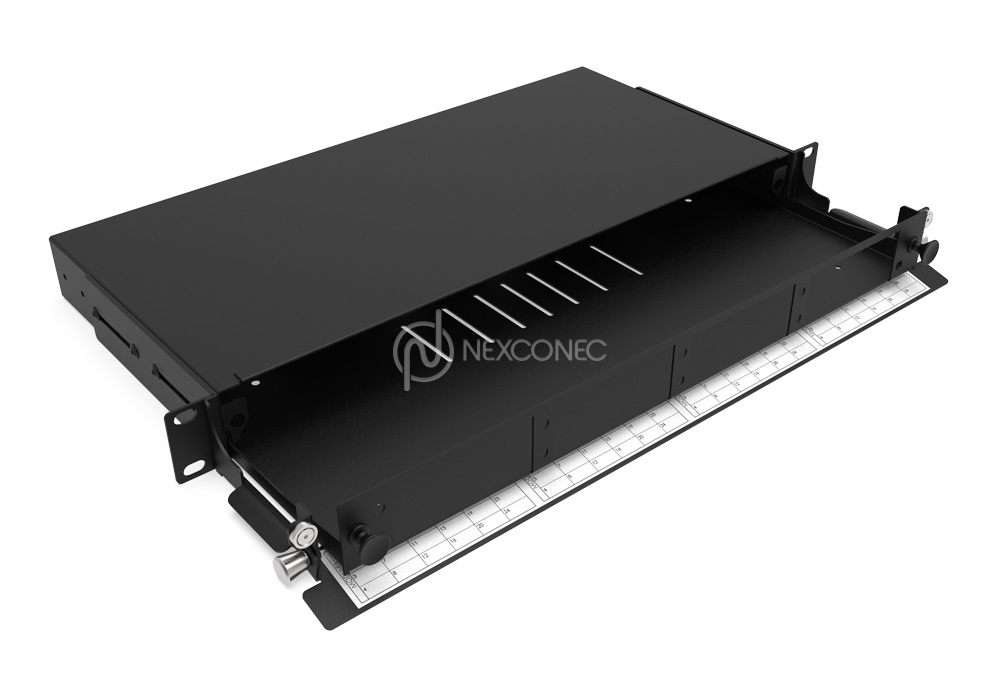

1U 4 Slots HD Modular Sliding Panel - MP4PP03
Nexconec high density modular sliding patch panel accepts up to 4 HD Modules or HD pass-thru adapter plates for a total of 96FO with LC & 48FO with SC configuration. HD optical fiber modular panel for multi-application with MPO System, Pre-terminated cables or conventional splicing.

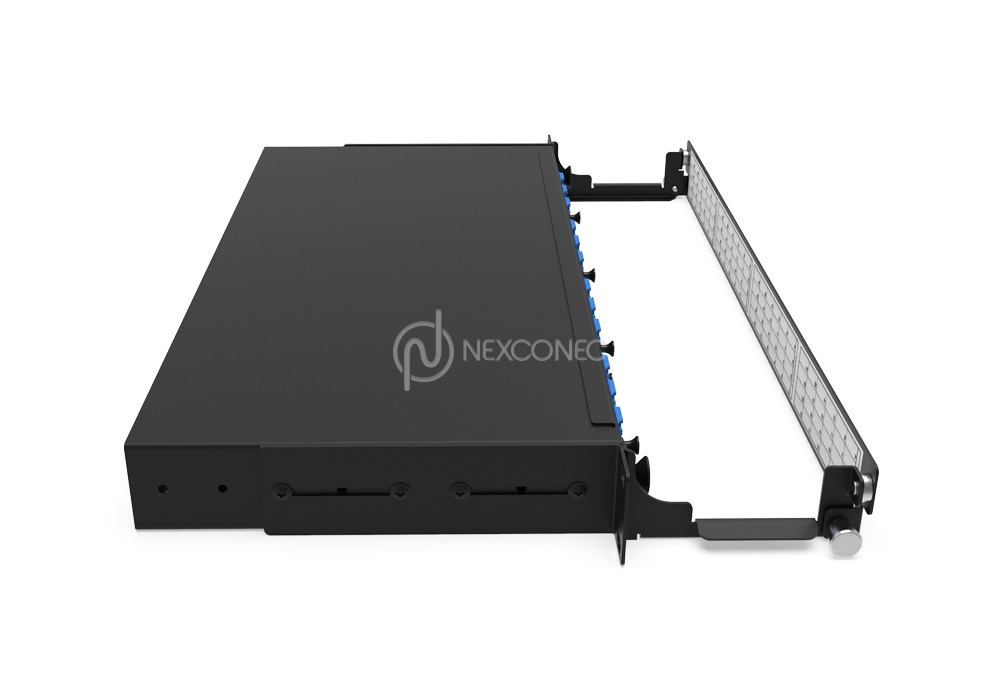

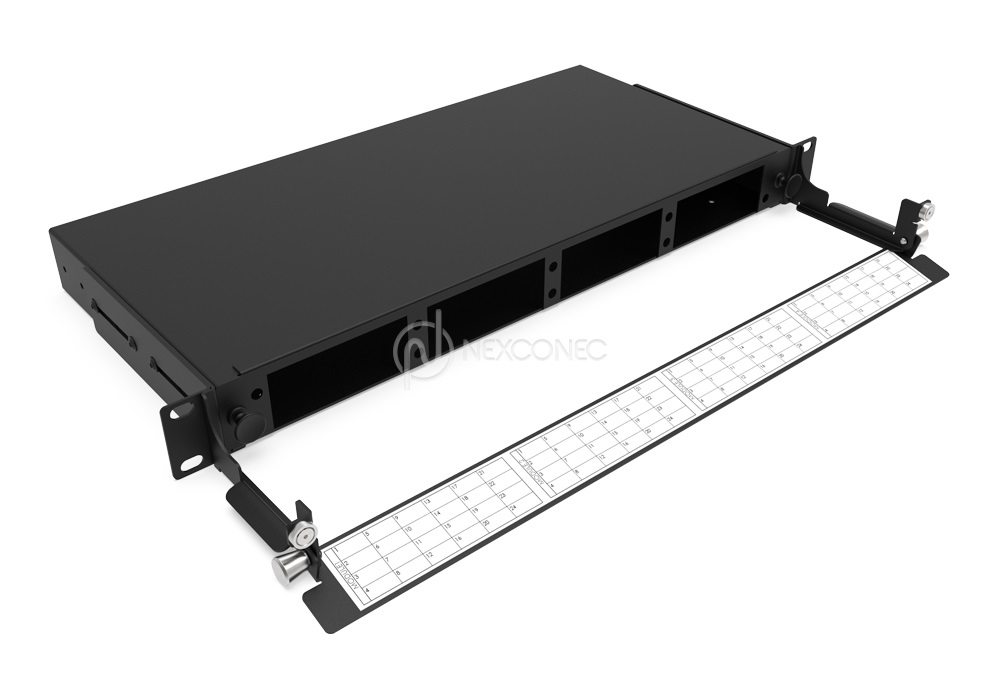

Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling. Sliding patch panel is supplied unloaded and the modules and adapters plates are supplied separately.
FEATURES AND APPLICATIONS
- 4 Slots HD in 1U space
- Up to 96FO in LC / 48FO in SC
- Modular with MPO, Splice Cassettes or Adapter plates
- RoHS, REACH and SVHC
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |

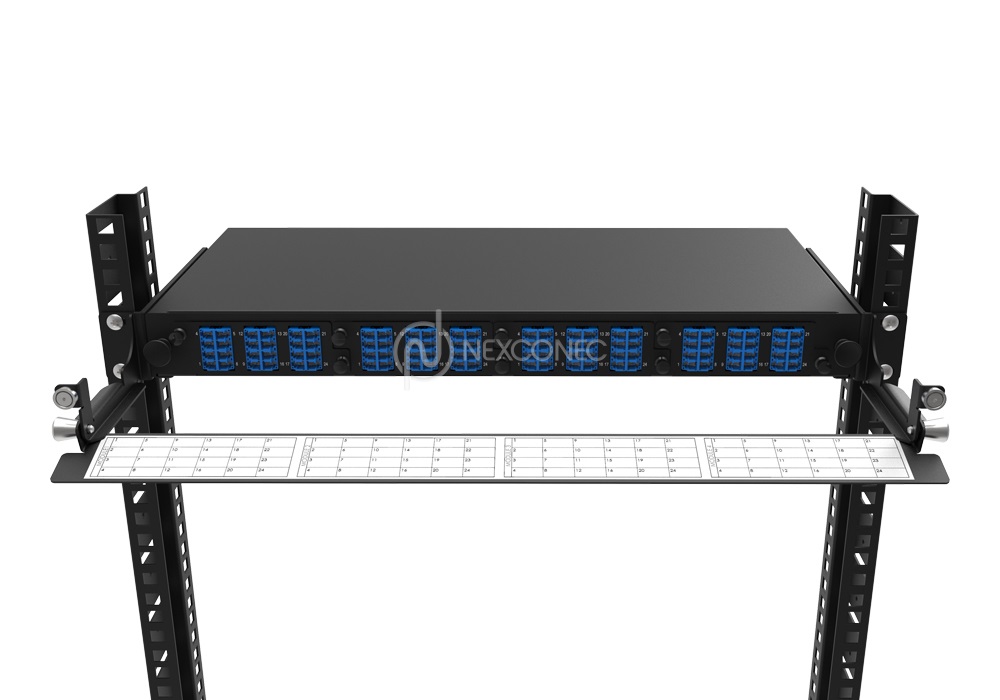

| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 485 x 306.5 x 44 |
| Net Weight | 3KG |
| Opening Type | Sliding tray with 45° open working angle |
|---|---|
| Access Type | Front access |
| Front Cable Management | Optional hinged drop-down door |
| Cable Entry Direction | Rear |

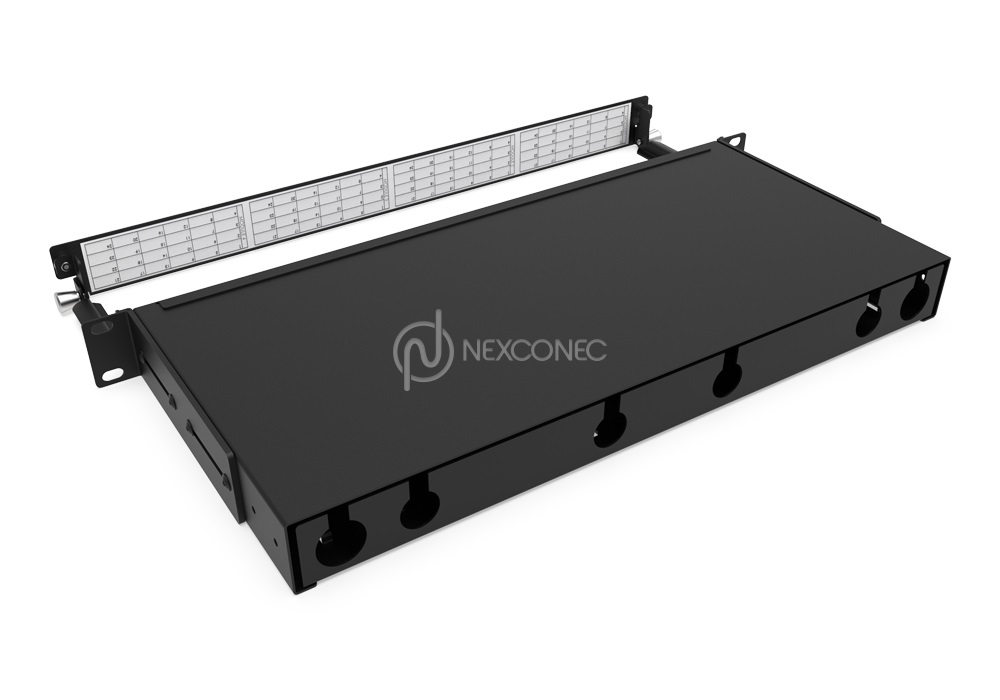

| Rear Cable Management | 6 cable entries |
| Slot Type | HD Modules and HD Plates |
| Number of Slots | 4 |
| Fibre Capacity | 96 in LC |
| Part Number | Product Description |
|---|---|
| MP4PP03 | 1U 4 slots HD Modular Sliding Patch Panel Unloaded (Including Front Management) |
