3U 12 Slots HD Modular Fixed Frame (Up to 288FO) - HD3

HD3 HD3 HD3 HD3 HD3 HD3 HD3 HD3 HD3 HD3 HD3 HD3

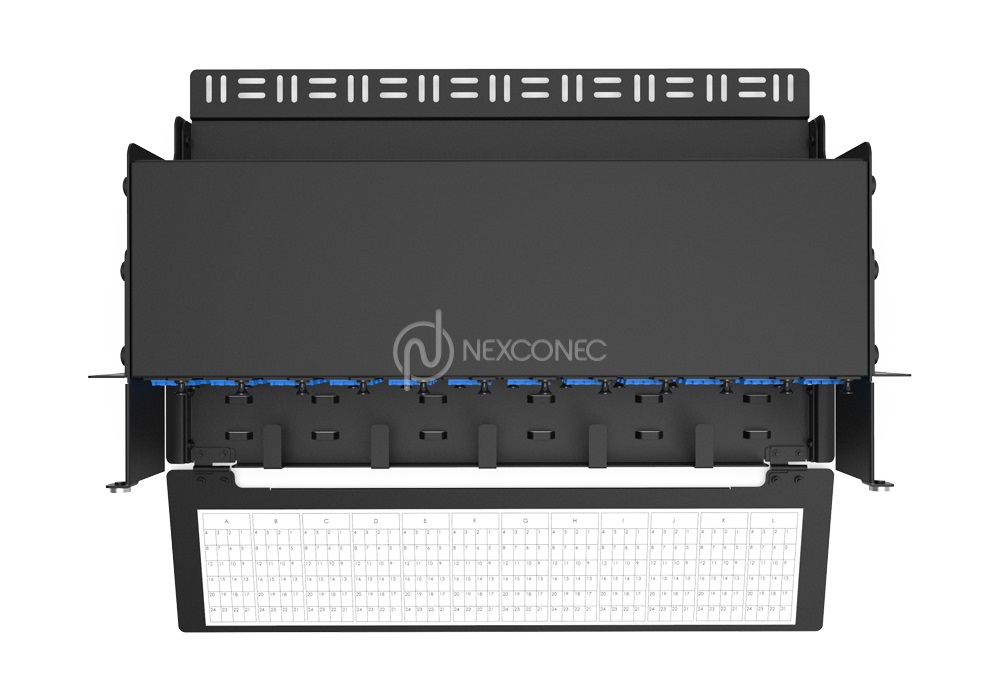

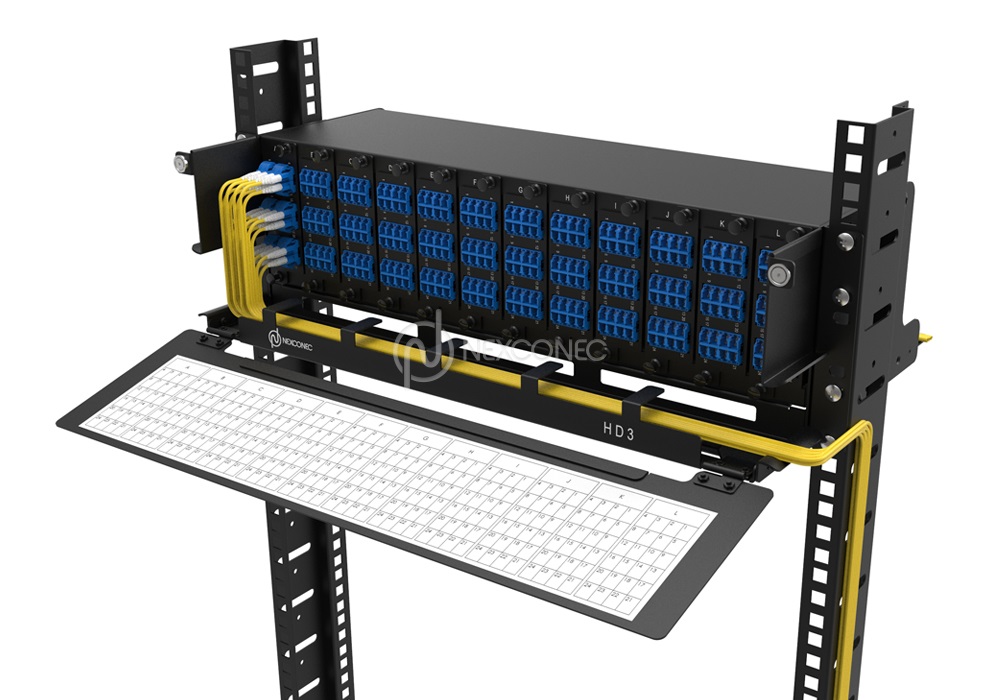

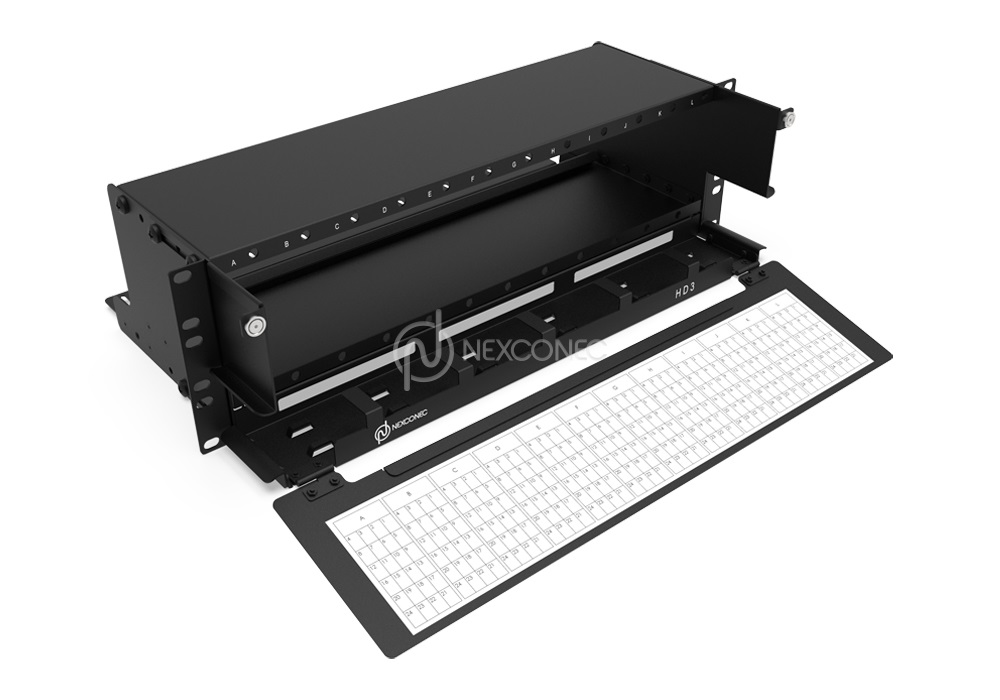

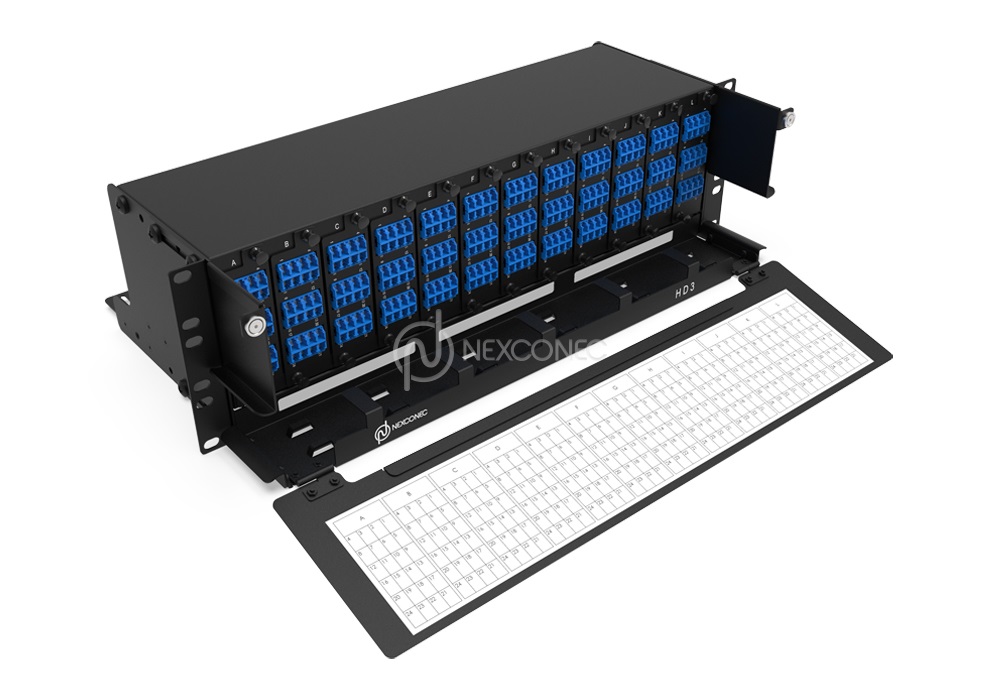

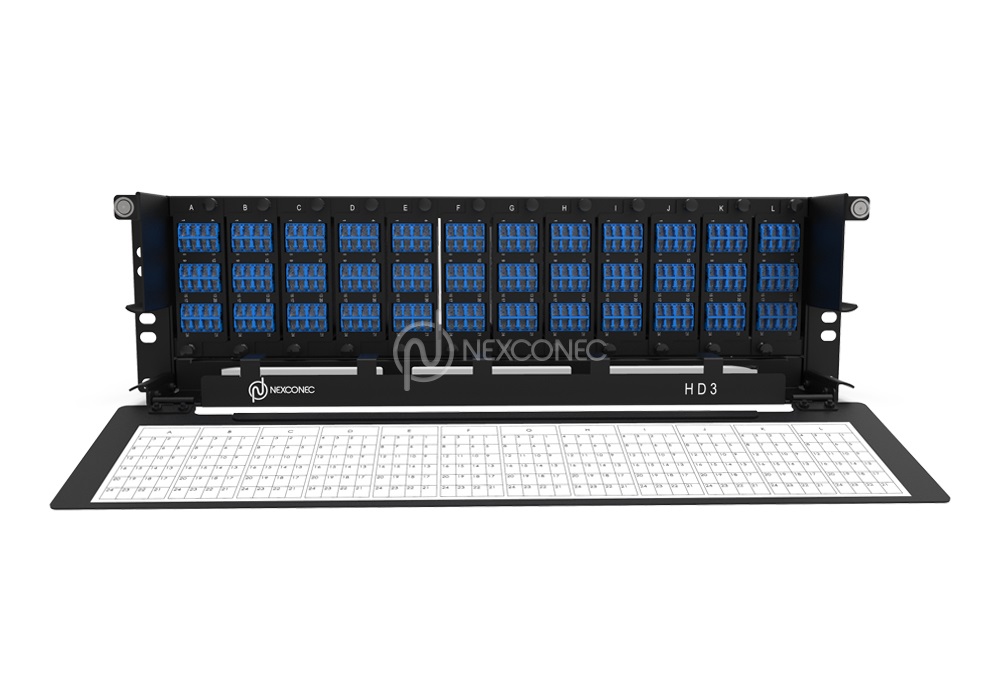

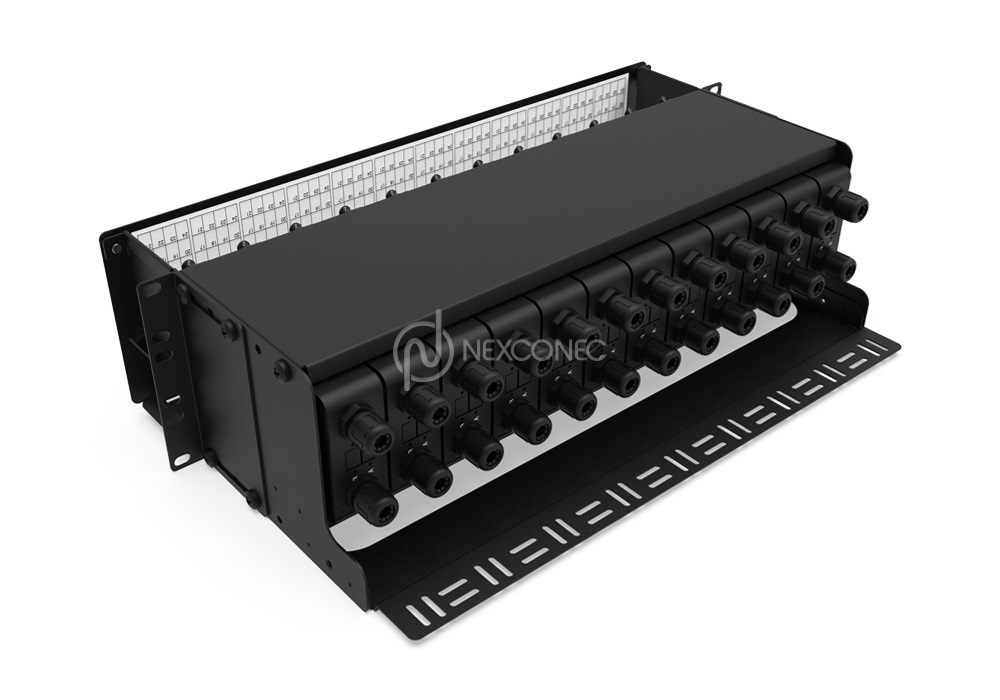

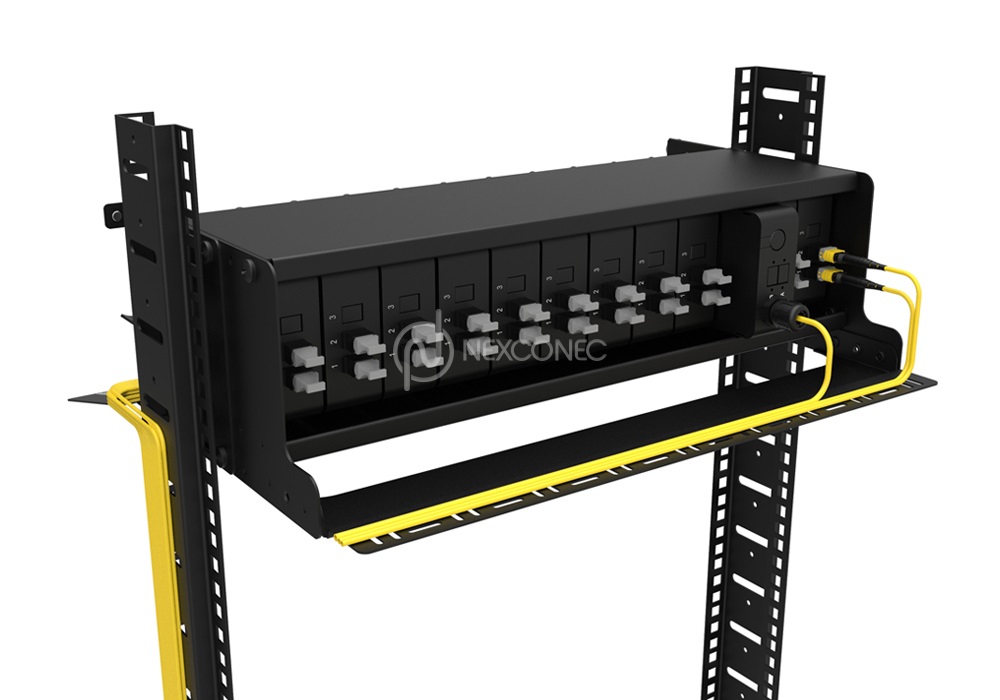

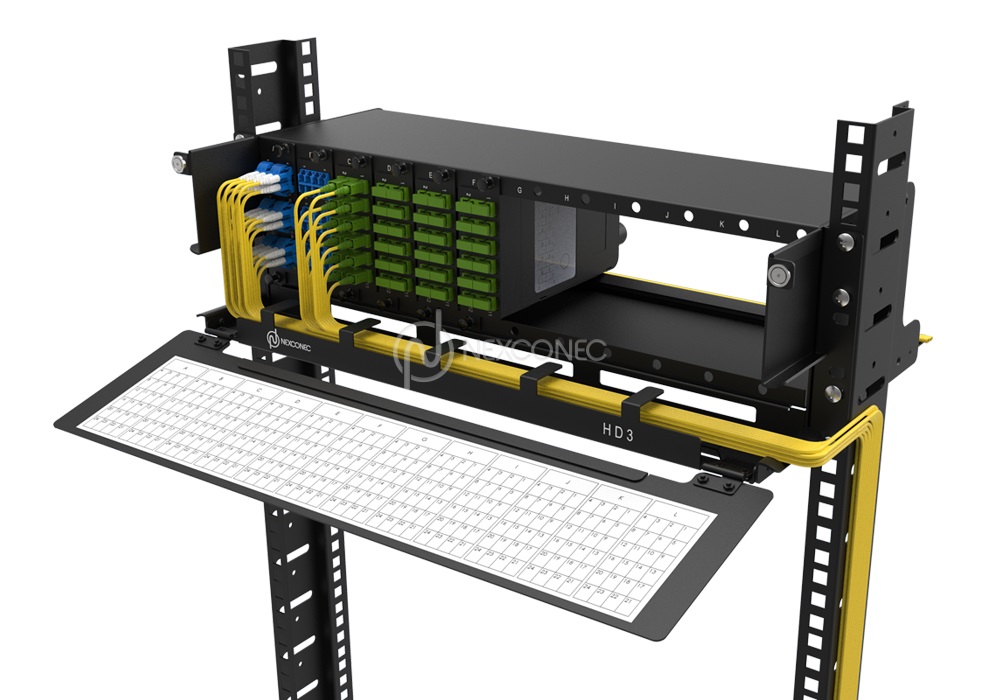

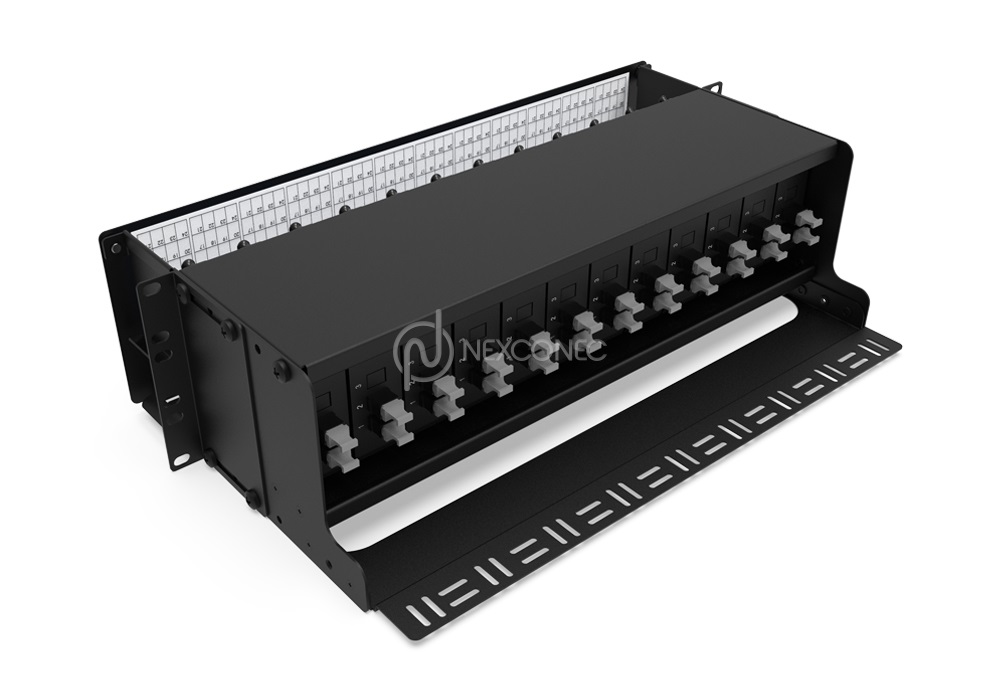

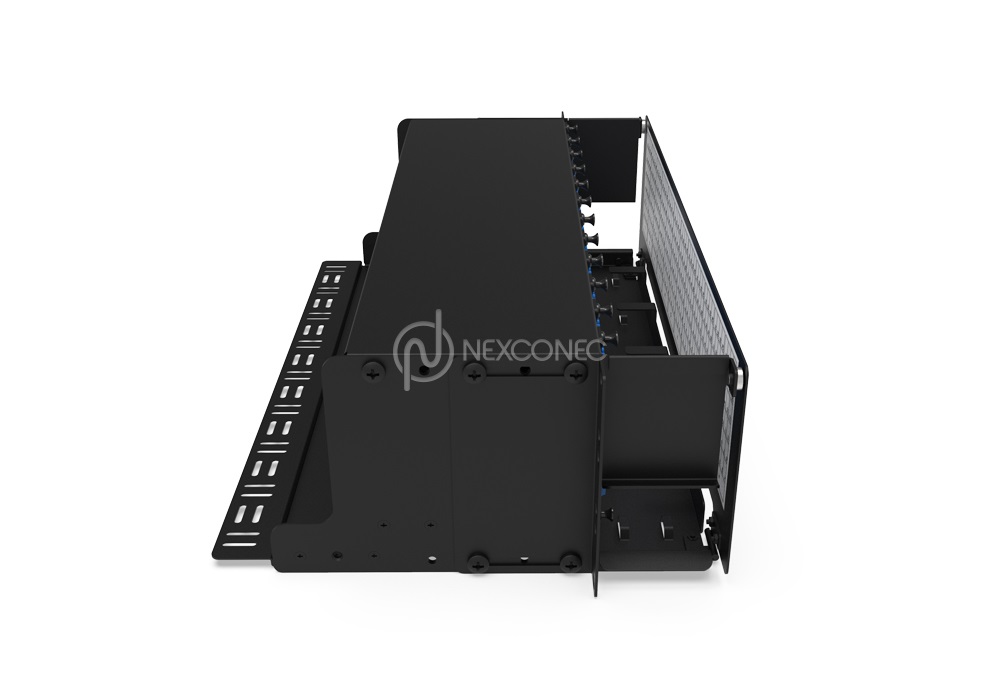

Nexconec HD3 High Density fiber optic 3U fixed frame allows to scale up to 12 HD cassettes for a total of 288FO with LC configuration. Shallow depth of 280mm only to fit MMR 300mm Depth ODF.

Modular panel for multi-application with MPO System, Pre-terminated custom modules, Patch-Thru Plates, Next-Gen Transition modules 100G/40G to 25G/10G, or conventional splicing. Multi-functional chassis which allow easy access during installation or re-work with no disturbance of the existing cables or fibers.

Frame is supplied unloaded and the modules and plates are supplied separately.

FEATURES AND APPLICATIONS
  • 12 Slots HD in 3U space
  • Compact size for installation shallow-depth racks
  • Up to 288FO in LC, 144FO in SC
  • Fully integrated fiber management with Facilitated patch cord installation
  • Individually labelled ports
  • Modular with MTP/MPO, Splicing Cassette or Adapter plates or copper module
  • Datacenter storage area network & Central Office, POP
  • Indoor application
  • Enterprise / Campus

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Mounting Type Rack 19”
Height Unit 3U
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No (optional)
Dimensions (W x D x H in MM) 483 x 280 x 132
Net Weight 3.6 Kg
Material Compliant RoHS, REACH / SVHC
Telecommunication Standards TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754,
Opening Type Fixed Chassis
Access Type Front Access
Front Cable Management Hinged Metal Door with patch cord bottom management
Cable Entry Direction Rear, left and right
Rear Cable Management Yes
Slot Type HD Modules and HD Plates
Number of Slots 12
Fiber Capacity Up to 288FO in LC, 144FO in SC
Part Number Product Description
HD3 3U 12 Slots HD Modular Fixed Frame (Including Front Management)
