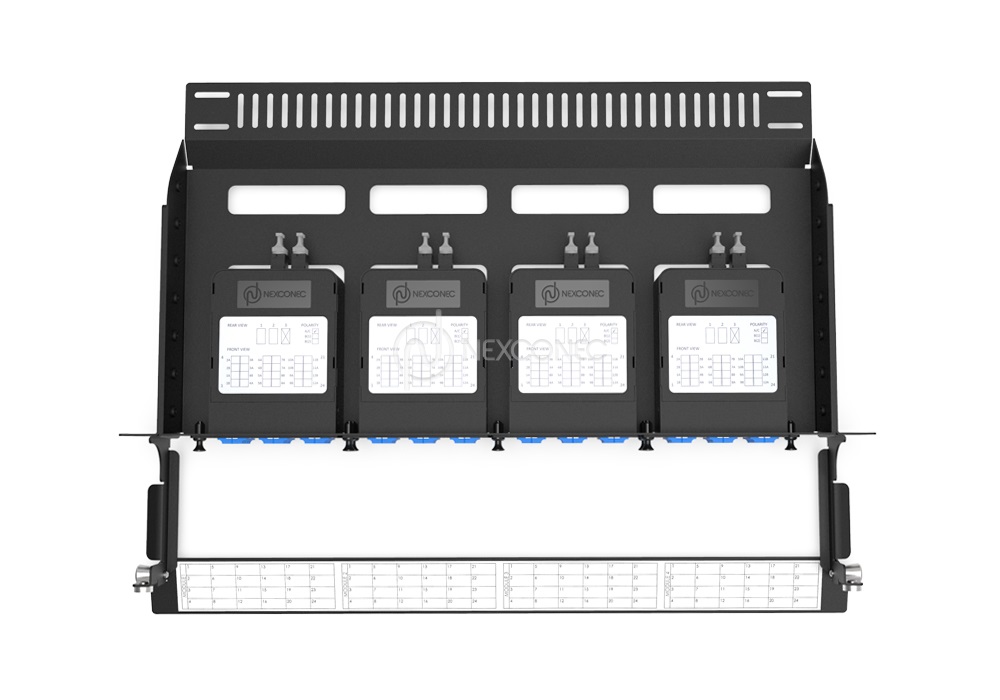

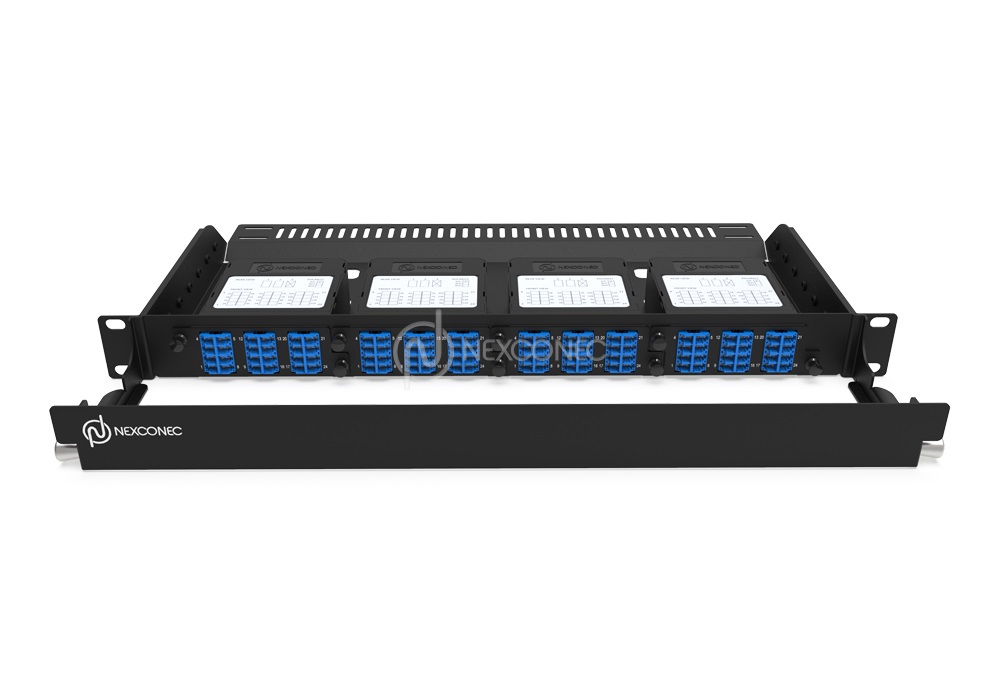

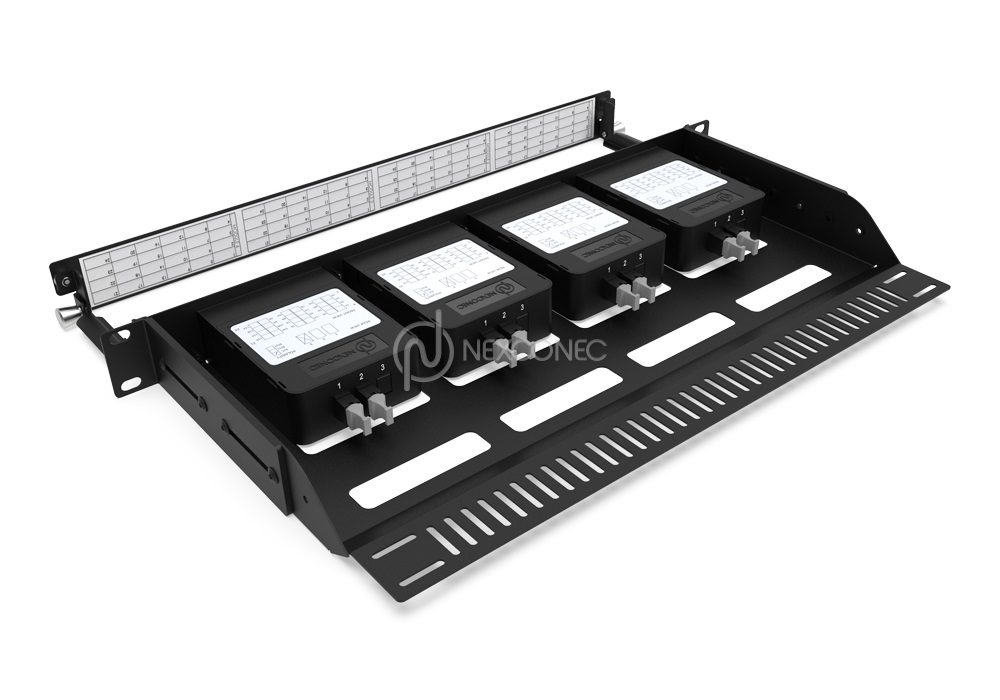

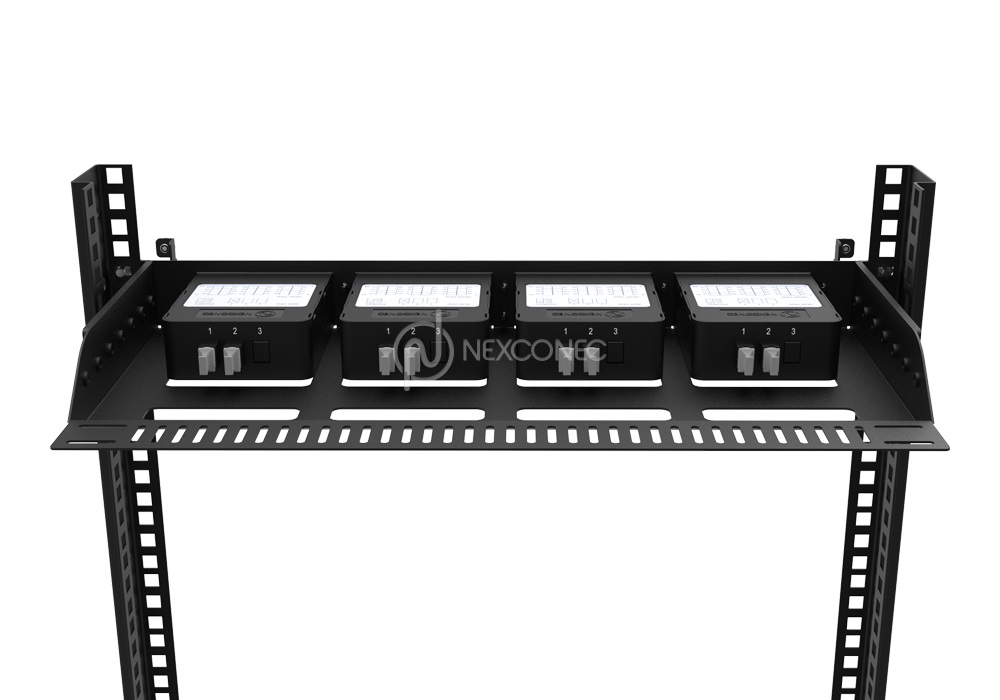

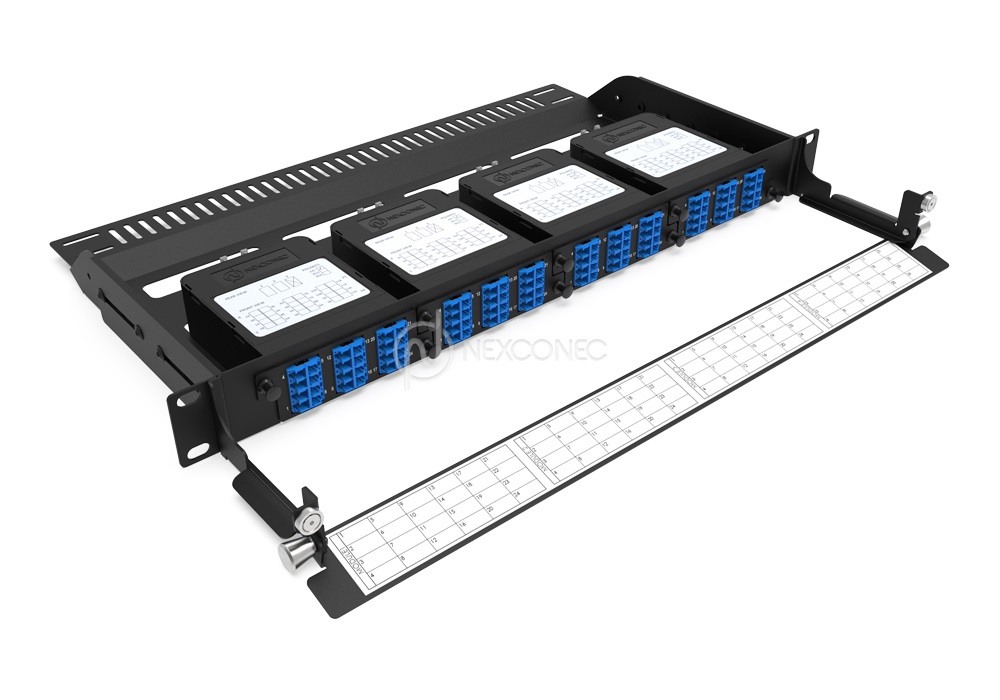

1U 4 Slots HD Modular Fixed Frame - MP4PP04
Nexconec high density fixed frame accepts up to 4 HD Modules or HD pass-thru adapter plates for a total of 96FO with LC configuration. Modular panel for multi-application with MPO System, Pre-terminated cables or conventional splicing.

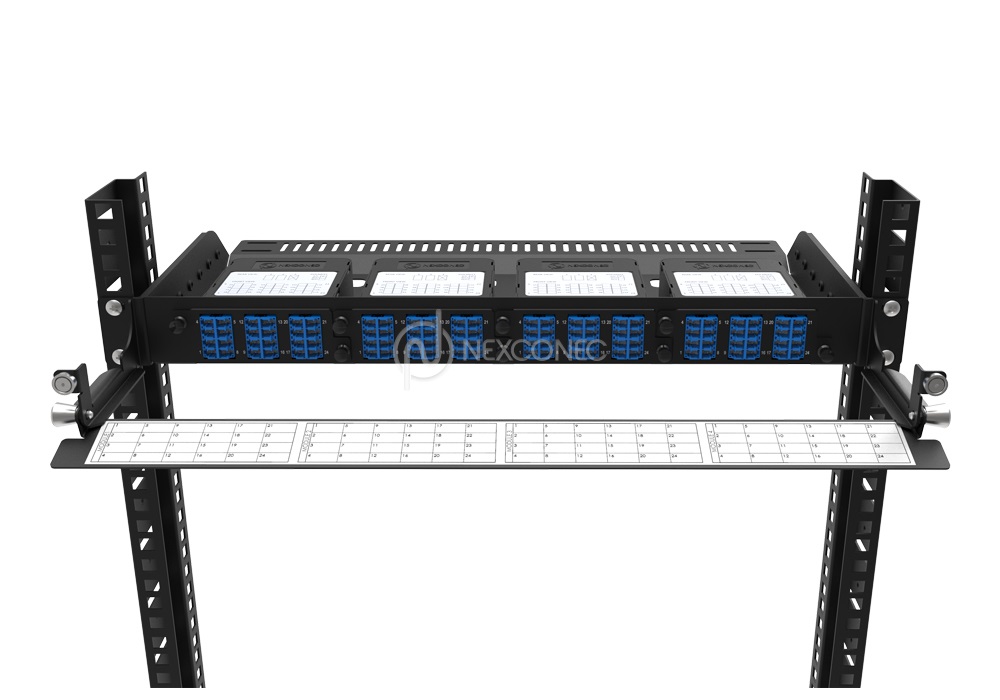

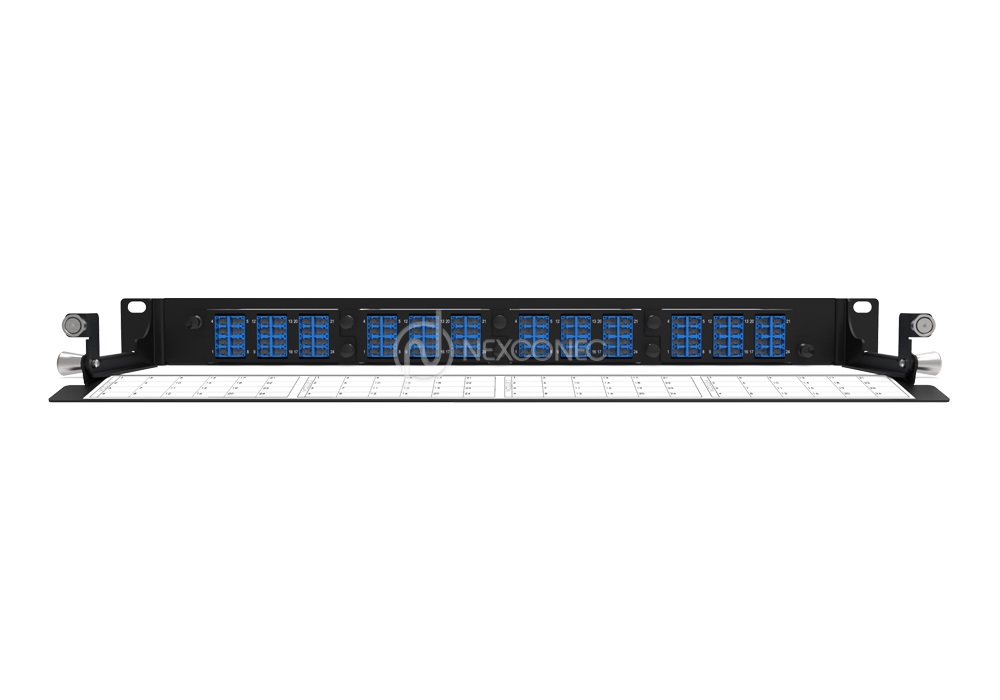

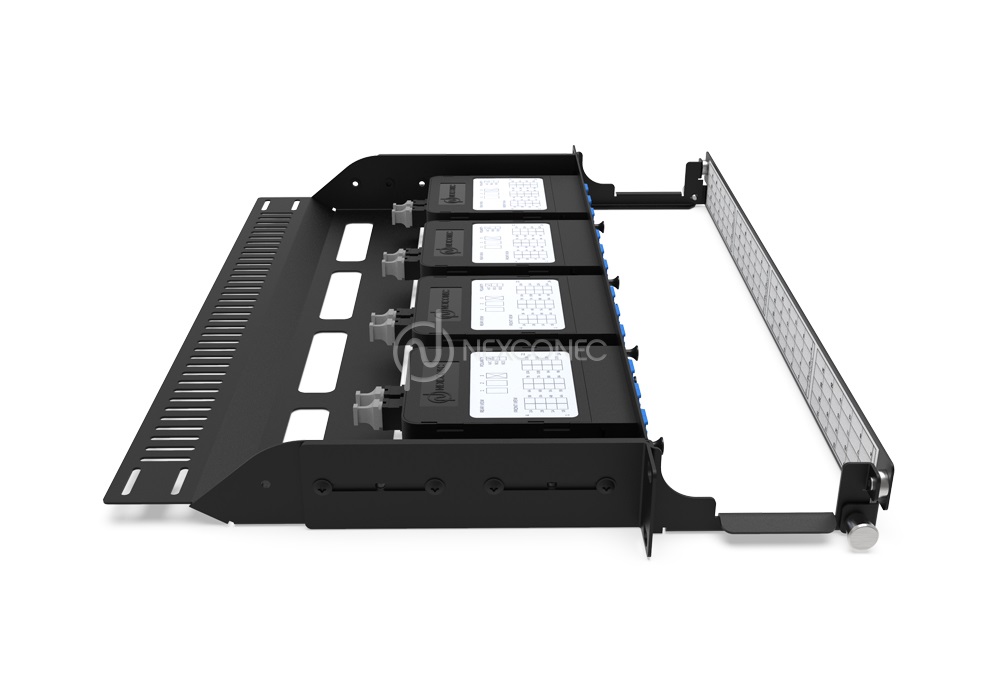

Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling.

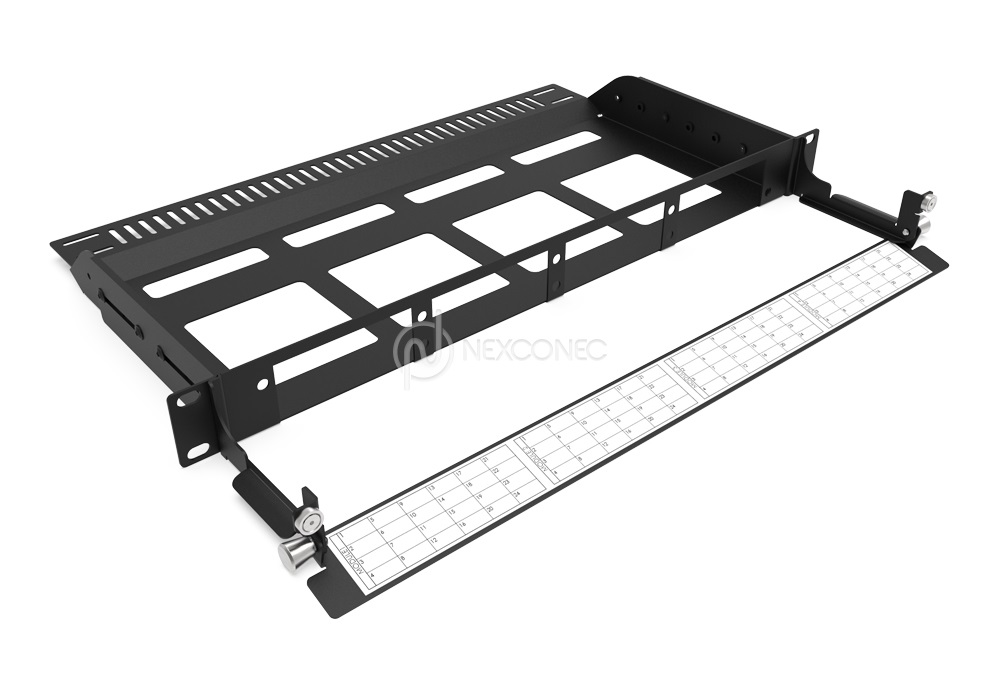

Frame is supplied unloaded and the modules and plates are supplied separately.
FEATURES AND APPLICATIONS
- 4 Slots HD in 1U space
- Up to 96FO in LC
- Modular with MPO Cassette or Adapter plates
- RoHS, REACH and svHC
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTRUCTION MANUAL.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | Without Front MGT 434x239.9x43.4 // With front 485x341.2x43.4 |
| Net Weight | 2KG |
| Opening Type | Fixed Open Frame |
|---|---|
| Access Type | Front and rear access |
| Front Cable Management | Optional hinged drop-down door |
| Cable Entry Direction | Rear |
| Slot Type | HD Modules and HD Plates |
| Number of Slots | 4 |
| Fibre Capacity | 96 in LC |
| Part Number | Product Description |
|---|---|
| MP4PP04 | 1U 4 Slots HD Modular Fixed Frame Unloaded (with Front Management) |
