HD Zero RU Bracket - MP4BK01

MP4BK01 MP4BK01 MP4BK01 MP4BK01 MP4BK01 MP4BK01 MP4BK01 MP4BK01 MP4BK01 MP4BK01

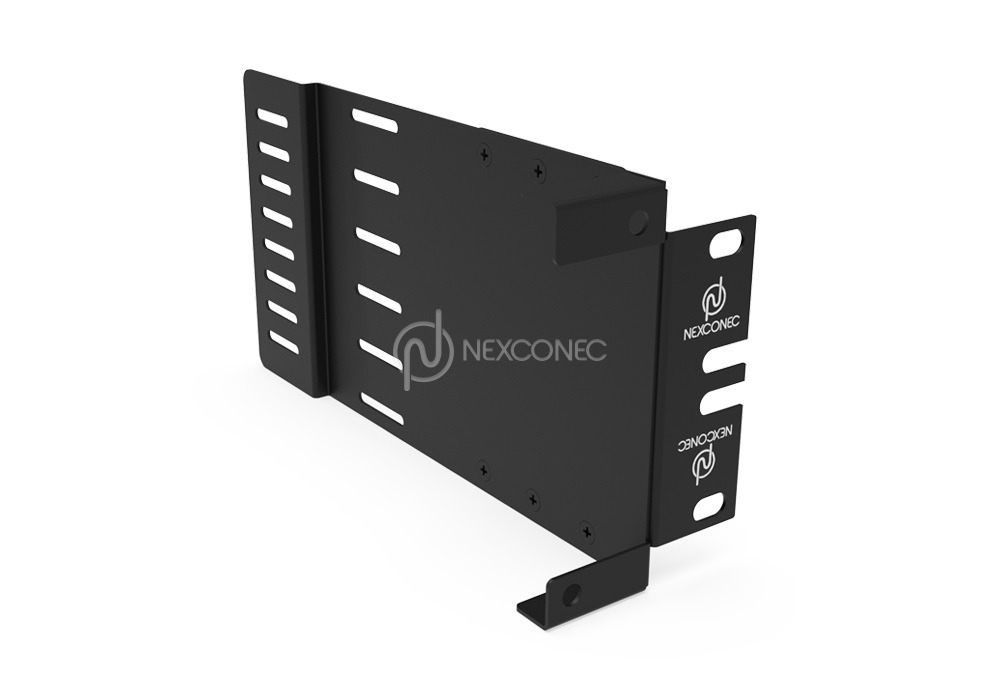

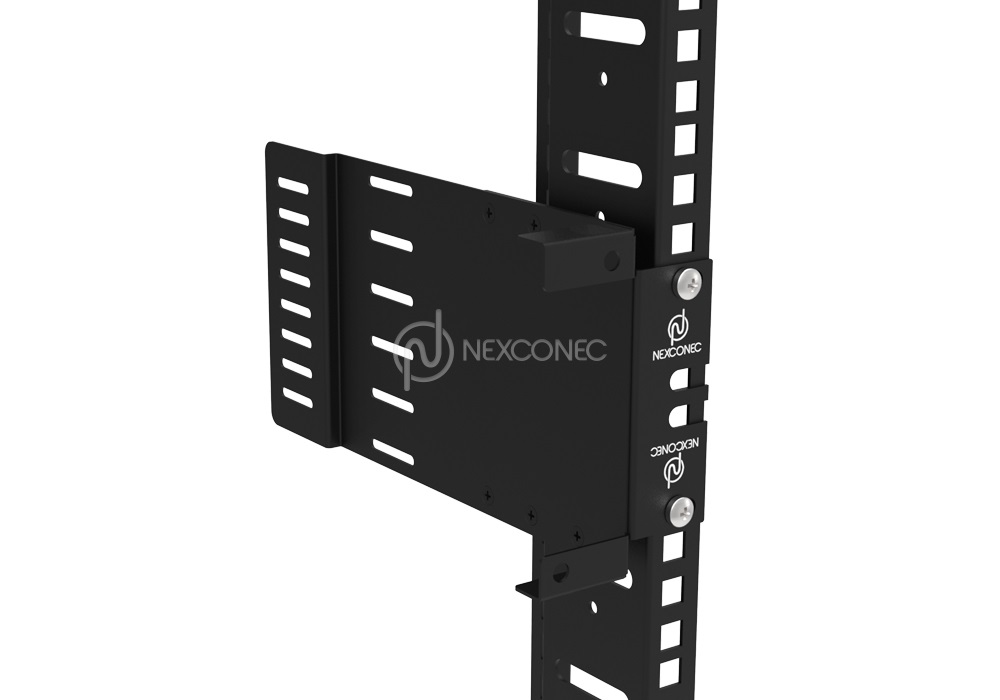

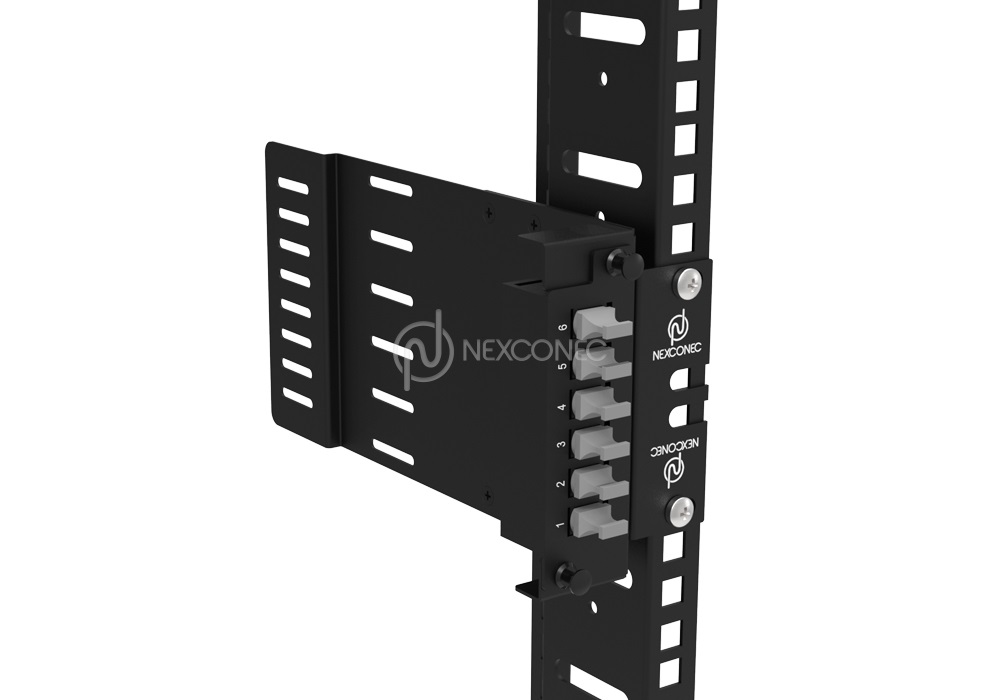

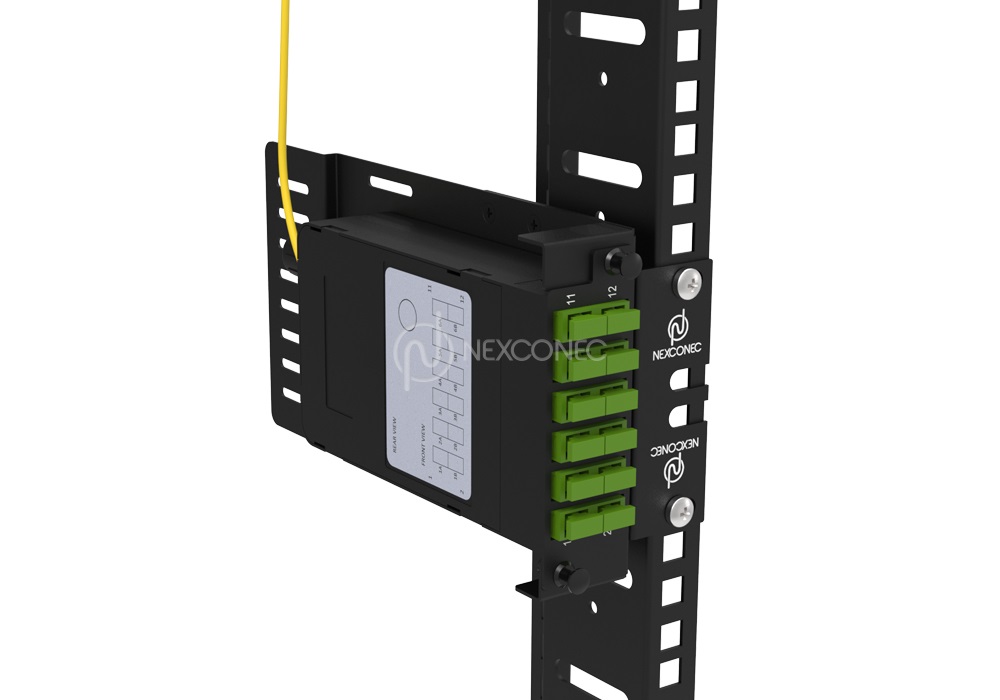

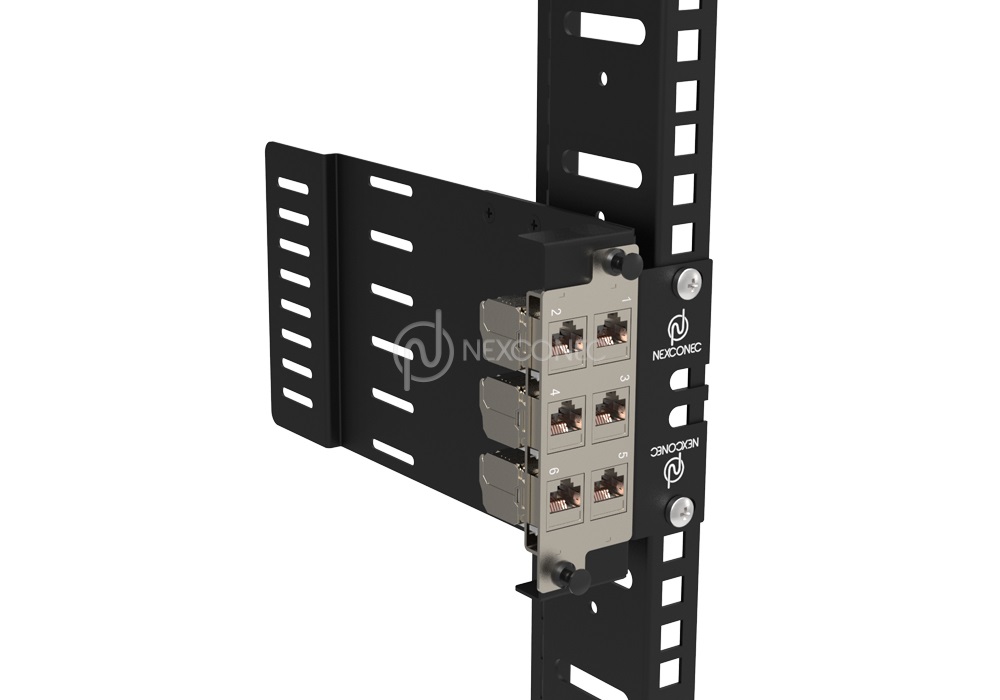

NEXCONEC® introducing the HD Zero RU Bracket, a state-of-the-art product designed to enhance your networking infrastructure. This innovative detachable bracket offers a sleek and space-saving solution for mounting HD zero rack unit equipment effortlessly to free up extra space in the cabinet. The bracket installs vertically in the cabinet rail and creates a convenient point for distribution of patch cables within the vertical racking system.

The HD Zero RU bracket accepts all types of Nexconec HD range modules and plates. The Bracket is supplied unloaded and the modules and plates are supplied separately.

FEATURES AND APPLICATIONS

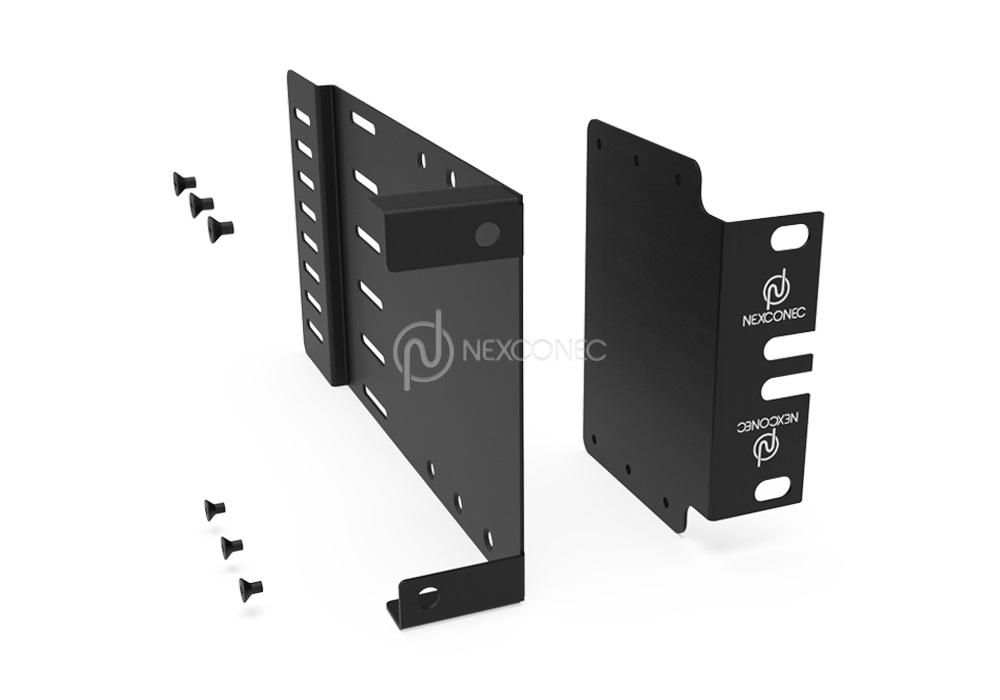

  • Zero RU detachable mounting bracket
  • Space saving and utilizing solution
  • 1 Slot HD (Up to 24FO in LC)

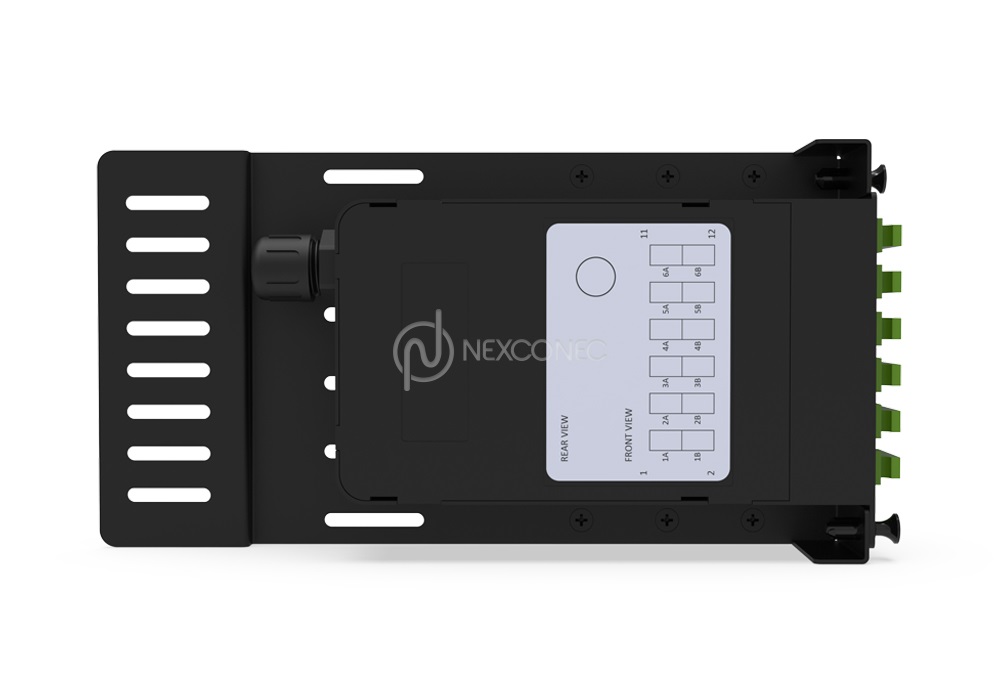

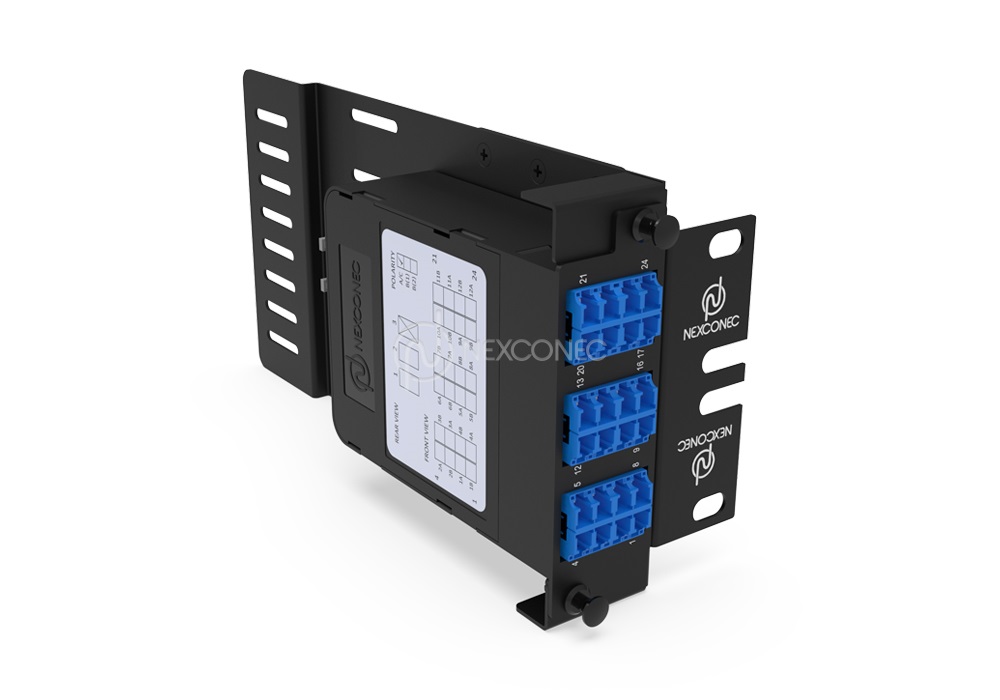

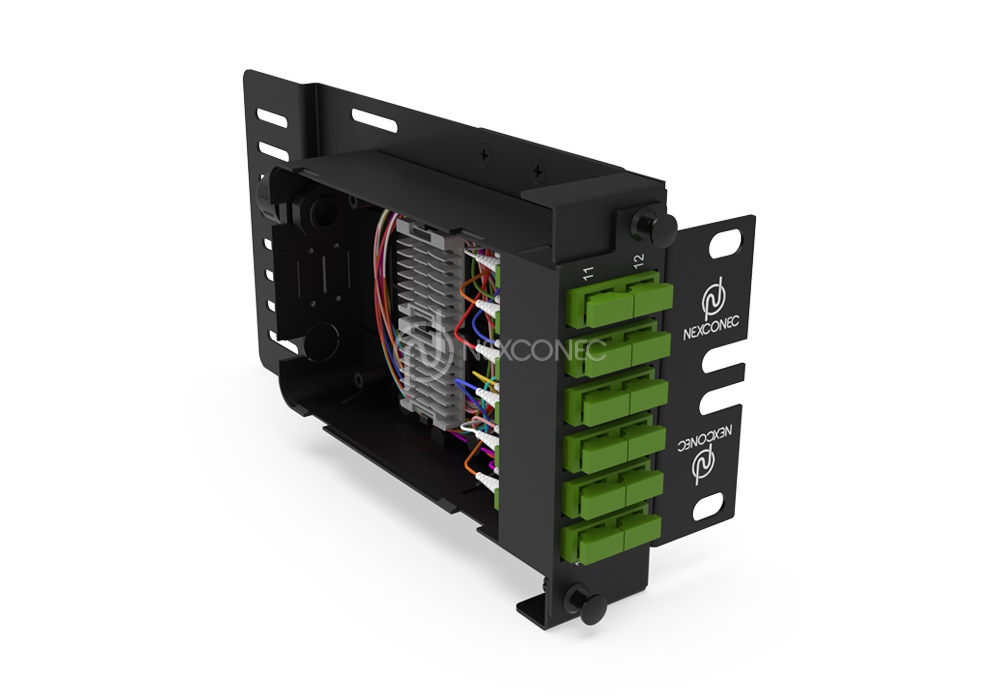

  • Modular with MPO Cassette, Splice Cassette or Adapter plates

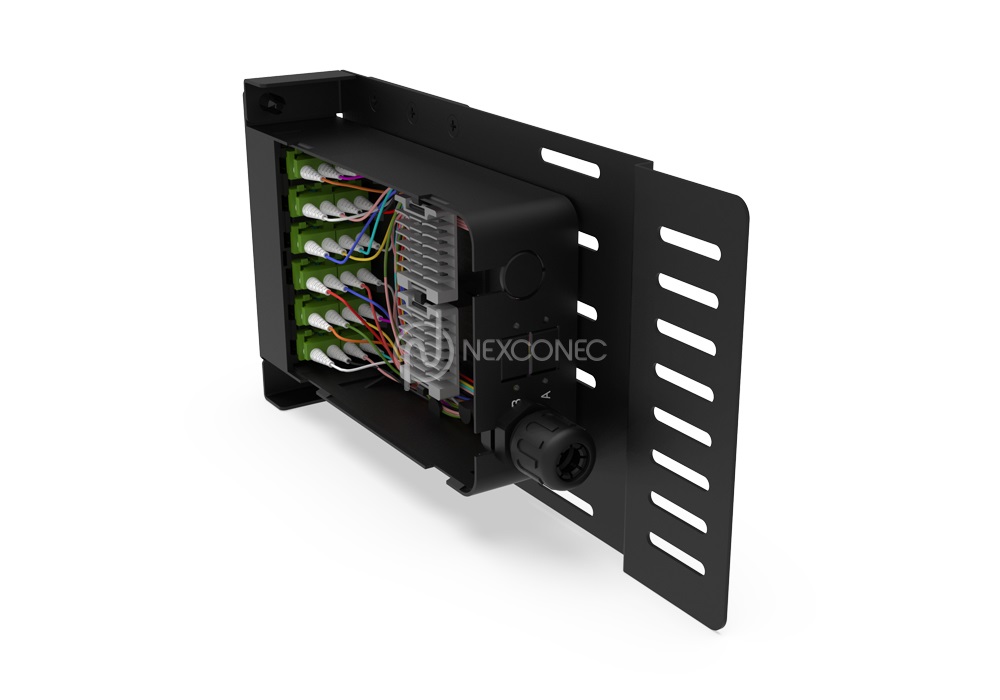

  • Rear cable support
  • Datacenter & Enterprise network
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Mounting Type Vertical Left and Right rack mounting (Detachable)
Dimensions (W x D x H) 67 x 215 x 114 mm
Height Unit 114 mm
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No
Net Weight 0.5 KG
Access Type Front access
Cable Entry Direction Rear
Rear Cable Management Rear cable support
Slot Type HD Modules and HD Plates
Number of Slots 1
Fiber Capacity 24 in LC / 12 in SC
Part Number Product Description
MP4BK01 Zero RU HD Bracket, 1 Slot (Unloaded)
