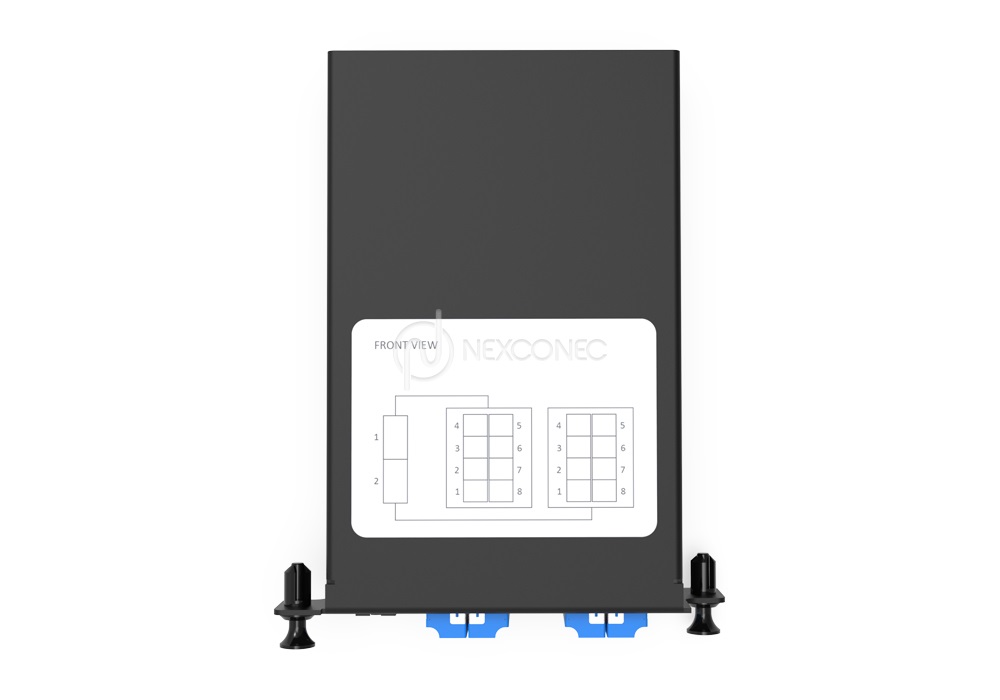

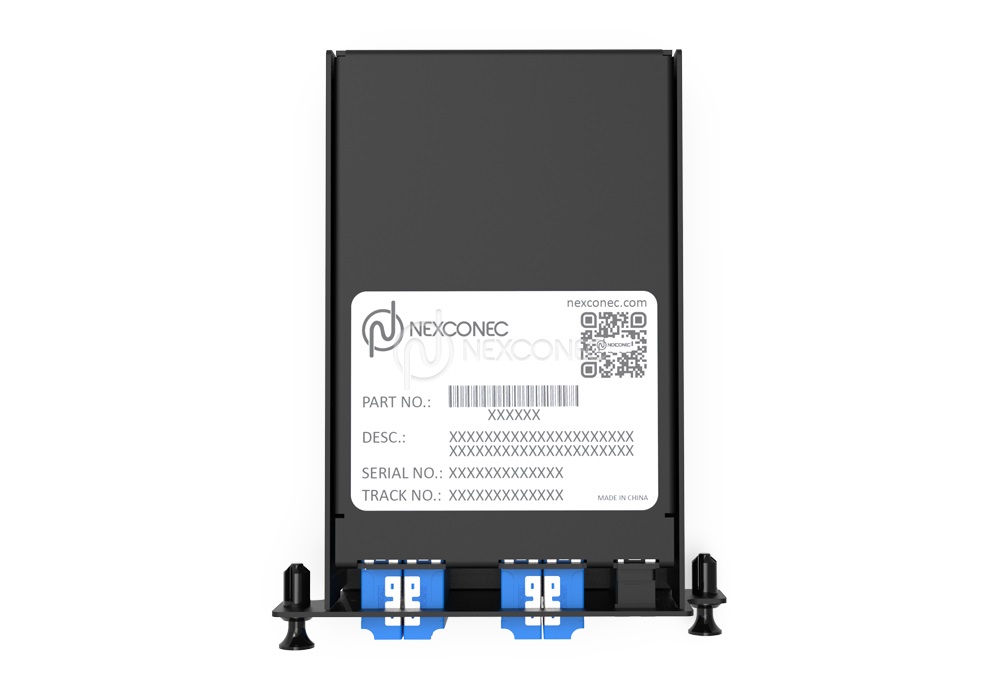

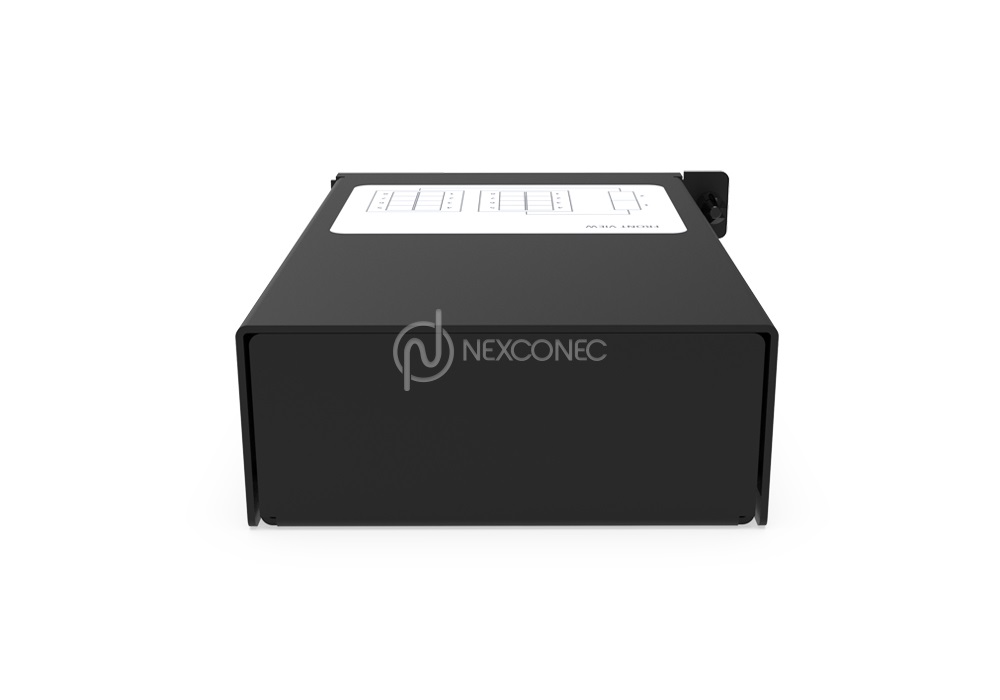

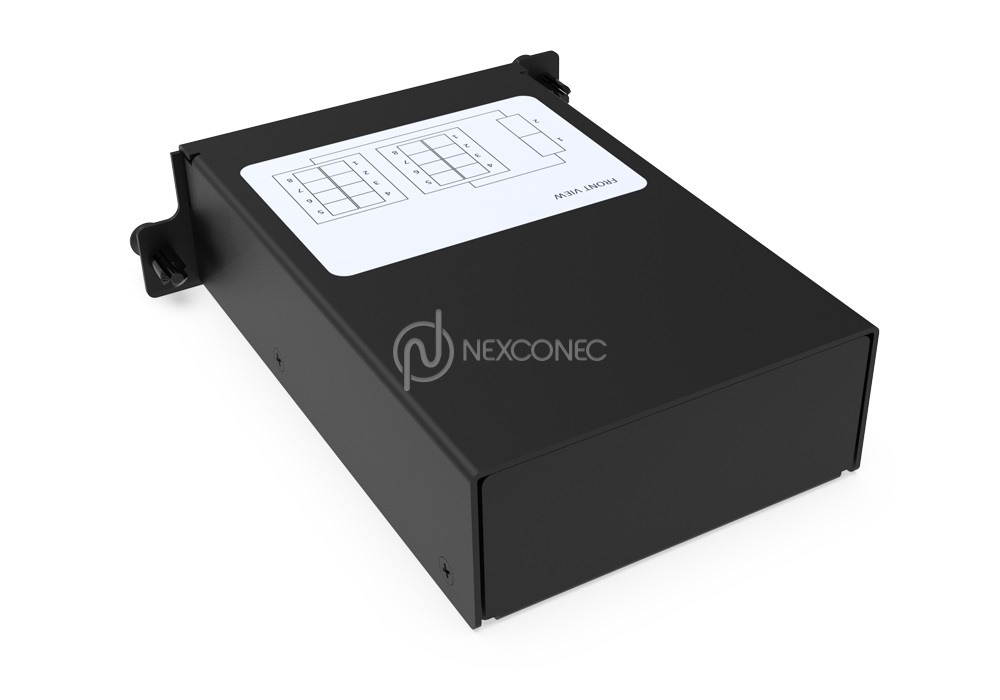

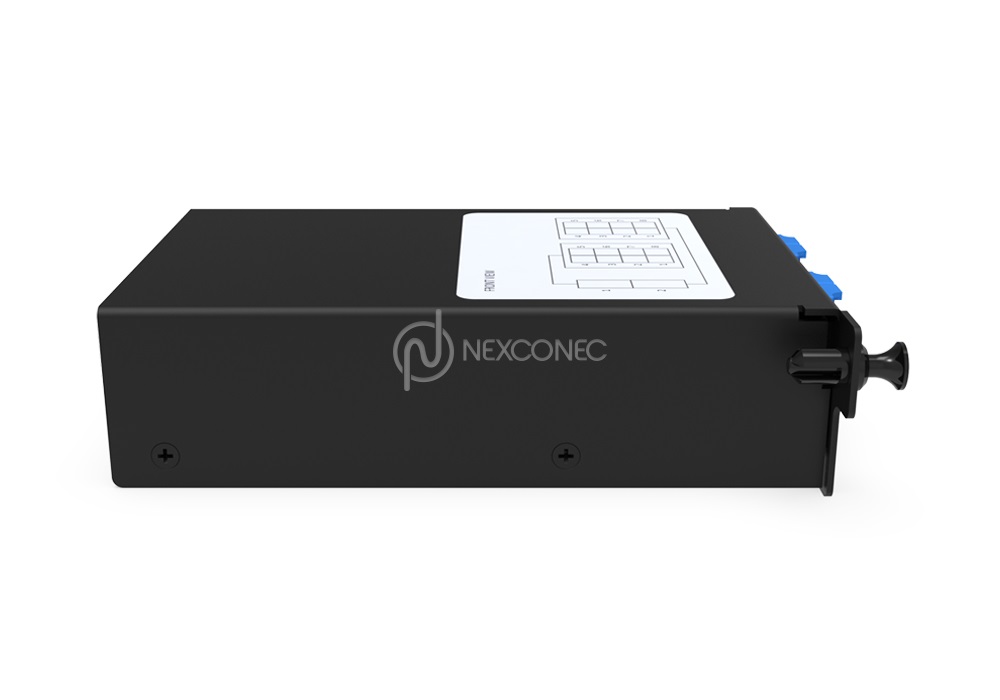

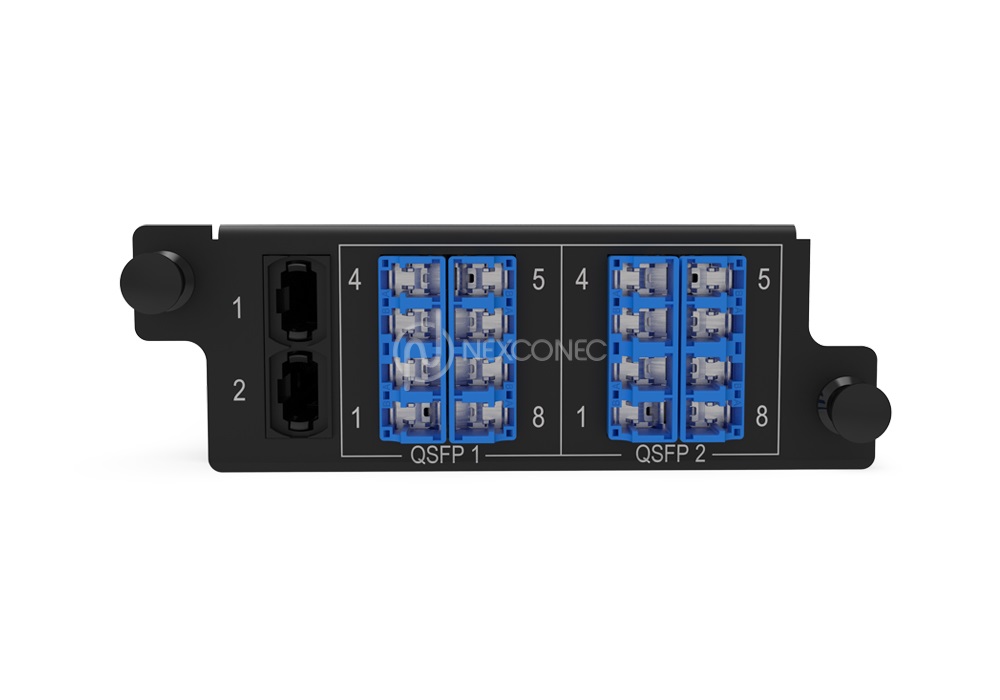

HD CASSETTE TRANSITION 16FO (BASE-8) MPO-LC - MP4CAxxQ
NEXCONEC® MPO Transition HD Cassettes are pre-terminated front-patching modules featuring MPO-LC fanouts, specifically designed for seamless interconnection between backbone networks and discrete connections in 40G/100G applications. These high-density MPO-LC cassettes are engineered to integrate effortlessly with all NEXCONEC® HD series panels. These cassettes deliver reliability, ease of deployment, and high performance for modern network environments.

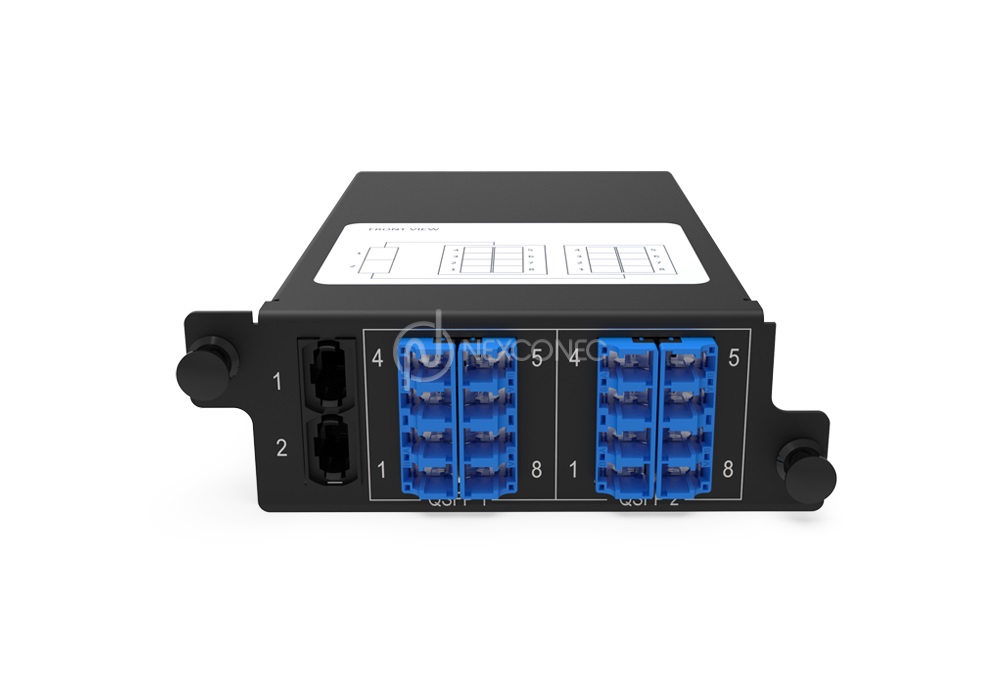

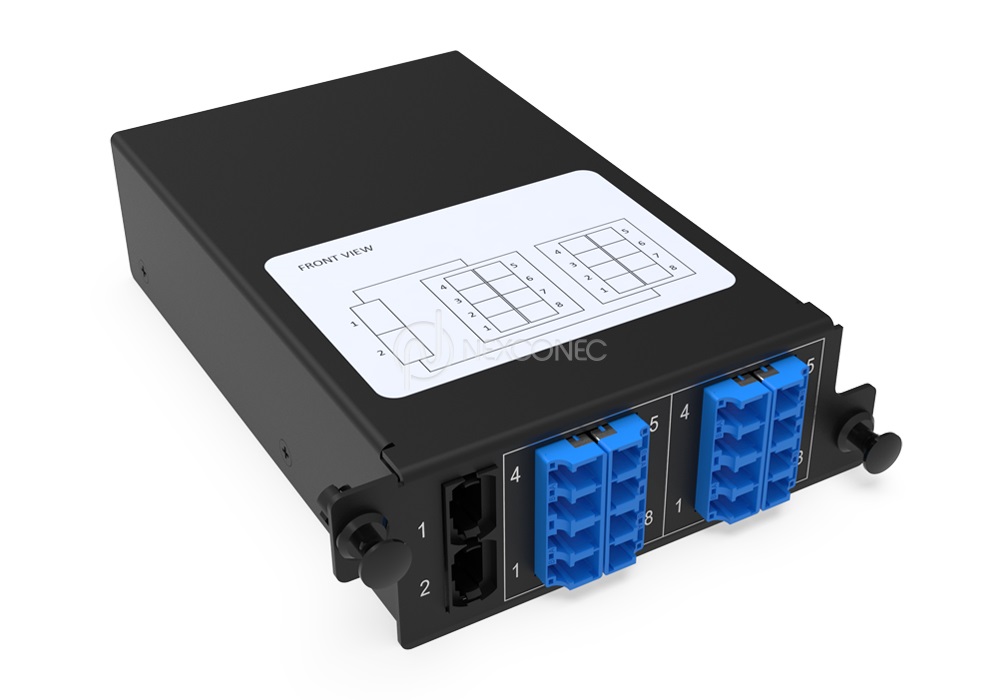

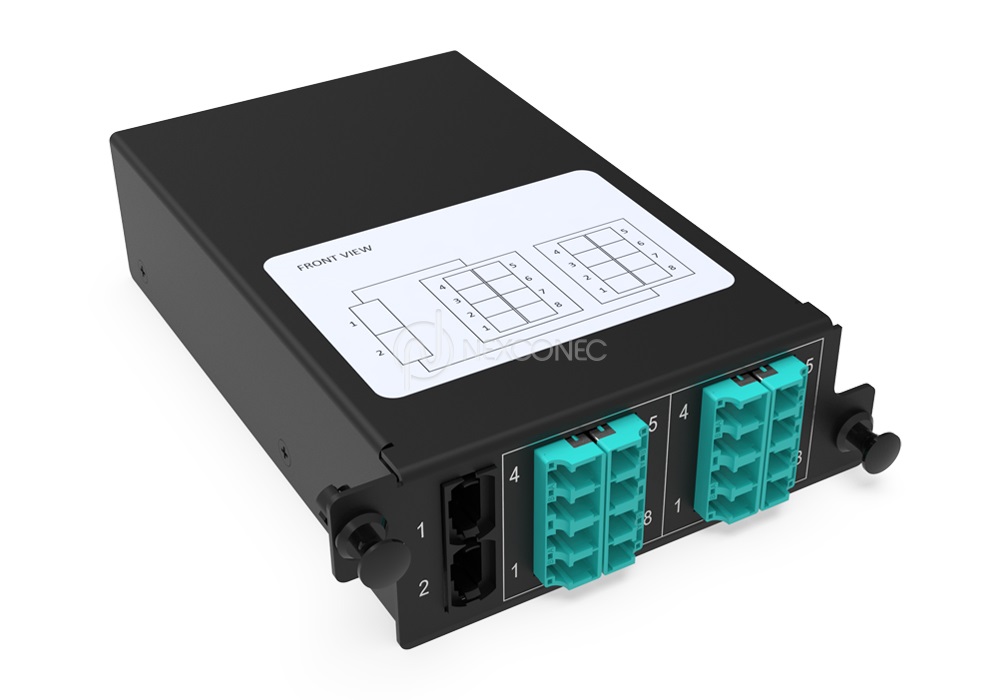

The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements. For 40G to 10G transitions, each cassette accommodates 2x (Base-8) MPO-LC fanouts, with MPO and LC ports conveniently accessible from the front.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Available in shuttered dust proof LC and MPO adapters
- Available in standard Single mode and Multimode fiber options
- Suitable for 40G to 10G and 100G to 25G transition
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Available in shuttered dust proof LC and MPO adapters
- Available in standard Single mode and Multimode fiber options
- Suitable for 40G to 10G and 100G to 25G transition
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 25G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | HD MP4 |
| Dimensions (WxDxH) | 106 x 130 x 35.30 mm |
| Material | Cold Rolled Steel |
| Housing Color | Black |
| Application | HD Panels |
| Patching Type | Front Patching Module |
| Fiber Capacity | 16FO |
| Adapters Ports | 1x MPO Duplex, 4x LC Quad |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC | MM MPO | MM LC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.20/0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| MP4CA05Q | HD Transition Module (40G-10G) 16FO SMF OS2 LC - 2xMPO(M) Elite Base-8 Front Patch |
| MP4CA06Q | HD Transition Module (40G-10G) 16FO MM OM4 LC - 2xMPO(M) Elite Base-8 Front Patch |
