HD MTP®/MPO SPLICE CASSETTE - MP4SPMxxx

MP4SPMxxx MP4SPMxxx MP4SPMxxx MP4SPMxxx MP4SPMxxx MP4SPMxxx MP4SPMxxx MP4SPMxxx MP4SPMxxx

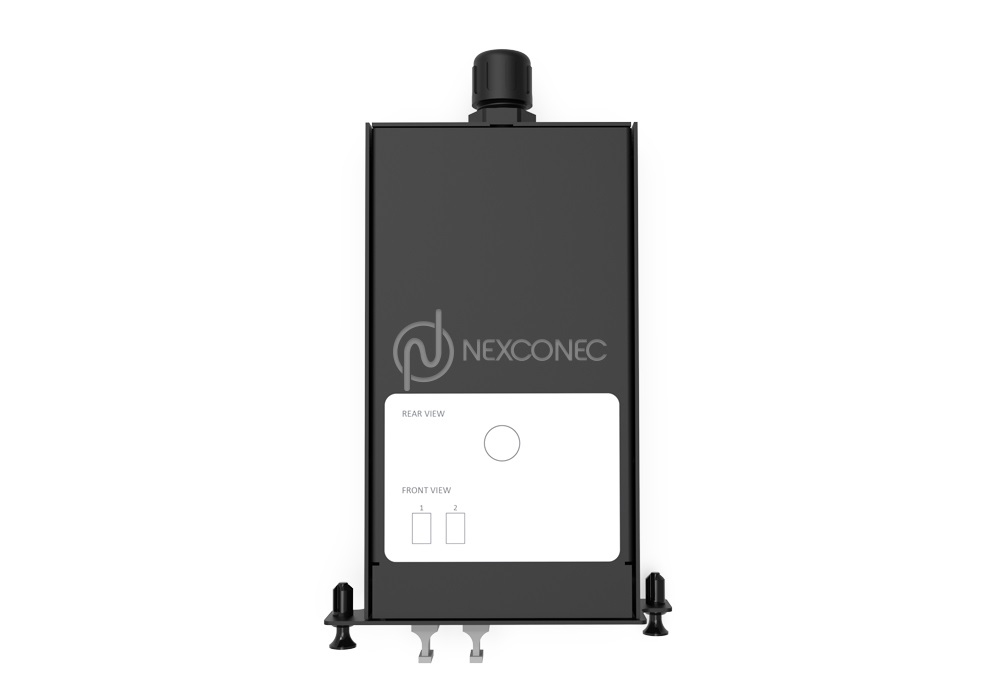

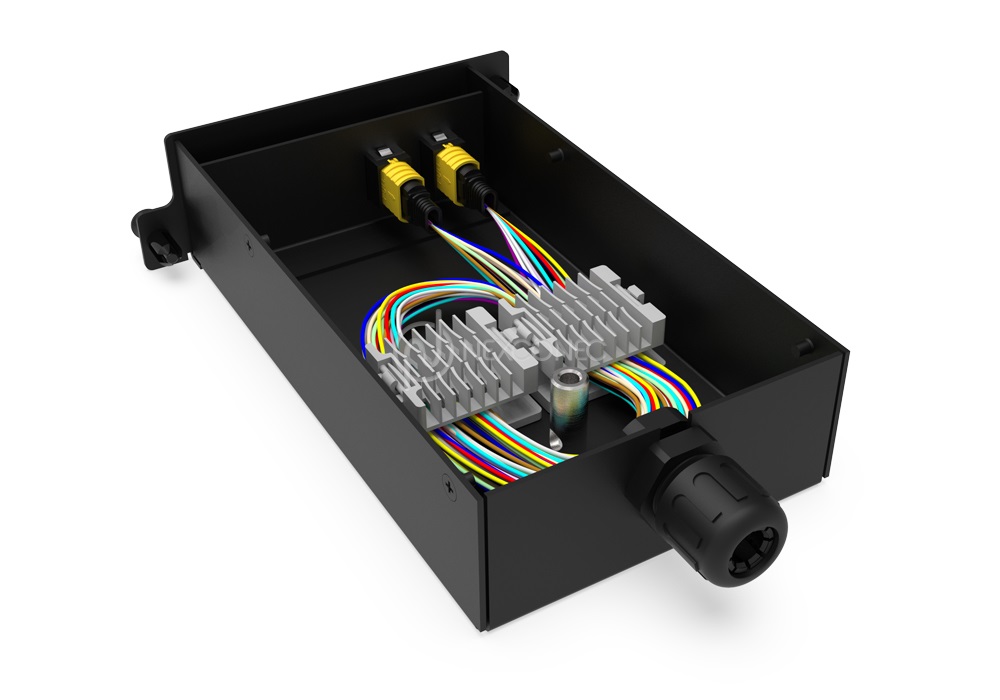

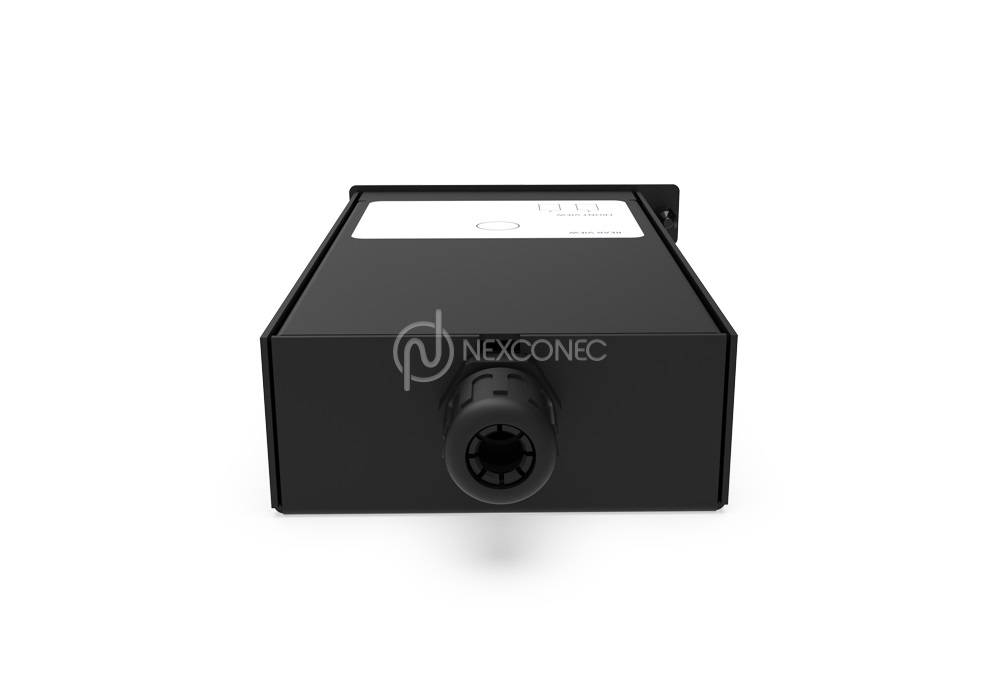

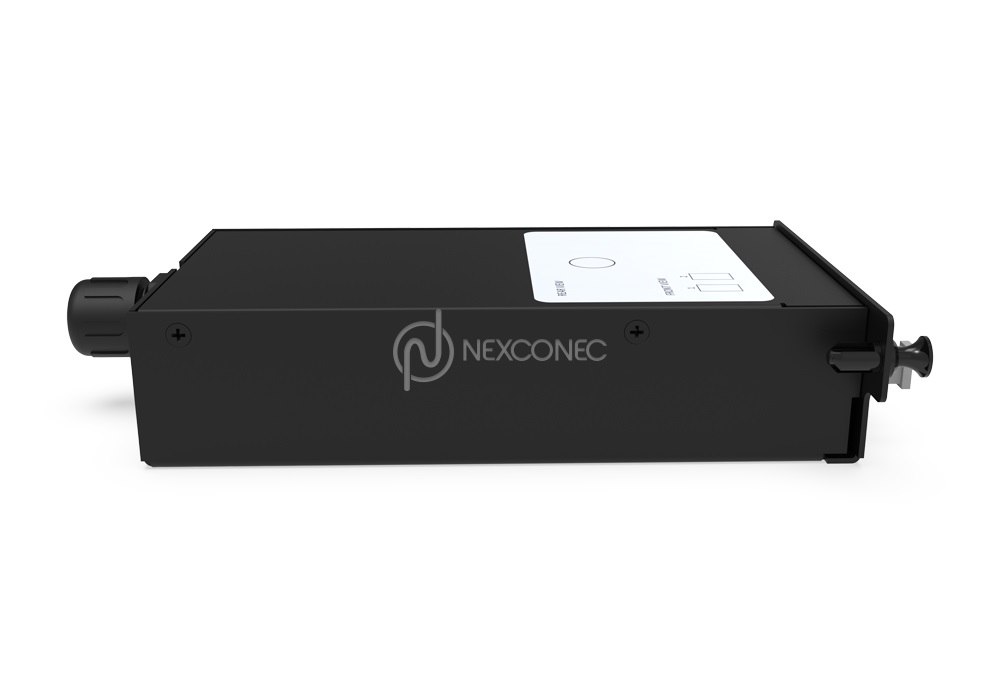

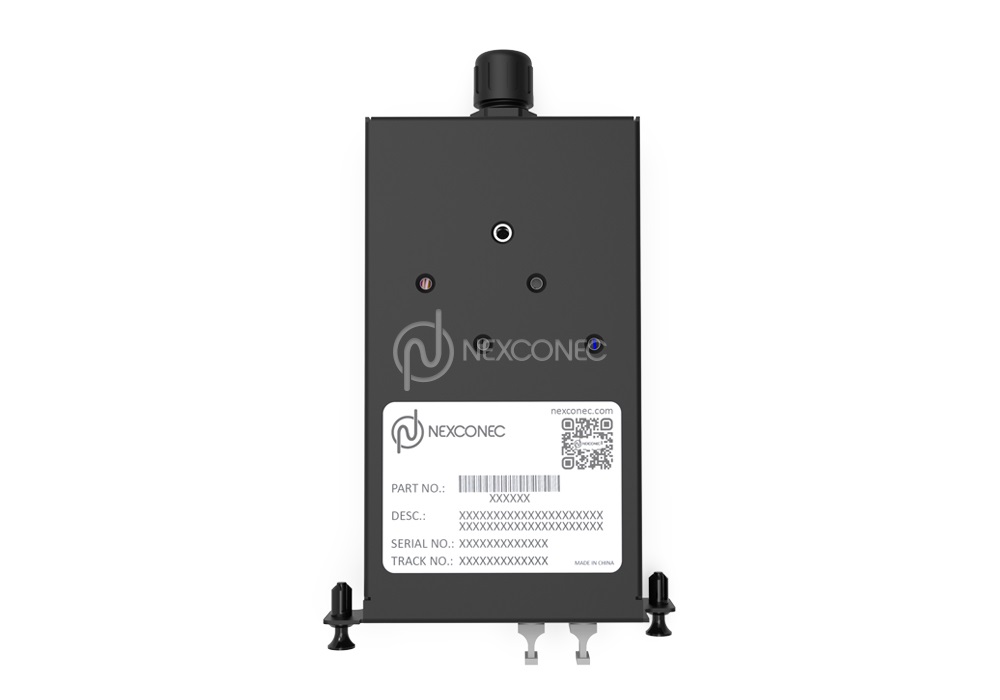

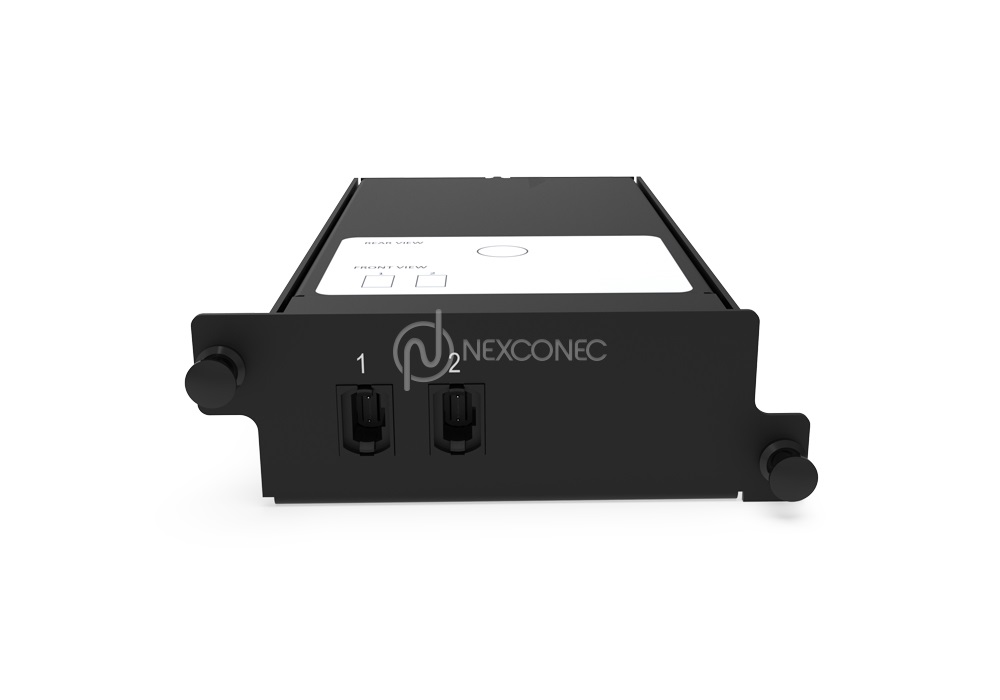

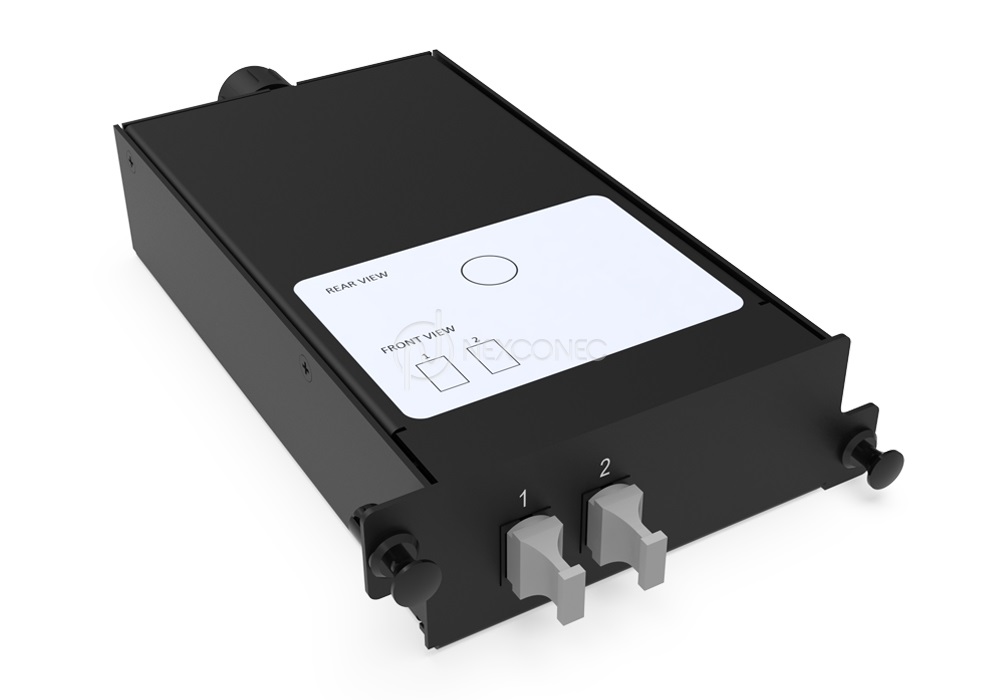

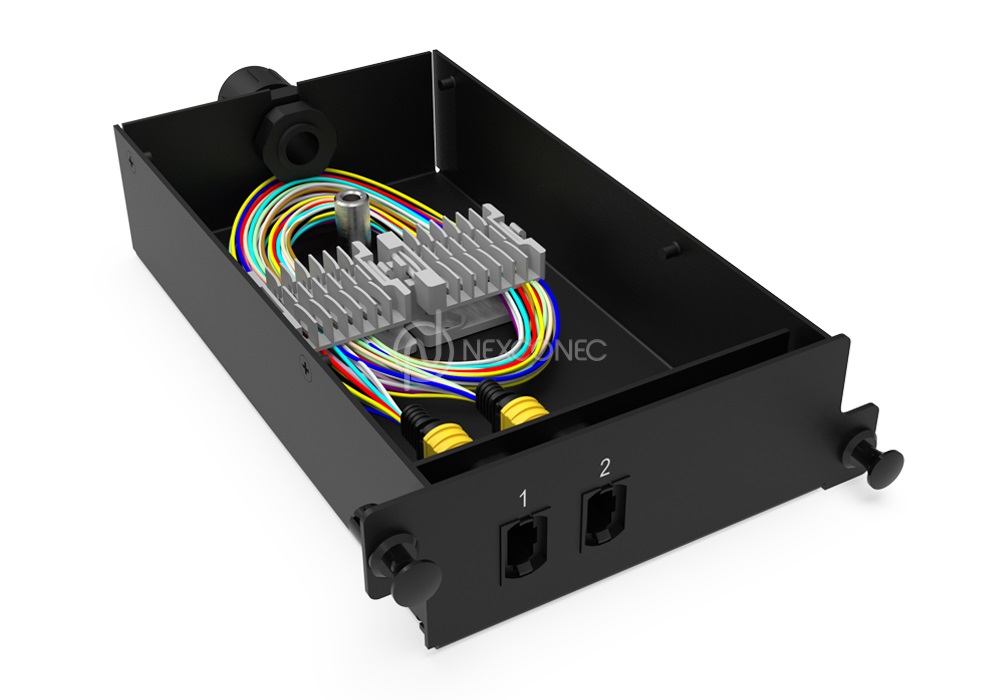

Nexconec® HD MTP/MPO-Splicing cassettes allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. This metallic body module is designed to splices up to 24F with 2xMPO Base-12 Single mode/Multimode MTP/MPO connectors. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon, or sandwich (ANT) type.

The HD MTP/MPO-Splicing cassette is easy to plug into all Nexconec® HD range panels. These MPO splice cassettes are preloaded with adaptors and pigtails, supplied with splicing accessories.

FEATURES AND APPLICATIONS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • Shuttered dust proof MPO adapters
  • Available in Single mode and Multimode options
  • Single and Ribbon Fiber splice
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus wide Network
  • Broadband network
  • Supports SFP, QSFP, CFP applications

Product Information

datasheetDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Footprint HD MP4
Dimensions (WxDxH) 106 x 150 x 35.30 mm
Material Cold Rolled Steel
Housing Color Black
Application HD Panels
Fiber Capacity 24FO, 2xMPO Base-12 MTP/MPO connectors
Rear Cable Entries 1x Cable gland M12
Adapters Ports 2x MTP/MPO Base-12 (Male)
Splice Holder 40MM Heat Shrink Sleeves, or Ribbon
Max. Cable Diameter to Use 8 mm
Weight 0.25 Kg
Parameters Units SM MTP/MPO MM MTP/MPO
Avg/Max IL– Premium Elite dB ≤ 0.10/0.35 ≤ 0.10/0.35
Return Loss (PC/APC) dB ≥ 60 ≥ 60
Part Number Product Description
MP4SPM401 HD Splice Module for 24FO 2xMPO (Male) Elite Base-12 SM SMF OS2

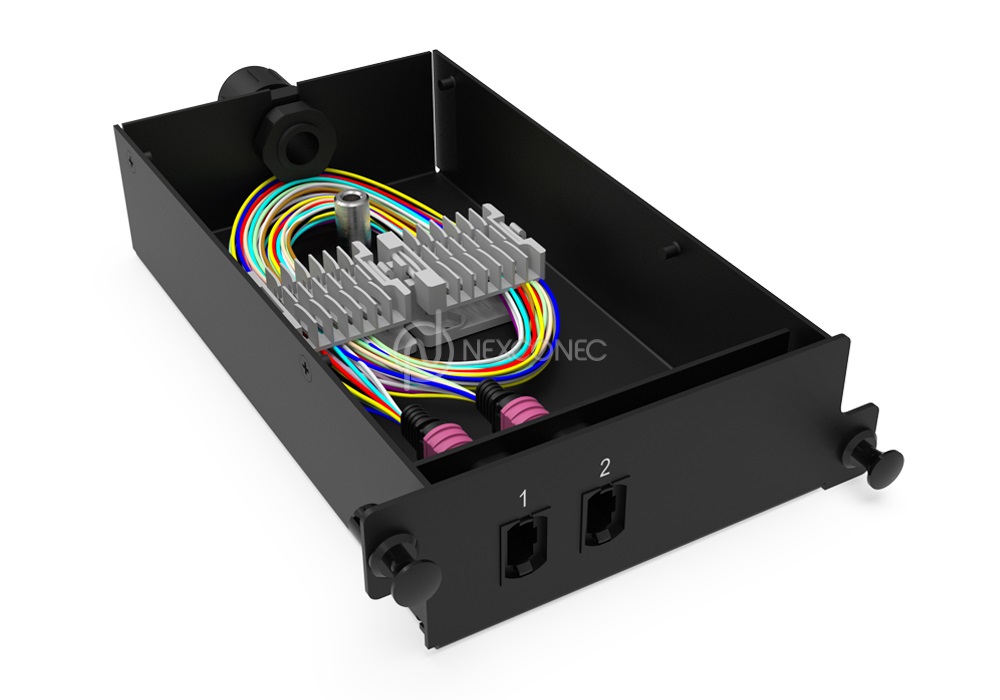

MP4SPM402 HD Splice Module for 24FO 2xMPO (Male) Elite Base-12 OM4
Notes: Ribbon splice and sandwich (ANT) type are available on request.
*Add ‘-FT’ for France Telecom color coding. (Example: MP4SPM401-FT)
