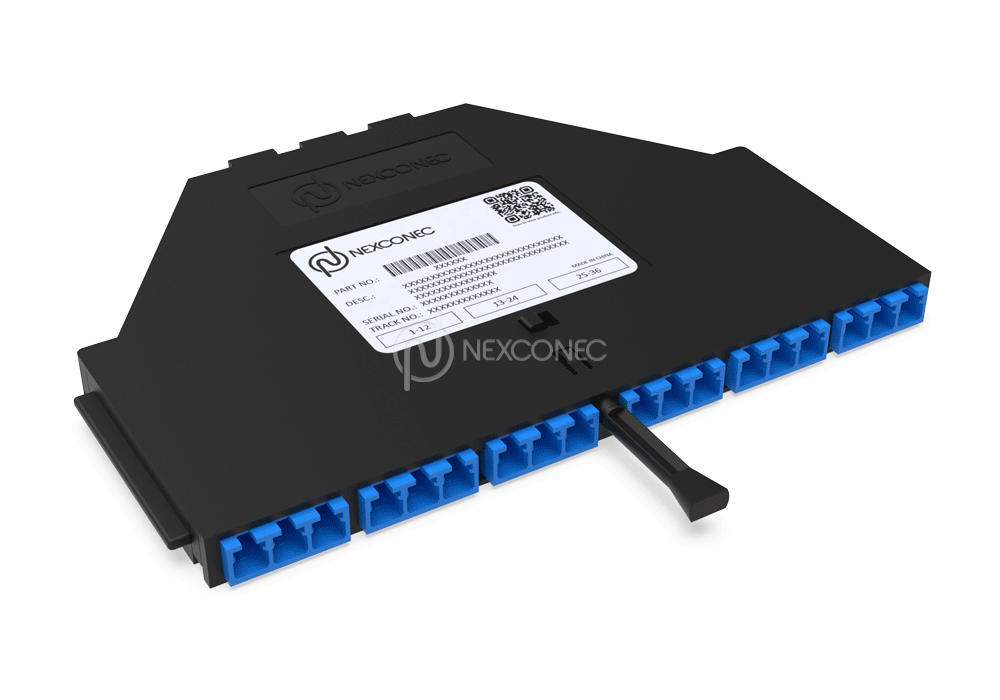

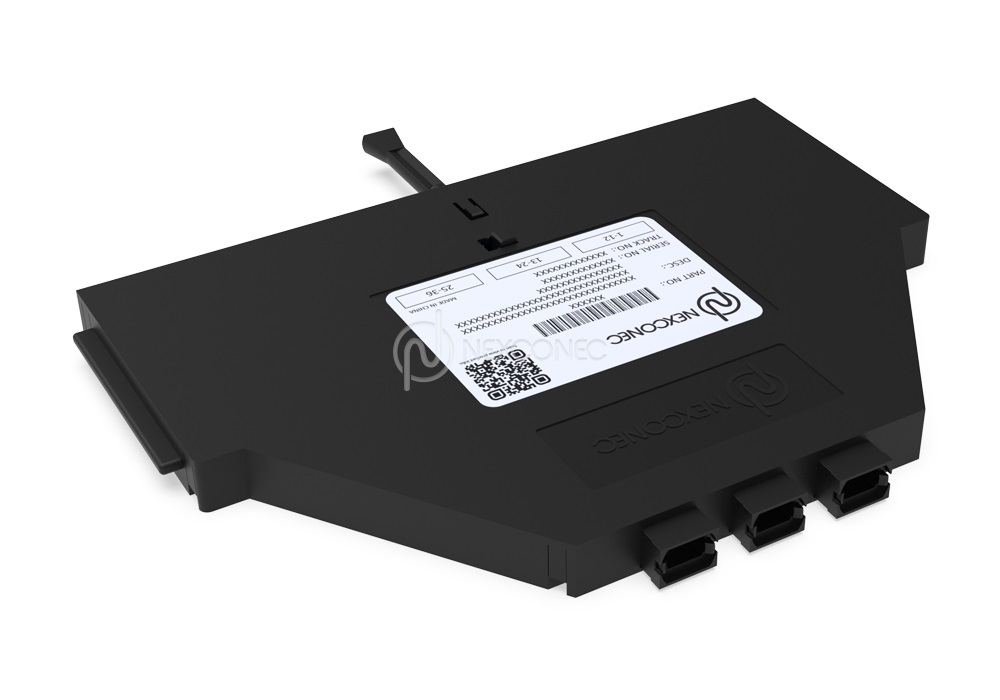

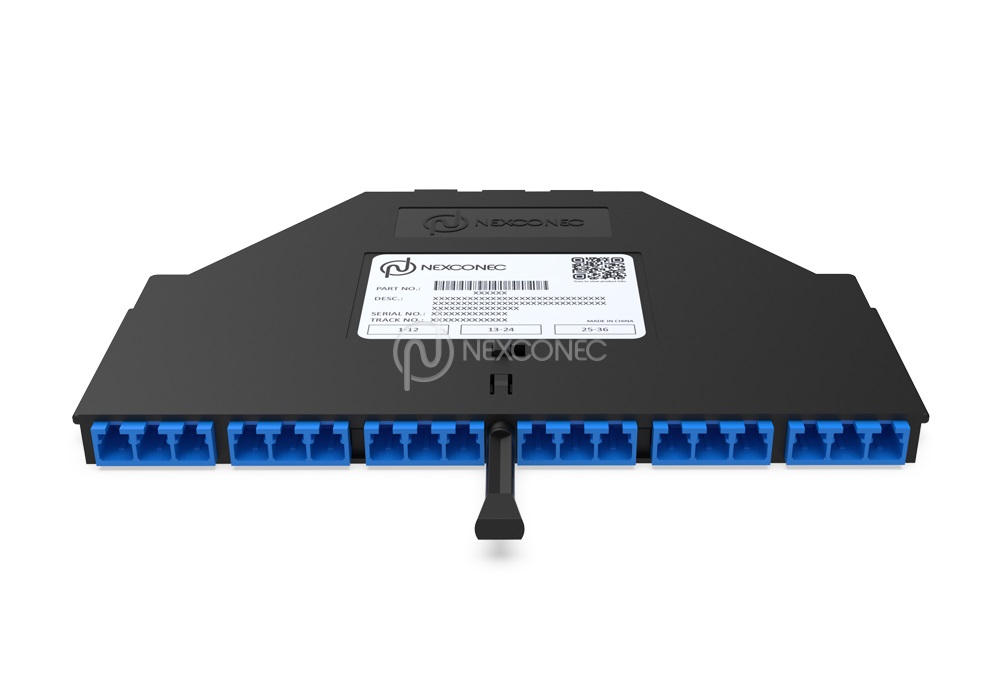

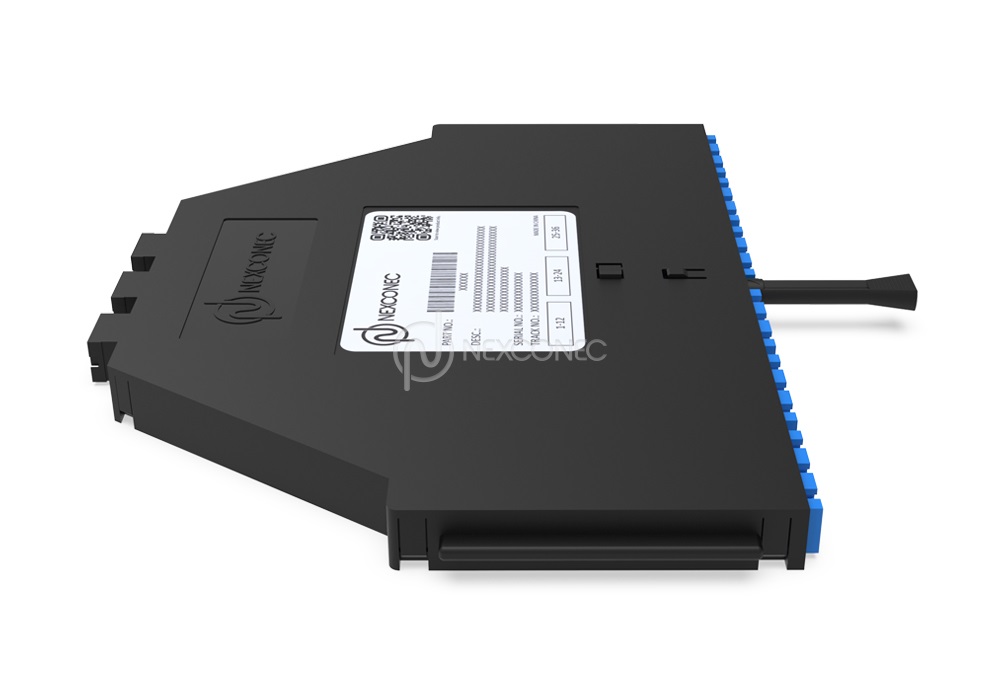

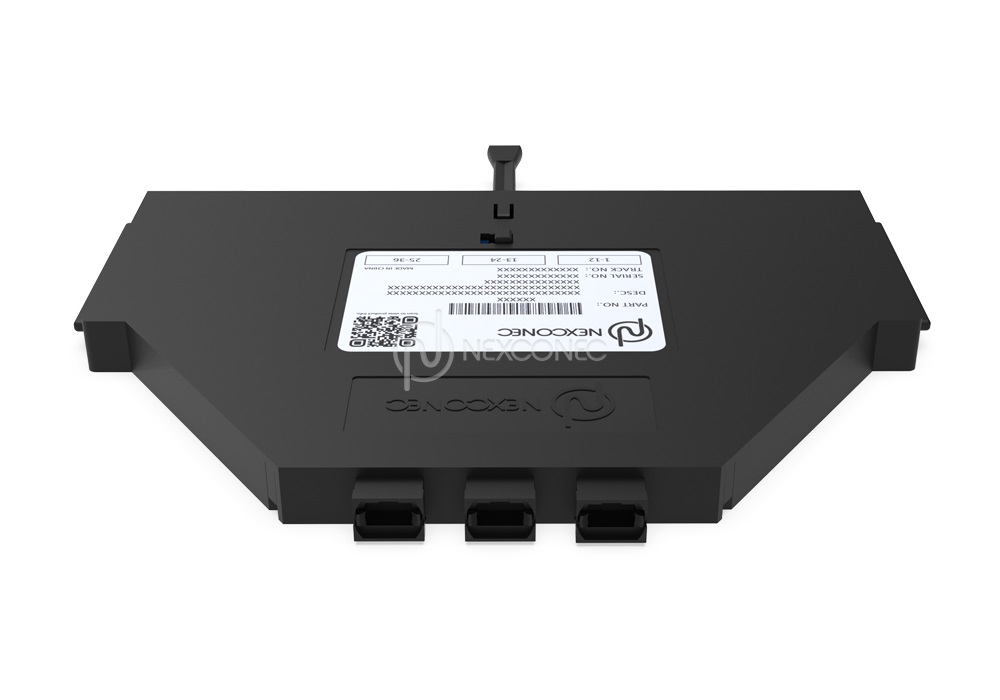

NGX CASSETTE 36FO BASE-12 MTP®/MPO-CS® - NGXCSxx
The NEXCONEC® NGX 36FO cassettes are pre-terminated modules MTP®/MPO-CS® fanouts. They are designed to be suitable for up to 100G applications, allowing for efficient interconnection between backbone and discrete connections. The NGX cassettes are specifically made to plug into all Nexconec NGX range panels with precision.
These MTP®/MPO-CS® cassettes offer an ultra-high-density solution, which populates impressive capacity of fiber up to 216FO (6x36F) within just 1U of space, when inserted to NGX 1U 6 slots chassis. The MPO and single ferrule connectors are available in Standard and Elite versions to cater to the customer’s power budget requirements.
PRODUCT HIGHLIGHTS
- Available in standard Single mode and Multimode fiber options
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
PRODUCT INFORMATION
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| FIBER MAPPING.pdf |
View | Download |
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Available in standard Single mode and Multimode fiber options
- Available in 24 and 36 fiber count
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Flame retardant PC+ABS material
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | NGX |
| Dimensions (WxDxH) | 191.20 x 130 x 12.60 mm |
| Material | PC+ABS |
| Housing Color | Black |
| Application | NGX Panels |
| Fiber Capacity | Up to 36FO |
| Front Adapter Type | CS® Triple Channel 6F |
| Rear Adapter Type | MTP®/MPO Base-12 |
| Number of CS® Ports | 6 Ports |
| Number of MTP®/MPO Ports | 3 Ports |
| Polarity | A/B/C as per TIA/EIA-568-C.3 |
| Compliance | RoHS, REACH & SvHC |
| Operating Temperature | -10 ~ +60°C |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM CS® | SM CS® (APC) | MM MPO | MM CS® |
|---|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.15/0.20 | ≤ 0.15/0.25 | ≤ 0.60 | ≤ 0.10/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 55/65 | ≥ 55/65 | NA | ≥ 25 |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.05/0.08 | ≤ 0.07/0.12 | ≤ 0.10/0.35 | ≤ 0.05 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 55/65 | ≥ 55/65 | NA | ≥ 25 |
| Durability | < 0.2dB typical change, 500 mating’s | |||||
| Part Number | Product Description |
|---|---|
| NGXCS01 | NGX Module MPO (ELITE) M-CS/UPC Premium 36FO SMF OS2 Polarity A/C Base-12 |
| NGXCS02 | NGX Module MPO (ELITE) M-CS/APC Premium 36FO SMF OS2 Polarity A/C Base-12 |
| NGXCS03 | NGX Module MPO (ELITE) M-CS Premium 36FO MM 50/125 OM3/OM4 Polarity A/C Base-12 |
| NGXCS04 | NGX Module MPO (ELITE) M-CS Premium 36FO MM 50/125 OM5 Polarity A/C Base-12 |
