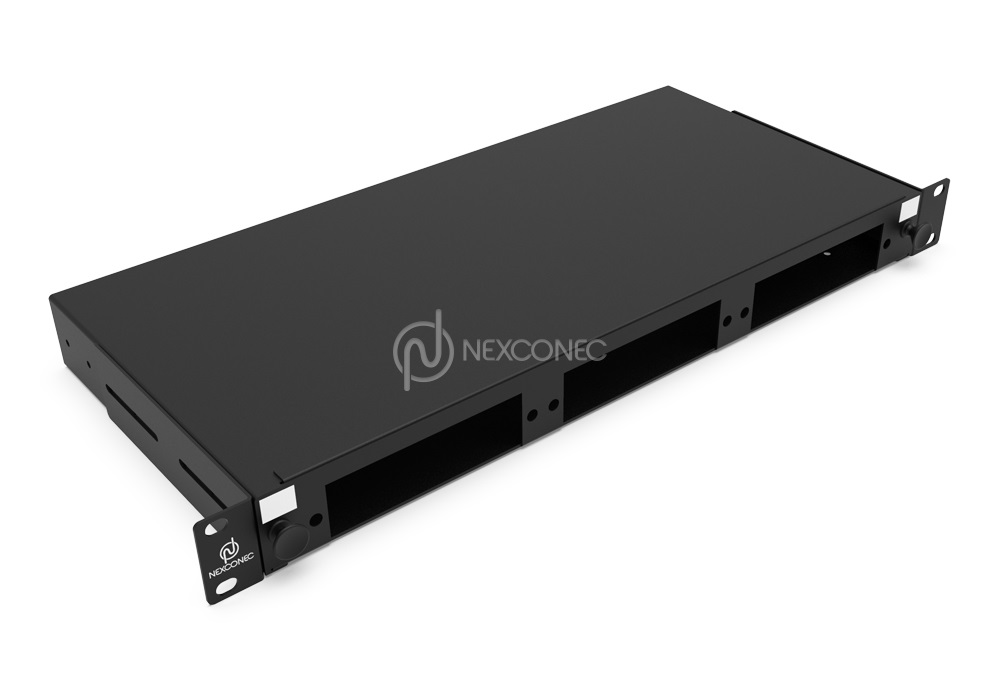

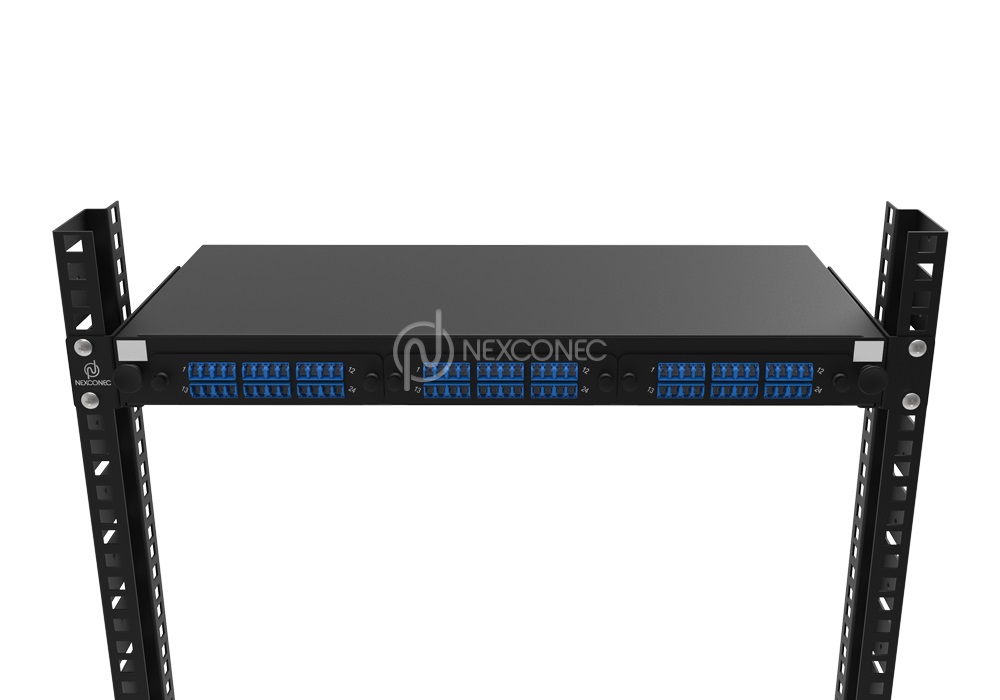

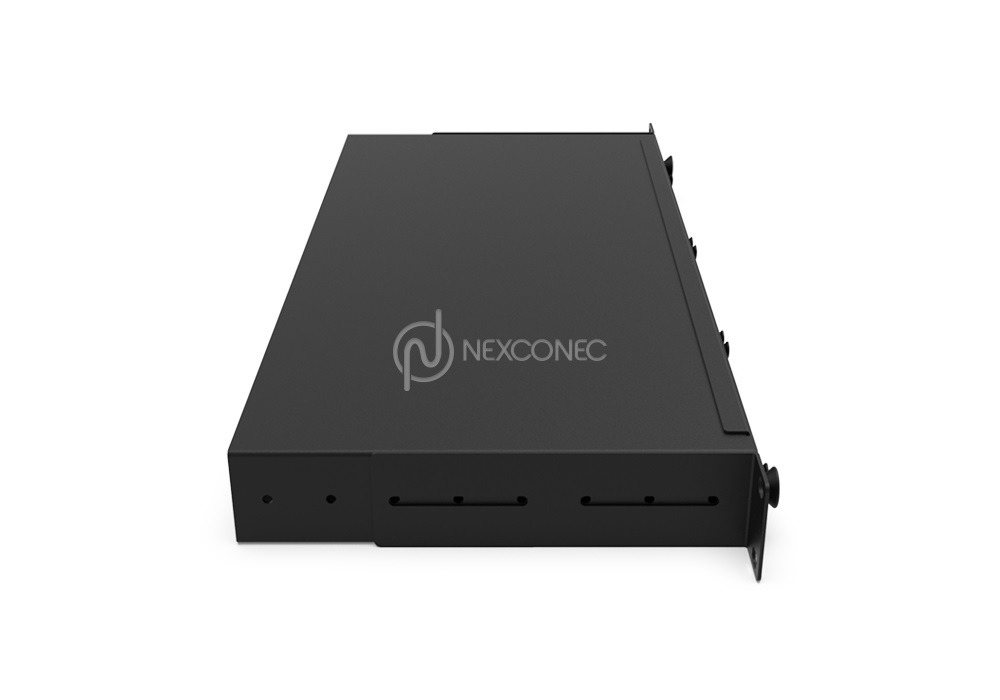

1U 3 Slots LGX Sliding Patch Panel - MP3PP04

MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04 MP3PP04

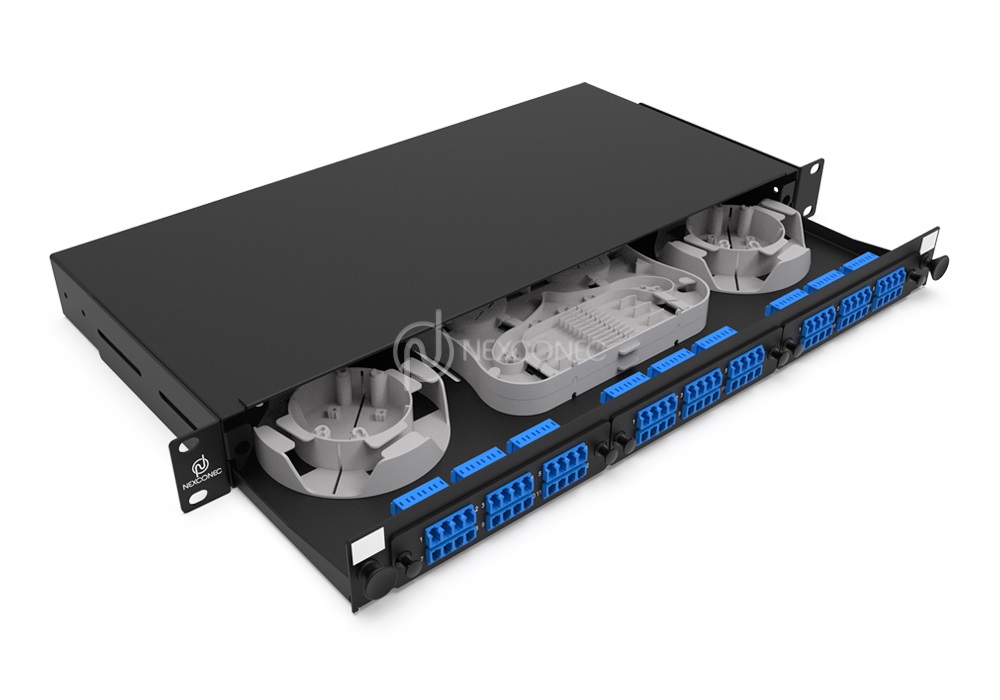

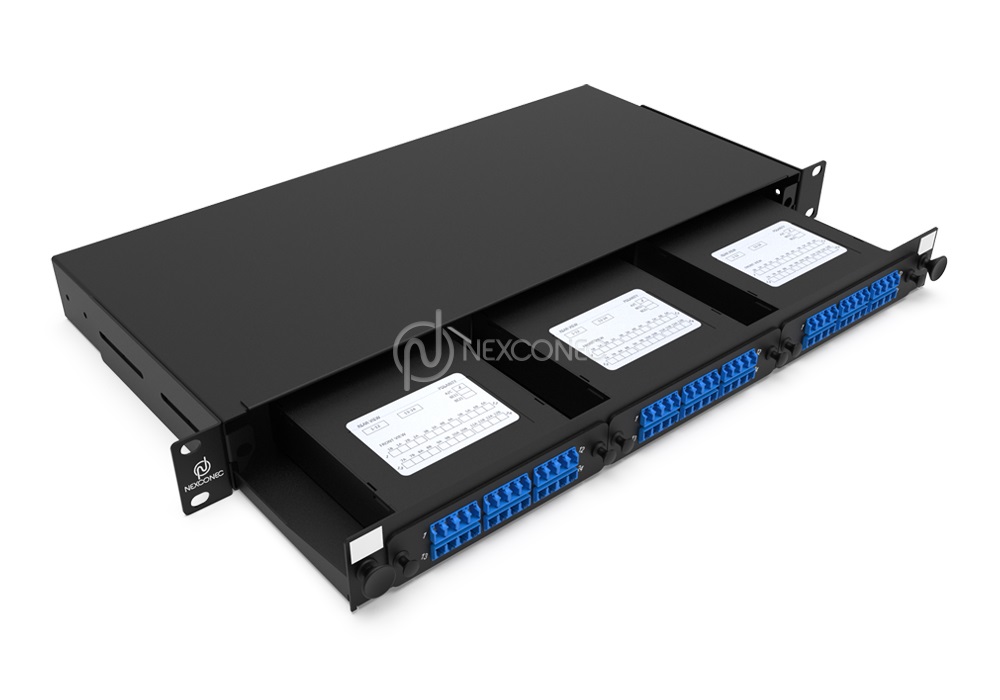

Nexconec sliding patch panel accepts 3 LGX pass-thru adapter plates for a total of 72FO with LC configuration. Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged cable management bar which provides protection of the patch cords as well as labelling. Panel is supplied unloaded and the modules and plates are supplied separately.

FEATURES AND APPLICATIONS
  • 3 Slots LGX in 1U space

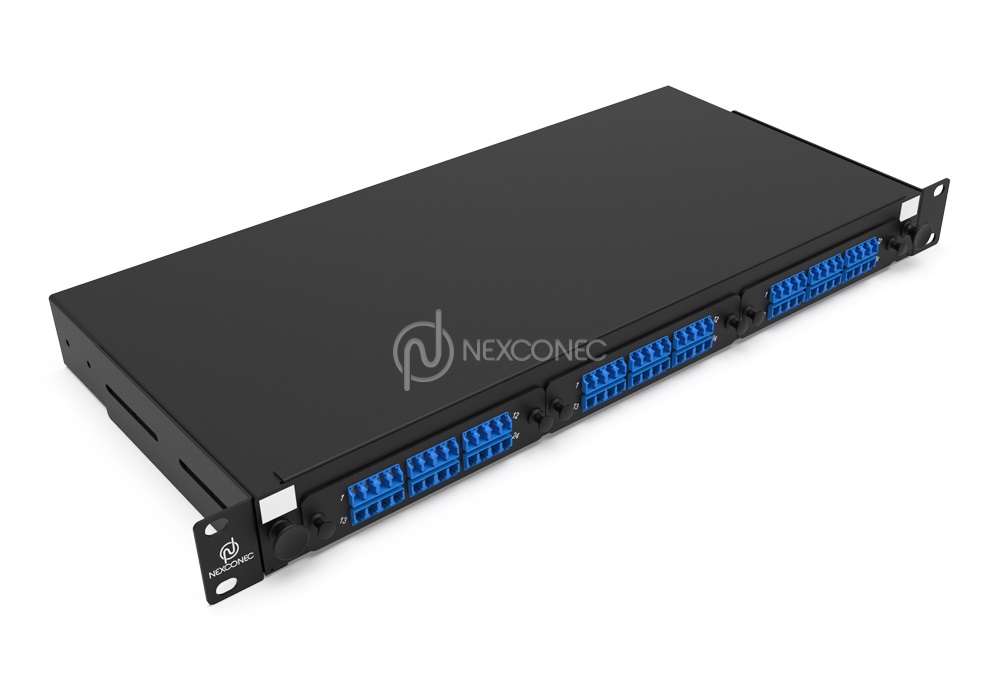

  • Up to 72FO in LC
  • Modular with MTP Cassette or Adapter plates
  • RoHS, REACH and SVHC compliant
  • Enterprise network & Datacentre
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing

Product Information

datasheetDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
microsoft visioVISIO.vsdx Download
Mounting Type Rack 19”
Height Unit 1U
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No
Dimensions (W x D x H in MM) 482 x 205 x 44
Net Weight 3Kg

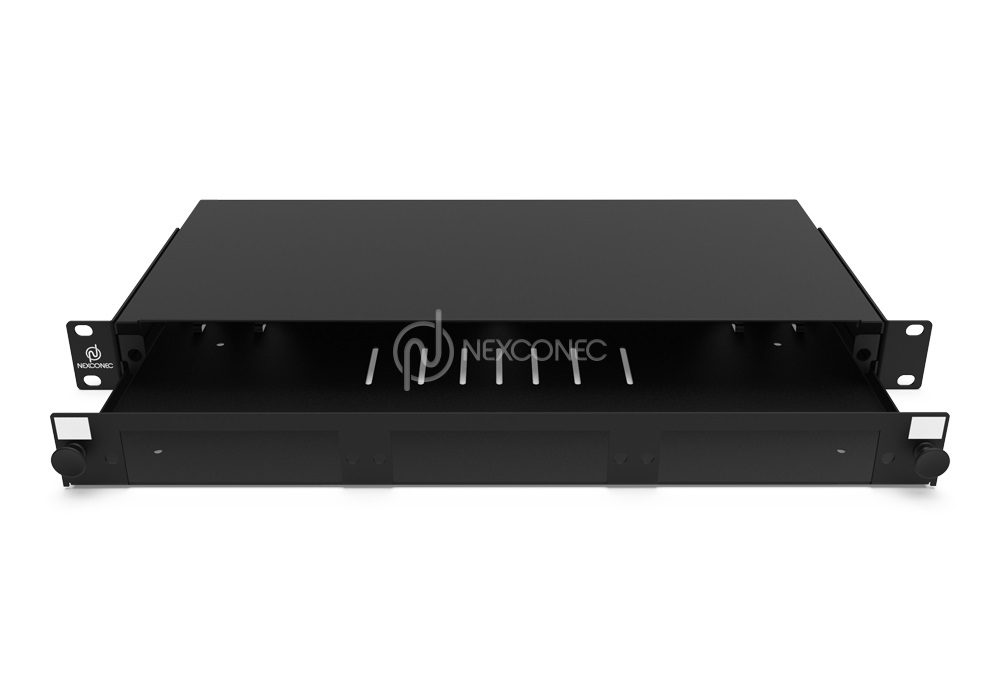

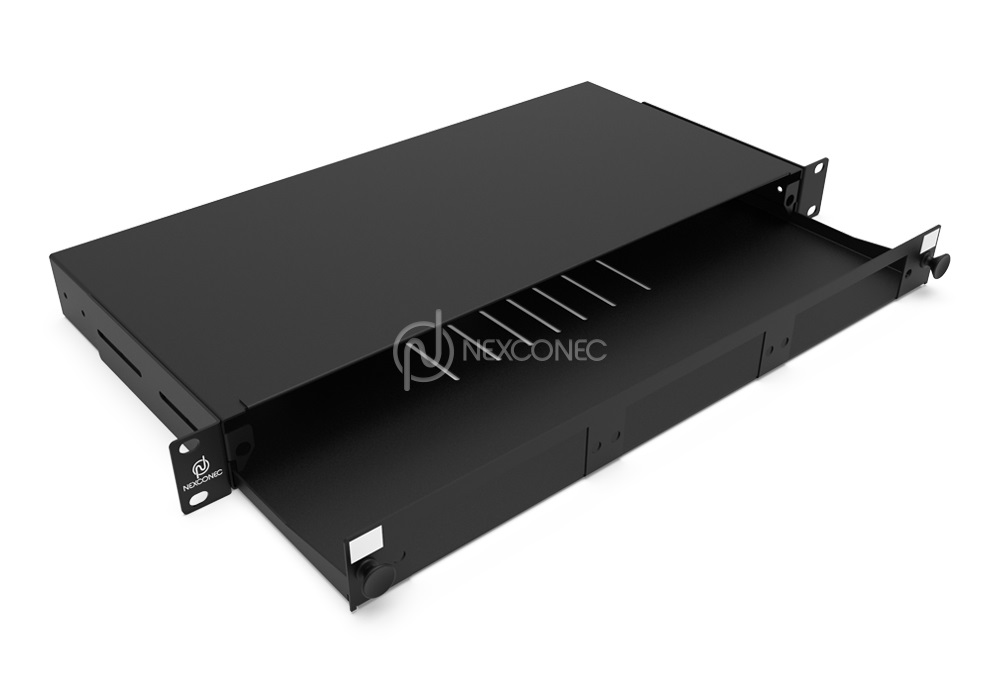

Opening Type Sliding tray
Access Type Front access
Front Cable Management Optional hinged drop-down door
Cable Entry Direction Rear

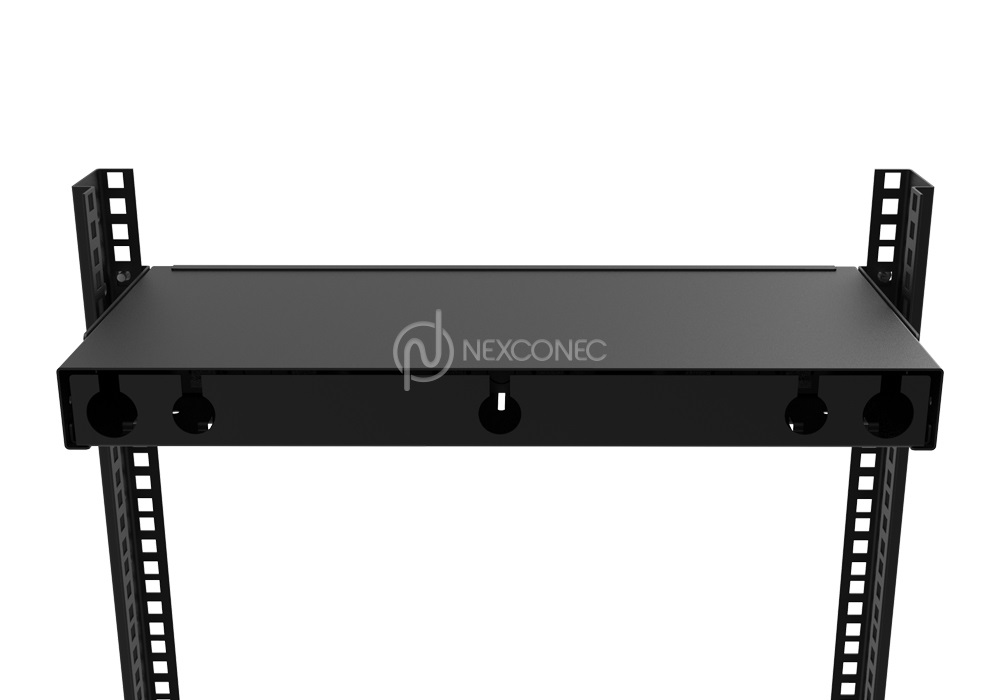

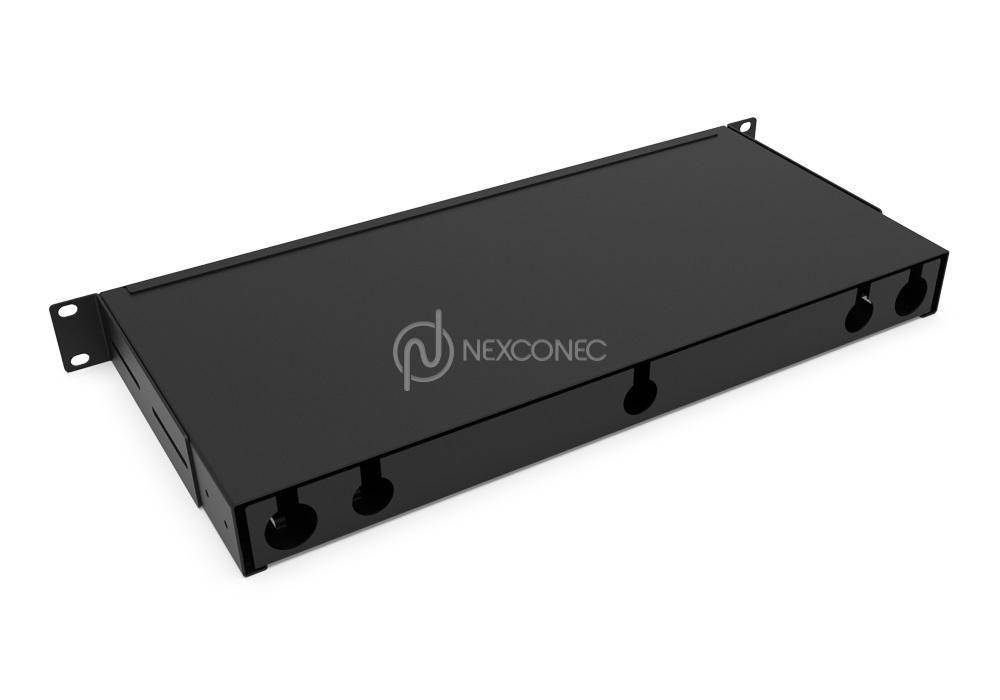

Rear Cable Management 6 cable entries
Slot Type LGX Modules and LGX Plates
Number of Slots 3
Fibre Capacity 72 in LC
Part Number Product Description
MP3PP04 1U 3 slots LGX Modular Sliding Patch Panel Unloaded (No Front Management)
