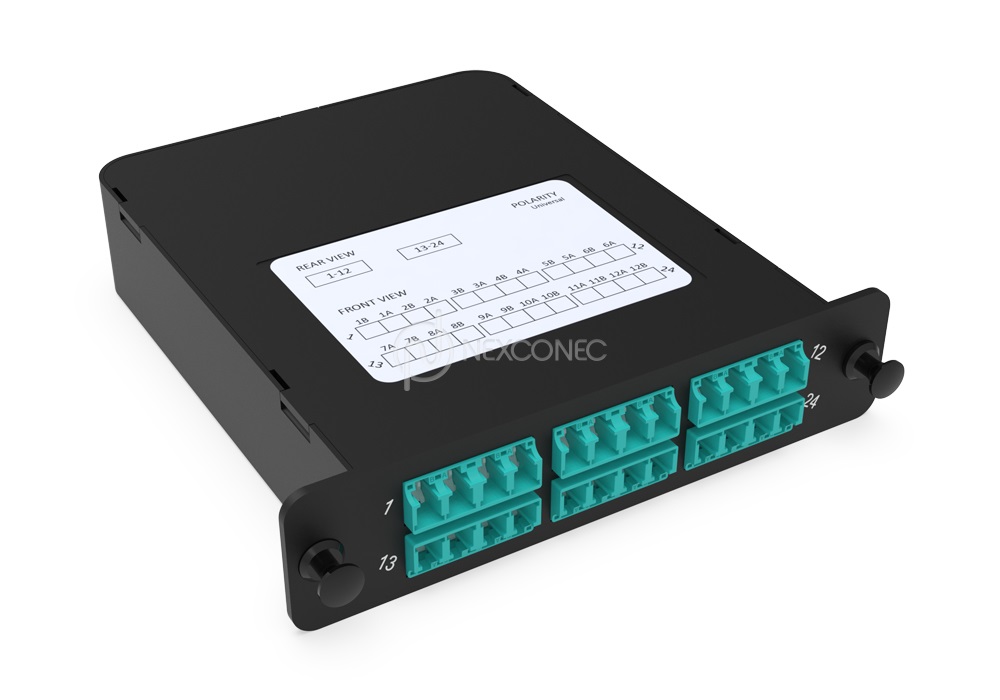

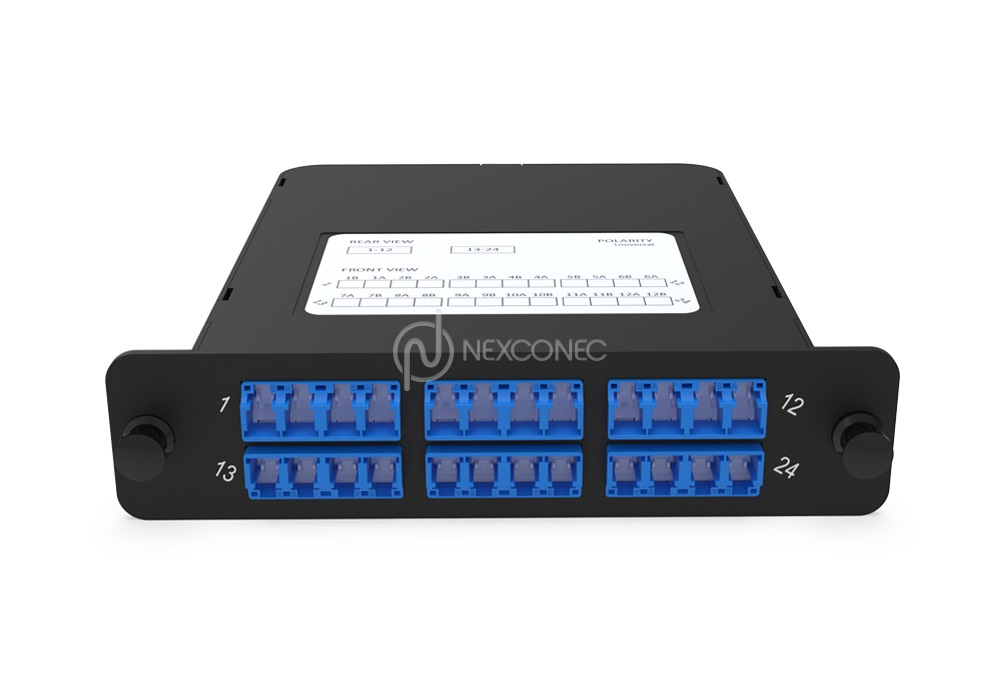

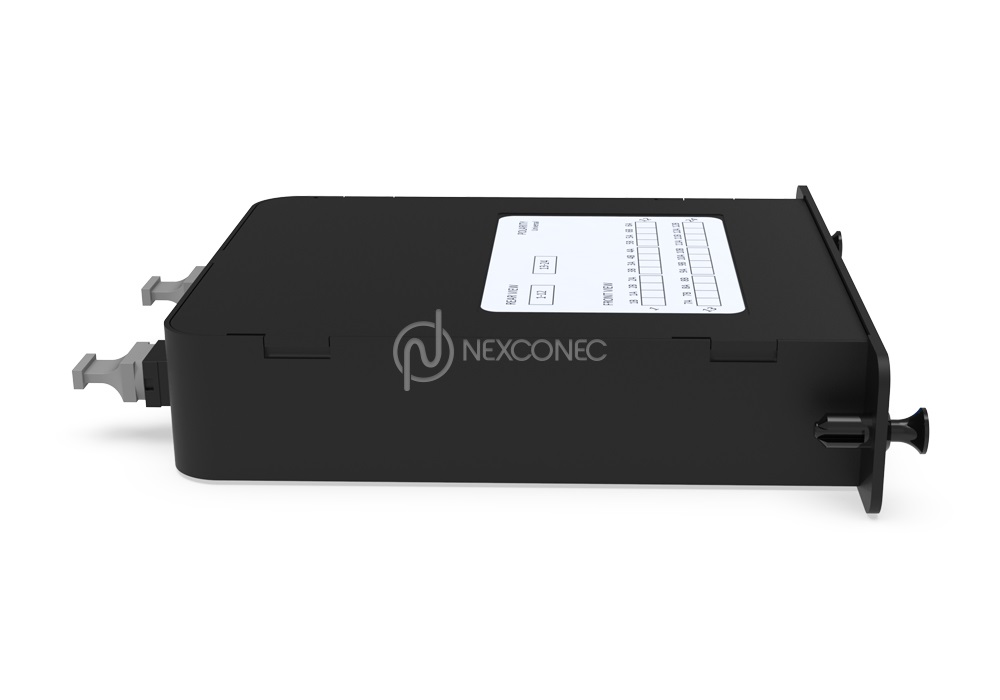

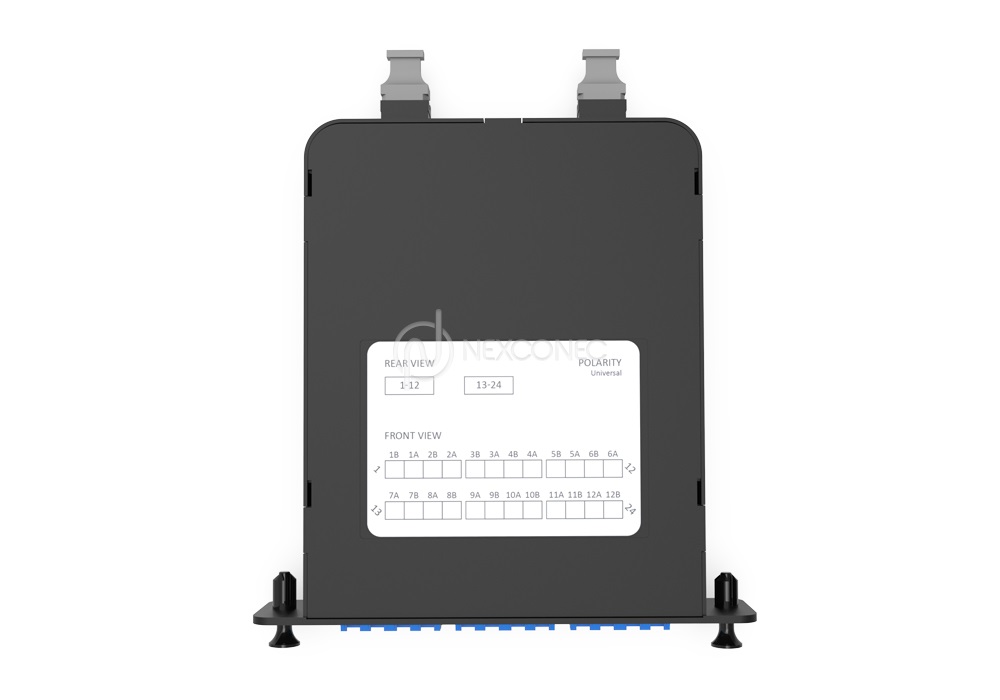

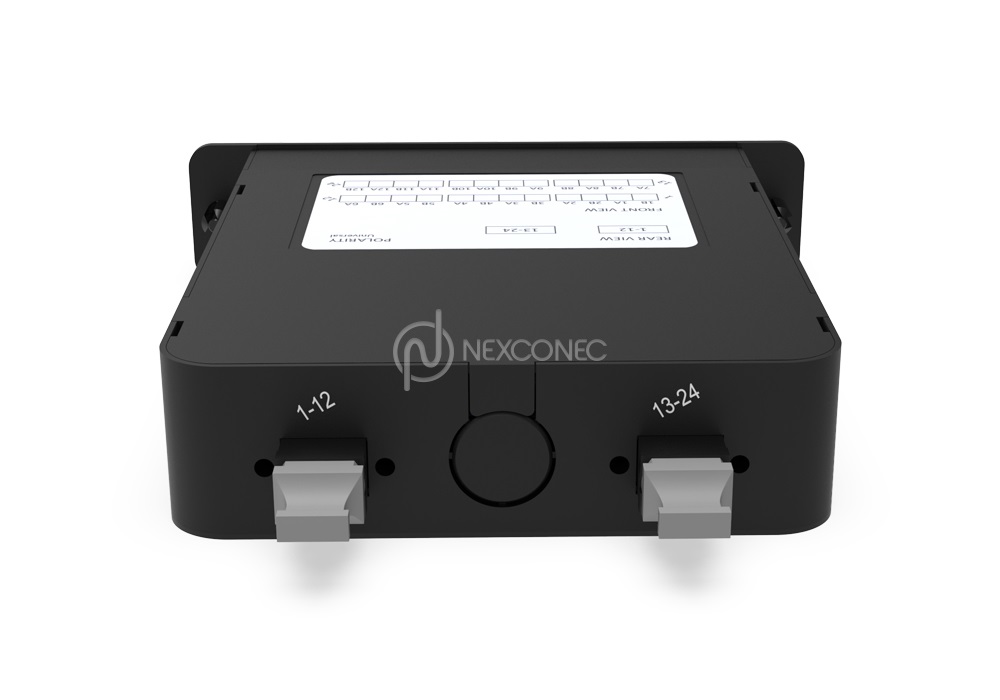

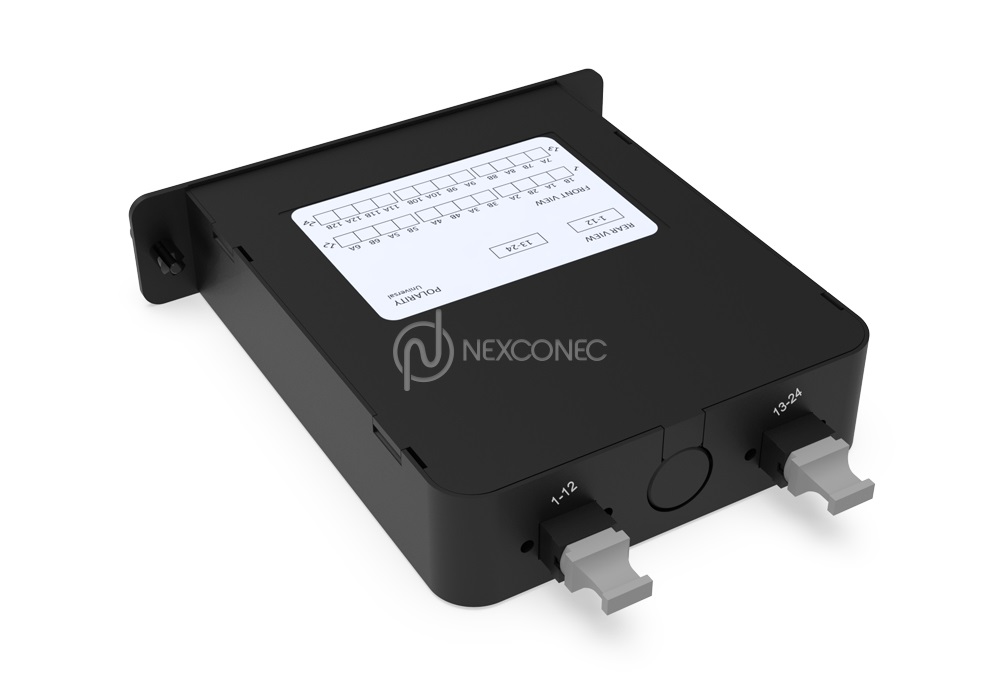

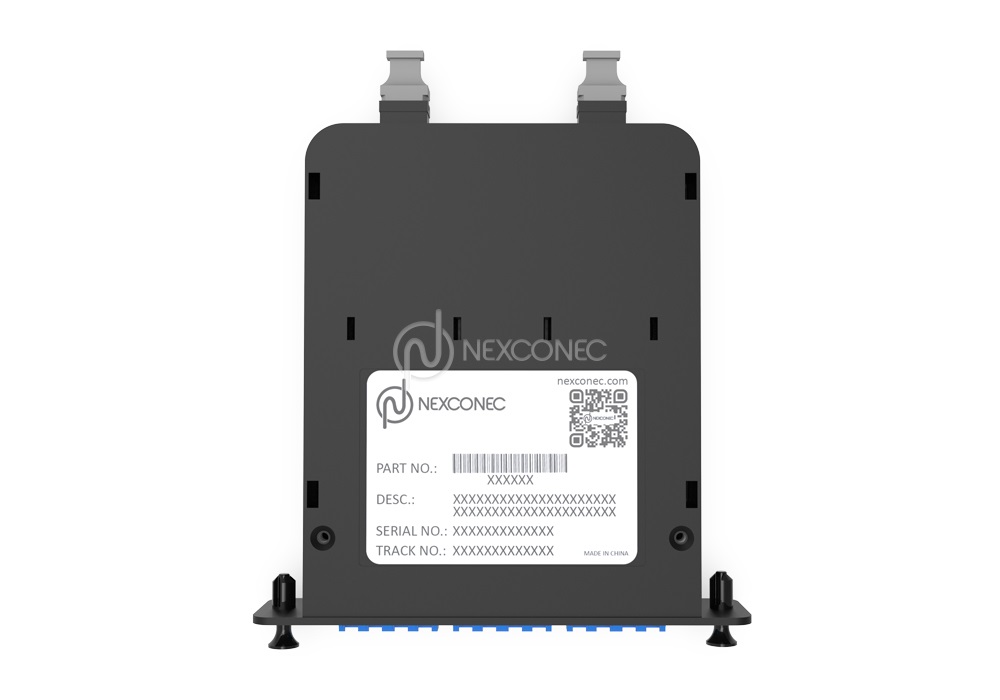

LGX CASSETTE MTP®/MPO (Type-B) - MP3CAxxU
NEXCONEC LGX cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The LGX cassettes are designed to easily plug into NEXCONEC LGX panels and chassis range. The cassettes eliminate the need for splicing reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Available in 12, and 24 fibre count
- Polarity B as per TIA/EIA-568-C.3 with Alpha-Beta cassettes
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTALLATION GUIDE.pdf |
View | Download |
| Footprint | LGX |
|---|---|
| Material | ABS + PC |
| Housing Color | Black |
| Application | LGX Panels, Chassis, Wall Boxes |
| Fiber Capacity | 24FO in LC / 12FO in SC |
| Dimensions (W x D x H in mm) | 130 x 103 x 28 |
| Weight KG | 0.25 |
| Parameters | Units | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| MP3CA01U | LGX Module MPO-LC Elite 24FO SM Pol B Universal |
| MP3CA02U | LGX Module MPO-LC/APC Elite 24FO SM Pol B Universal |
| MP3CA03U | LGX Module MPO-LC Elite 24FO MM OM3/4 Pol B Universal |
