LGX ADAPTER PLATES - MP3PLxx
Nexconec carries numerous LGX-style adapter plates to meet your fiber management connectivity requirements. The LGX adapter plates are made to fit all Nexconec LGX fiber management solutions, including rack mount and wall mount pigtail and splice panels, as well as our Variable Fiber Management systems. The LGX fibre panel can occupy rack mount spaces to accommodate dozen fiber adapter panels. These plates supports LC, SC, ST, FC, E2000 and MTP/MPO for high density solutions.
FEATURES AND APPLICATIONS
- Large choice of thru adapters SC/LC/FC/ST/MPO
- Easy and fast installation
- Recessed SC/LC/MPO Adapters
- Lightweight plastic
- Enterprise network & Datacentre
- Indoor application
- Most Common Footprint
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |
| Mounting Type | Nylon Latches |
|---|---|
| Material | PC + ABS |
| Housing Color | Black |
| Dimensions (W x H in MM) | 129 x 30 |
| Net Weight | 0.1Kg |
| Part Number | Product Description |
|---|---|

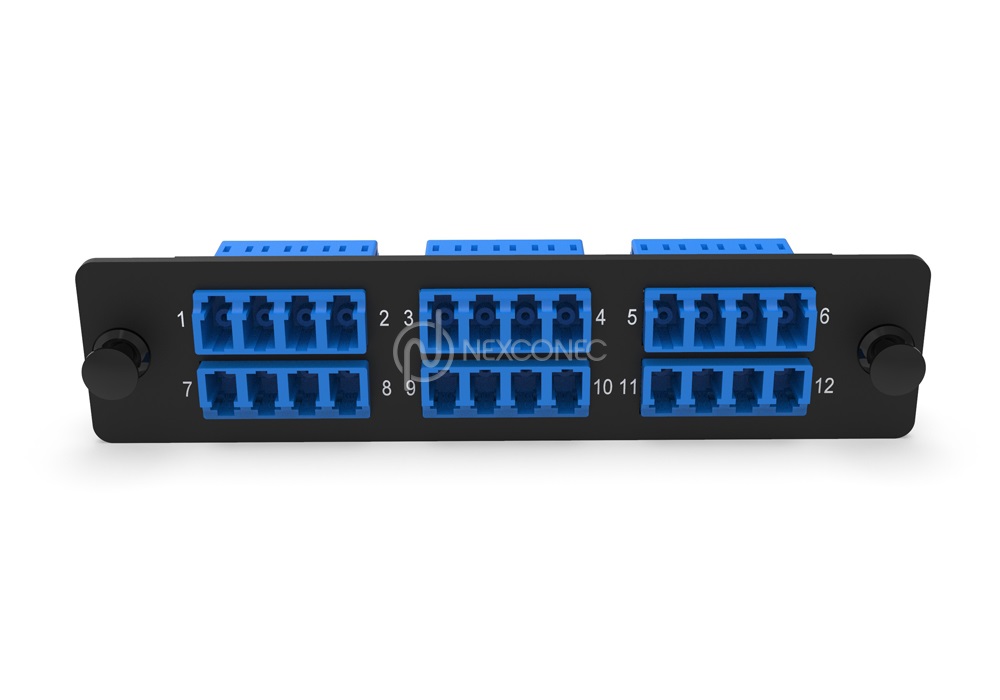

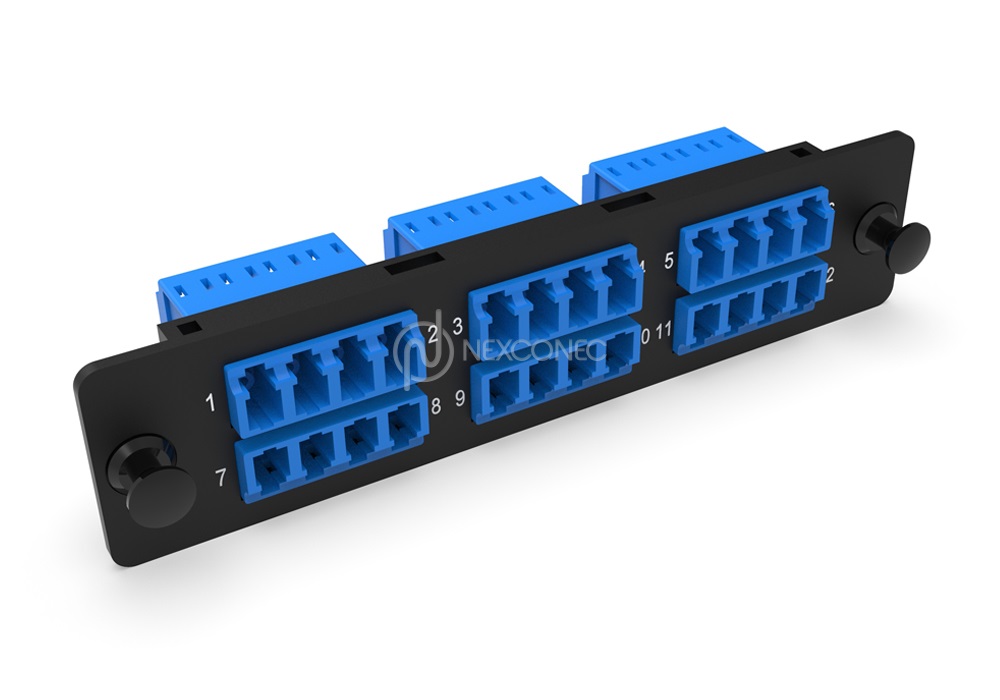

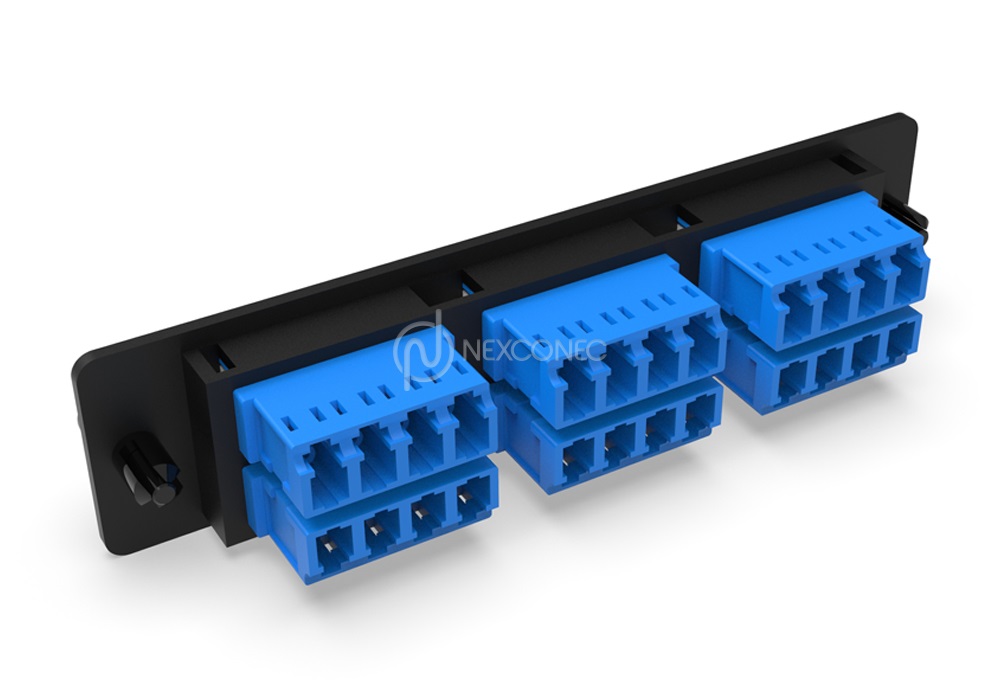

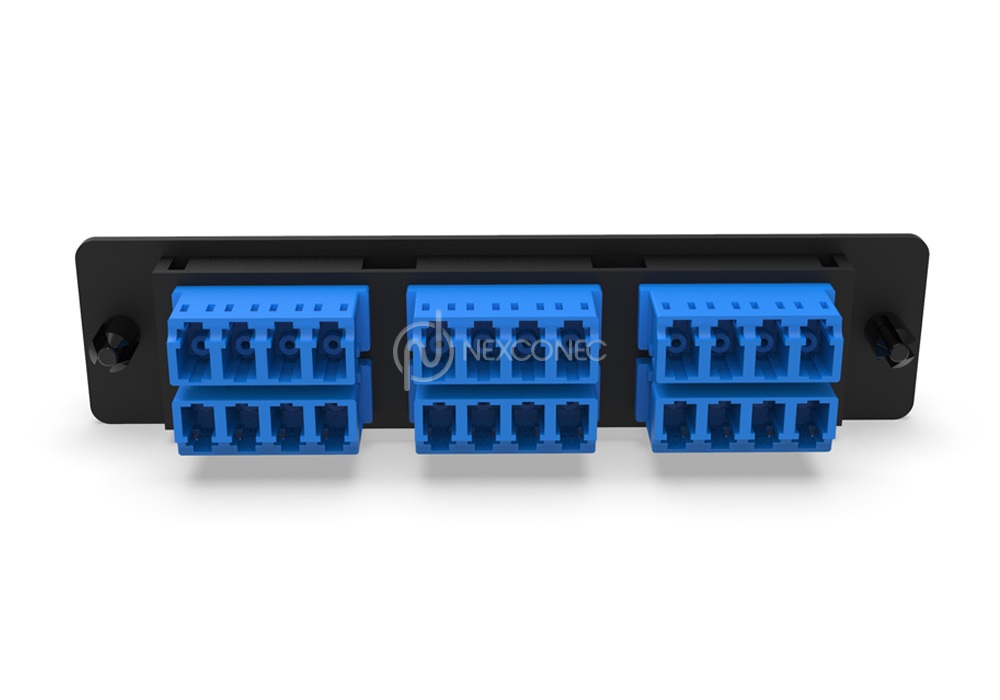

| MP3PL01 | LGX Pass Thru Adapter Plate LC 24FO SM Blue |
| MP3PL02 | LGX Pass Thru Adapter Plate LC 24FO SM Green |
| MP3PL03 | LGX Pass Thru Adapter Plate LC 24FO MM Aqua |
| MP3PL04 | LGX Pass Thru Adapter Plate SC 12FO SM Blue |

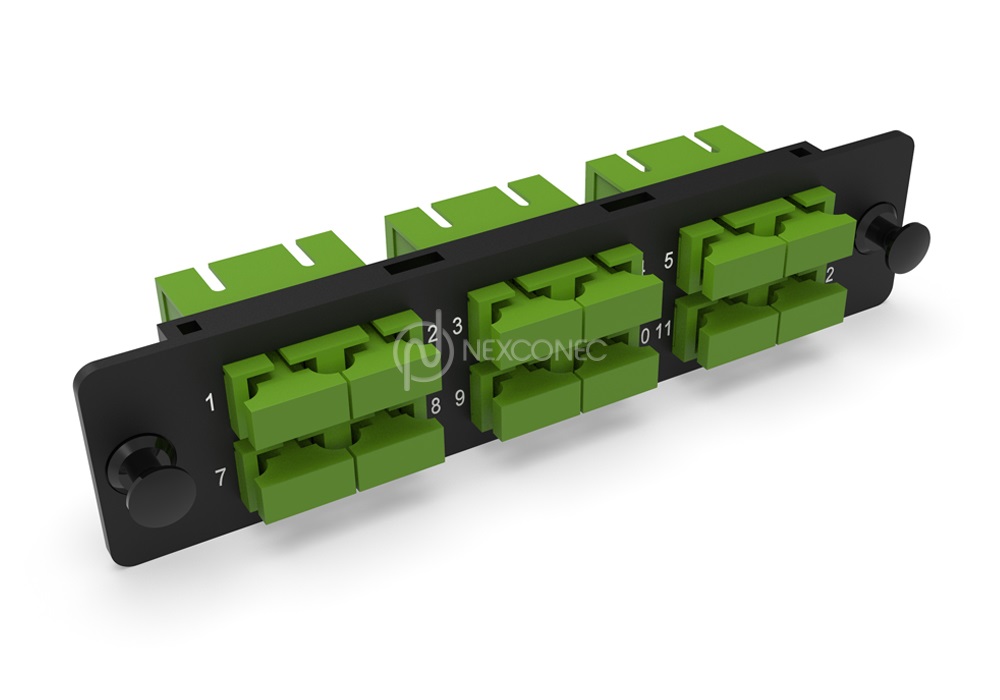

| MP3PL05 | LGX Pass Thru Adapter Plate SC 12FO SM Green |
| MP3PL06 | LGX Pass Thru Adapter Plate SC 12FO MM Aqua |
| MP3PL07 | LGX Pass Thru Adapter Plate LC 12FO SM Blue |
| MP3PL08 | LGX Pass Thru Adapter Plate LC 12FO SM Green |
| MP3PL09 | LGX Pass Thru Adapter Plate LC 12FO MM Aqua |
| MP3PL10 | LGX Pass Thru Adapter Plate SC 6FO SM Blue |
| MP3PL11 | LGX Pass Thru Adapter Plate SC 6FO SM Green |
| MP3PL12 | LGX Pass Thru Adapter Plate SC 6FO MM Aqua |

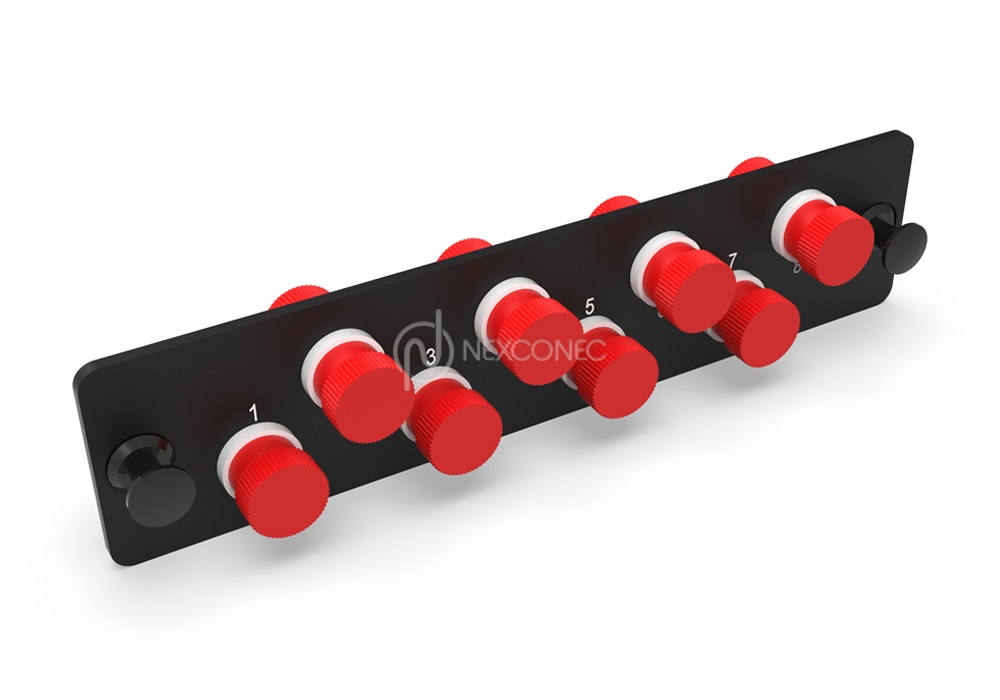

| MP3PL13 | LGX Pass Thru Adapter Plate FC SX 8FO SM |
| MP3PL14 | LGX Pass Thru Adapter Plate FC/APC SX 8FO SM |
| MP3PL15 | LGX Pass Thru Adapter Plate FC SX 8FO MM |
| MP3PL16 | LGX Pass Thru Adapter Plate ST SX 8FO SM |
| MP3PL17 | LGX Pass Thru Adapter Plate ST SX 8FO MM |
| MP3PL18 | LGX Pass Thru Adapter Plate SC 8FO SM Blue |
| MP3PL19 | LGX Pass Thru Adapter Plate SC 8FO SM Green |
| MP3PL20 | LGX Pass Thru Adapter Plate SC 8FO MM Aqua |
| MP3PL21 | LGX Pass Thru Adapter Plate LC 16FO SM Blue |
| MP3PL22 | LGX Pass Thru Adapter Plate LC 16FO SM Green |
| MP3PL23 | LGX Pass Thru Adapter Plate LC 16FO MM Aqua |

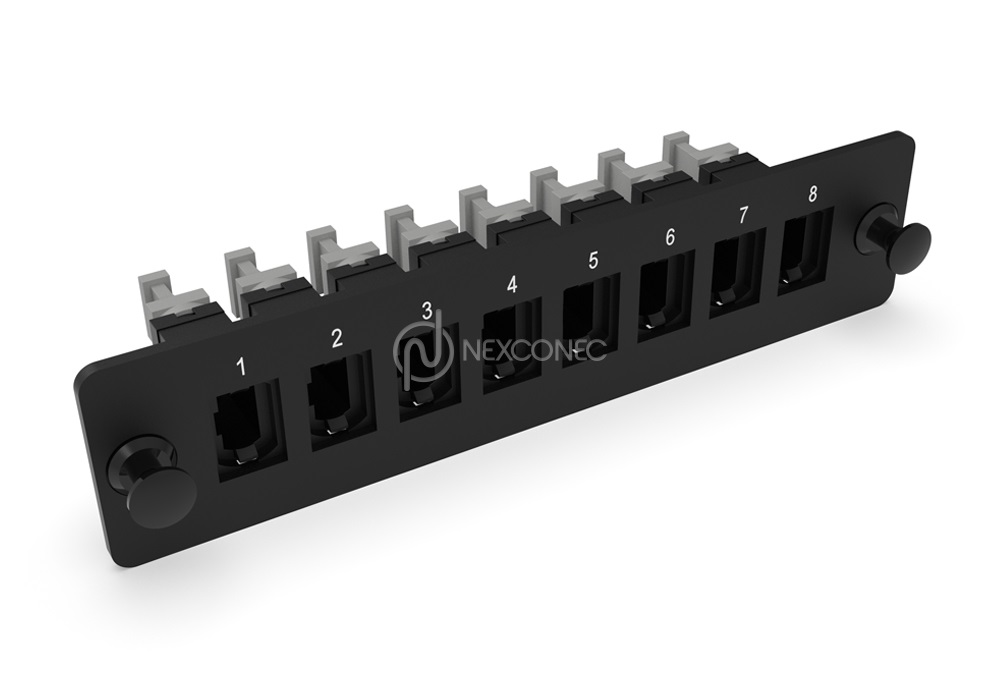

| MP3PL24 | LGX Pass Thru Adapter Plate loaded 8 ports MPO (Key up/Key down) |
| MP3PL25 | LGX Pass Thru Adapter Plate loaded 8 ports MPO (Key up/Key up) |
| MP3PL26 | LGX Pass Thru Adapter Plate loaded 12 ports MPO (Key up/Key down) |
| MP3PL27 | LGX Pass Thru Adapter Plate loaded 12 ports MPO (Key up/Key up) |
| MP3PLD | LGX Pass Thru Adapter Plate 6 slots SC DX / LC Quad Unloaded |
| MP3PLF | LGX Pass Thru Adapter Plate 8 slots FC/ST Unloaded |
| MP3PLS | LGX Pass Thru Adapter Plate 3 slots SC DX / LC Quad Unloaded |
| MP3PLE | LGX Pass Thru Adapter Plate 8 slots SC SX/ LC DX Unloaded |
| MP3PL00 | LGX Blank Plate |
