LGX SPLICE CASSETTE - MP3SPxx

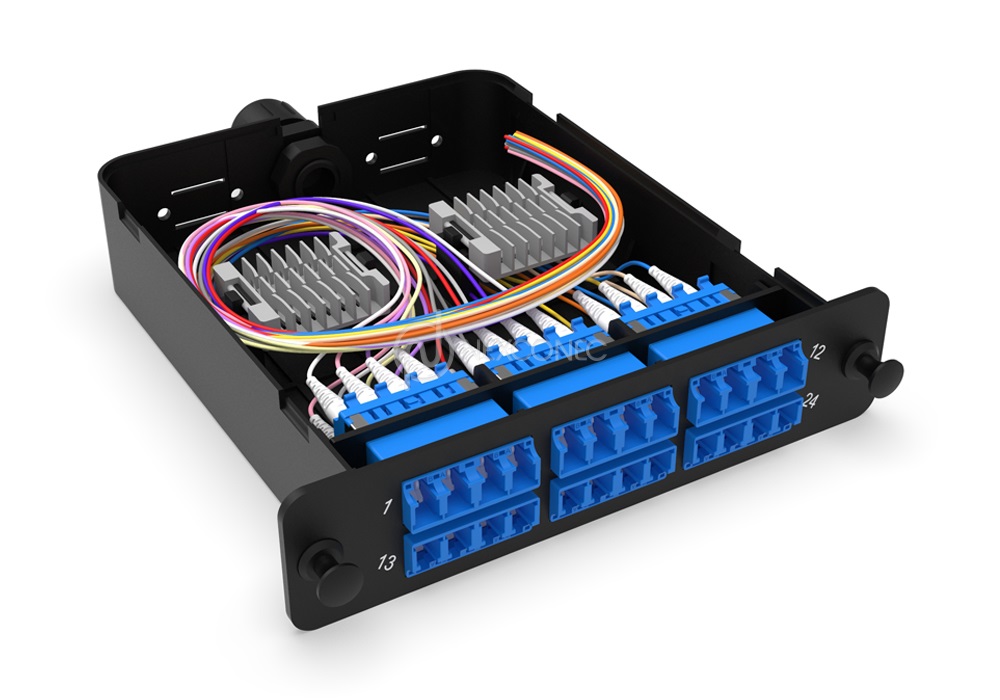

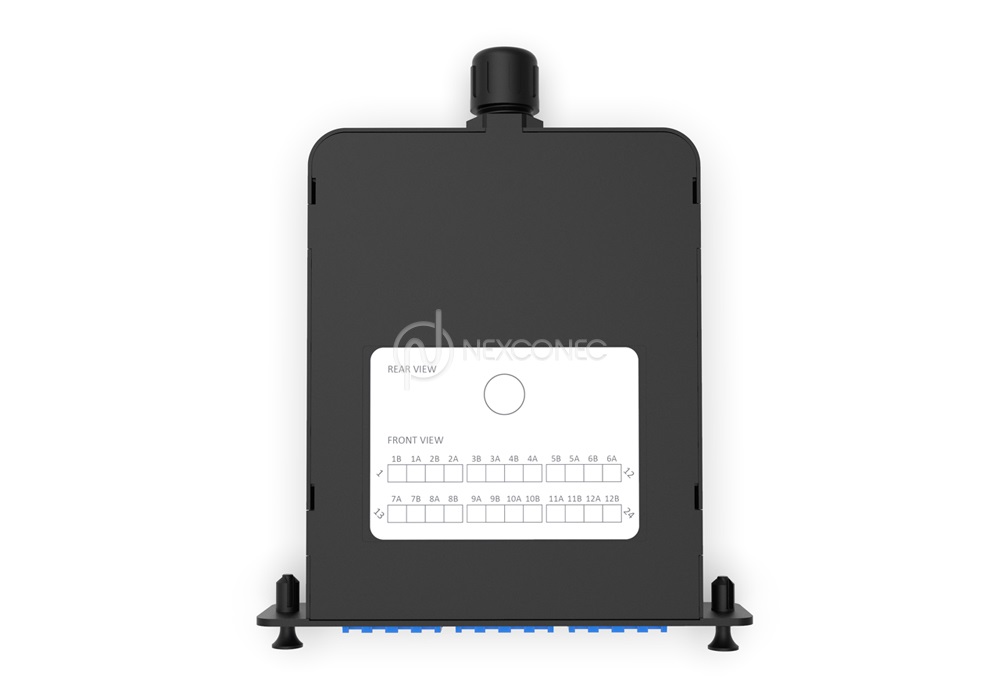

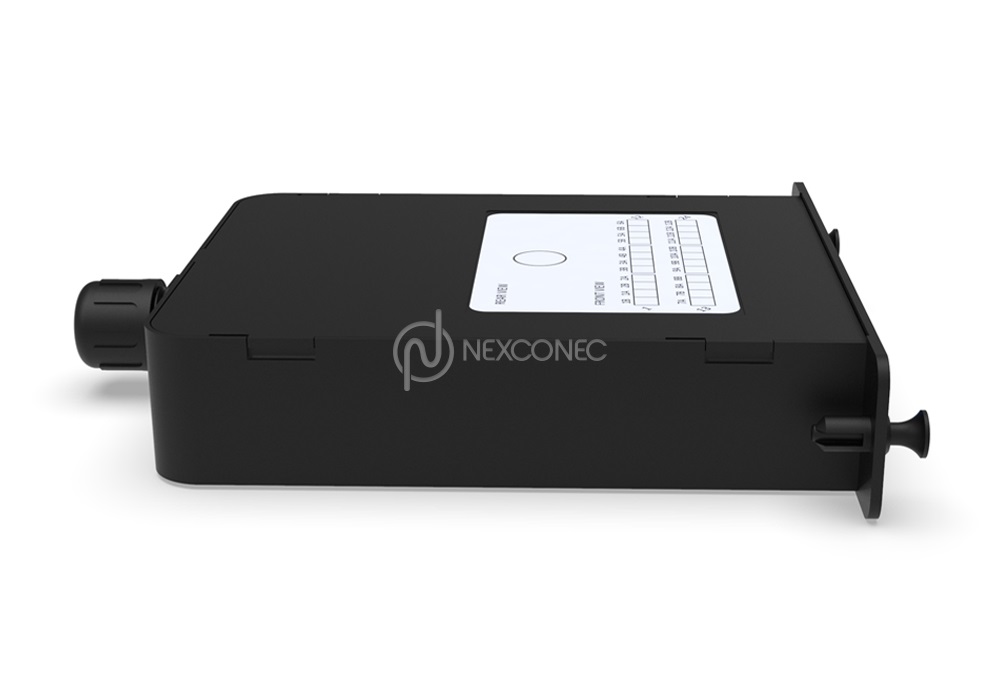

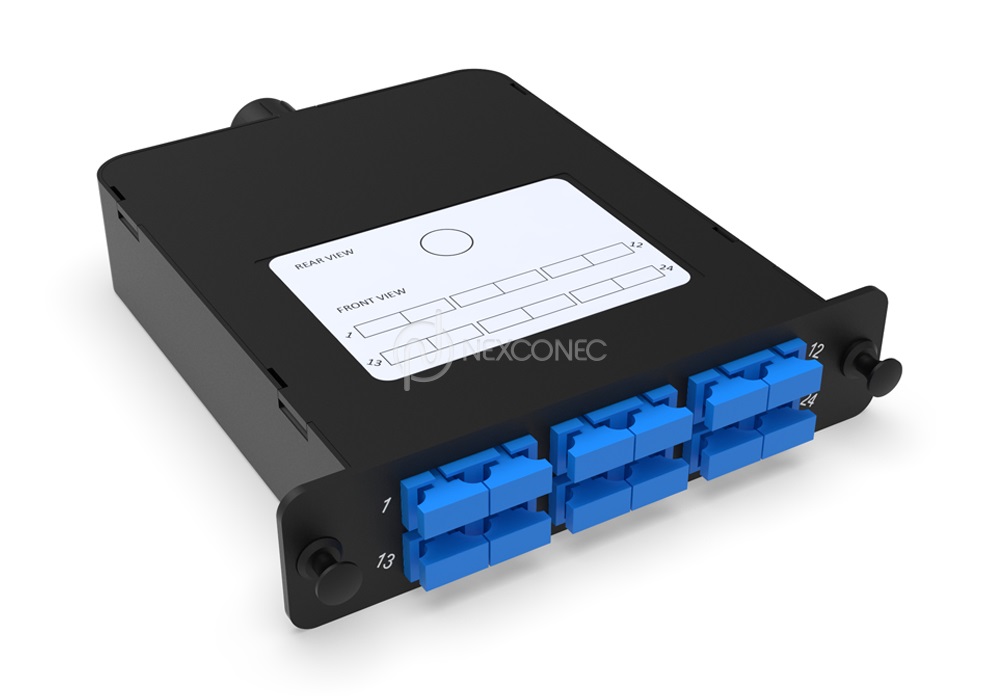

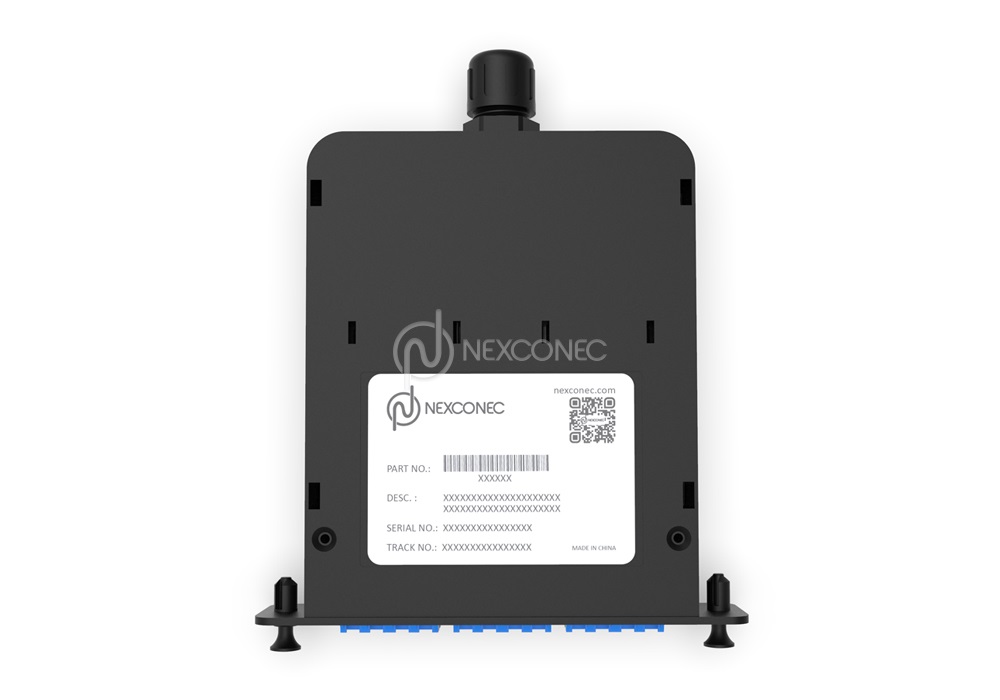

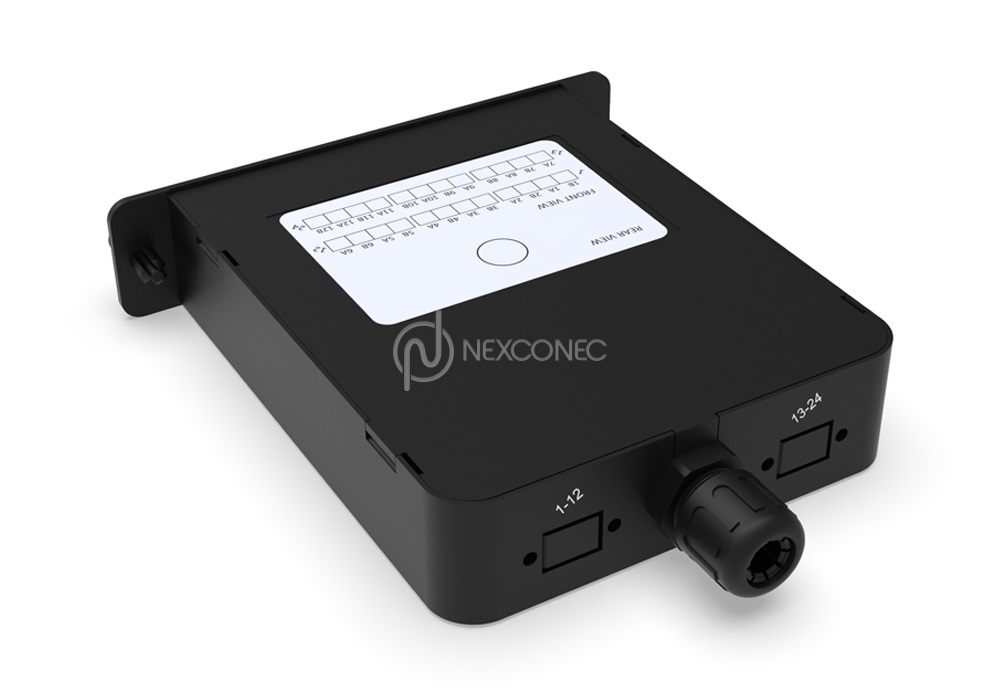

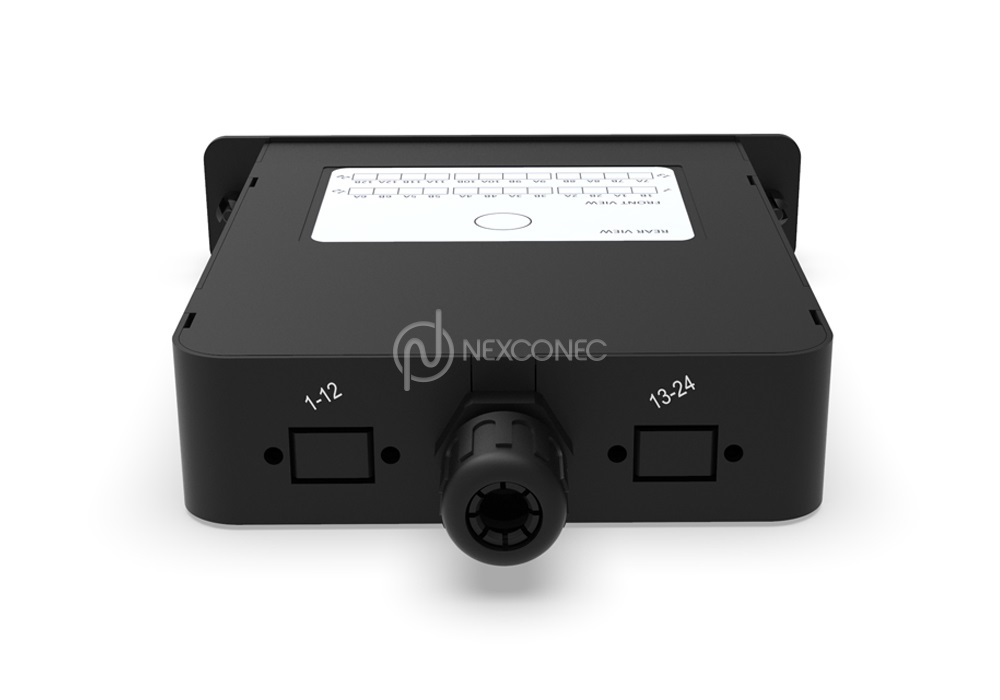

NEXCONEC® LGX splicing modules allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. For up to 24 splices in LC configuration or 12 in SC. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon or sandwich (ANT) type.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements

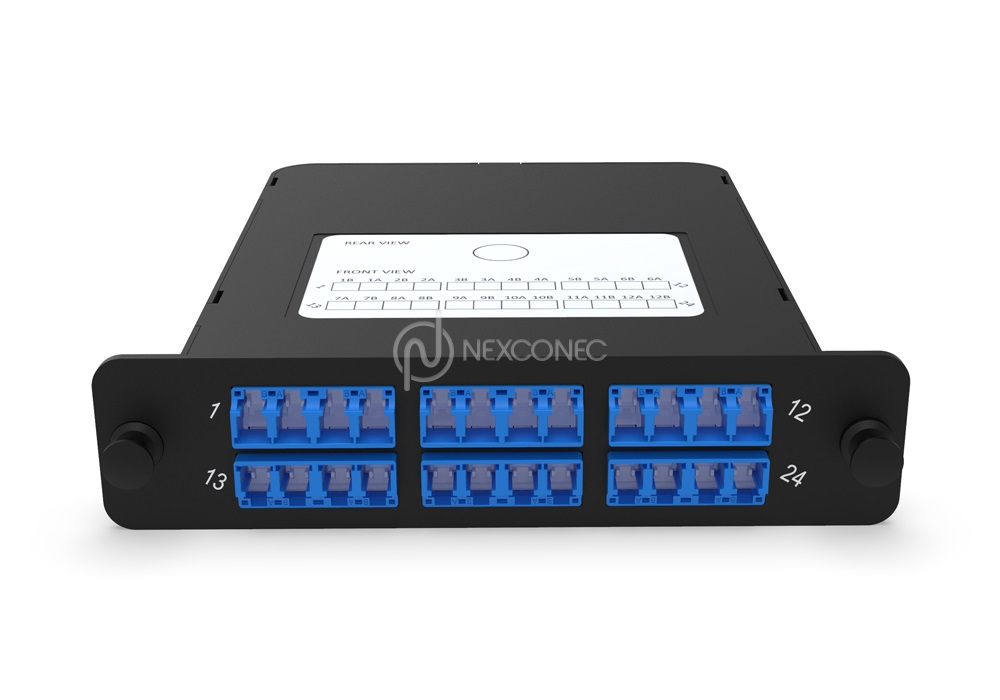

- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Up to 24 fiber capacity
- Single and Ribbon Fiber splice
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTRUCTION MANUAL.pdf |
View | Download |
| Footprint | LGX |
|---|---|
| Material | PC+ABS |
| Housing Color | Black |
| Application | LGX Panels, Chassis, Wall Boxes |
| Fiber Capacity | 12FO or 24FO in LC / 12FO in SC |
| Splice Holder | 40mm Heat Shrink Sleeves, Available in Crimp Style or Ribbon |
| Max. Cable Diameter to Use | 8 mm |
| Dimensions (W x D x H) | 130 x 154 x 30 mm |
| Weight Kg | 0.25Kg |
| Parameters | Units | SM LC/SC | MM LC/SC |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.20/0.30 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.12/0.15 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Part Number | Product Description |
|---|---|
| MP3SP01 | LGX Splice Module LC 24FO Pigtails SM |
| MP3SP02 | LGX Splice Module LC/APC 24FO Pigtails SM |
| MP3SP03 | LGX Splice Module LC 24FO Pigtails MM OM3 |
| MP3SP04 | LGX Splice Module LC 24FO Pigtails MM OM4 |
| MP3SP05 | LGX Splice Module SC 12FO Pigtails SM |
| MP3SP06 | LGX Splice Module SC/APC 12FO Pigtails SM |
| MP3SP07 | LGX Splice Module SC 12FO Pigtails MM OM3 |
| MP3SP08 | LGX Splice Module SC 12FO Pigtails MM OM4 |
| MP3SP09 | LGX Splice Module LC 12FO Pigtails SM |
| MP3SP10 | LGX Splice Module LC/APC 12FO Pigtails SM |
| MP3SP11 | LGX Splice Module LC 12FO Pigtails MM OM3 |
| MP3SP12 | LGX Splice Module LC 12FO Pigtails MM OM4 |
1. Notes: Ribbon splice and sandwich (ANT) type are available on request.
2. Add ‘-R’ for Ribbon Pigtails at the end of Part Number. (Example: MP3SP01-R)
3. Add ‘-FT’ for France Telecom color coding at the end of Part Number. (Example: MP3SP01-FT)
2. Add ‘-R’ for Ribbon Pigtails at the end of Part Number. (Example: MP3SP01-R)
3. Add ‘-FT’ for France Telecom color coding at the end of Part Number. (Example: MP3SP01-FT)
