LGX KEYSTONE JACK MODULE - MP3KJxx

MP3KJxx MP3KJxx MP3KJxx MP3KJxx MP3KJxx MP3KJxx MP3KJxx MP3KJxx

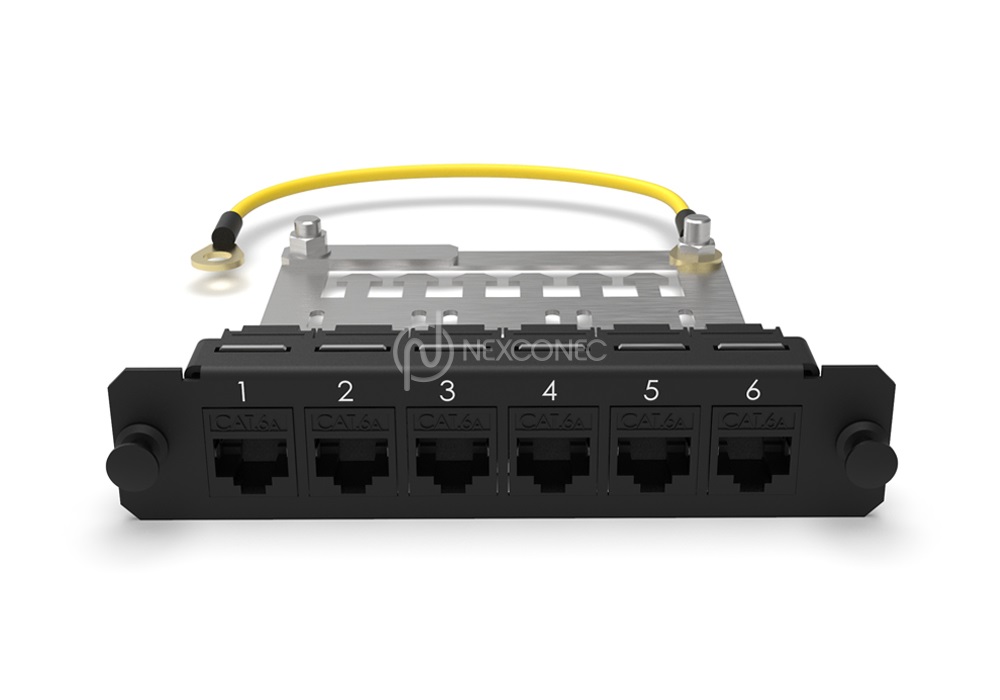

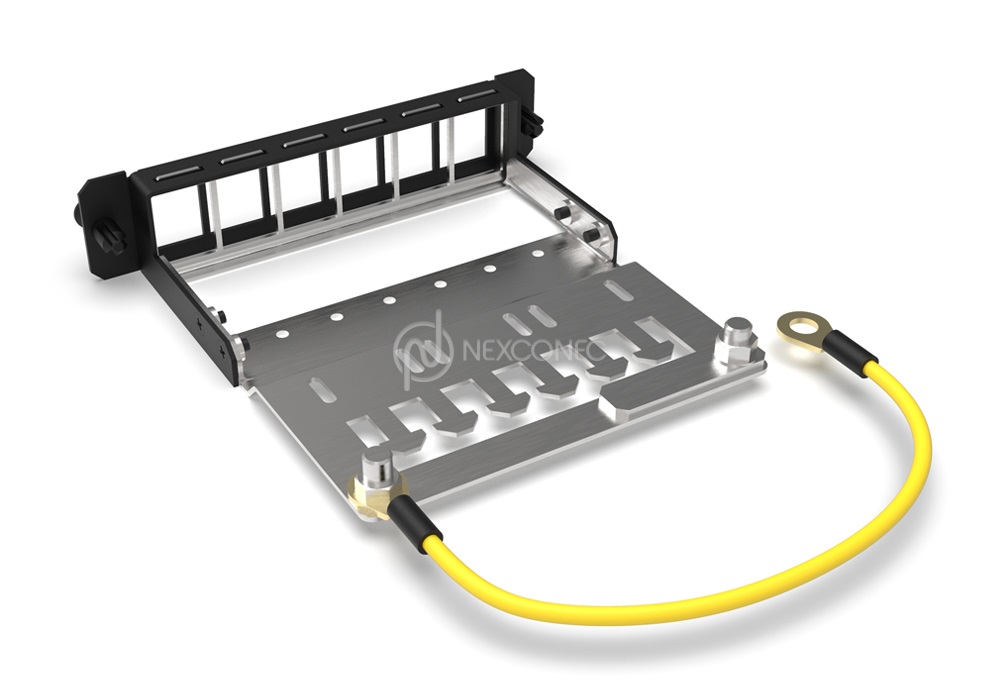

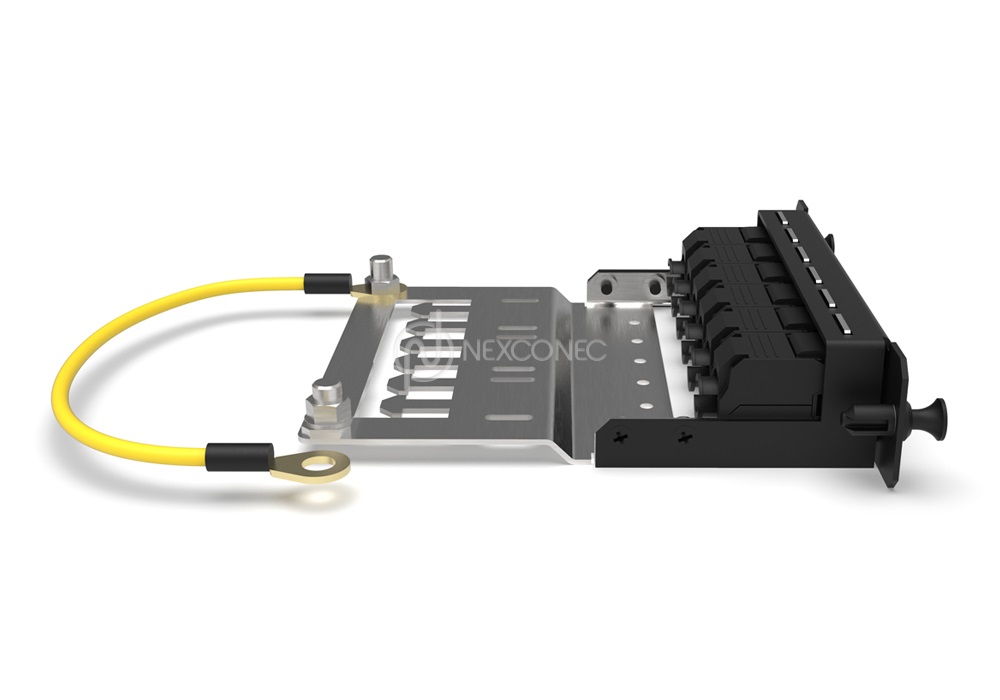

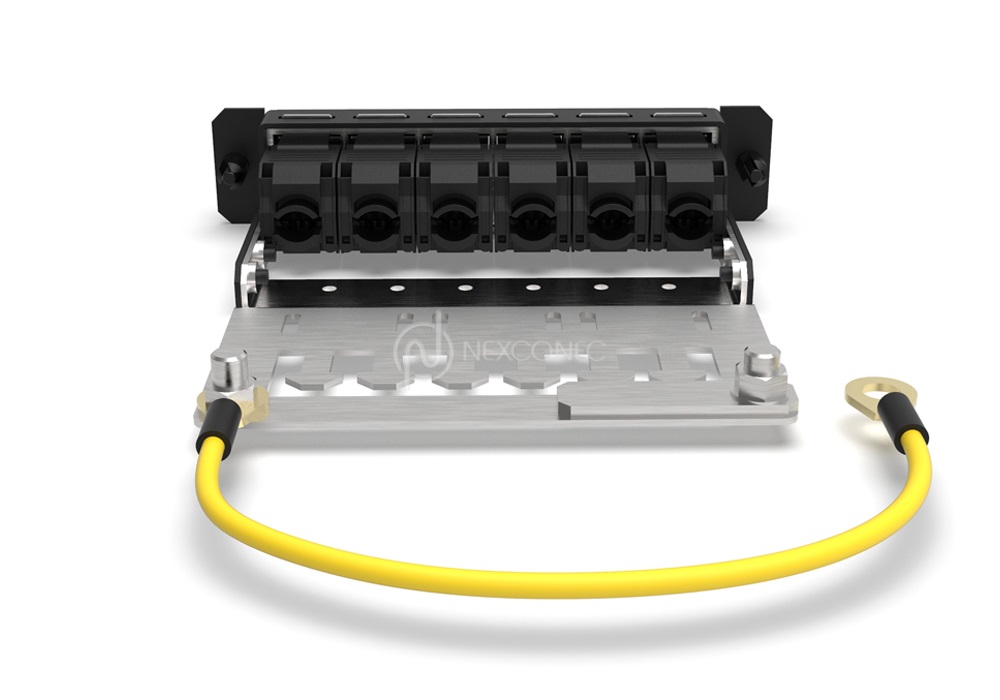

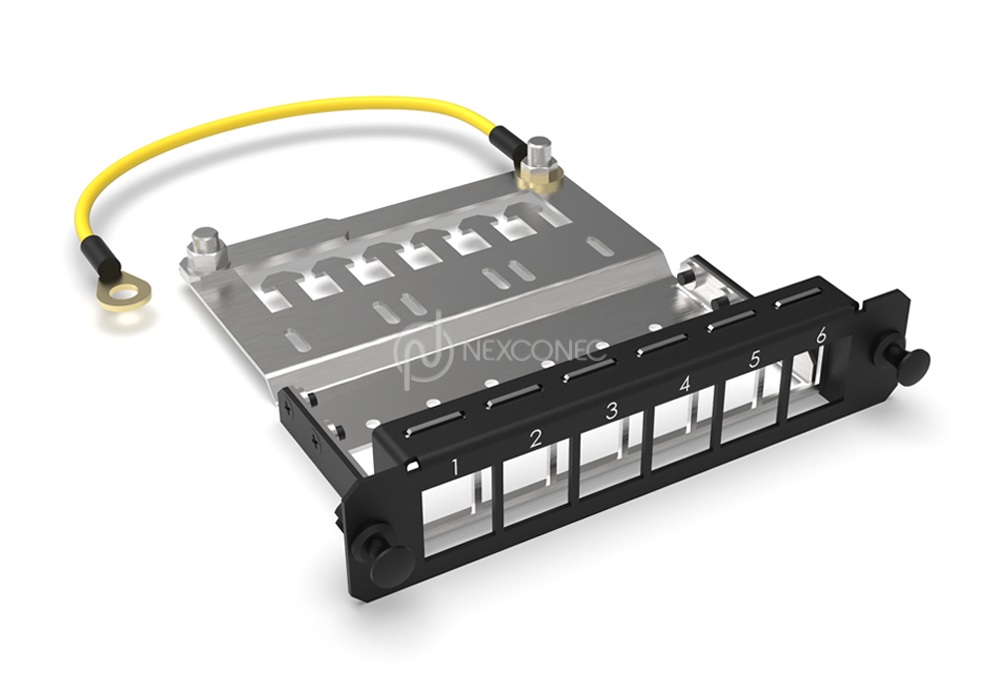

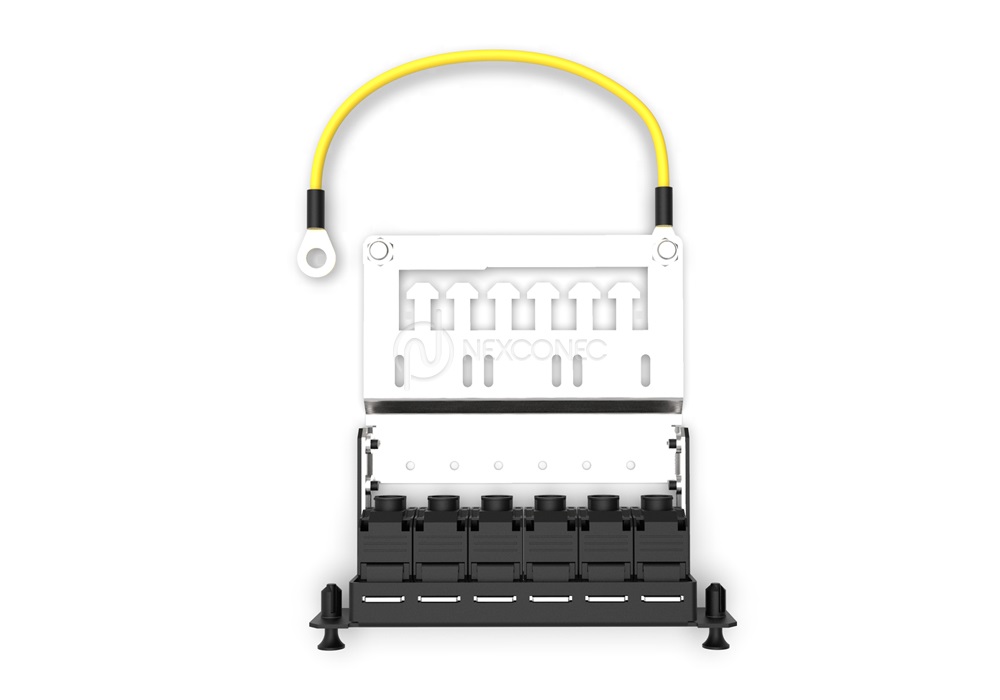

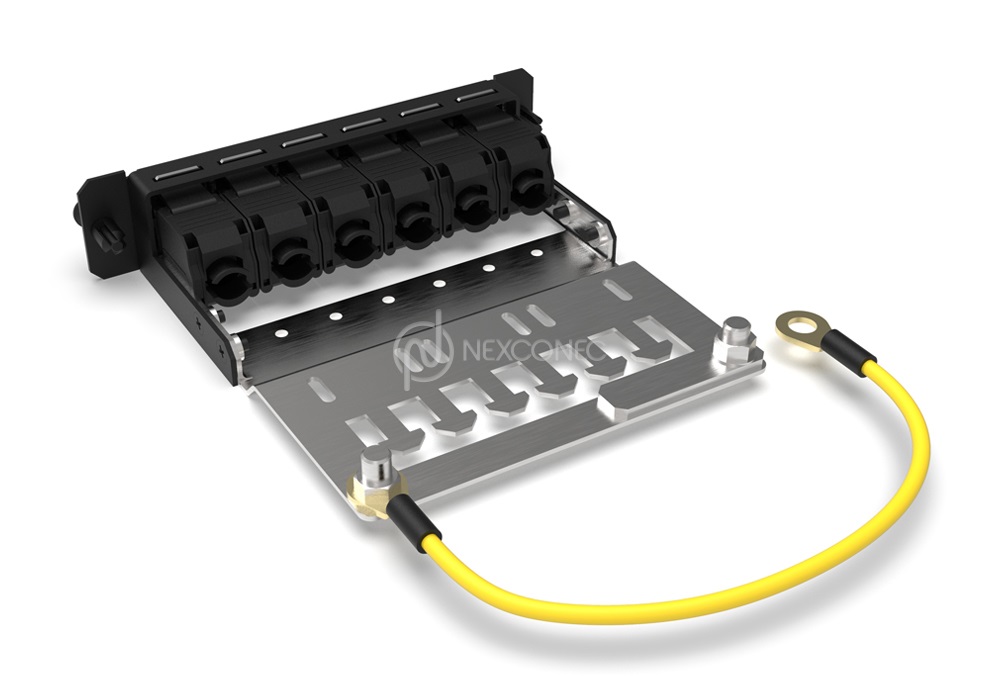

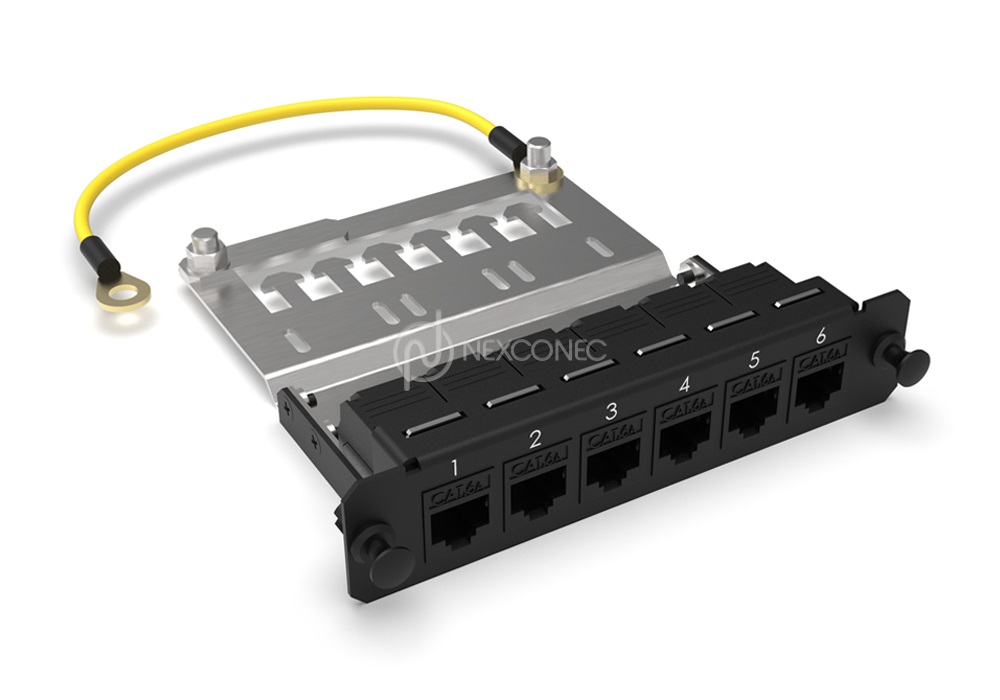

Nexconec LGX modular keystone jack plate is specifically designed to fit its 1U HD sliding and fixed panel which provides the great flexibility to installer to build hybrid network with both fiber and copper connections.

This LGX Module keystone jack plate can adapt to all categories of Nexconec keystones jacks which are fully compliant with ANSI/TIA/EIA 568A-B.2.2001, ISO/IEC11801:2002 and EN50173-2 standards.

FEATURES AND APPLICATIONS
  • 6 Ports Keystone Jacks
  • Cat6, Cat6A Shielded & Unshielded
  • Modular design, easier installation and maintenance
  • RoHS, REACH and SVHC compliant
  • Datacentre & Enterprise network
  • Indoor application
  • CE approved EU LVD (FOR KEYSTONE JACKS)

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
pdfINSTRUCTION MANUAL.pdf View Download
microsoft visioVISIO.vsdx Download
Product family MP3
Footprint LGX
Material Cold rolled steel and stainless steel
Housing Colour Black
Application Indoor IP20
Dimensions (W x D x H in MM) 127 x 119 x 27.2
Weight Kg 0.4
Part Number Product Description
MP3KJ00 LGX Module 6P Keystone Jack Cat6 Unloaded
MP3KJC6U LGX Module 6P Keystone Jack Cat6 Unshielded
MP3KJC6S LGX Module 6P Keystone Jack Cat6 Shielded
MP3KJC6AU LGX Module 6P Keystone Jack Cat6A Unshielded
MP3KJC6AS LGX Module 6P Keystone Jack Cat6A Shielded
