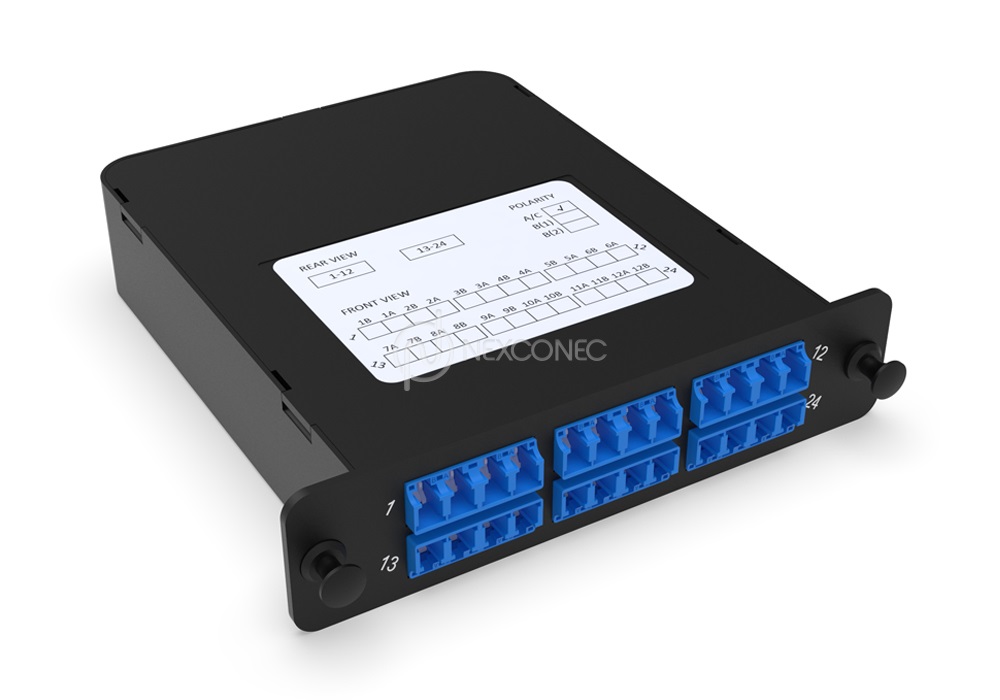

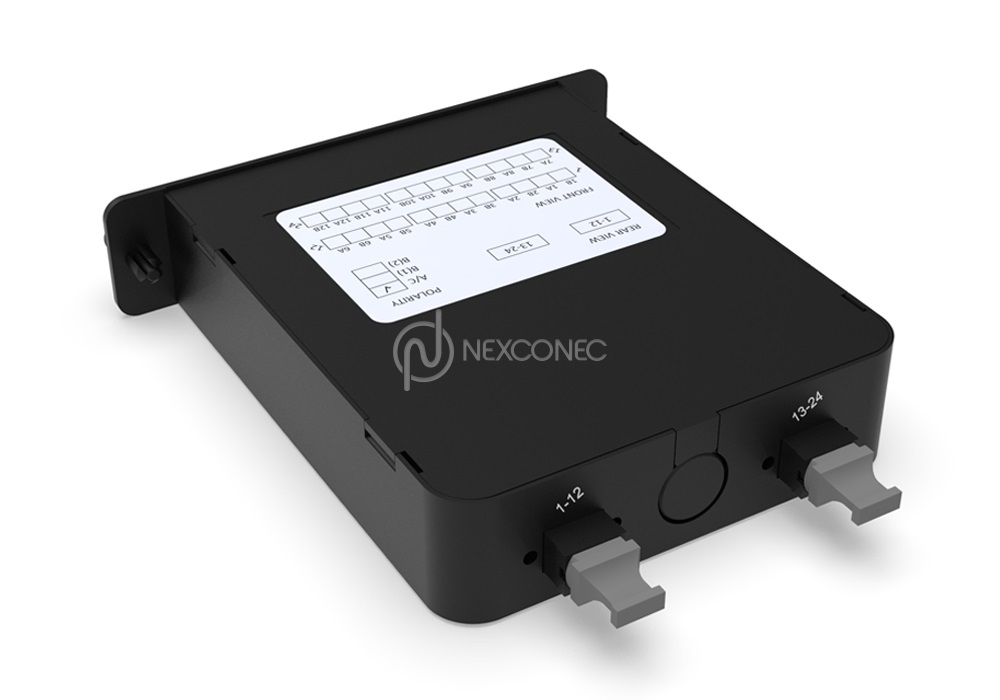

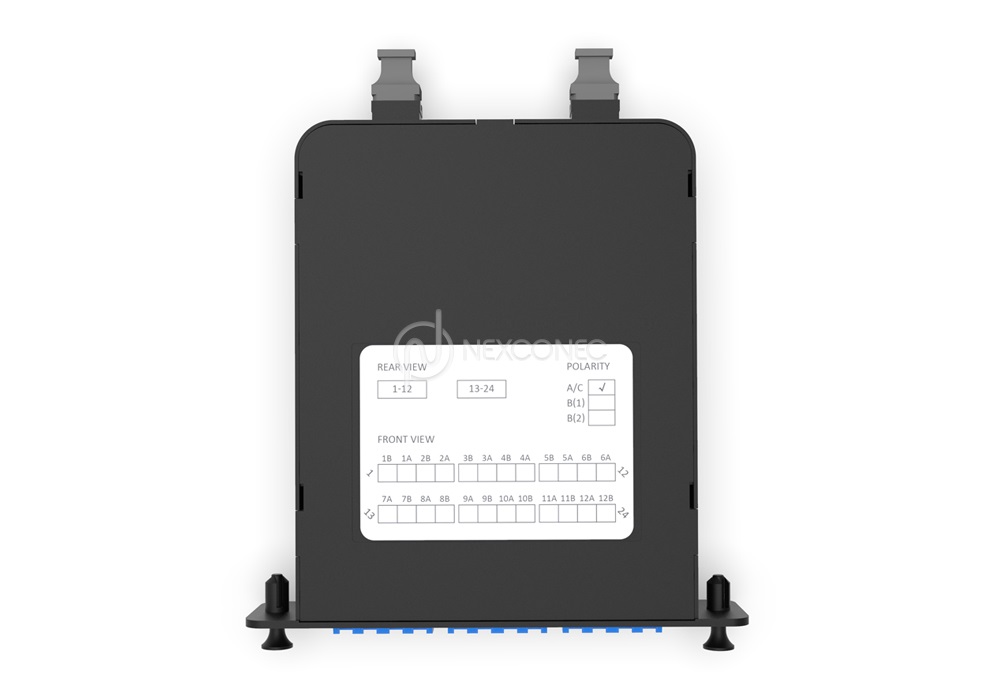

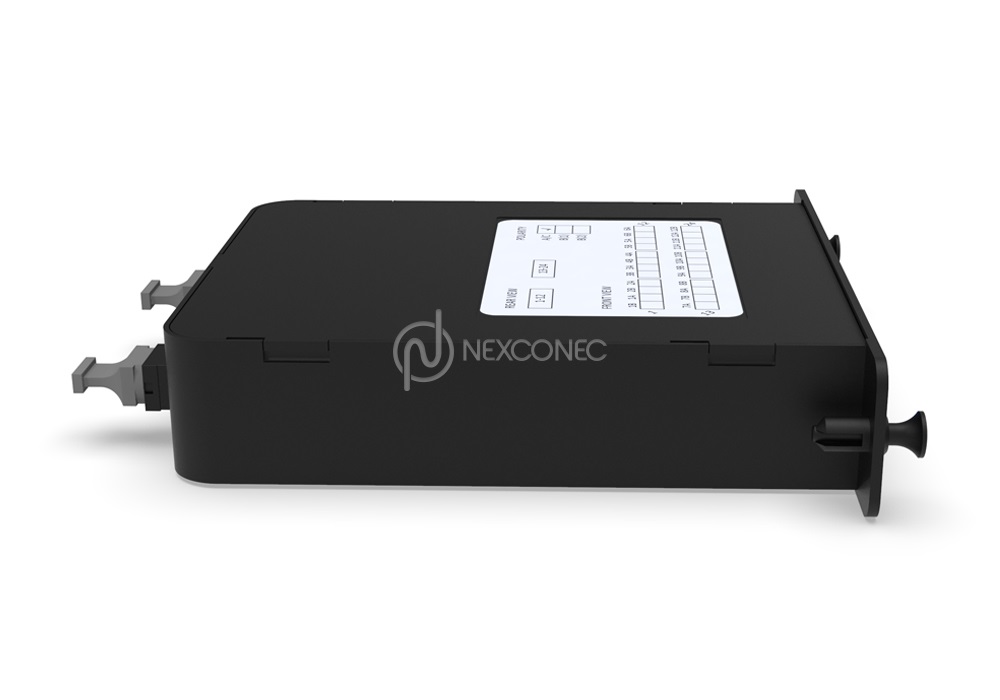

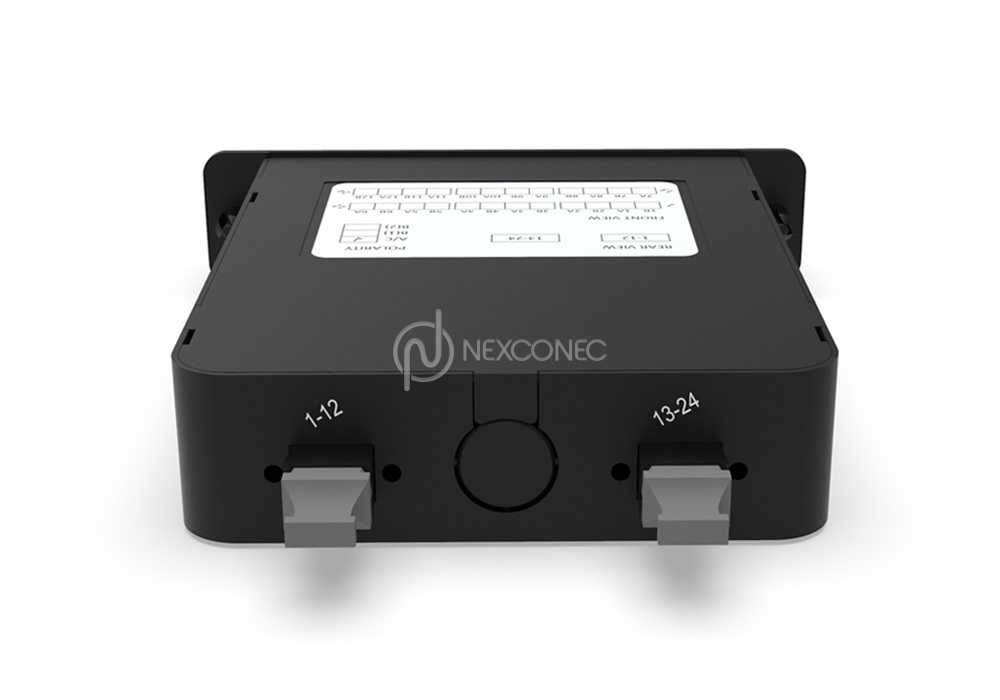

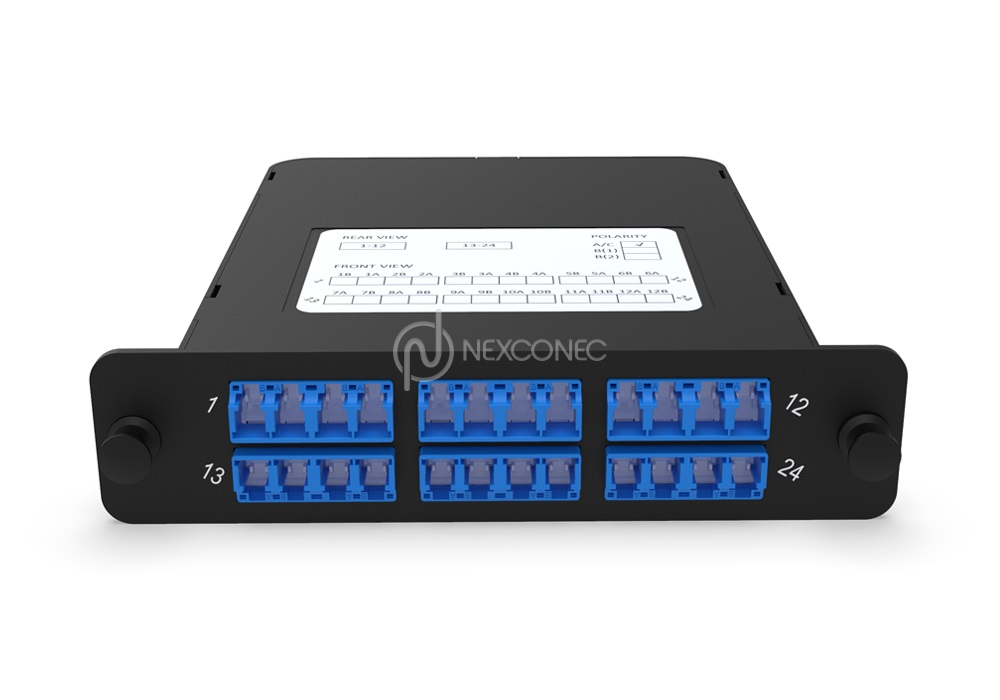

LGX CASSETTE MTP®/MPO (BASE-12) - MP3CAxx
NEXCONEC® LGX cassettes are pre-terminated modules MPO-LC/SC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The LGX cassettes are designed to easily plug into NEXCONEC LGX panels and chassis range. The cassettes eliminate the need for splicing by reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 12, and 24 fiber count
- Available in Polarity A/C or Universal Bx as per TIA/EIA-568-C.3
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
PRODUCT INFORMATION
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTALLATION GUIDE.pdf |
View | Download |
 VISIO.vsdx |
Download |
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 12, and 24 fiber count
- Available in Polarity A/C or Universal Bx as per TIA/EIA-568-C.3
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | LGX |
| Dimensions (W x D x H) | 130 x 130 x 30 mm |
| Material | PC+ABS |
| Housing Color | Black |
| Application | LGX Panels, Chassis, Wall Boxes |
| Fiber Capacity | 12FO or 24FO in LC / 12FO in SC |
| Front Adapter Type | LC Quad / SC Duplex (Shuttered laser & Dust proof LC Adapters) |
| Rear Adapter Type | MTP®/MPO (Base-12) |
| Polarity | Polarity A/C or Universal Bx as per TIA/EIA-568-C.3 |
| Compliance | RoHS, REACH & SvHC |
| Operating Temperature | -10 ~ +60°C |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC/SC | MM MPO | MM LC/SC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| MP3CA01 | LGX Module (Base-12) MPO-LC Elite 24FO SMF OS2 Polarity A/C |
| MP3CA01U | LGX Module (Base-12) MPO-LC Elite 24FO SMF OS2 Polarity Universal Bx |
| MP3CA02 | LGX Module (Base-12) MPO-LC/APC Elite 24FO SMF OS2 Polarity A/C |
| MP3CA02U | LGX Module (Base-12) MPO-LC/APC Elite 24FO SMF OS2 Polarity Universal Bx |
| MP3CA03 | LGX Module (Base-12) MPO-LC Elite 24FO MM OM3/4 Polarity A/C |
| MP3CA03U | LGX Module (Base-12) MPO-LC Elite 24FO MM OM3/4 Polarity Universal Bx |
| MP3CA04 | LGX Module (Base-12) MPO-SC Elite 12FO SMF OS2 Polarity A/C |
| MP3CA05 | LGX Module (Base-12) MPO-SC/APC Elite 12FO SMF OS2 Polarity A/C |
| MP3CA06 | LGX Module (Base-12) MPO-SC Elite 12FO MM OM3/4 Polarity A/C |
| MP3CA07 | LGX Module (Base-12) MPO-LC Elite 12FO SMF OS2 Polarity A/C |
| MP3CA08 | LGX Module (Base-12) MPO-LC/APC Elite 12FO SMF OS2 Polarity A/C |
| MP3CA09 | LGX Module (Base-12) MPO-LC Elite 12FO MM OM3/4 Polarity A/C |
