LGX MPO ADAPTER PLATES - MP3PLxx

MP3PL24 MP3PL24 MP3PL24 MP3PL24 MP3PL24 MP3PL24 MP3PL24 MP3PL24 MP3PL24

The MPO adapter plates are made to fit all Nexconec LGX fiber management solutions, including rack mount patch panels and wall mount boxes, supporting MTP/MPO for high density solutions.

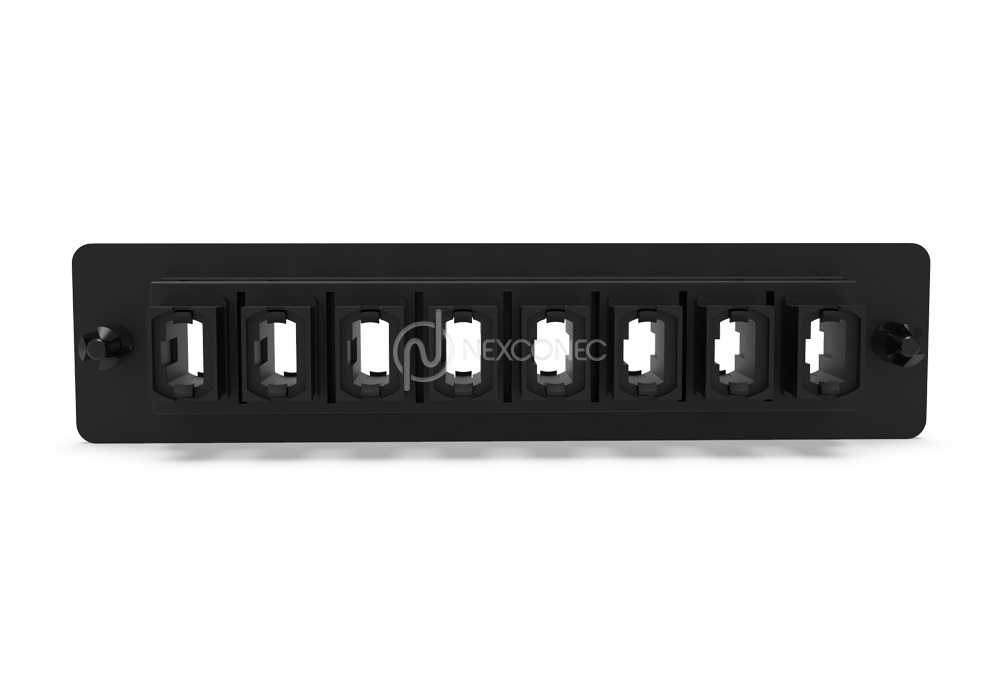

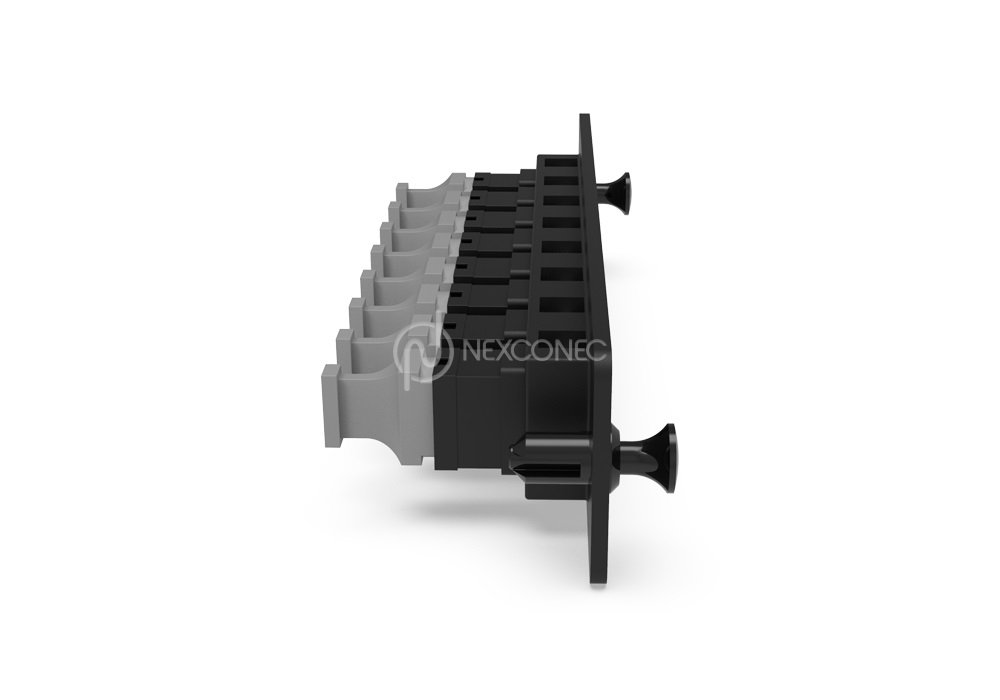

This MPO adapter plate can accommodate up to 8 or 12 MPO adapters with options of key-up to key-down, or key-up to key-up, which offers the flexibility to the MTP/MPO trunk to adapts different installation requirements with various polarities. The recessed adapters mounted in the plate gives the better bending radius when routing the MTP/MPO trunks cables.

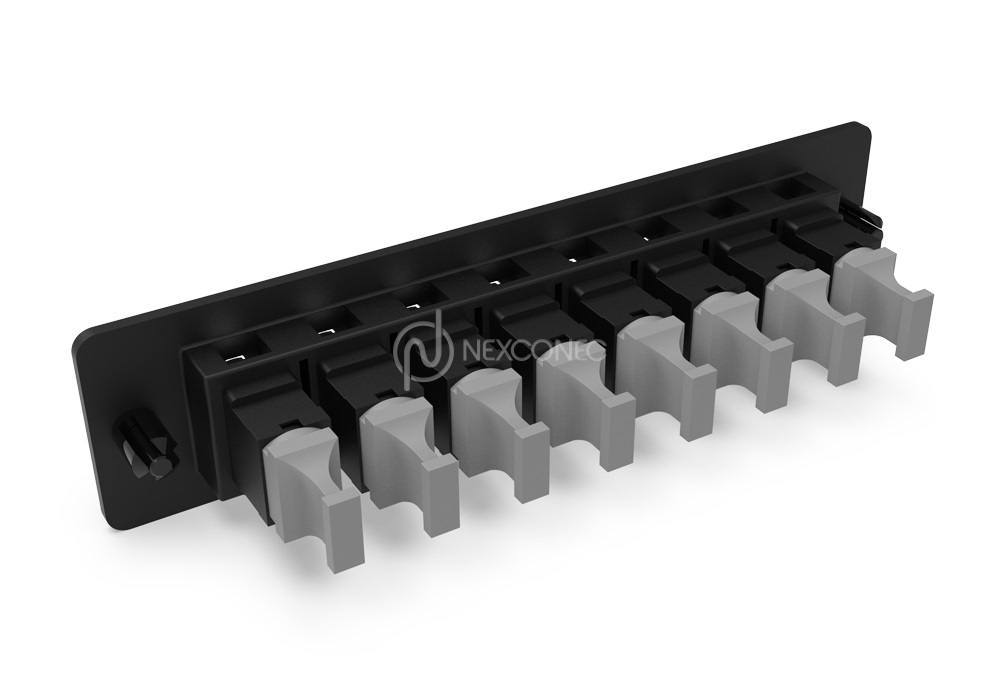

Each MPO fiber adapter plate comes with protective caps made of polycarbonate to prevent dust and debris from entering.

FEATURES AND APPLICATIONS
  • Available in 8 and 12 Ports
  • Easy and fast installation
  • Recessed MTP/MPO Adapters
  • Lightweight plastic
  • Enterprise network & Datacenter
  • Indoor application
  • Most Common Footprint

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
microsoft visioVISIO.vsdx Download
Mounting Type Nylon Latches
Material PC + ABS
Housing Color Black
Dimensions (W x H in MM) 129 x 30
Net Weight 0.1Kg
Part Number Product Description

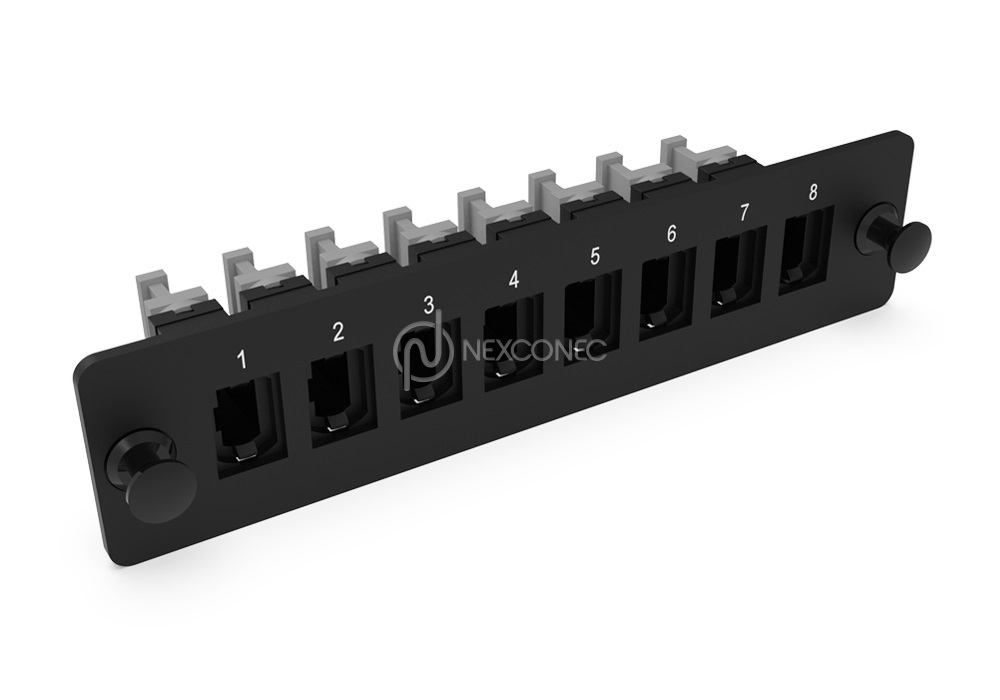

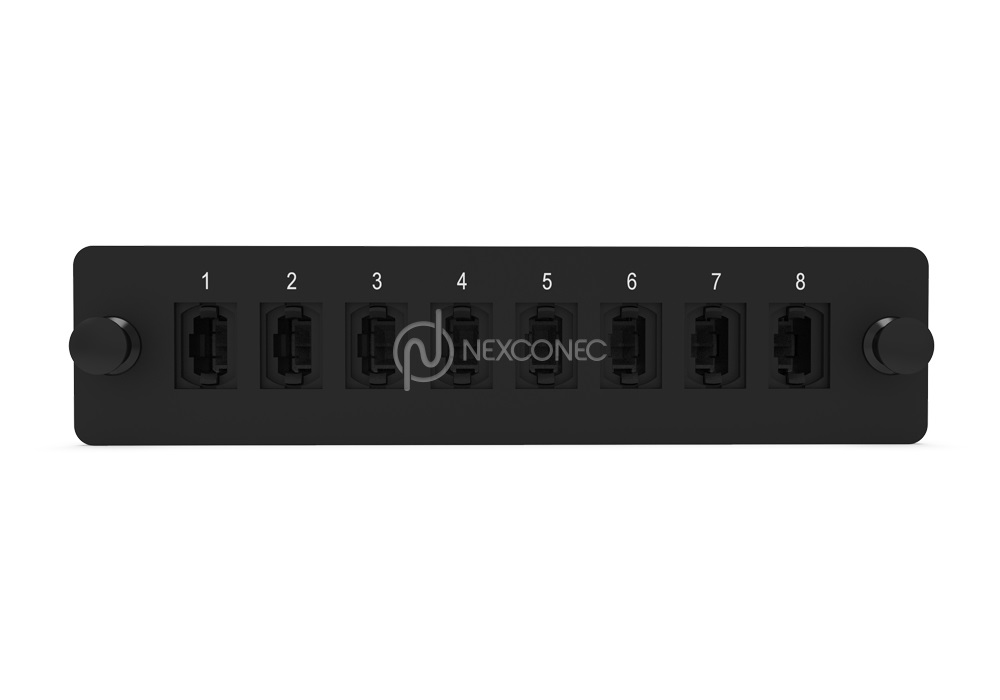

MP3PL24 LGX Pass Thru Adapter Plate Loaded 8 Ports MPO (Key Up/Key Down)
MP3PL25 LGX Pass Thru Adapter Plate Loaded 8 Ports MPO (Key Up/Key Up)

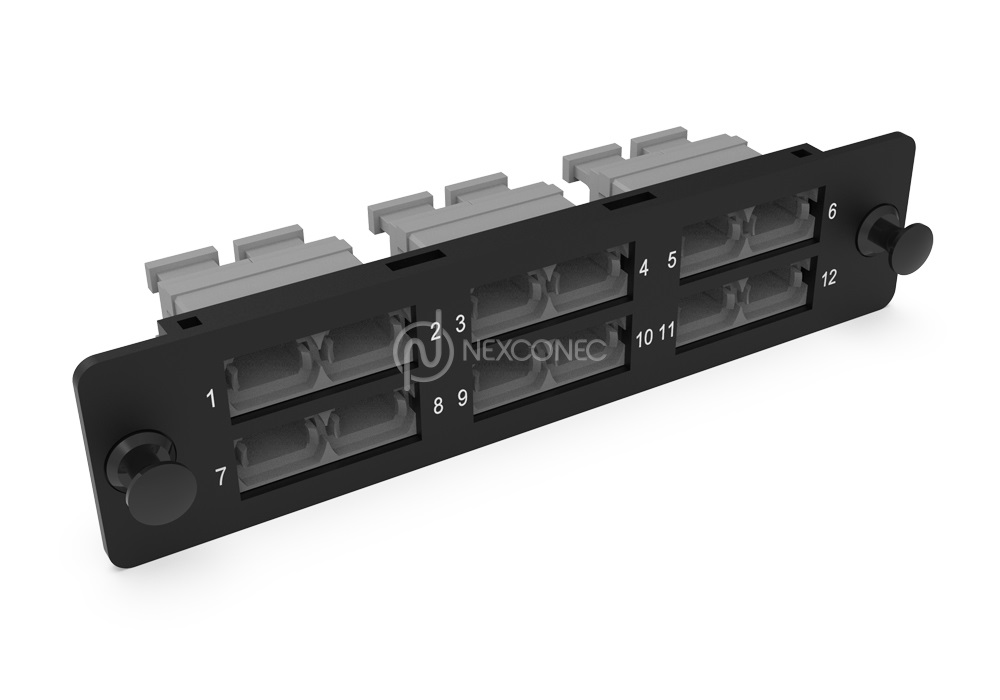

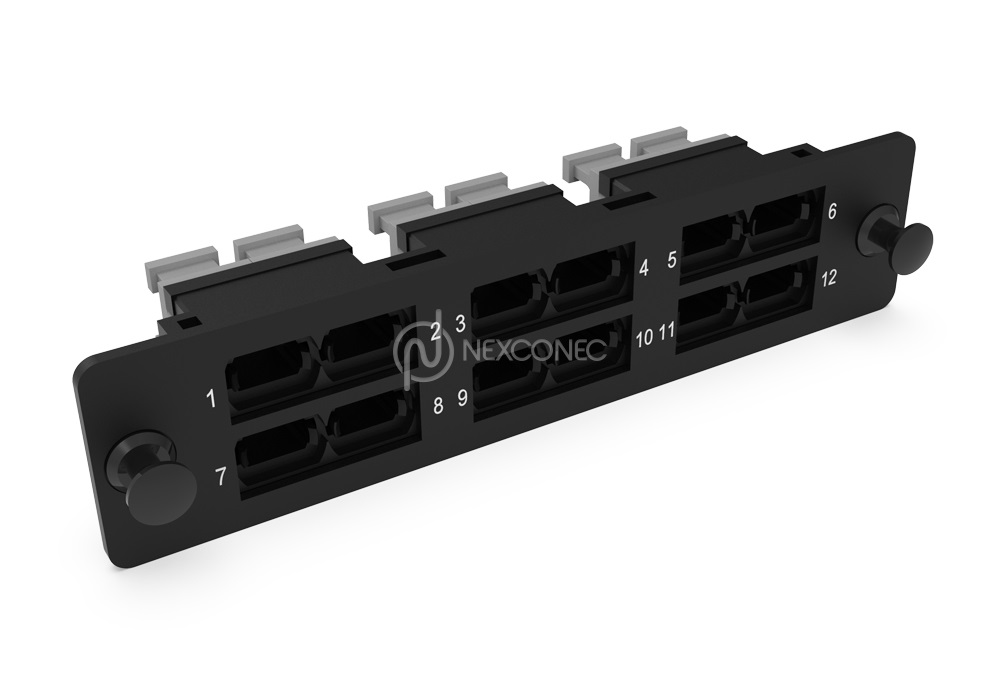

MP3PL26 LGX Pass Thru Adapter Plate Loaded 12 Ports MPO (Key Up/Key Down)
MP3PL27 LGX Pass Thru Adapter Plate Loaded 12 Ports MPO (Key Up/Key Up)
