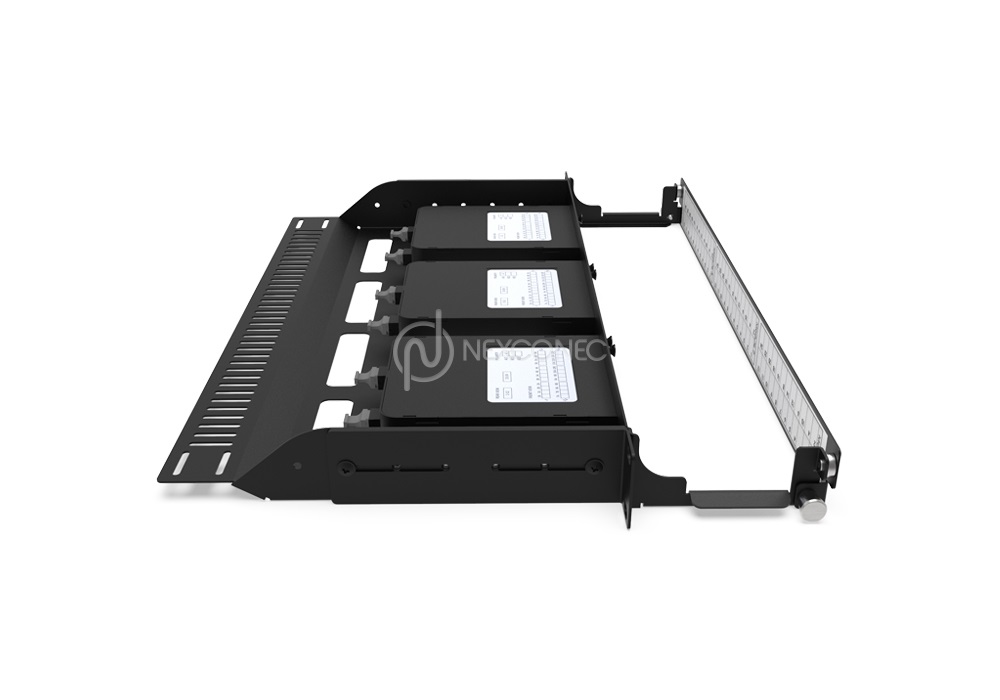

1U 3 Slots LGX Modular Fixed Frame - MP3PP07

MP3PP07 MP3PP07 MP3PP07 MP3PP07 MP3PP07 MP3PP07 MP3PP07 MP3PP07 MP3PP07 MP3PP07

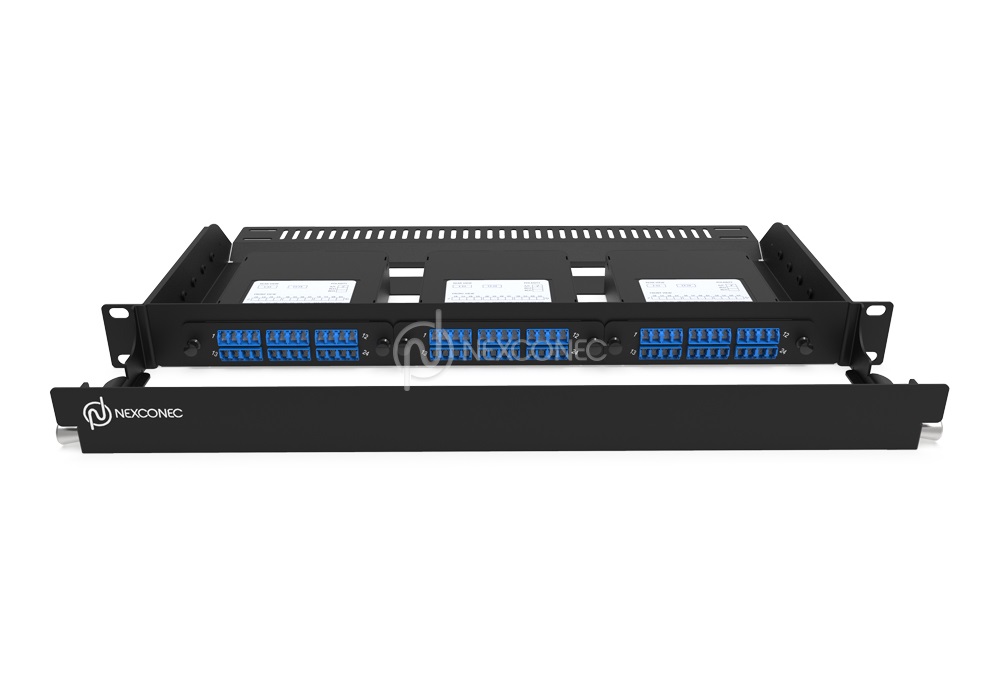

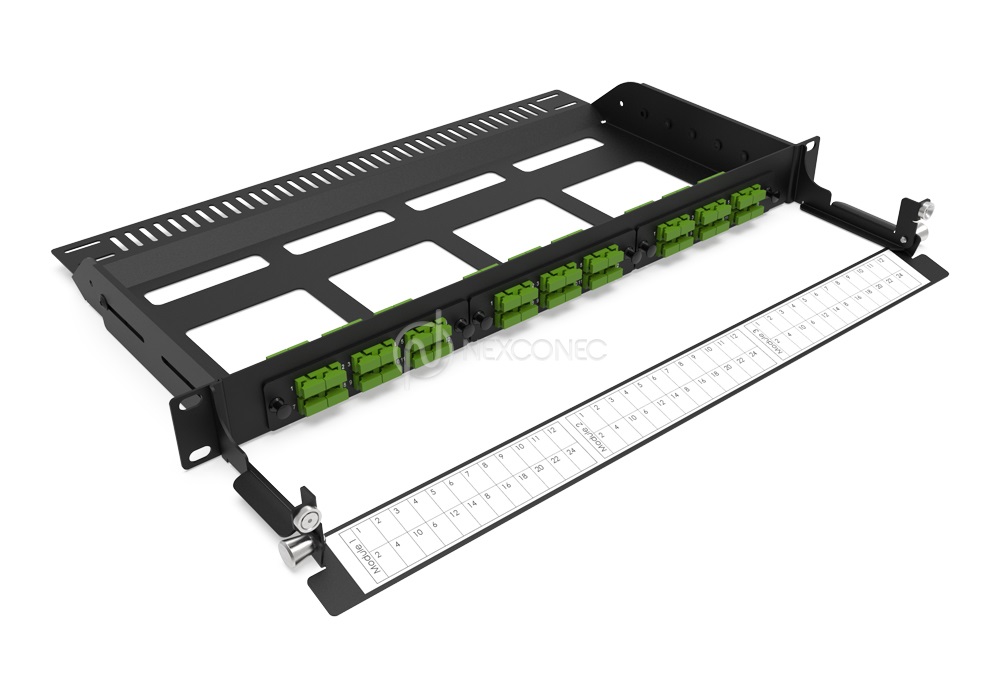

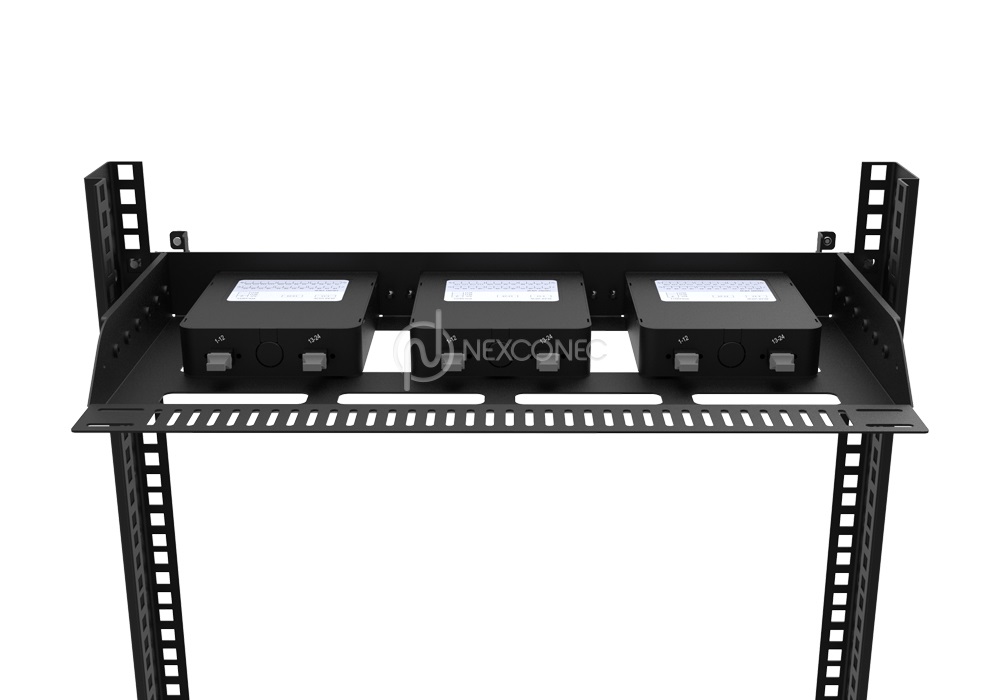

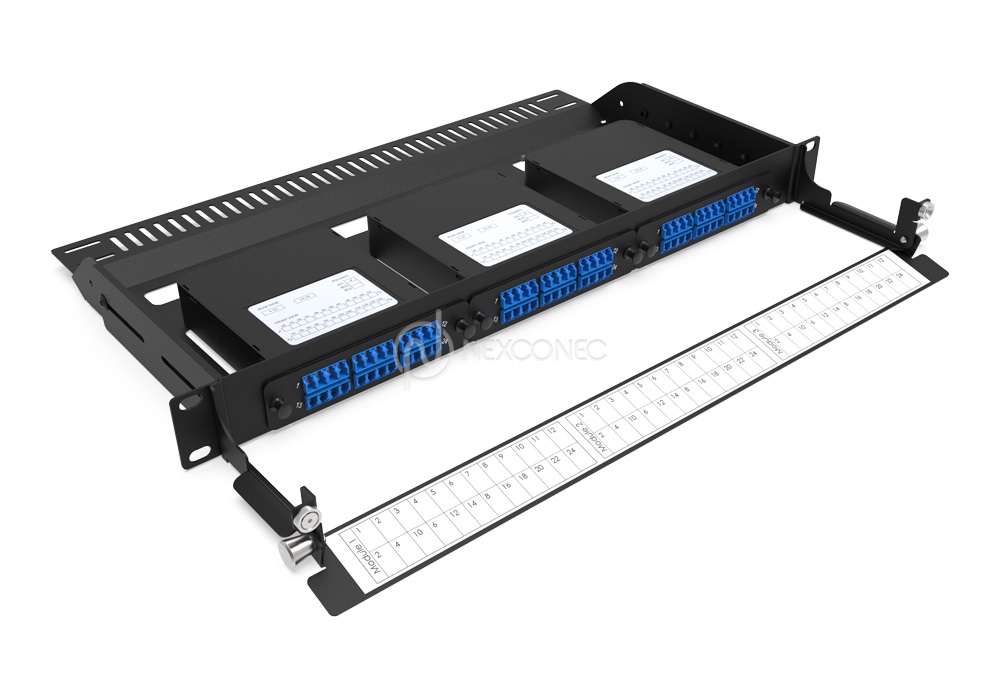

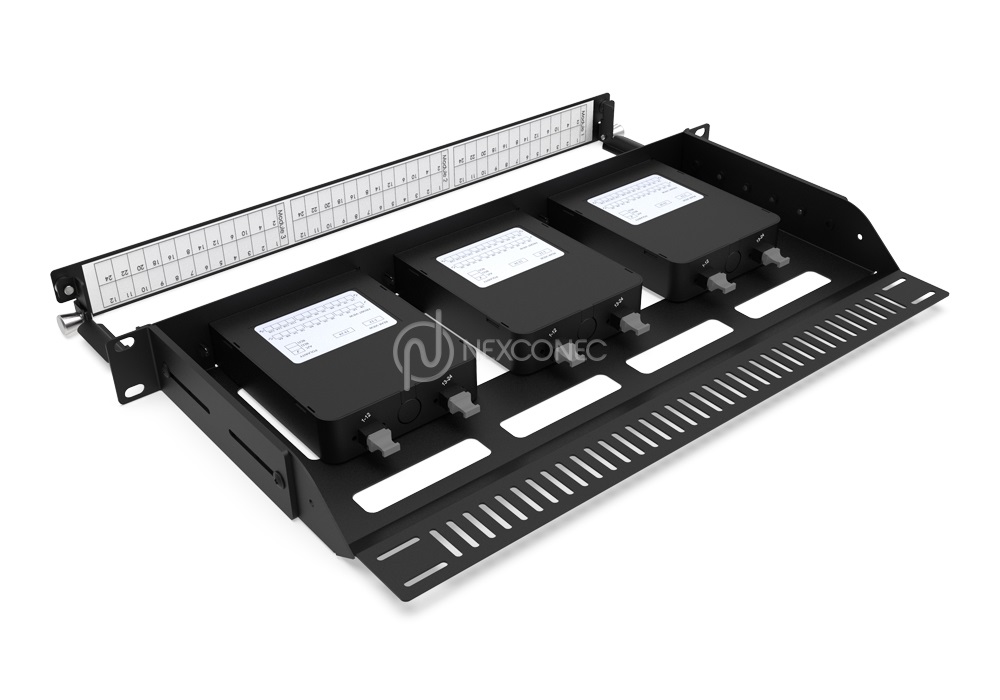

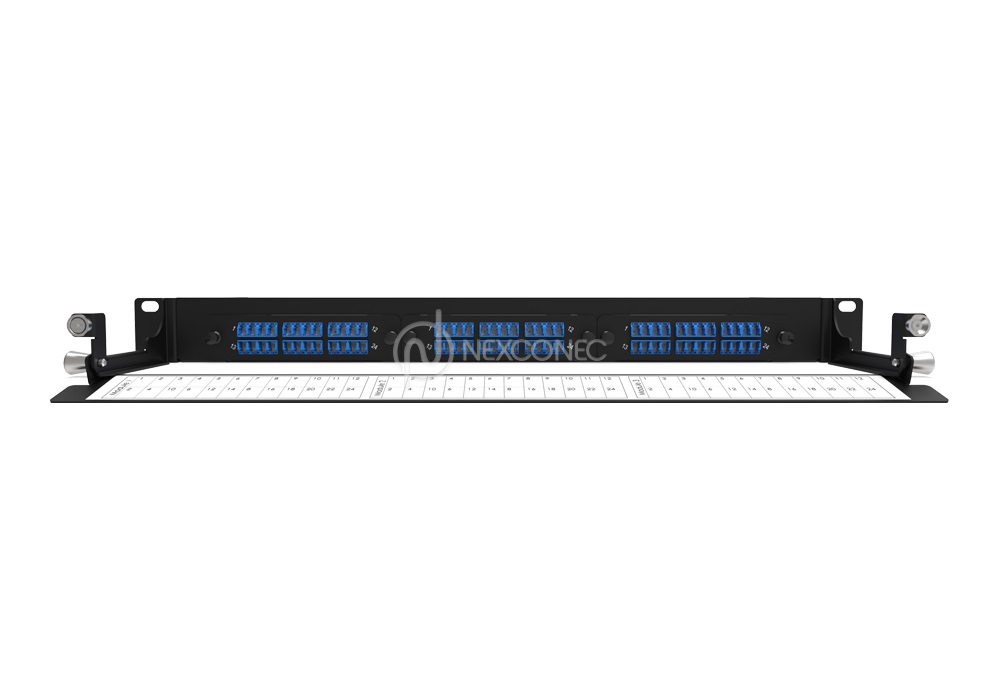

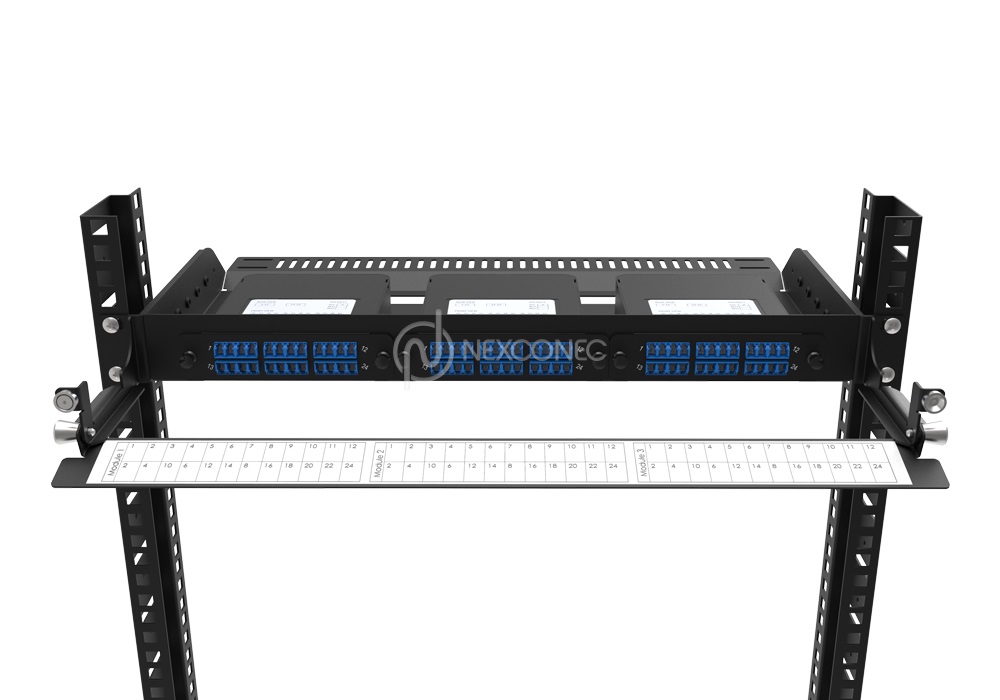

Nexconec high density fiber optic modular fixed frame is designed to provide housing for connections from an incoming preterm or trunks on the rear to patch cords on the front. The Open frame allows for quick and easy installation. It accepts up to 3 LGX Thru Adapter Plates, MTP/MPO Cassettes or Splice Cassettes.

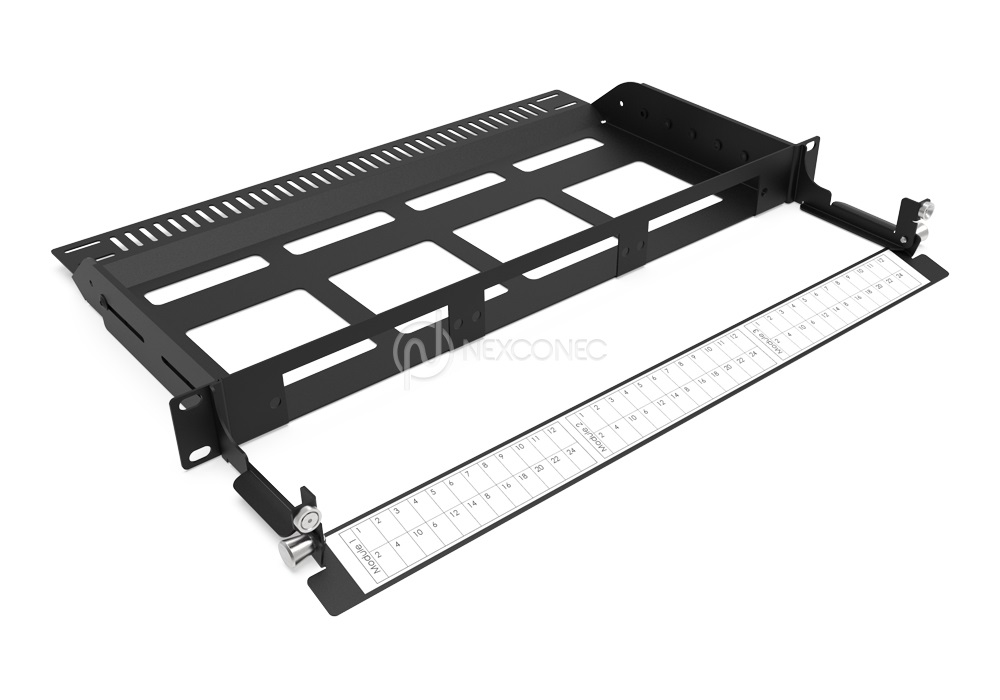

Panel is supplied unloaded and the modules and plates are supplied separately.

FEATURES AND APPLICATIONS
  • 1U height with LGX Adapter Plate or LGX Modules
  • Up to 72FO in LC / 36FO in SC
  • Channel to route the patch cords to the rear of the rack within the 1U space
  • RoHS, REACH and SVHC
  • Datacenter & Enterprise network
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Mounting Type Rack 19”
Height Unit 1U
Material Cold rolled steel
Housing Colour Black
Application Indoor IP20
Lockable No
Dimensions (W x D x H in MM) 435 x 341.2 x 43.4
Net Weight 2.3 kg
Opening Type Fixed
Access Type Front access
Front Cable Management Removable hinged door
Cable Entry Direction Rear and Front
Rear Cable Management Support bar
Slot Type LGX
Number of Slots 3
Fiber Capacity Up to 72 in LC / 36FO in SC
Part Number Product Description
MP3PP07 1U 3 Slots LGX Modular Fixed Frame Unloaded (Including Front Management)
