1U 3 slots LGX Modular Fixed Frame - MP3PP06

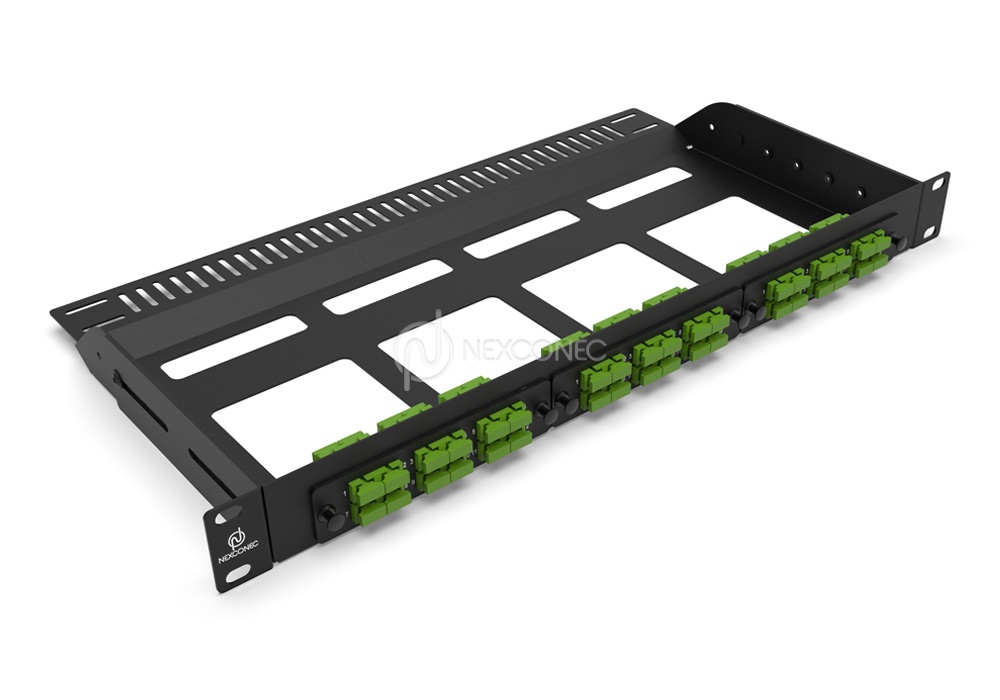

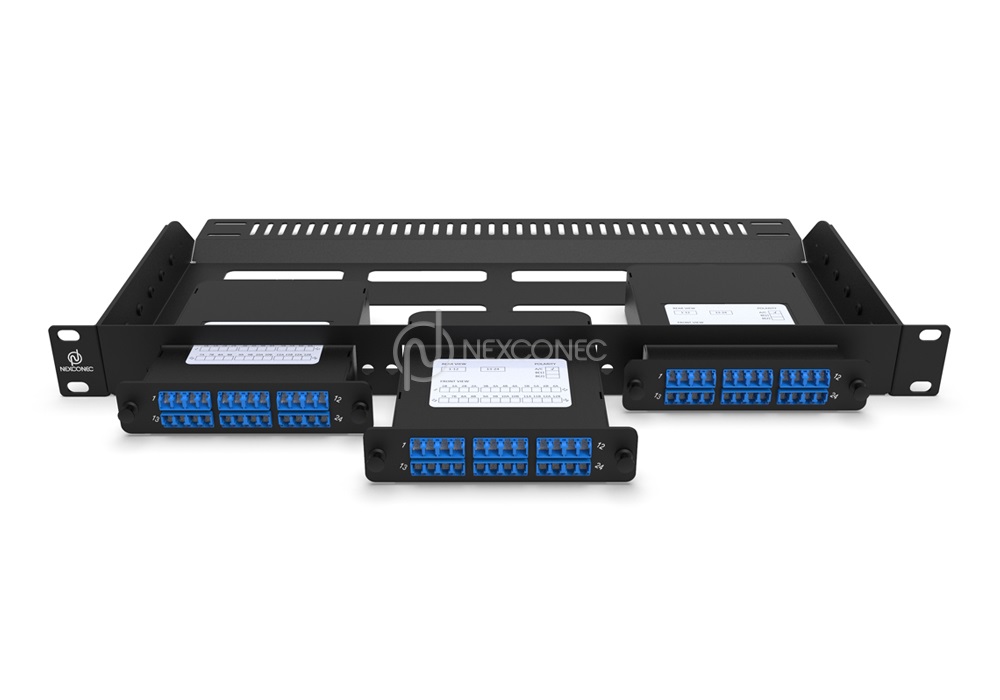

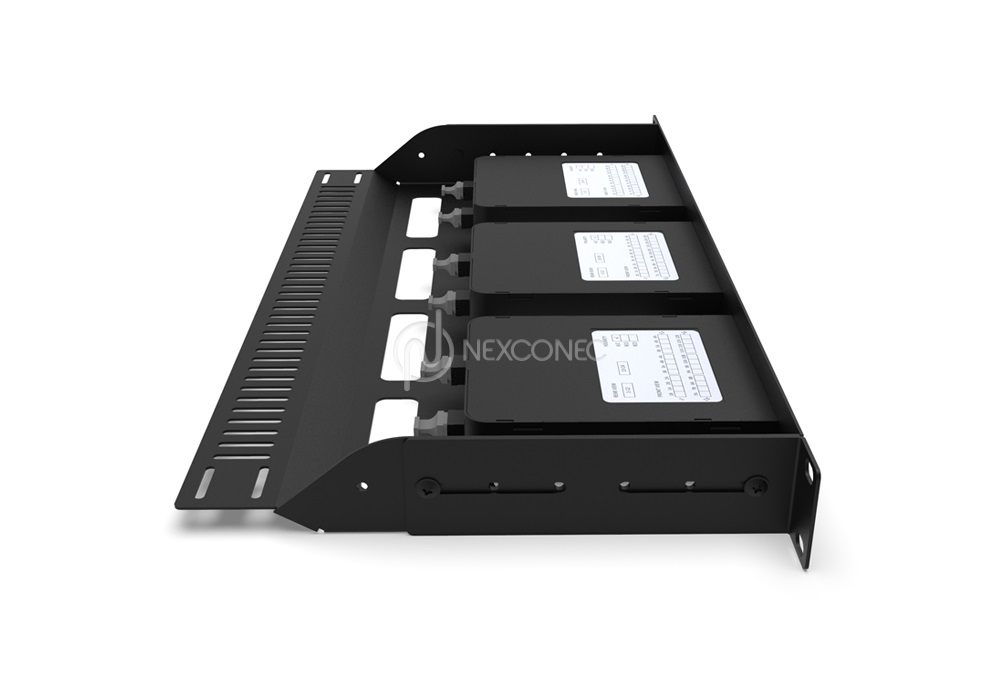

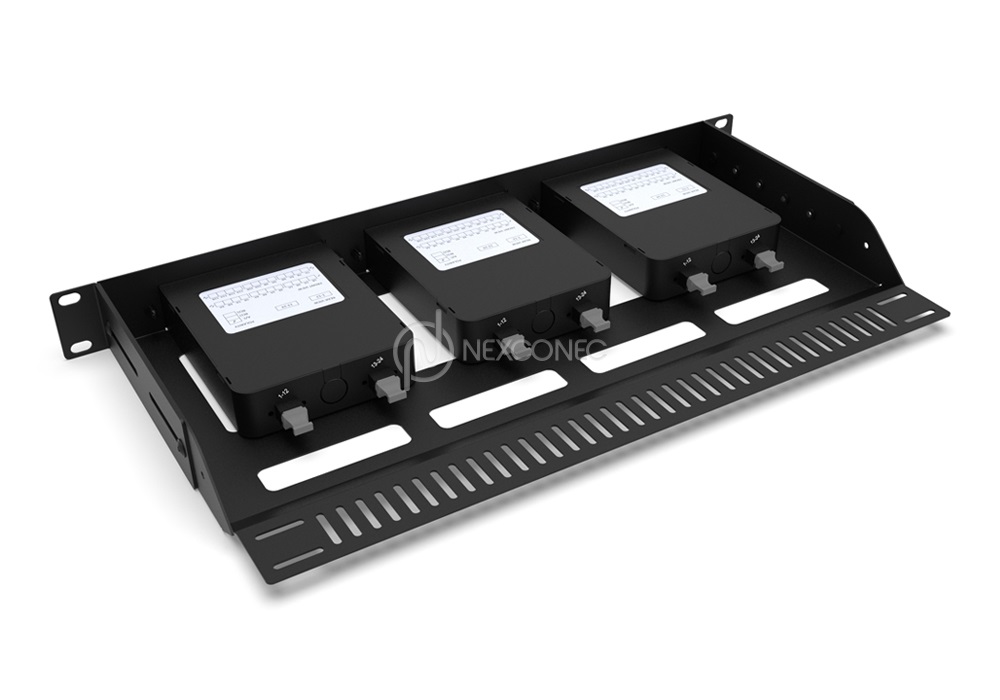

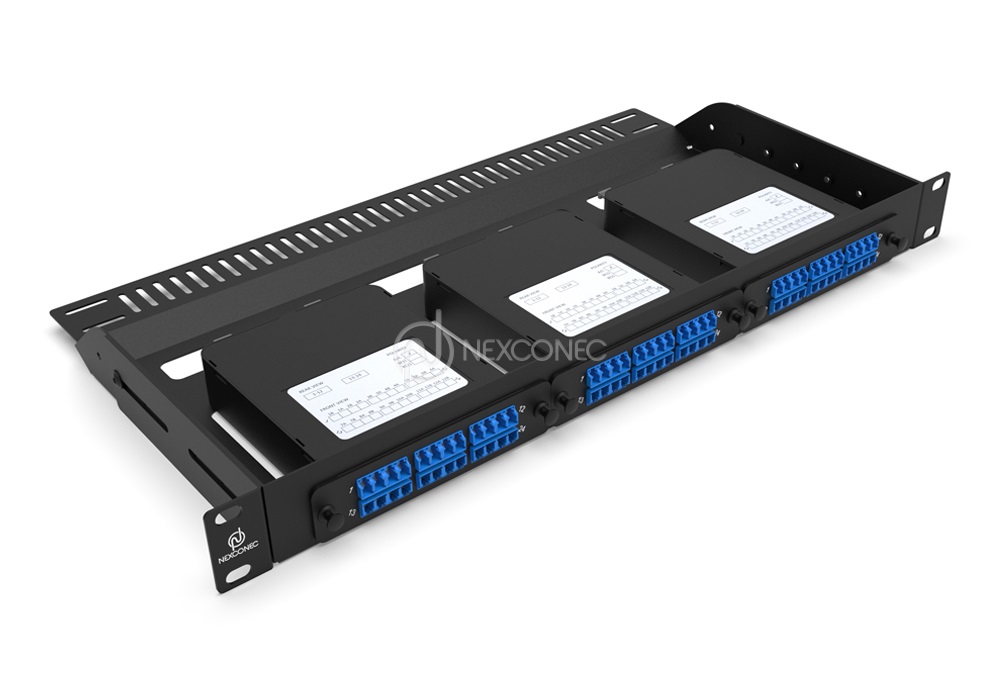

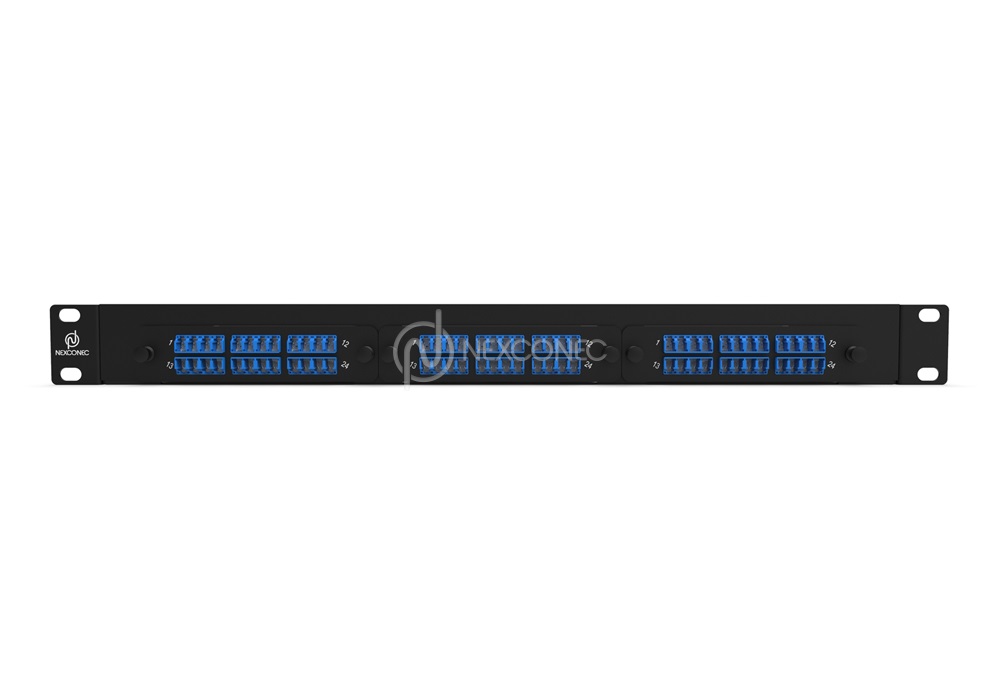

Nexconec high density fixed frame accepts up to 3 LGX Modules or LGX pass-thru adapter plates for a total of 72FO with LC configuration. Panel is supplied unloaded and the modules and plates are supplied separately.
FEATURES AND APPLICATIONS
- 3 Slots HD in 1U space
- Up to 72FO in LC
- Modular with MPO Cassette or Adapter plates
- RoHS, REACH and svHC
- Datacentre & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP trunks and Splicing
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
 VISIO.vsdx |
Download |

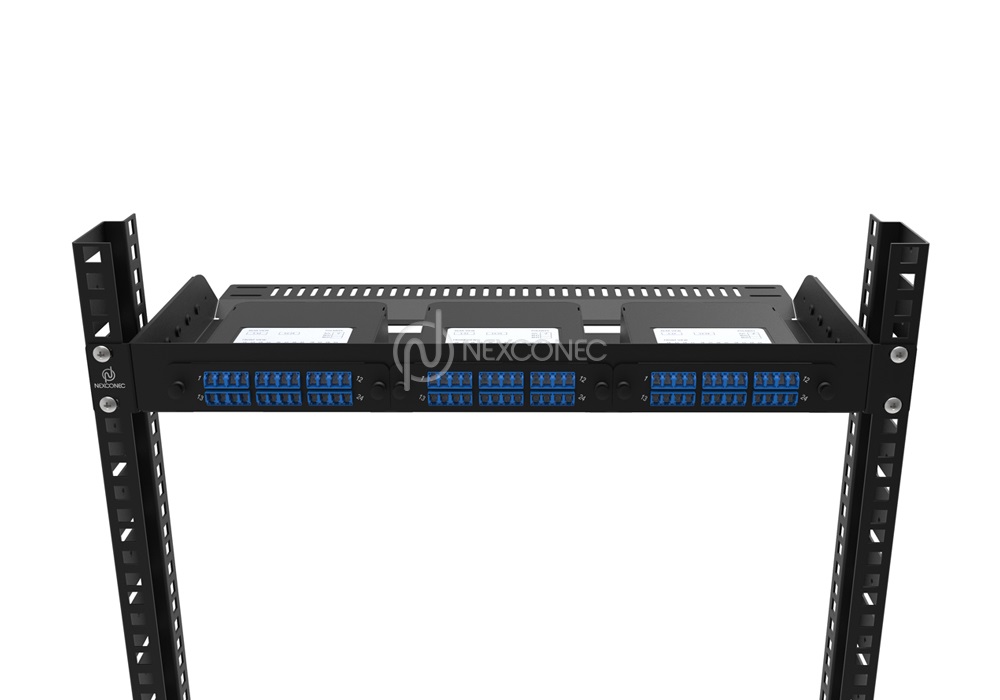

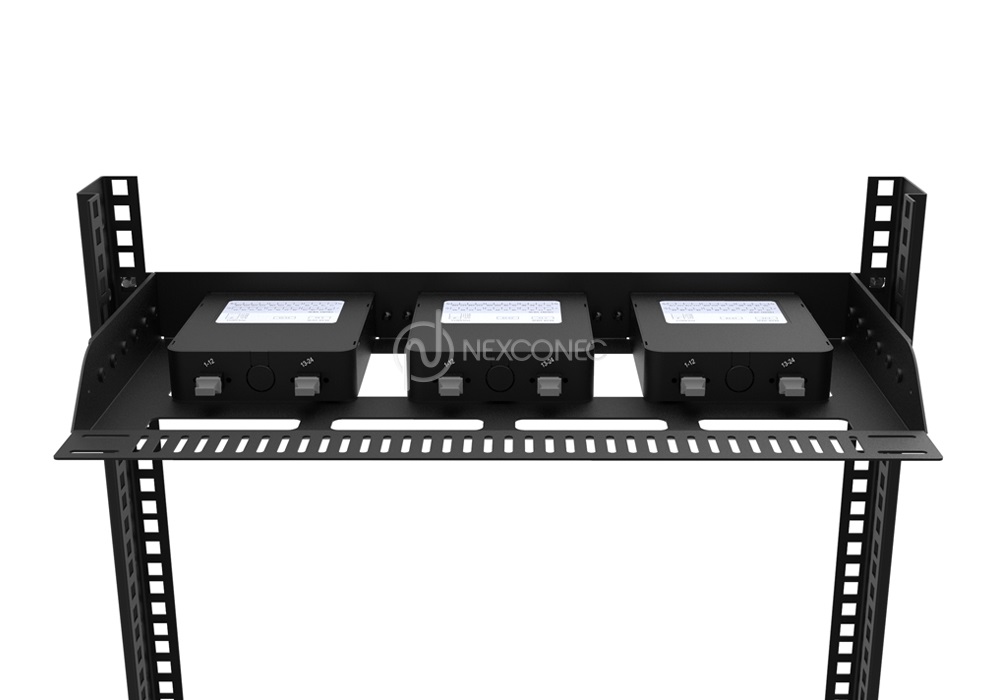

| Mounting Type | Rack 19” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 482 x 240 x 43.50 |
| Net Weight | 2KG |
| Opening Type | Fixed |
|---|---|
| Access Type | Front access |
| Front Cable Management | No |
| Cable Entry Direction | Rear |
| Rear Cable Management | Support bar |
| Slot Type | LGX Modules and LGX Plates |
| Number of Slots | 3 |
| Fibre Capacity | 72 in LC |
| Part Number | Product Description |
|---|---|
| MP3PP06 | 1U 3 slots LGX Modular Fixed Frame |
