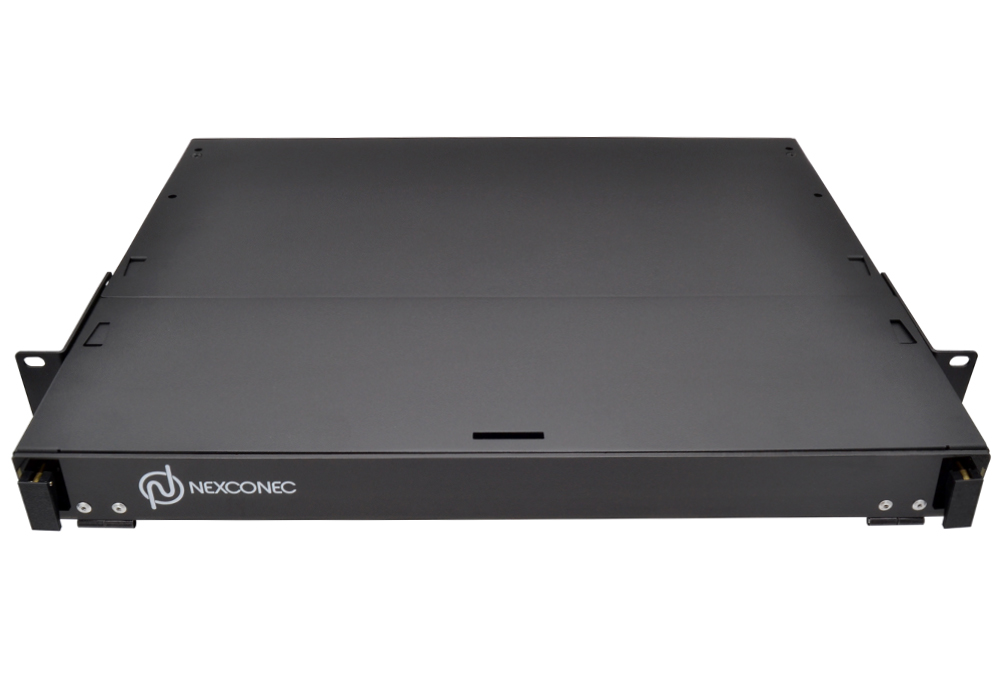

1U Enclosure 3 slots LGX - MP3PP01

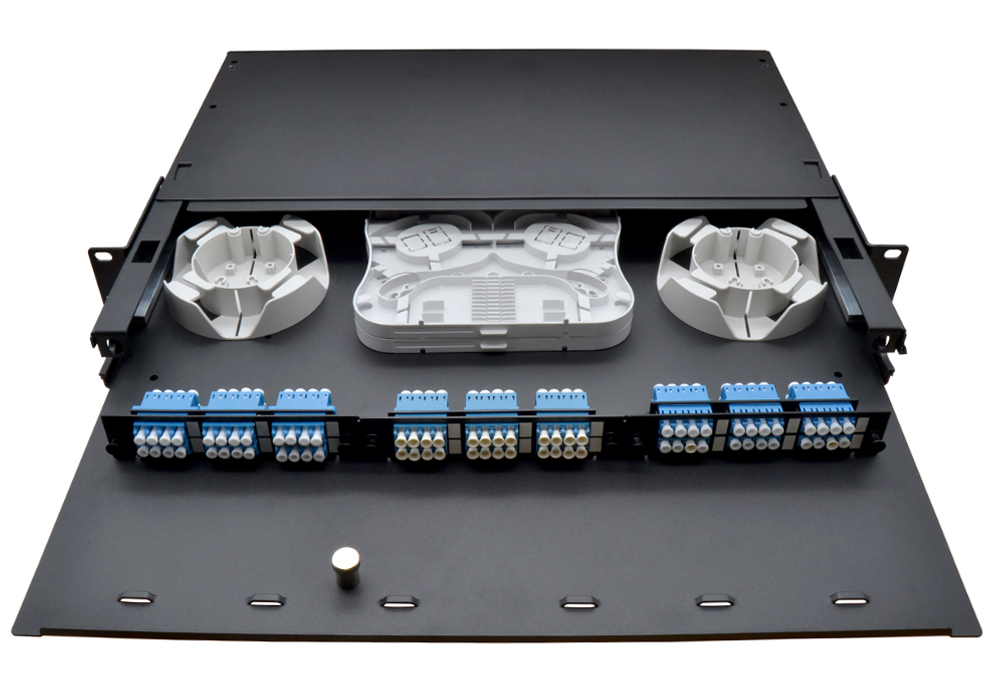

Nexconec Enclosure accepts 3 LGX pass-thru adapter plates for a total of 72FO with LC configuration (36 in SC). Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged front and rear removable doors as well as lid. Panel is supplied unloaded and the modules and plates are supplied separately.
FEATURES AND APPLICATIONS
- 3 Slots LGX in 1U space

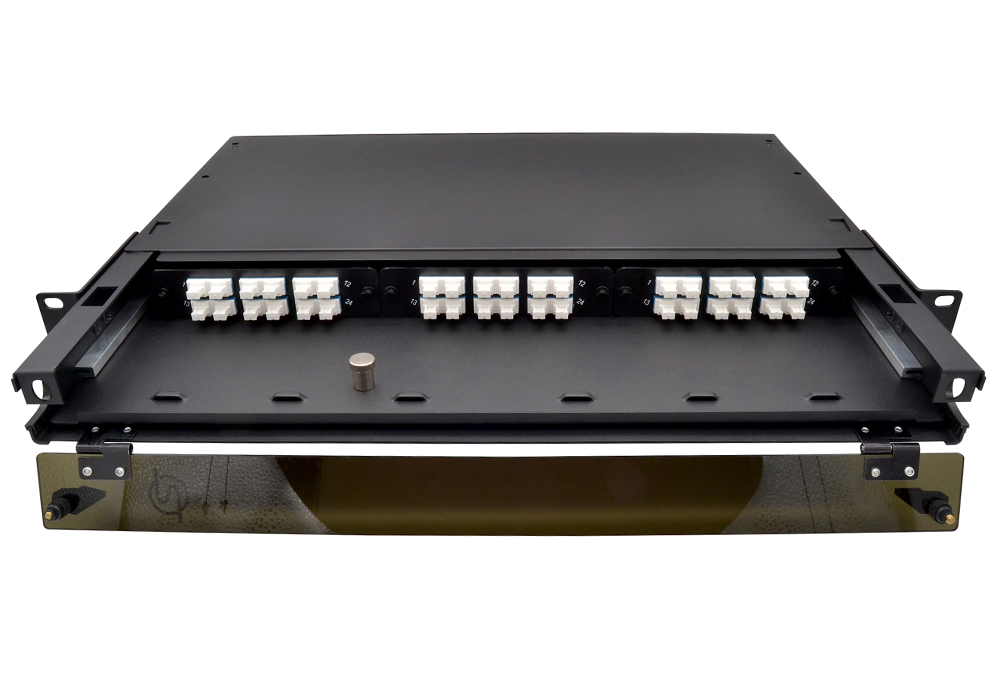

- Up to 72FO in LC

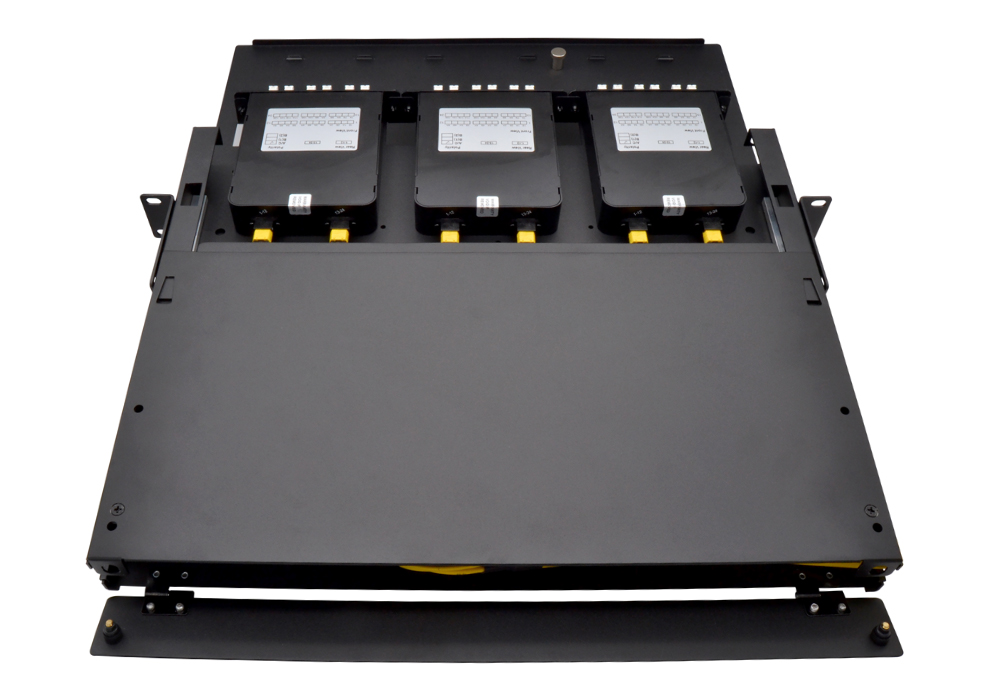

- Modular with MTP Cassette or Adapter plates

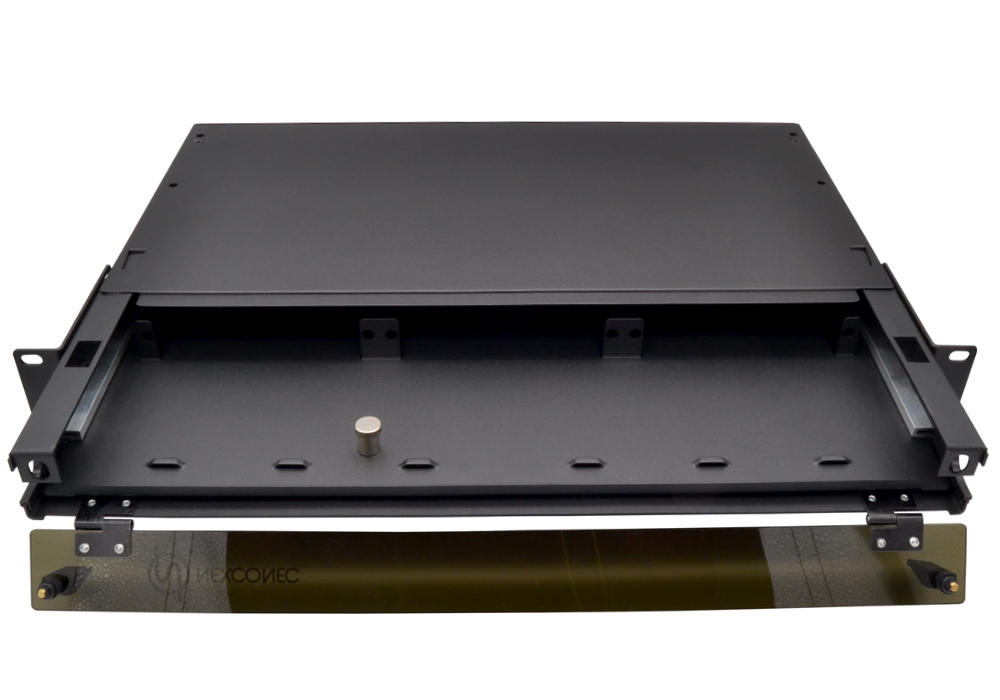

- Slide-out tray with spring loaded latch
- Enterprise network & Datacentre
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated
- cables and MTP/MPO Modules and Splicing
| Mounting Type | Rack 19” and optional bracket for 23” |
|---|---|
| Height Unit | 1U |
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Lockable | No |
| Dimensions (W x D x H in MM) | 434 x 351 x 33.30 |
| Net Weight | 5.9kg |
| Opening Type | Sliding tray |
|---|---|

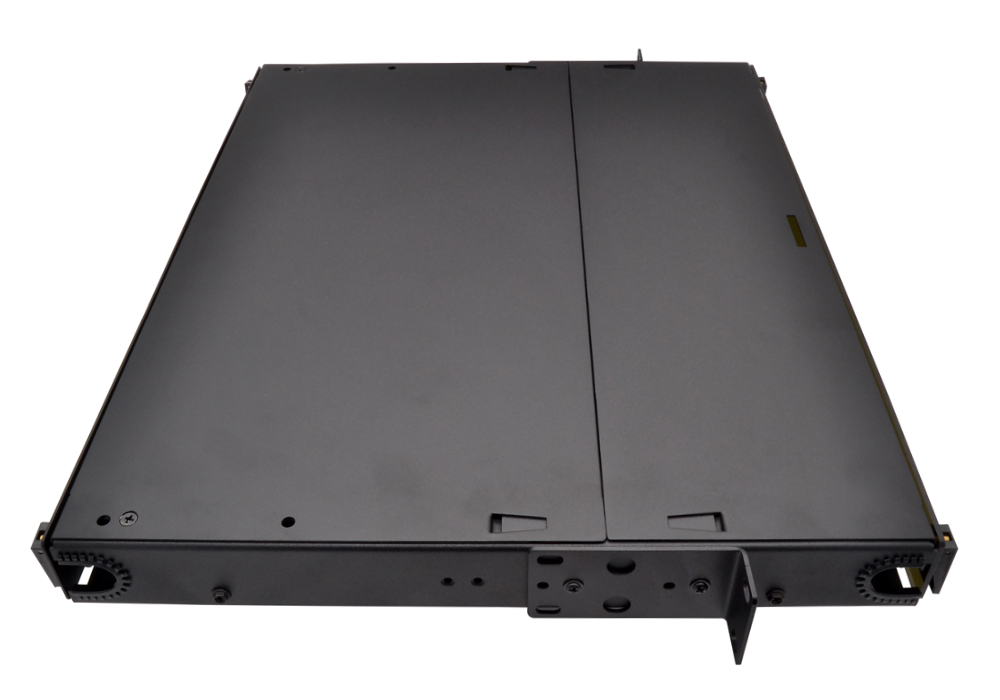

| Access Type | Front &rear access, Removable top cover |

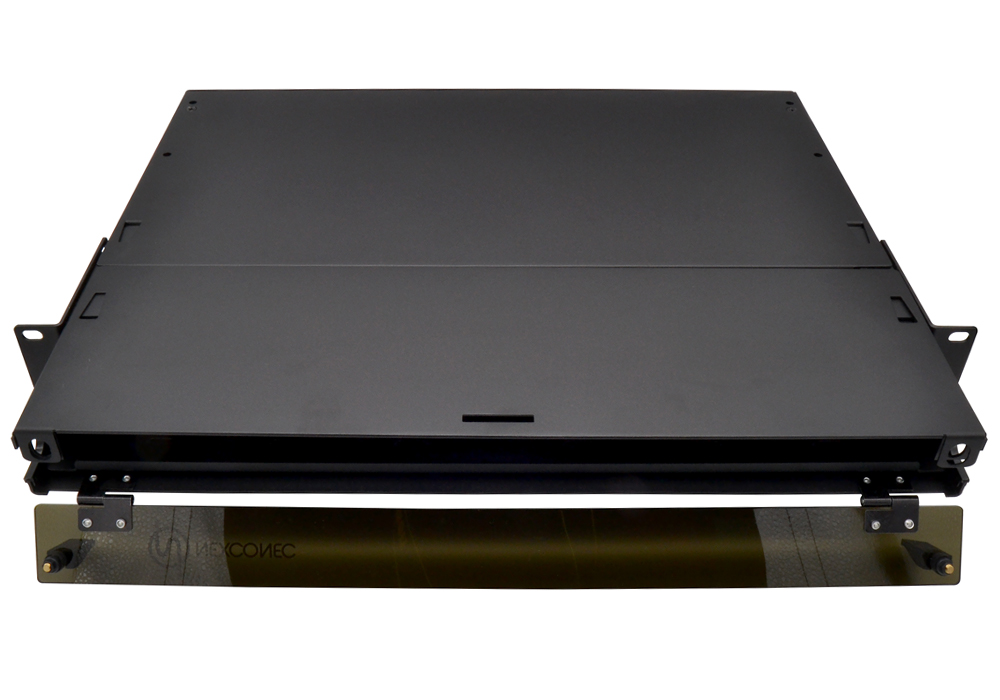

| Front Cable Management | Removable hinged drop down door |
| Cable Entry Direction | Sides |
| Rear Cable Management | Rear hinged drop-down door |
| Slot Type | LGX Modules and LGX Plates |
| Number of Slots | 3 |
| Fiber Capacity | 72 in LC |
| Part Number | Product Description |
|---|---|
| MP3PP01 | 1U Rack Mount Enclosure 3 slots LGX Unloaded |
