2U Enclosure 6 slots LGX - MP3PP02

MP3PP02 MP3PP02 MP3PP02 MP3PP02 MP3PP02 MP3PP02 MP3PP02 MP3PP02

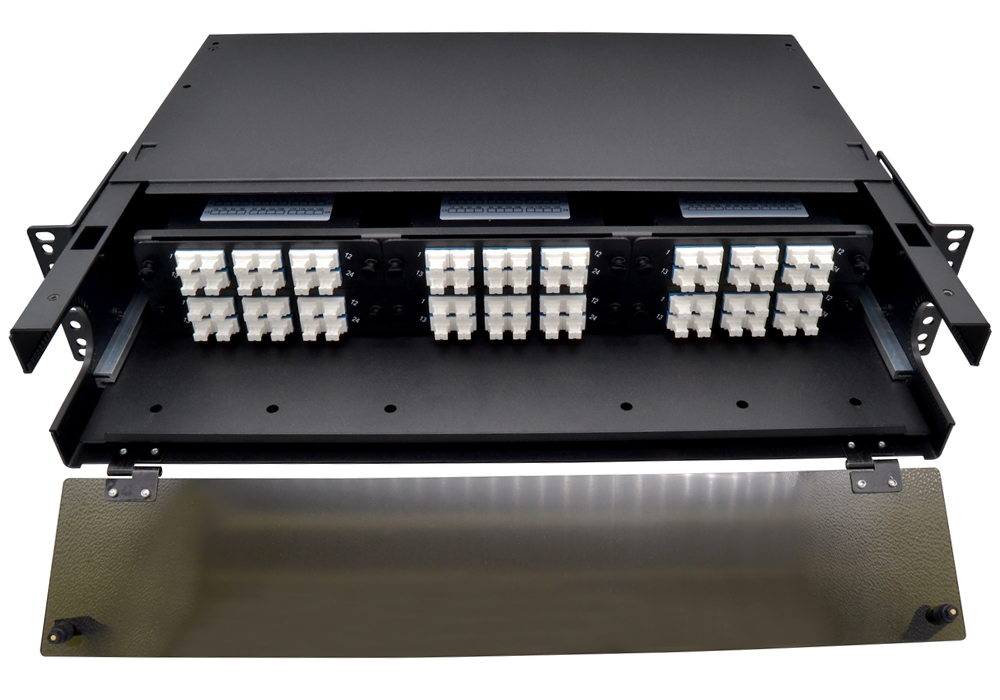

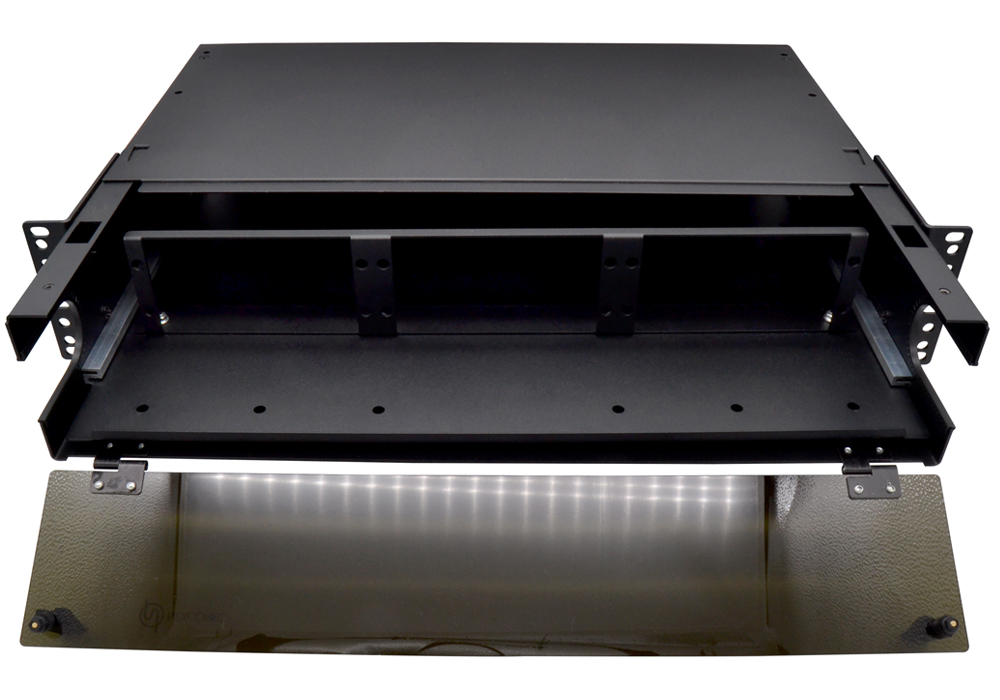

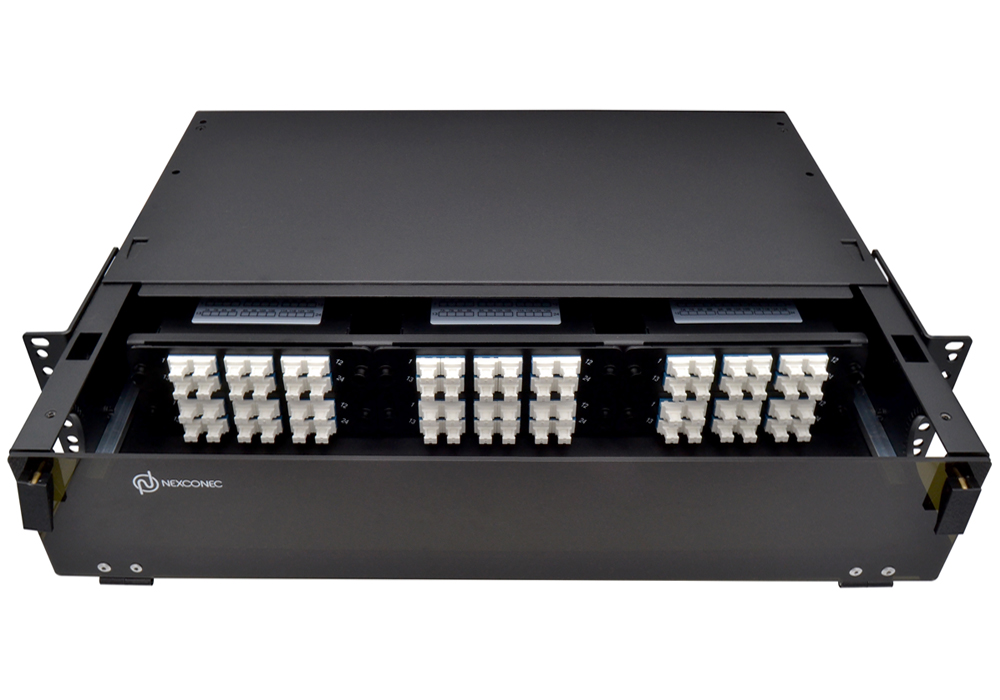

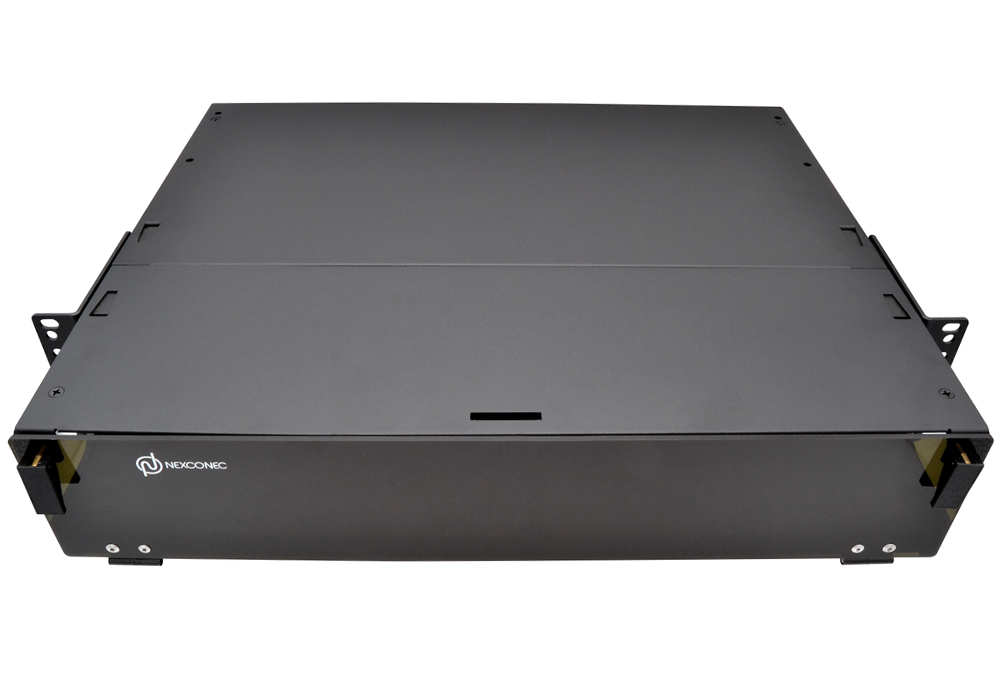

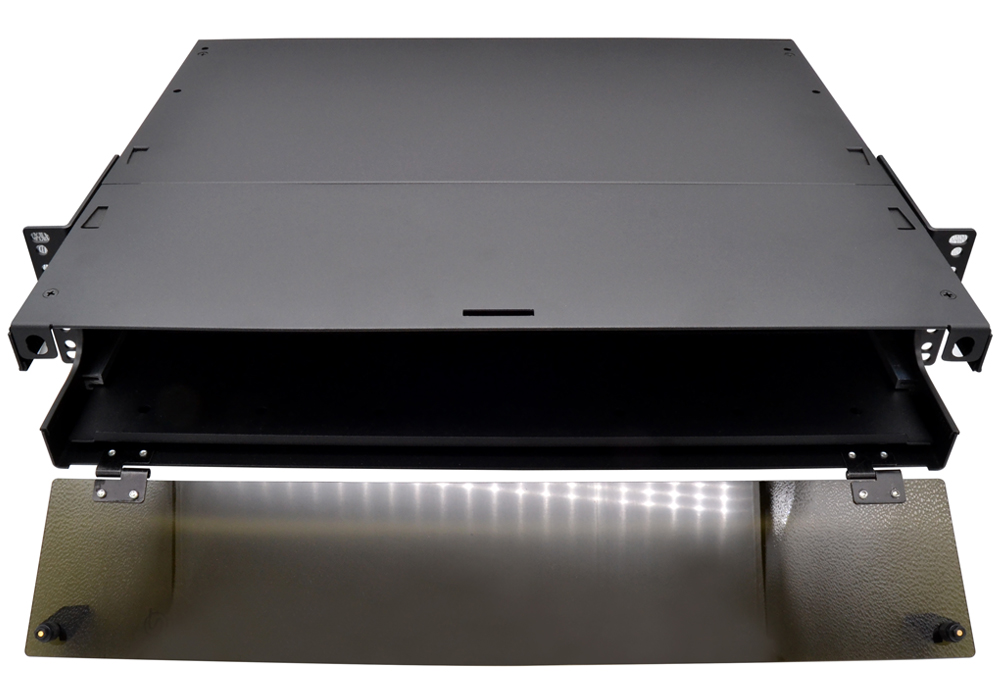

Nexconec sliding patch panel accepts 6 LGX pass-thru adapter plates for a total of 144FO with LC configuration (72 in SC). Modular panel for multi-application with MTP/MPO System, Pre-terminated cables or conventional splicing. Easy front access with hinged front and rear removable doors as well as lid. Panel is supplied unloaded and the modules and plates are supplied separately.

FEATURES AND APPLICATIONS
  • 6 Slots LGX in 2U space
  • Up to 144FO in LC

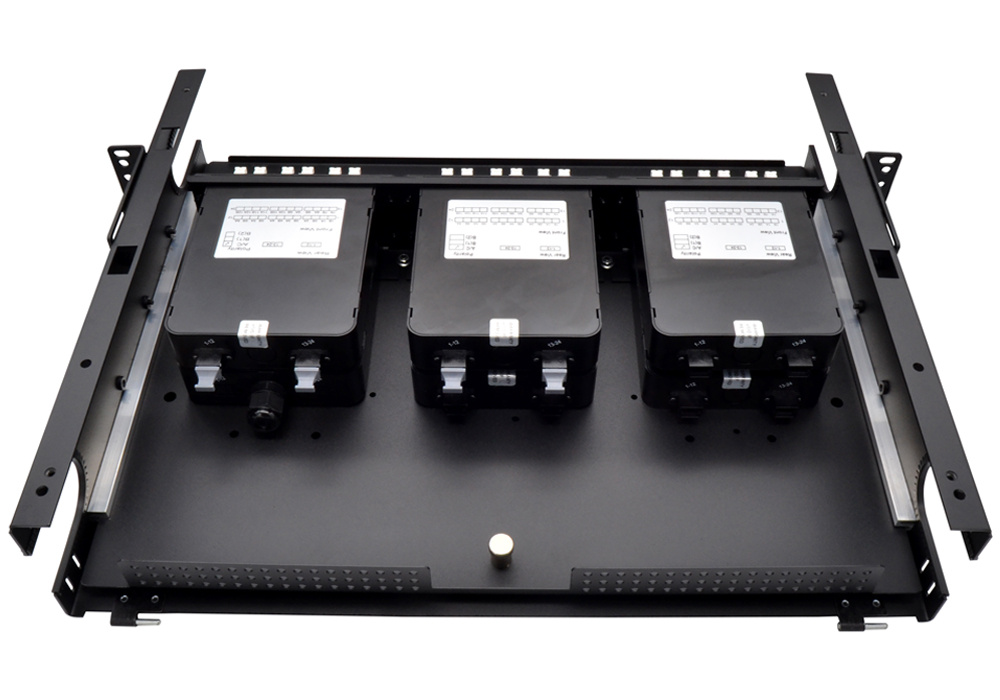

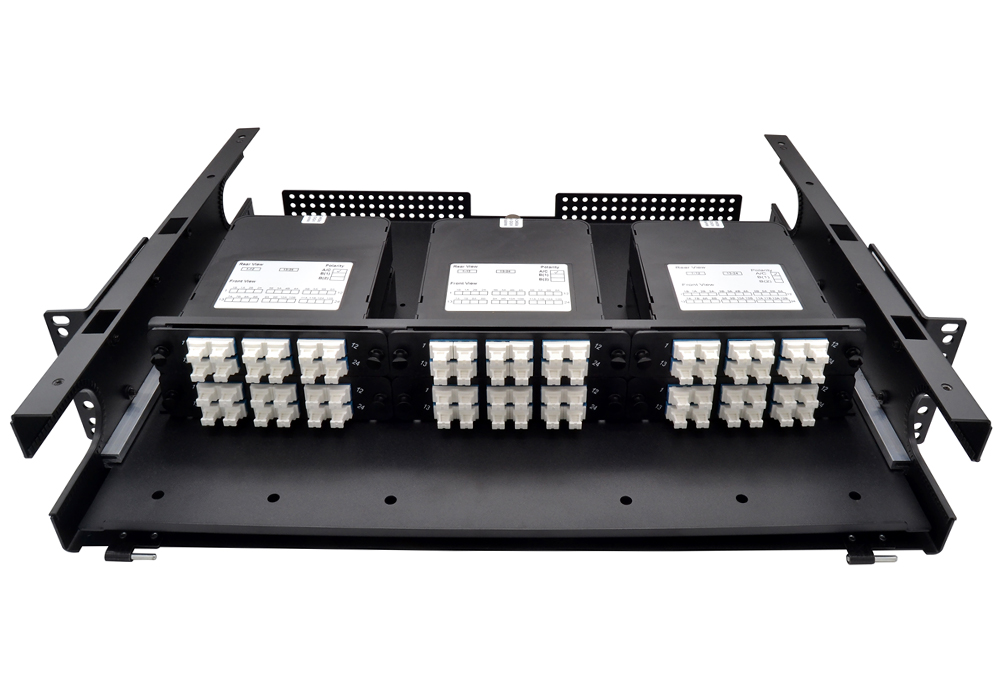

  • Modular with MTP Cassette or Adapter plates
  • Slide-out tray with spring loaded latch
  • Enterprise network & Datacentre
  • Indoor application
  • Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Mounting Type Rack 19” and optional bracket for 23”
Height Unit 2U
Material Cold rolled steel
Housing Color Black
Application Indoor IP20
Lockable No
Dimensions (W x D x H in MM) 434 x351 x86
Net Weight 7.5 Kg
Opening Type Slide-out tray with spring loaded stop latch
Access Type Front & rear access, Removable top cover
Front Cable Management Hinged front removable door

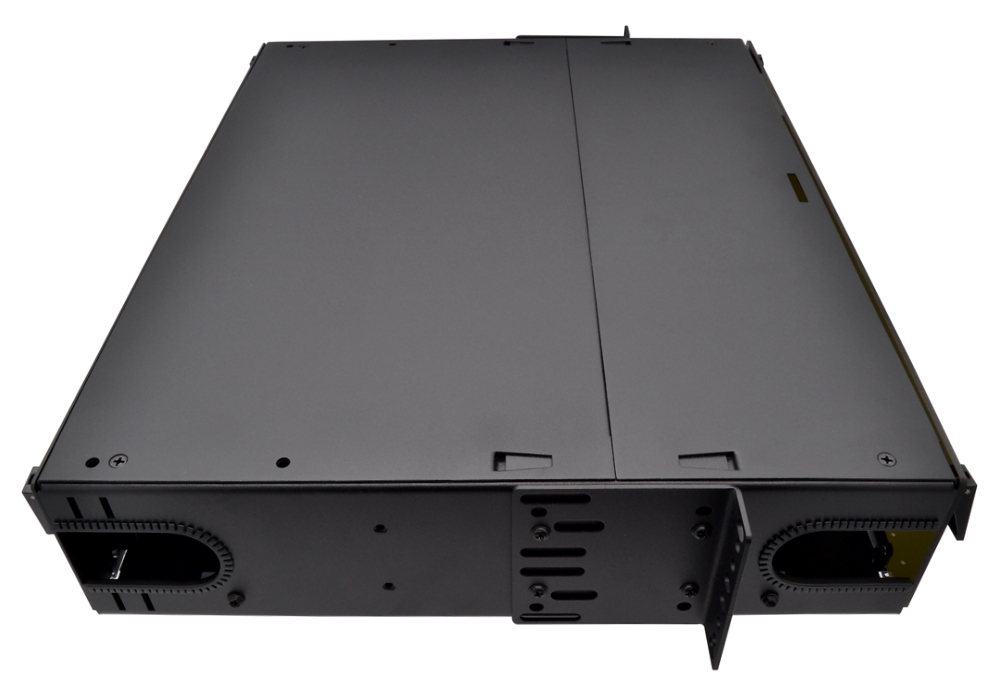

Cable Entry Direction Sides
Rear Cable Management Hinged rear removable door
Slot Type LGX Modules and LGX Plates
Number of Slots 6
Fiber Capacity 144 in LC
Part Number Product Description
MP3PP02 2U Rack Mount Enclosure 6 slots LGX, Unloaded
