HD ADAPTER PLATES - MP4PLxx

MP4PLxx MP4PLxx MP4PLxx MP4PLxx MP4PLxx MP4PLxx MP4PLxx MP4PLxx MP4PLxx MP4PLxx MP4PLxx

Nexconec carries numerous HD-style adapter plates to meet your fiber management connectivity requirements. The adapter plates are made to fit all Nexconec HD MP4 rackmount fiber management solutions. Supporting LC, SC, E2000 and MTP/MPO for high density solutions.

FEATURES AND APPLICATIONS
  • Large choice of pass thru adapters SC/LC/FC/ST/MPO
  • Easy and fast installation
  • Recessed SC/LC/MPO Adapters
  • Enterprise network & Datacentre
  • Indoor application
  • Most Common Footprint

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
microsoft visioVISIO.vsdx Download

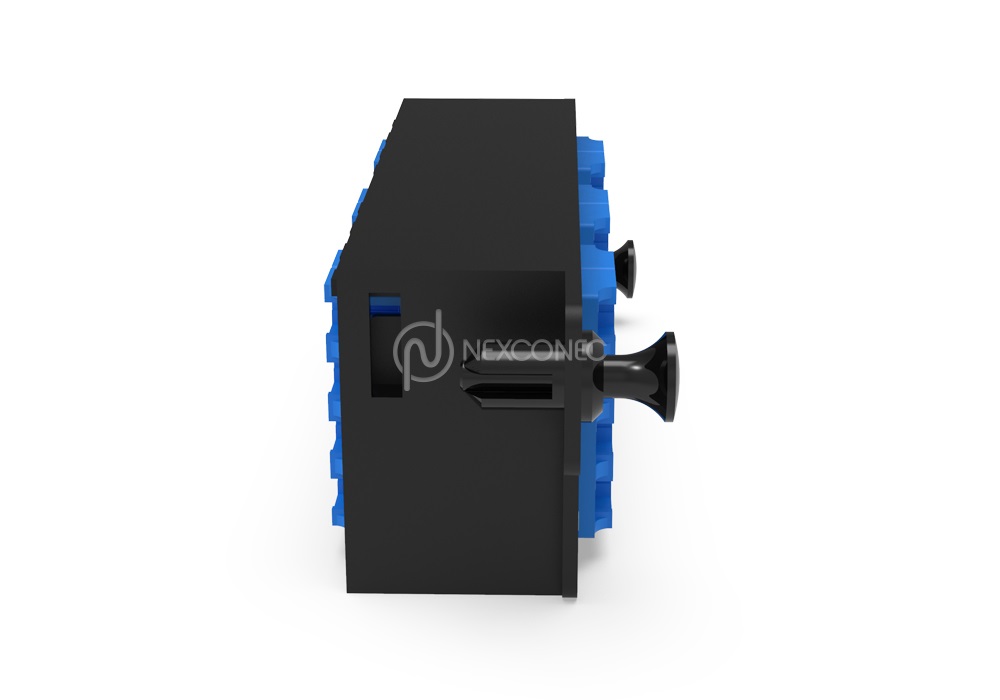

Mounting Type Nylon Latches
Material PC + ABS
Housing Color Black
Dimensions (W x H x D in MM) 106 x 33.60 x 24
Net Weight 0.25Kg
Part Number Product Description

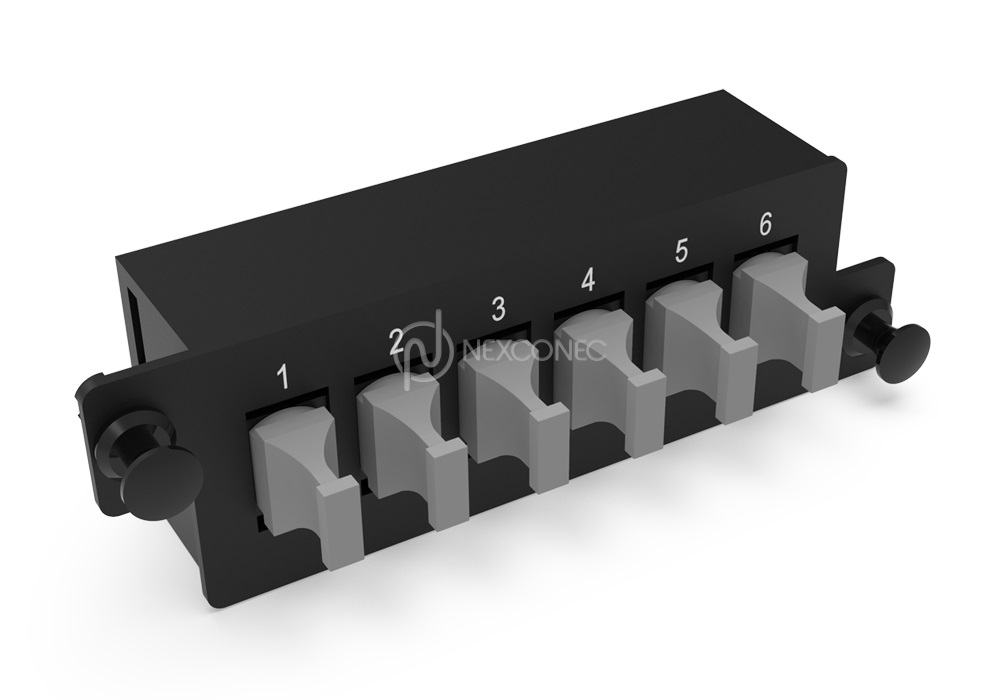

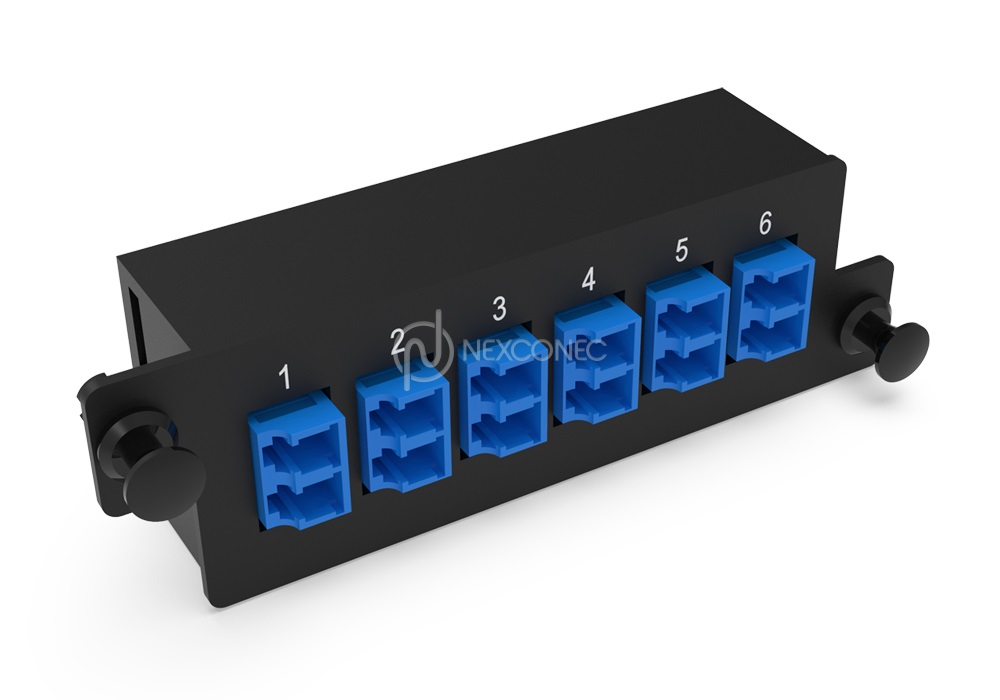

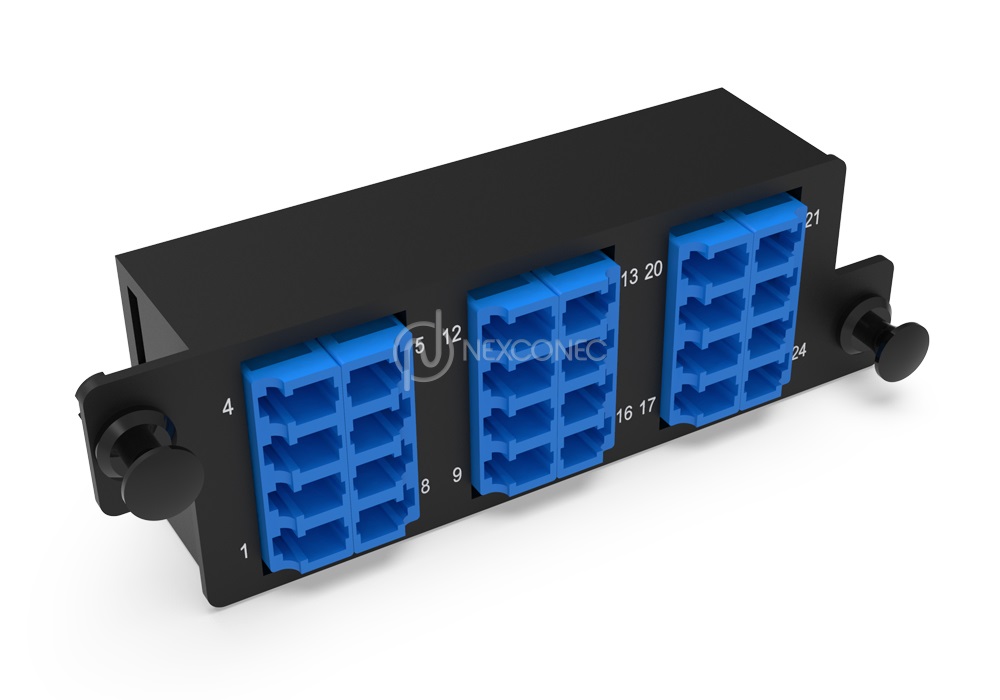

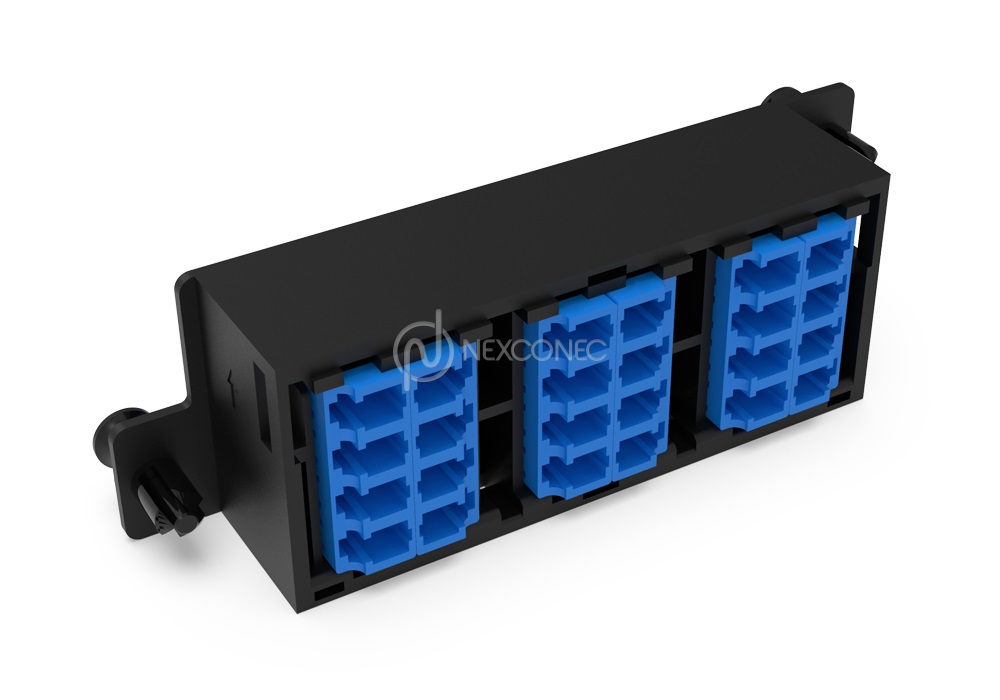

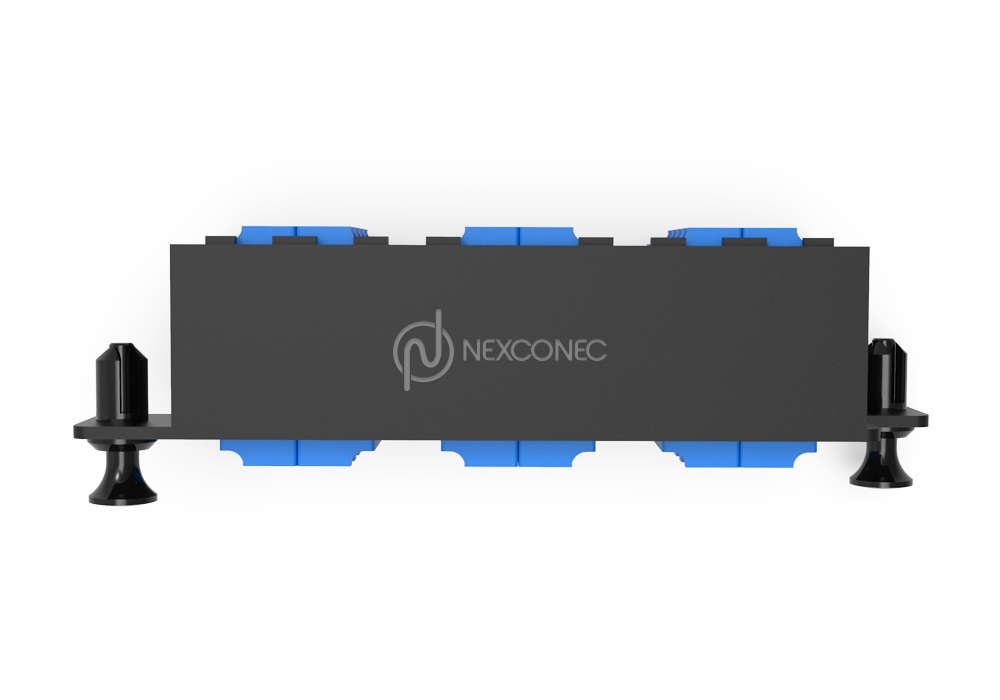

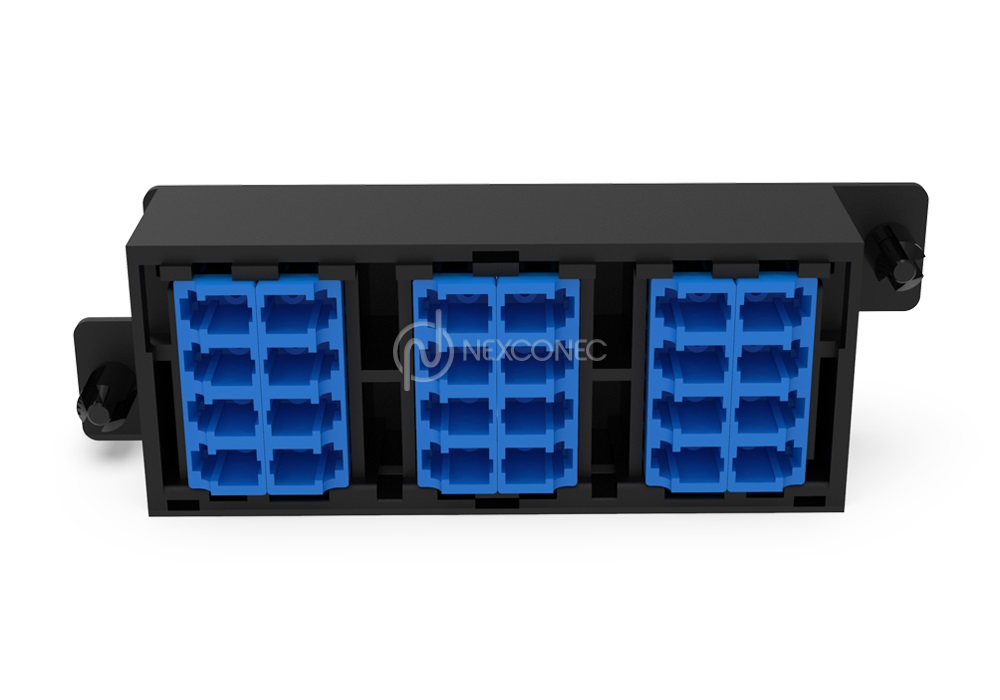

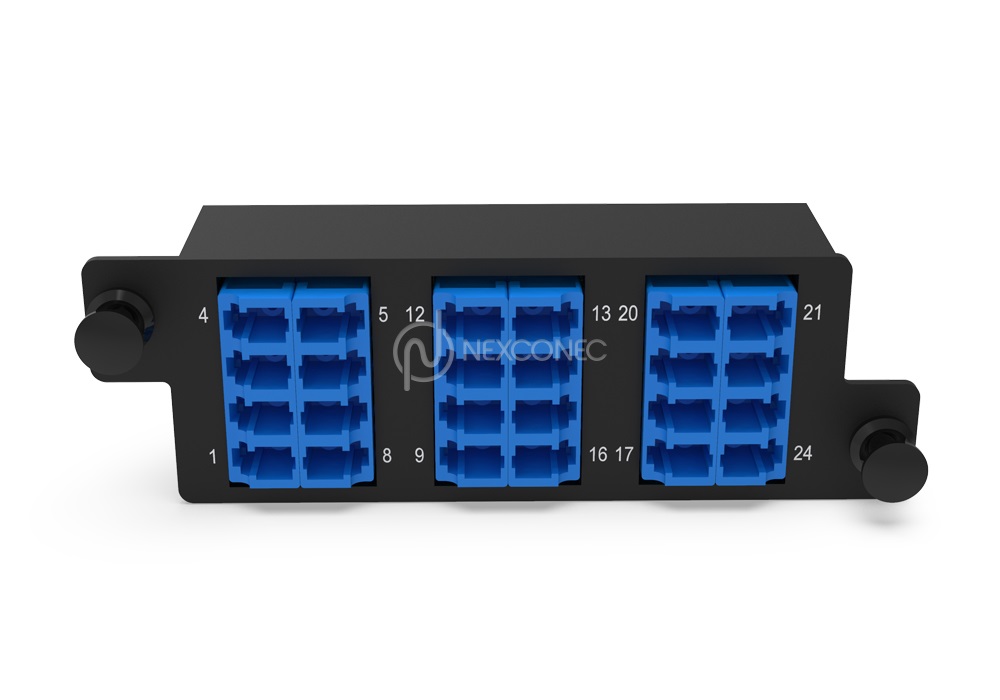

MP4PL01 HD Pass Thru Adapter Plate LC 24FO SM Blue
MP4PL02 HD Pass Thru Adapter Plate LC 24FO SM Green
MP4PL03 HD Pass Thru Adapter Plate LC 24FO MM Aqua
MP4PL04 HD Pass Thru Adapter Plate LC 12FO SM Blue
MP4PL05 HD Pass Thru Adapter Plate LC 12FO SM Green
MP4PL06 HD Pass Thru Adapter Plate LC 12FO MM Aqua
MP4PL07 HD Pass Thru Adapter Plate SC 12FO SM Blue
MP4PL08 HD Pass Thru Adapter Plate SC 12FO SM Green
MP4PL09 HD Pass Thru Adapter Plate SC 12FO MM Aqua

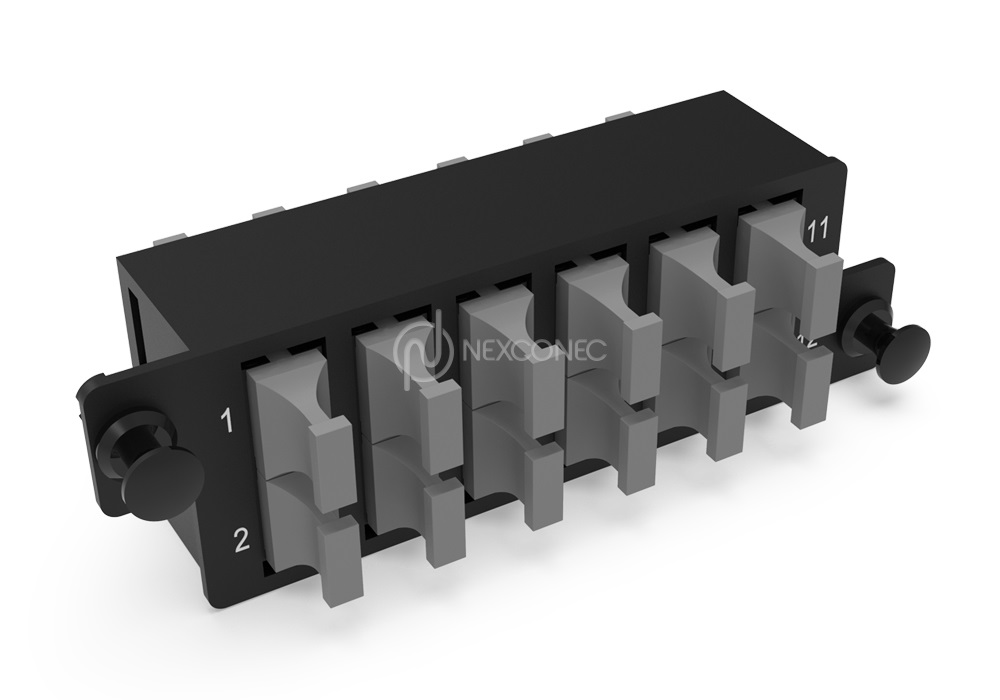

MP4PL10 HD Pass Thru Adapter Plate 6 Ports MPO (Key Up/ Key Down)
MP4PL11 HD Pass Thru Adapter Plate 12 Ports MPO (Key Up/ Key Down)
MP4PL13 HD Pass Thru Adapter Plate FC Simplex 6FO SM/MM
MP4PL15 HD Pass Thru Adapter Plate ST Simplex 6FO SM/MM
MP4PL20 HD Pass Thru Adapter Plate 6 Ports MPO (Key Up / Key Up)
MP4PL21 HD Pass Thru Adapter Plate 12 Ports MPO (Key Up/ Key Up)
MP4PLD HD Pass Thru Adapter Plate 6 Slots SC DX Unloaded
MP4PLG HD Pass Thru Adapter Plate 6 Slots LC Quad Unloaded
MP4PLS HD Pass Thru Adapter Plate 6 Slots SC SX / LC DX Unloaded
MP4PLF HD Pass Thru Adapter Plate 6 Slots FC/ST Unloaded

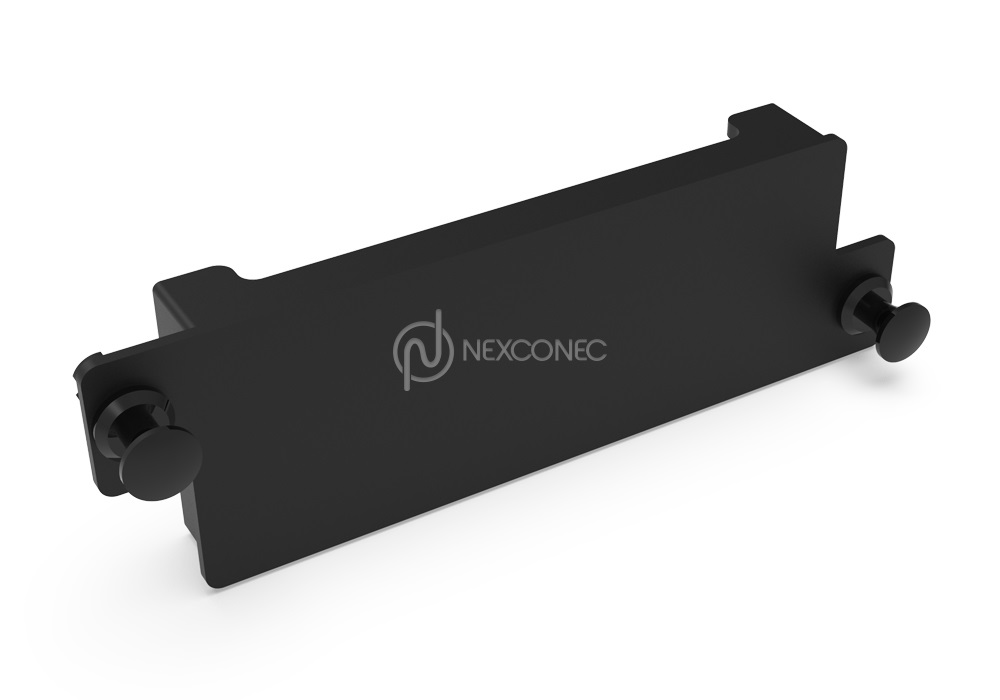

MP4PL00 HD Blank Plate
MP4KJ00 HD Module 6 Ports Keystone Jack Unloaded
