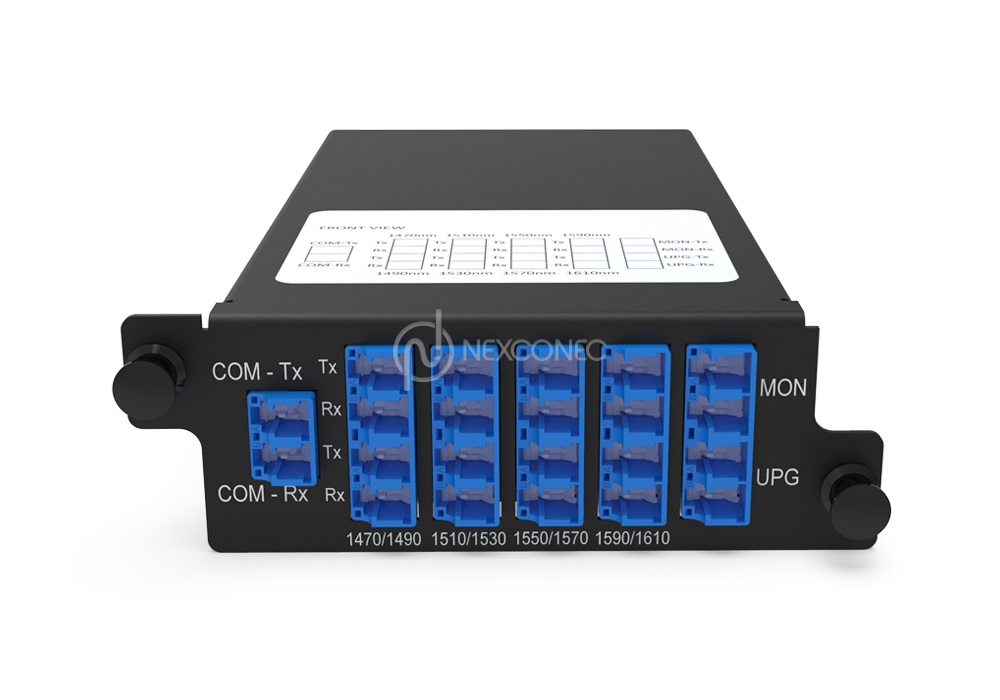

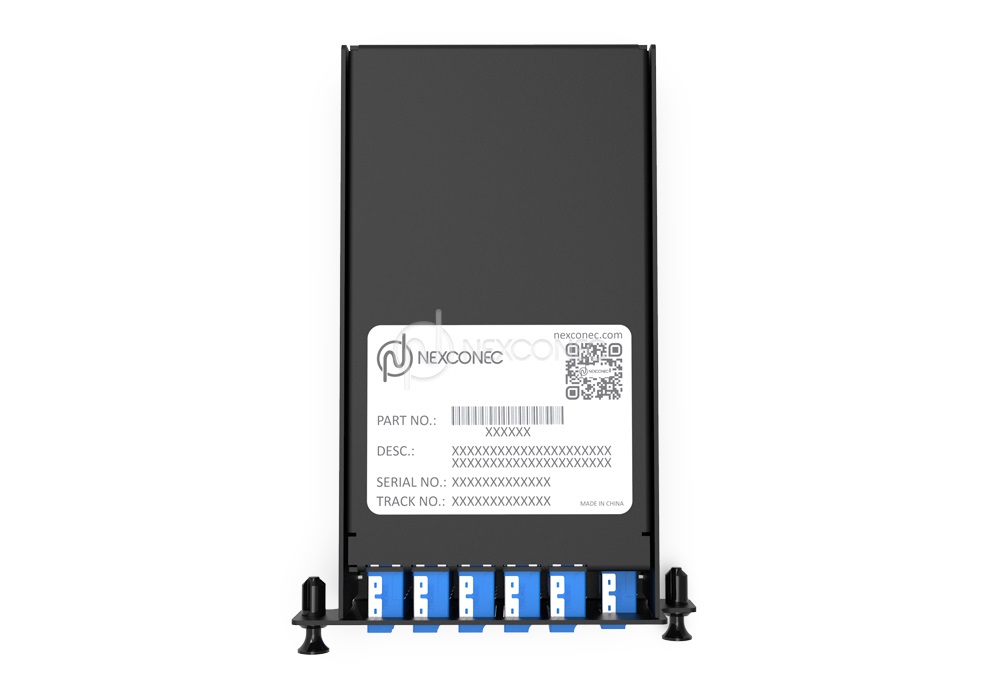

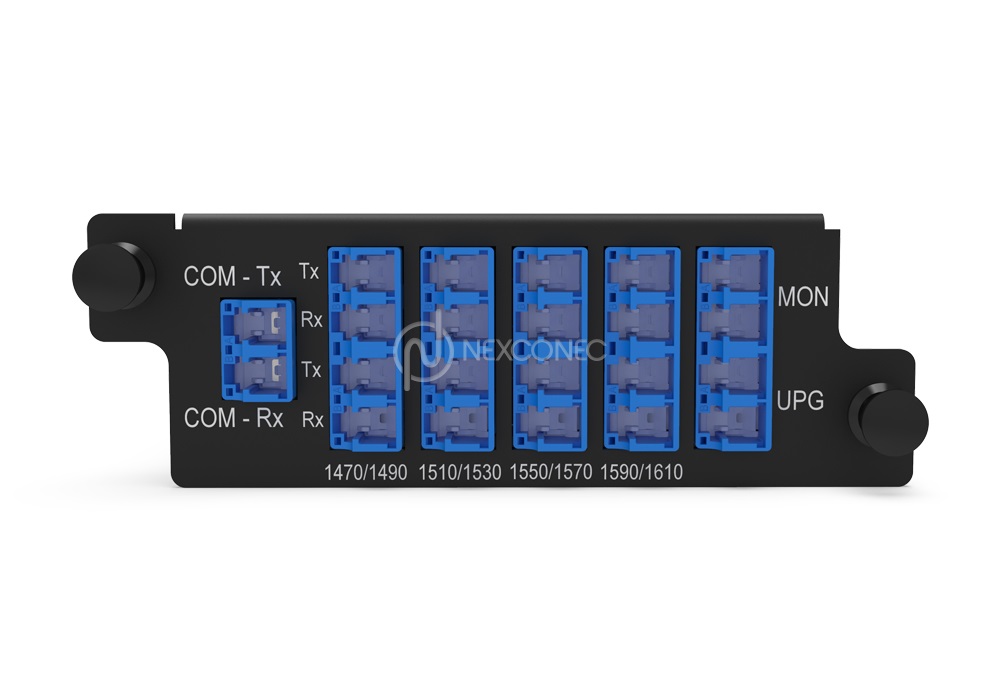

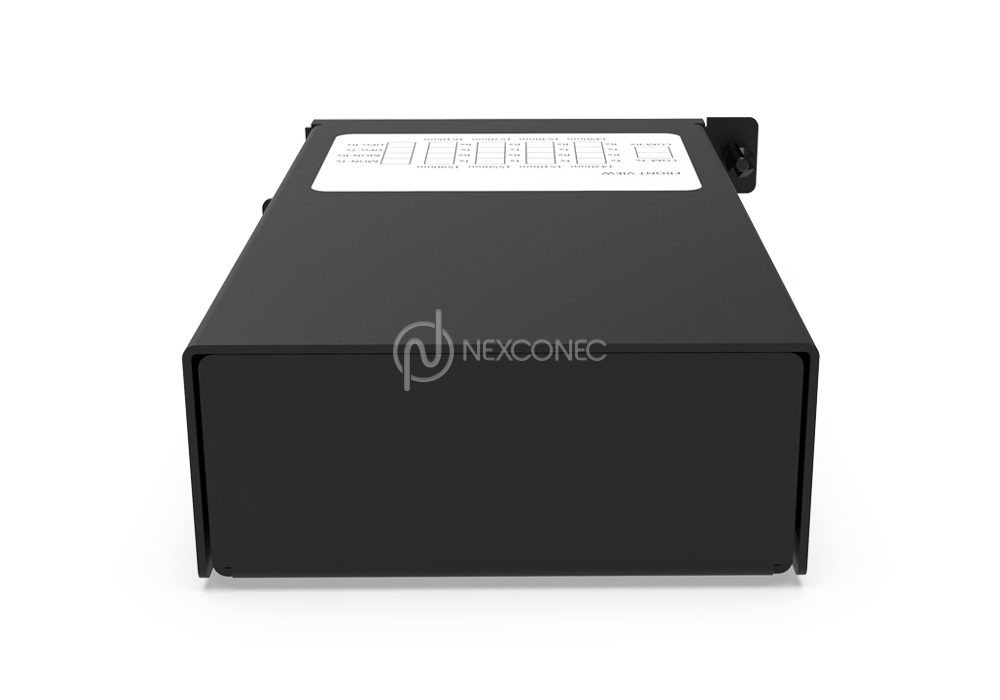

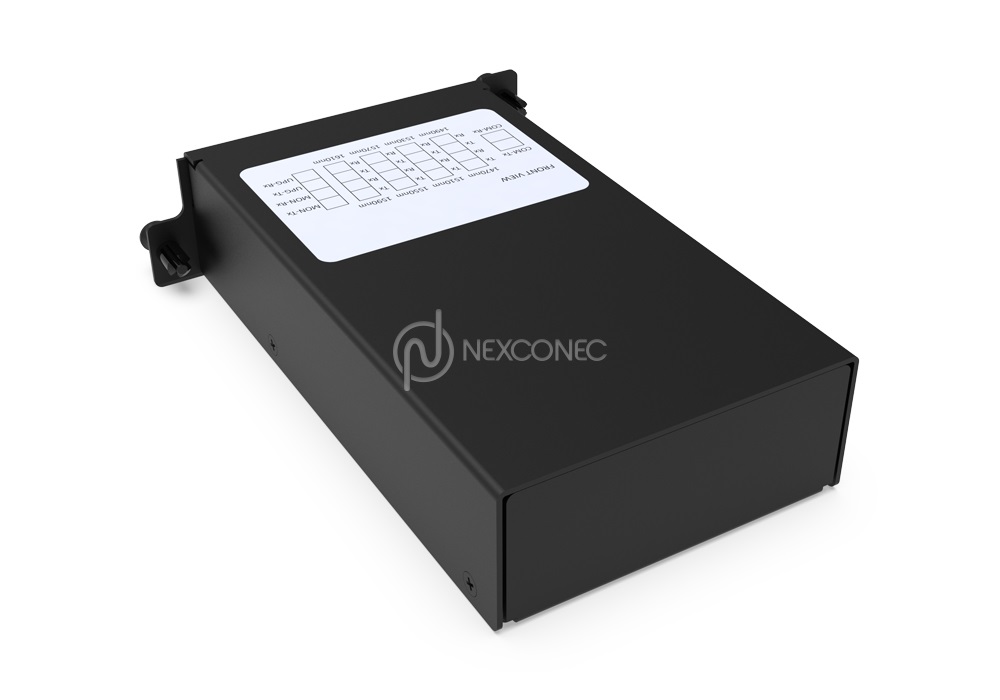

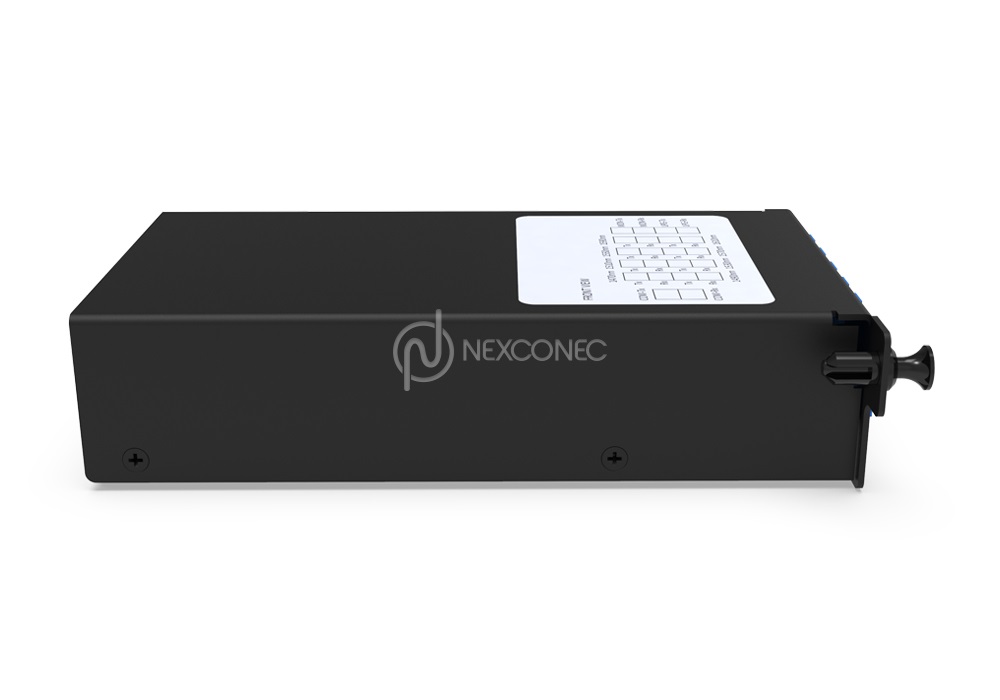

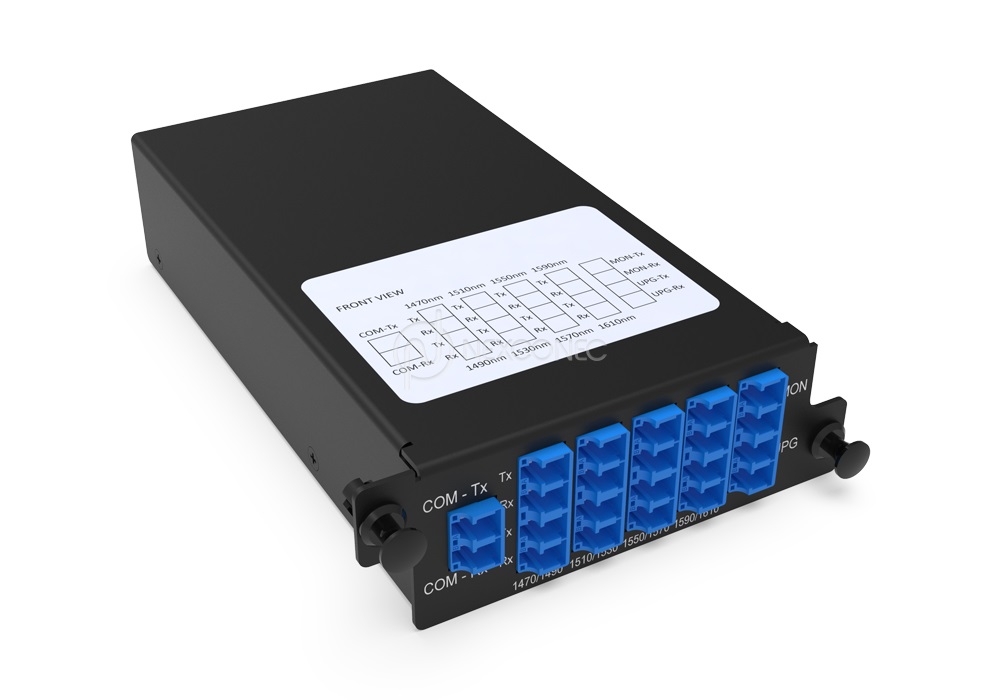

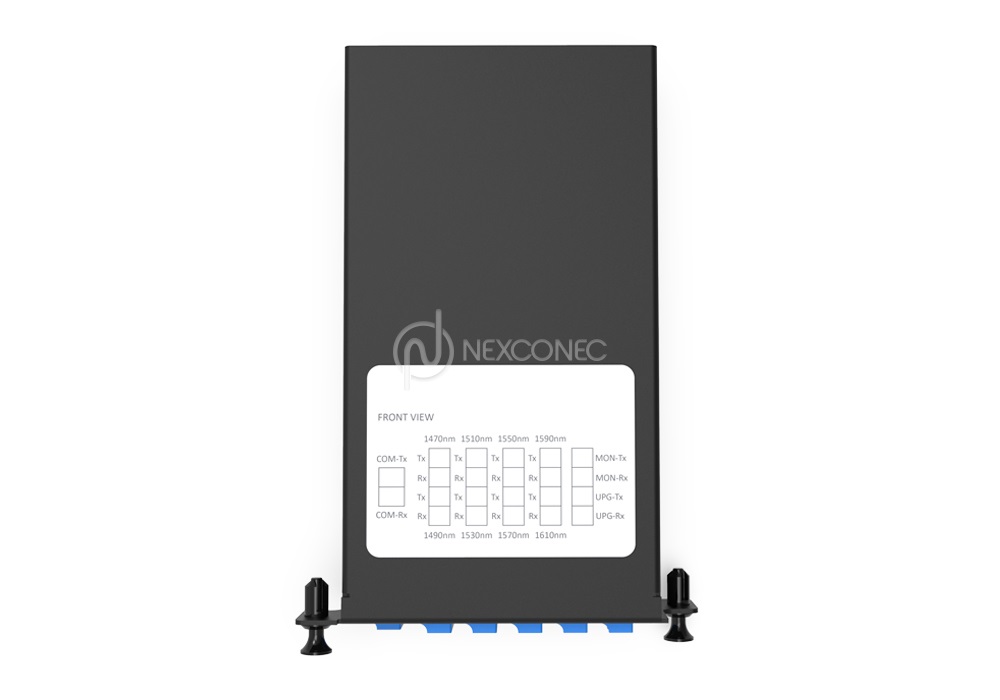

HD DUAL FIBER 8CH MUX CWDM CASSETTE - MP4MUX8CH

MP4MUX8CH MP4MUX8CH MP4MUX8CH MP4MUX8CH MP4MUX8CH MP4MUX8CH MP4MUX8CH MP4MUX8CH

Nexconec passive 8 channels HD CWDM MUX or and DEMUX cassette, allows you to multiplex/de-multiplex eight separate channels into one pair of fiber. Its protocol and rate transparent supporting different applications such as 1G/10G/25G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link.

With modular design, the Mux can be combined with CWDM/DWDM modules, OADMs and MTP cassettes in 1U FHD patch panel. Also it can support a wide range of architectures from simple point-to-point to ring configurations.

FEATURES AND APPLICATIONS
  • Low Insertion Loss
  • Wide Passband
  • High Channel Isolation
  • Shuttered dust proof LC adapters
  • Up to 8 channels for MUX & DEMUX
  • Easy installation, rack or wall mount available
  • Modularization, high density, saving data center cabinet space
  • RoHS, REACH & SvHC compliant, Materials Conflict compliant
  • Line Monitoring
  • WDM Network
  • Telecommunication
  • Cellular Application
  • Fiber Optical Amplifier
  • Access Network

Product Information

datasheetDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
Parameters Units Value
Dimensions (W x D x H) mm 106 x 150 x 35.3
Channel Number 8+1 CH
Fiber Type SM G.657A1
Fiber length 0.5mtr
Connector Type LC
Center Wavelength nm 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 +EXP
Channel Spacing nm 20
Passband dB +/-6.5
Isolation dB ≥ 30 (Adjacent)
≥ 40 (Non-adjacent)
Insertion Loss dB ≤1.5
PDL dB ≤0.2
Monitor Yes
Directivity dB ≥50
Return Loss dB ≥45
PMD ps ≤0.2
Max Power Handing mW 500
Working Temperature -40 to +70
Storage Temperature -40 to +70
Part Number Product Description
MP4MUX8CH HD Dual Fiber 8CH Mux CWDM Cassette 1470-1610nm
