HD MTP®/MPO ADAPTER PLATES - MP4PLxx

MP4PL10 MP4PL10 MP4PL10 MP4PL10 MP4PL10 MP4PL10 MP4PL10 MP4PL10 MP4PL10 MP4PL10

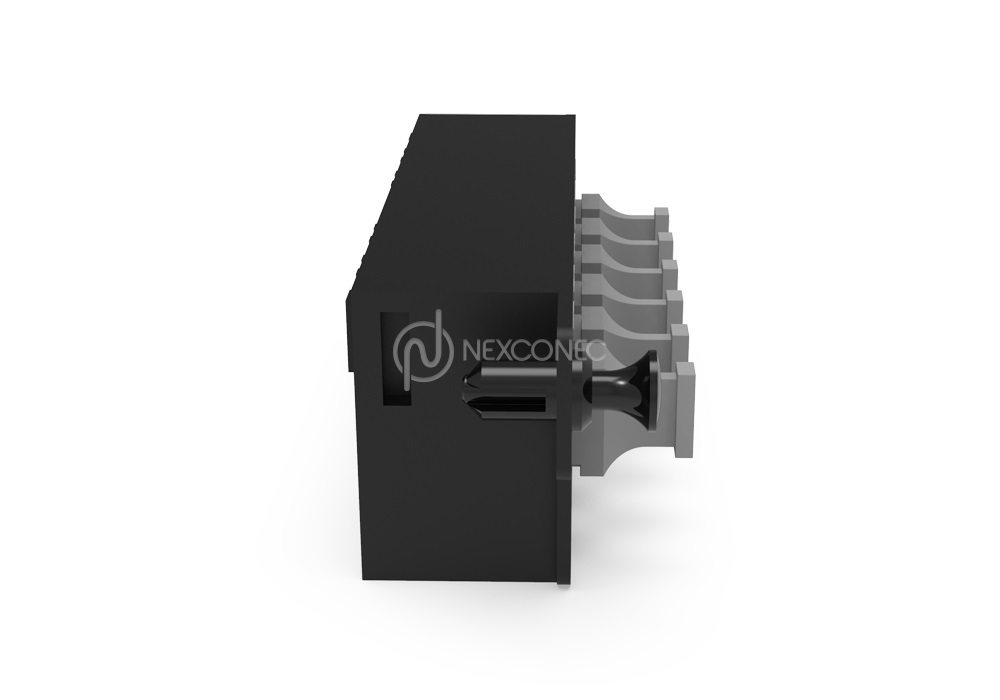

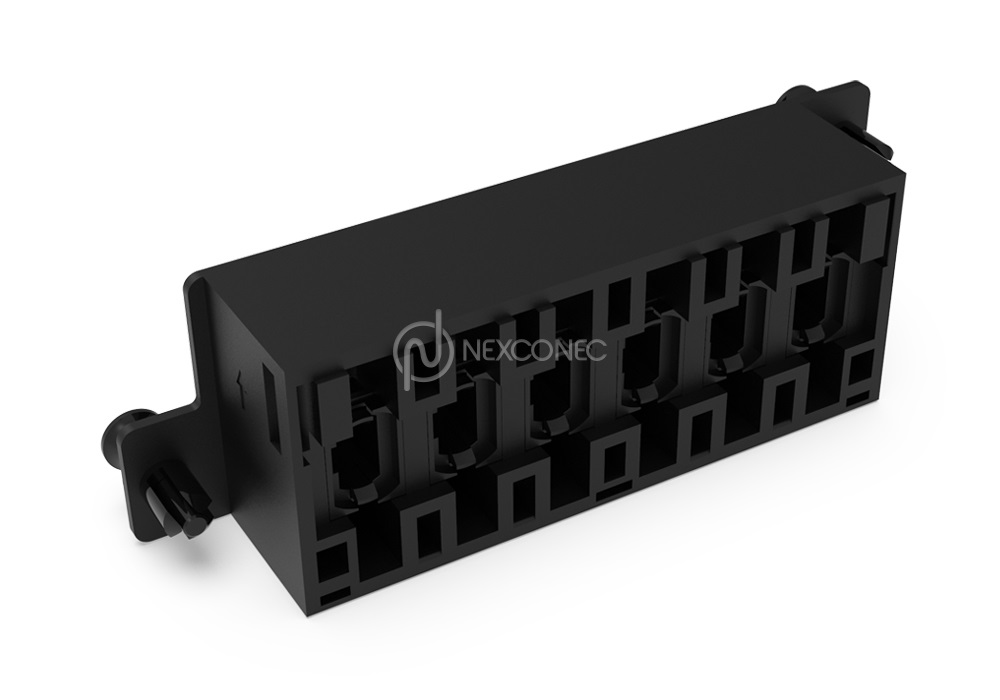

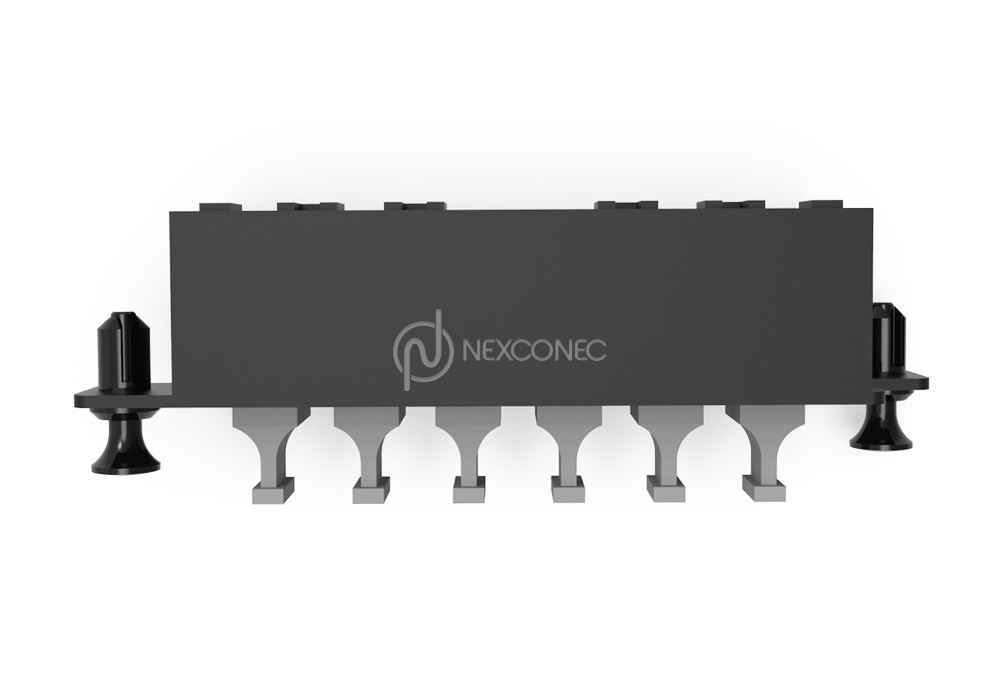

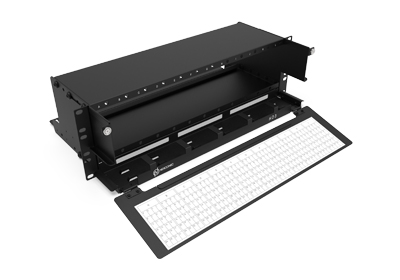

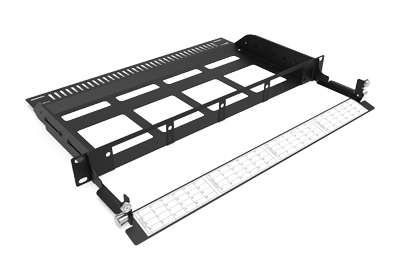

The HD MTP/MPO adapter plates are made to fit all Nexconec HD fiber management solutions, including rack mount patch panels, supporting MTP/MPO for high density solutions.

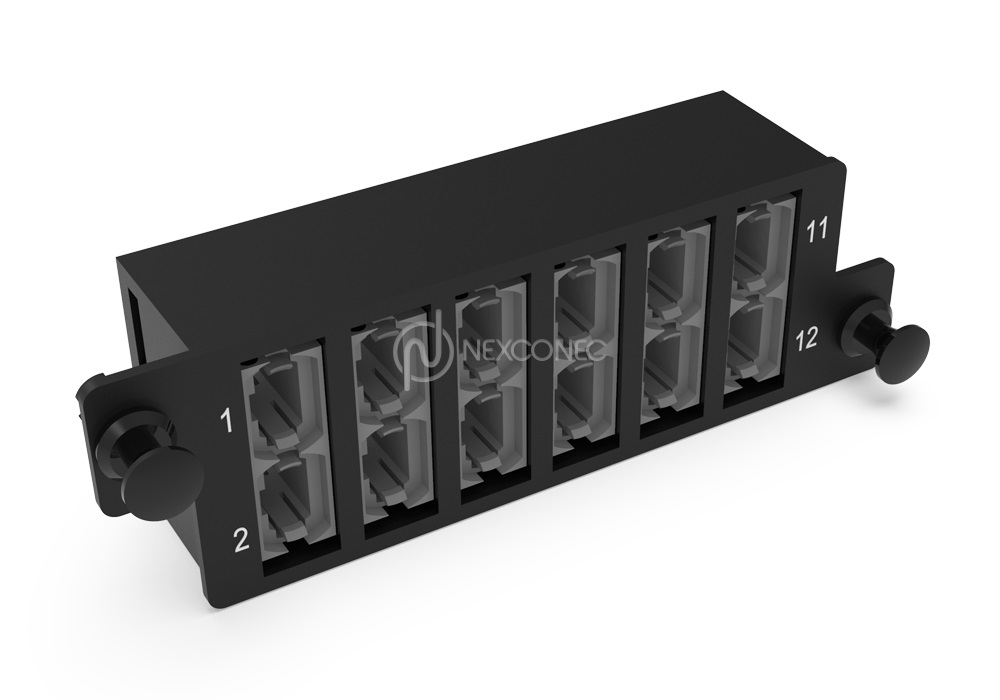

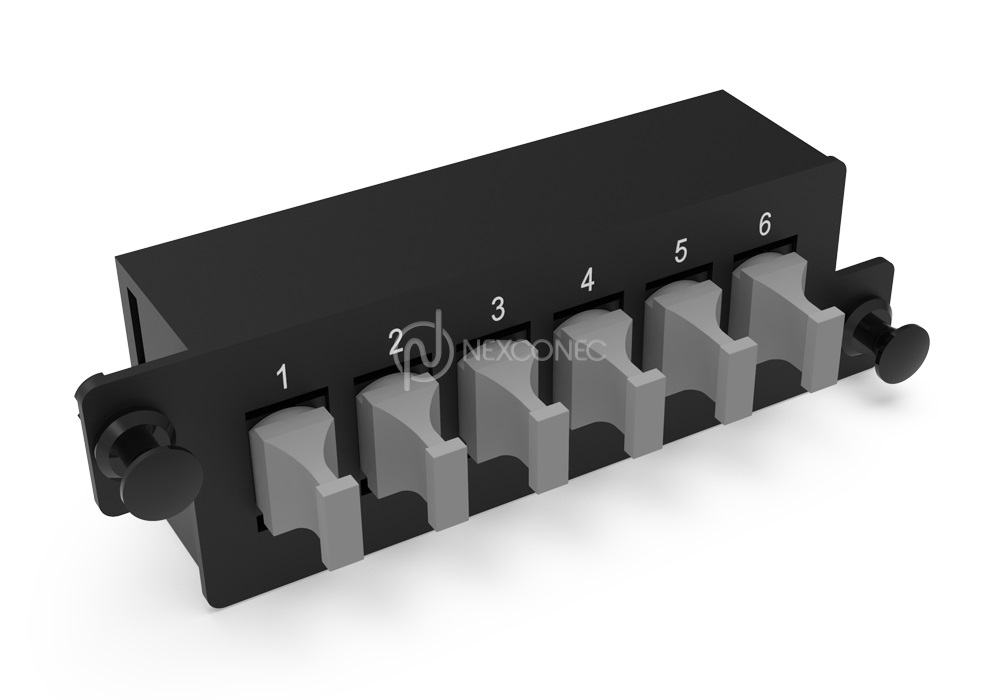

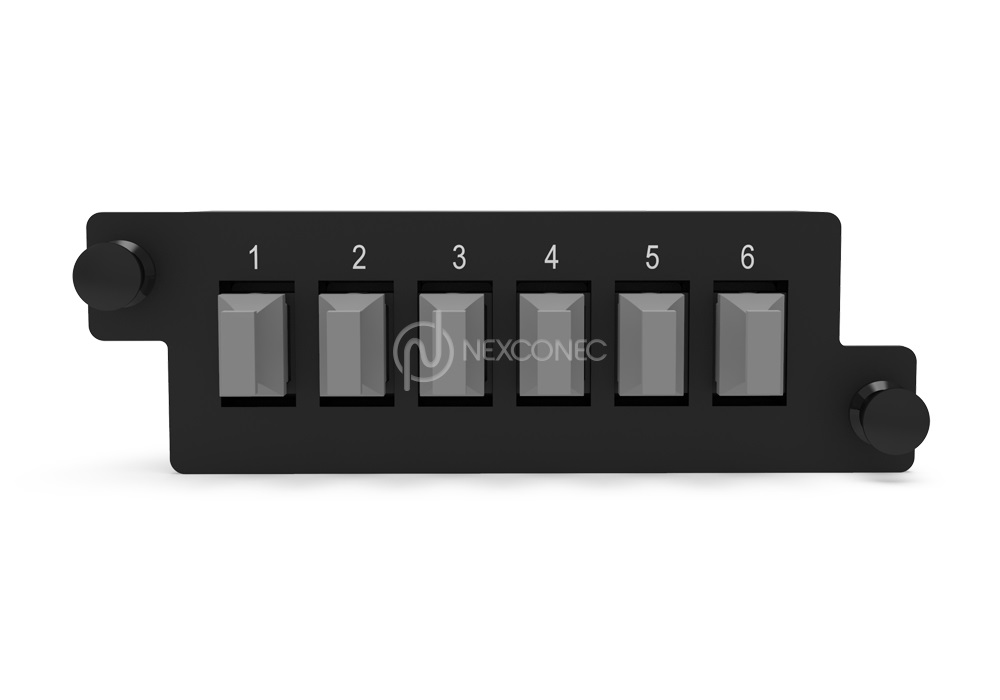

This MTP/MPO adapter plate can accommodate up to 6 or 12 MPO adapters with options of key-up to key-down, or key-up to key-up, which offers the flexibility to the MTP/MPO trunk to adapts different installation requirements with various polarities. The recessed adapters mounted in the plate gives the better bending radius when routing the MTP/MPO trunks cables.

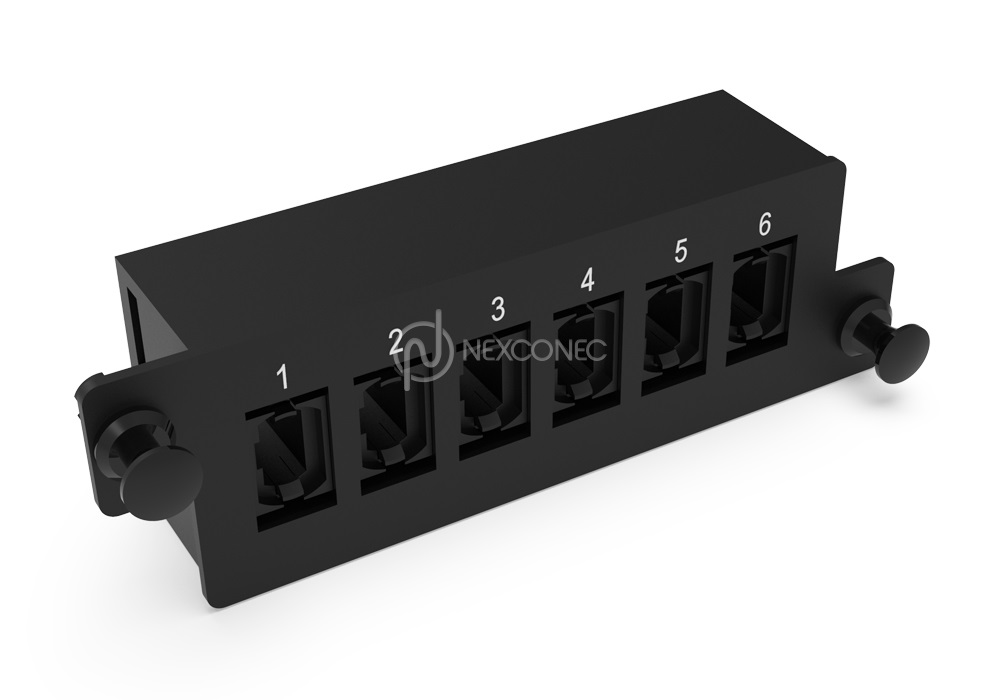

Each MTP/MPO fiber adapter plate comes with protective caps made of polycarbonate to prevent dust and debris from entering.

FEATURES AND APPLICATIONS
  • Available in 6 and 12 Ports
  • Easy and fast installation
  • Recessed MTP/MPO Adapters
  • Lightweight plastic
  • Enterprise network & Datacenter
  • Indoor application
  • Most Common Footprint

Product Information

pdfDATASHEET.pdf View Download
technical drawingTECHNICAL DRAWING.pdf View Download
microsoft visioVISIO.vsdx Download
Mounting Type Nylon Latches
Material PC + ABS
Housing Color Black
Dimensions (W x H x D in MM) 106 x 33.60 x 24
Net Weight 0.25Kg
Part Number Product Description
MP4PL10 HD Pass Thru Adapter Plate 6 Ports MPO (Key Up / Key Down)
MP4PL11 HD Pass Thru Adapter Plate 12 Ports MPO (Key Up/ Key Down)
MP4PL20 HD Pass Thru Adapter Plate 6 Ports MPO (Key Up / Key Up)
MP4PL21 HD Pass Thru Adapter Plate 12 Ports MPO (Key Up/ Key Up)
