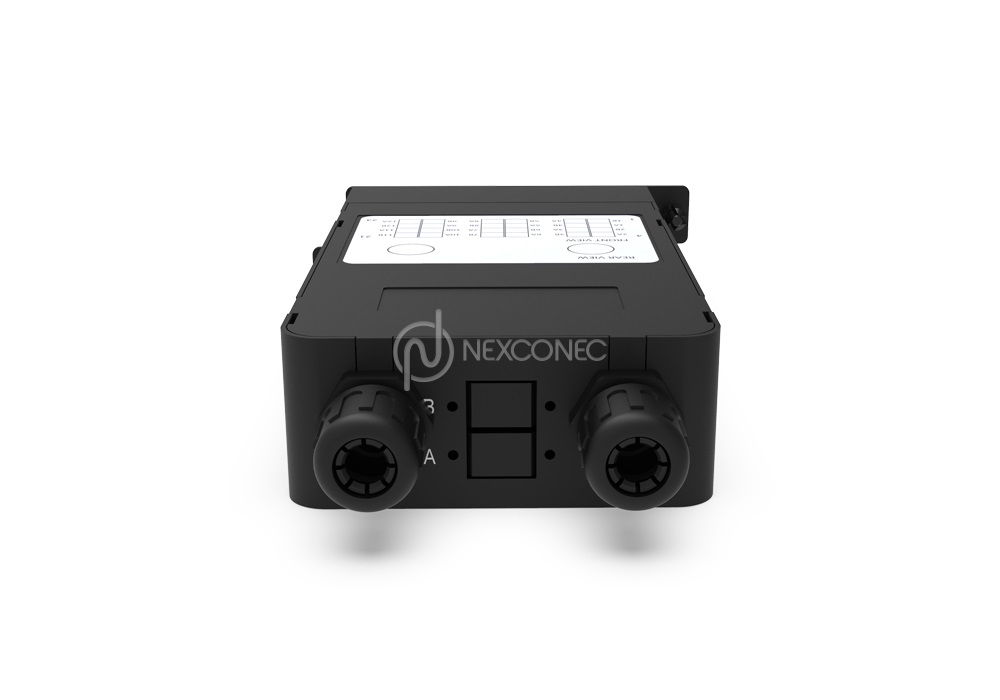

HD SPLICE CASSETTE - MP4SPxx

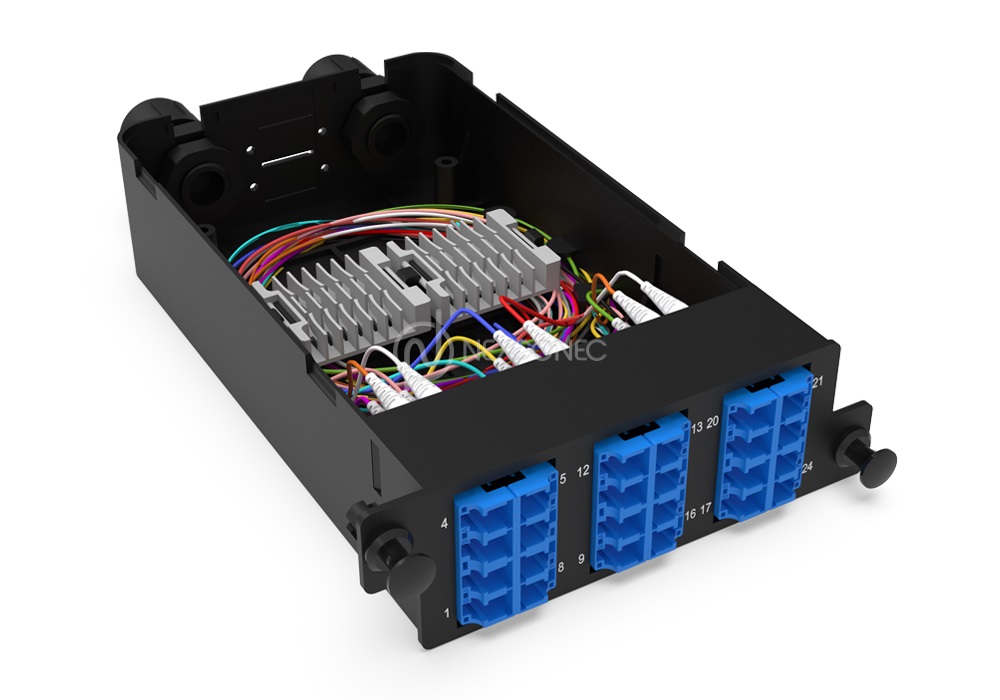

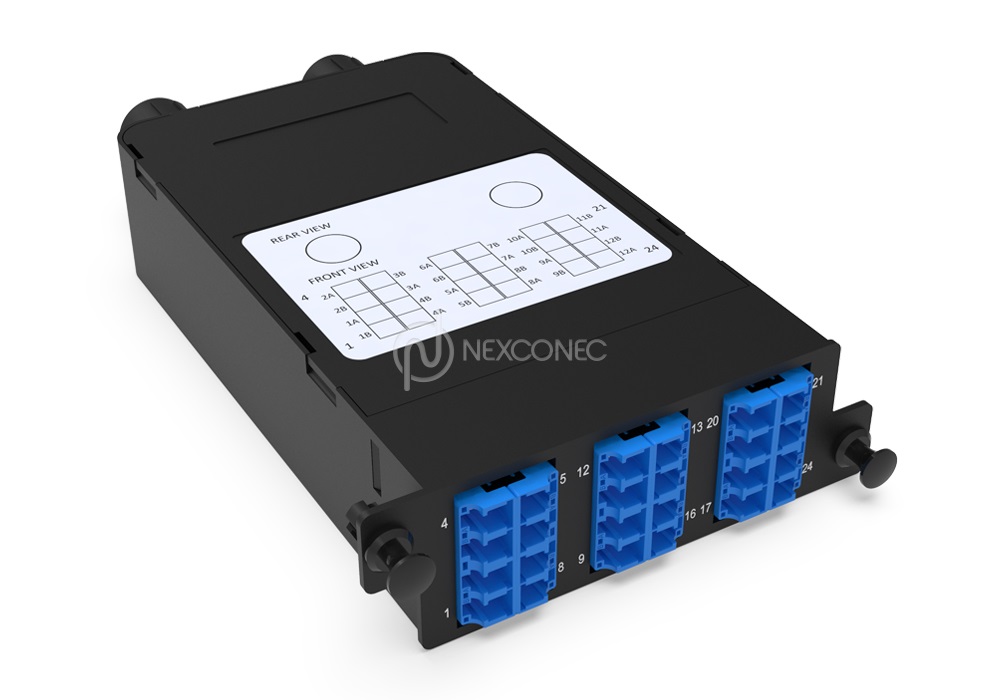

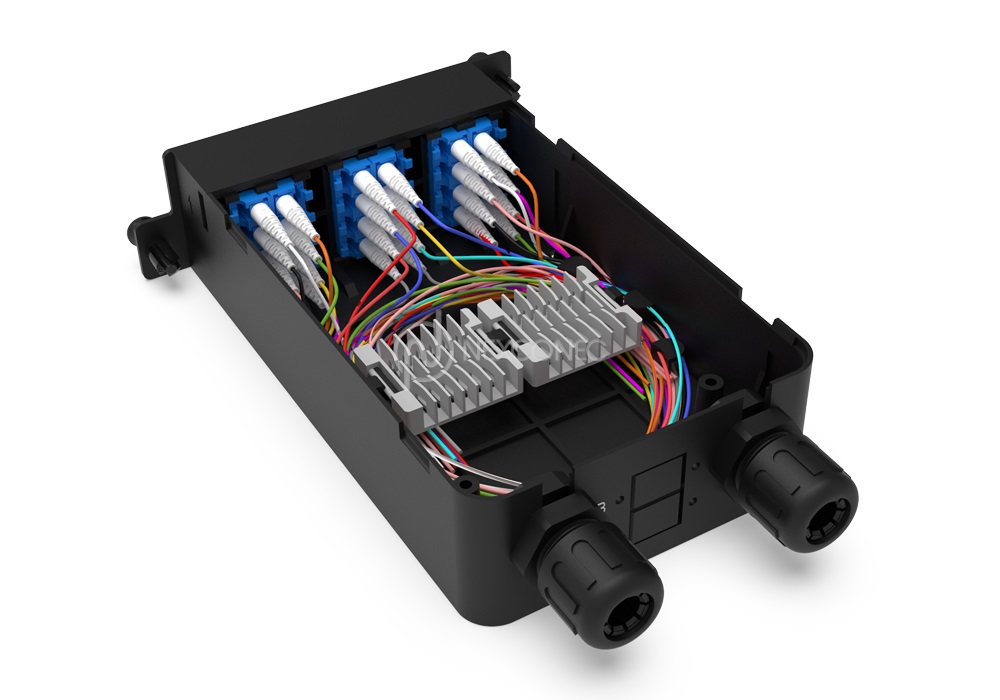

NEXCONEC® HD splicing modules allow users to fusion splice micro cables, loose-tube cables or ribbon cables to factory assembled pigtails. For up to 24 splices in LC configuration or 12 in SC. The splice clip is interchangeable allowing different splice protectors to be integrated such as heat-shrink, ribbon or sandwich (ANT) type.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Singlemode and Multimode fiber options
- Up to 24 fiber capacity
- Single and Ribbon Fiber splice
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
Product Information
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| INSTRUCTION MANUAL.pdf |
View | Download |
| Footprint | HD MP4 |
|---|---|
| Material | PC+ABS |
| Housing Color | Black |
| Application | HD Panels |

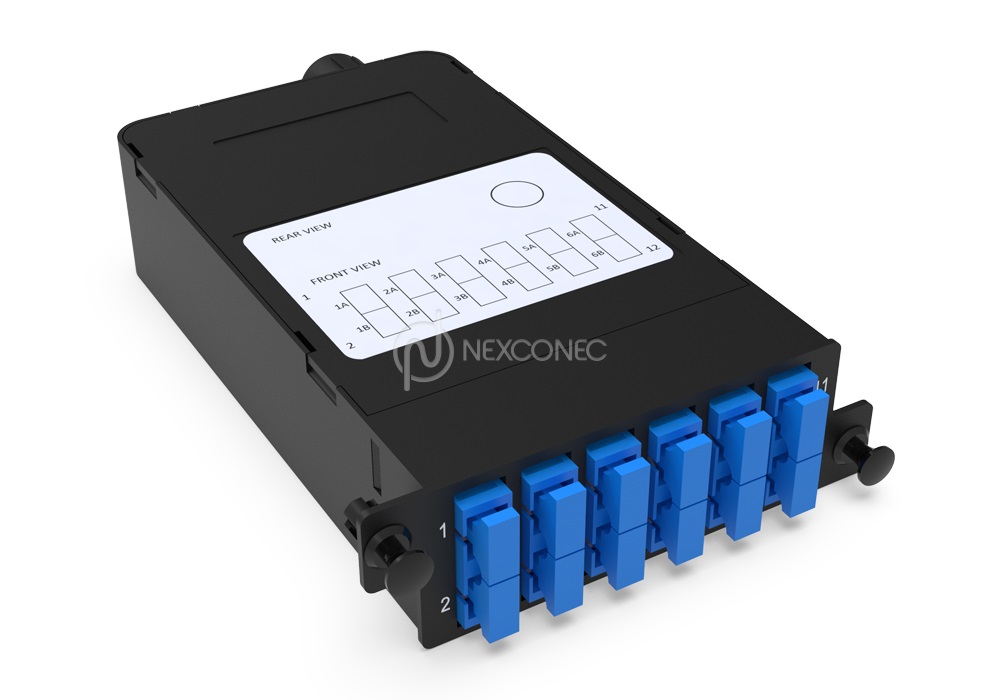

| Fiber Capacity | 24FO in LC / 12FO in SC |

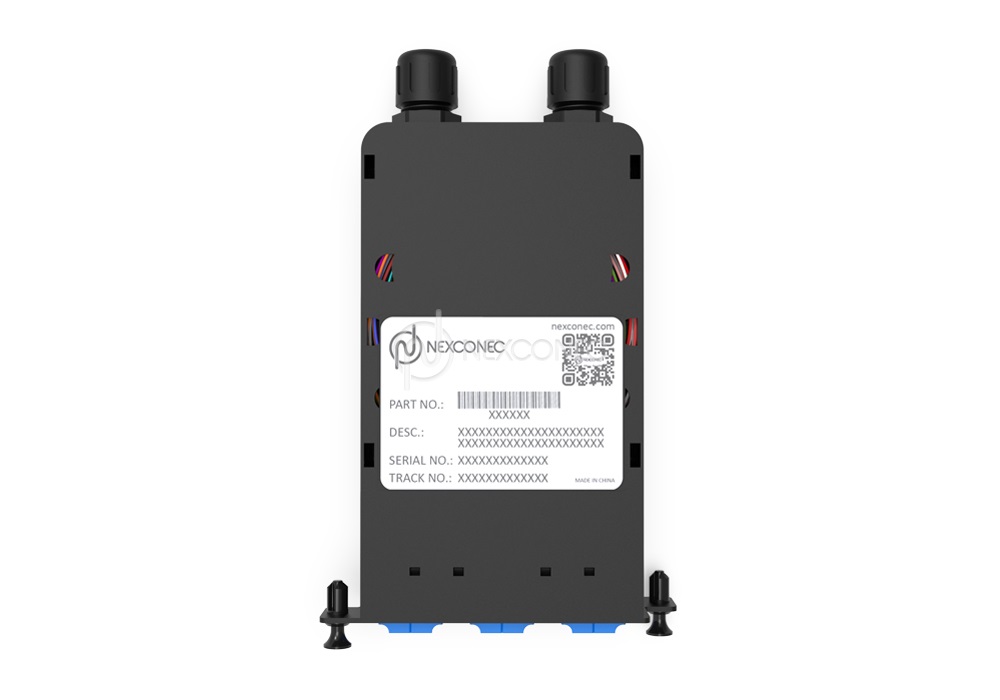

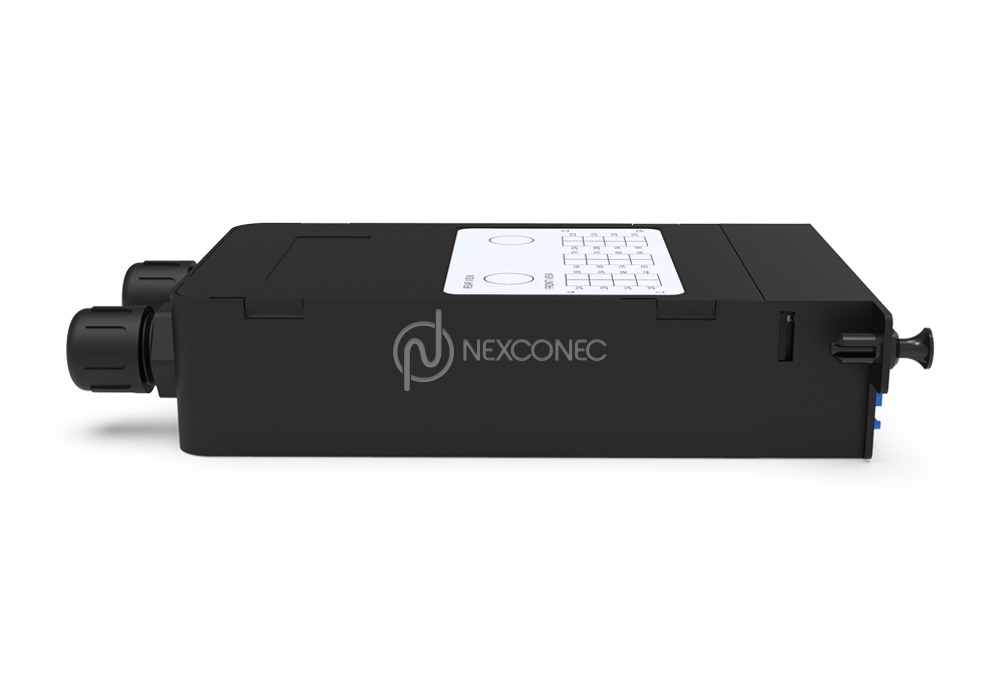

| Rear Cable Entries | 2x Cable Gland M12 |

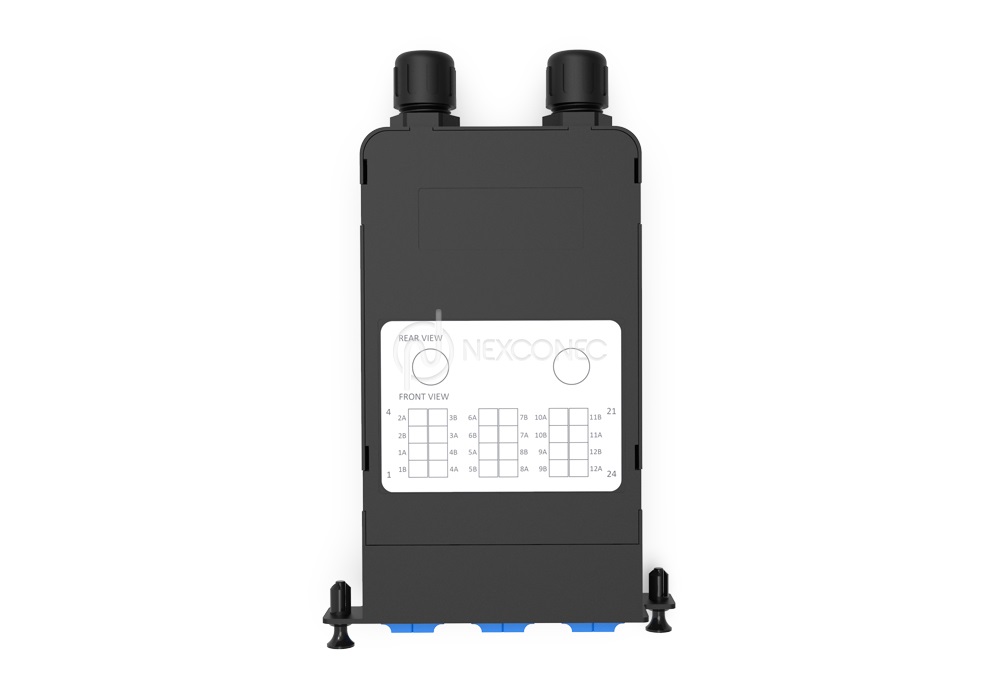

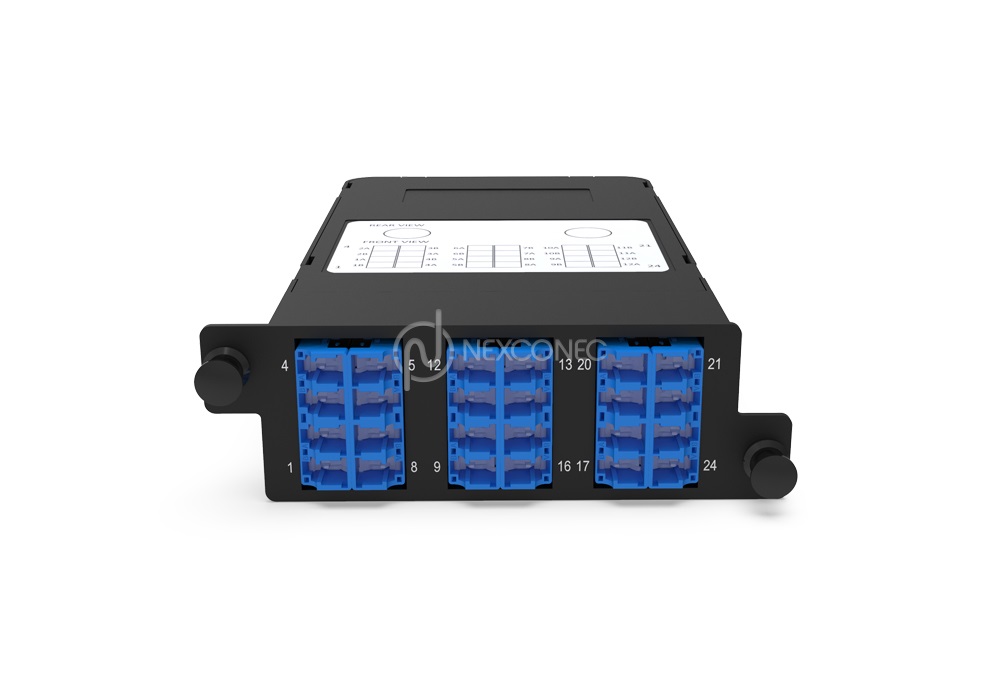

| Adapters Ports | Shuttered laser & Dust proof LC Adapters |
| Splice Holder | 40mm Heat Shrink Sleeves, Available in Crimp Style or Ribbon |
| Max. Cable Diameter to Use | 8 mm |
| Dimensions (W x D x H) | 106 x 145 x 33.60 mm |
| Weight | 0.25 Kg |
| Parameters | Units | SM LC/SC | MM LC/SC |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.20/0.30 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.12/0.15 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Part Number | Product Description |
|---|---|
| MP4SP01 | HD Splice Module LC 24FO Pigtails SM |
| MP4SP02 | HD Splice Module LC/APC 24FO Pigtails SM |
| MP4SP03 | HD Splice Module LC 24FO Pigtails MM OM3 |
| MP4SP04 | HD Splice Module LC 24FO Pigtails MM OM4 |
| MP4SP05 | HD Splice Module SC 12FO Pigtails SM |
| MP4SP06 | HD Splice Module SC/APC 12FO Pigtails SM |
| MP4SP07 | HD Splice Module SC 12FO Pigtails MM OM3 |
| MP4SP08 | HD Splice Module SC 12FO Pigtails MM OM4 |
| MP4SP09 | HD Splice Module LC 12FO Pigtails SM |
| MP4SP10 | HD Splice Module LC/APC 12FO Pigtails SM |
| MP4SP11 | HD Splice Module LC 12FO Pigtails MM OM3 |
| MP4SP12 | HD Splice Module LC 12FO Pigtails MM OM4 |
| MP4SP13 | HD Splice Module LC 24FO Pigtails MM OM5 |
| MP4SP14 | HD Splice Module SC 12FO Pigtails MM OM5 |
| MP4SP15 | HD Splice Module LC 12FO Pigtails MM OM5 |
1. Notes: Ribbon splice and sandwich (ANT) type are available on request.
2. Add ‘-R’ for Ribbon Pigtails at the end of Part Number. (Example: MP4SP01-R)
3. Add ‘-FT’ for France Telecom color coding at the end of Part Number. (Example: MP4SP01-FT)
2. Add ‘-R’ for Ribbon Pigtails at the end of Part Number. (Example: MP4SP01-R)
3. Add ‘-FT’ for France Telecom color coding at the end of Part Number. (Example: MP4SP01-FT)
