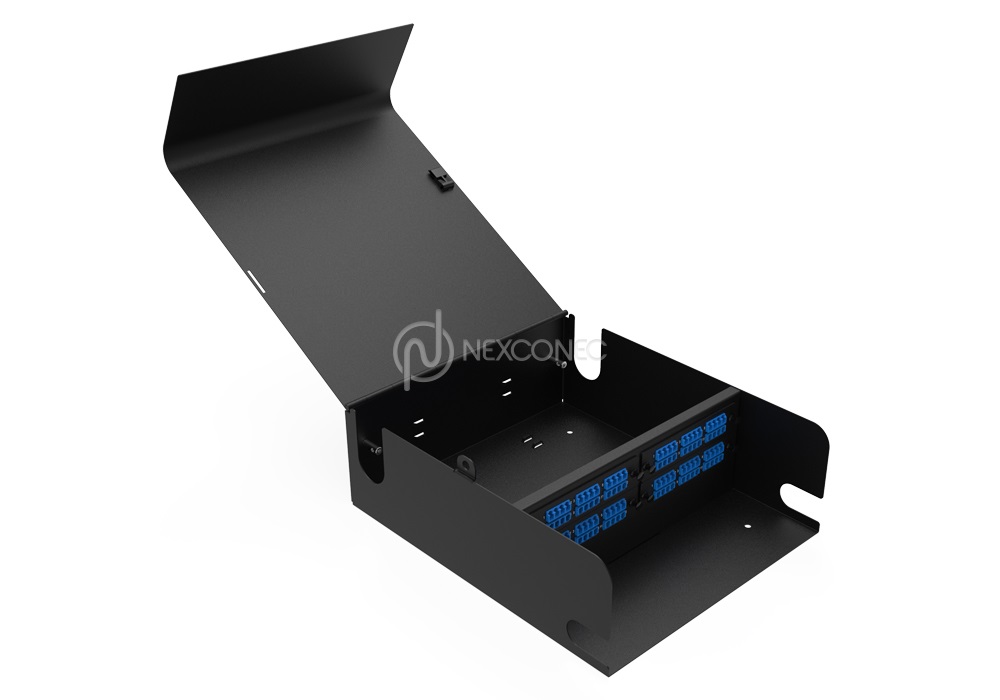

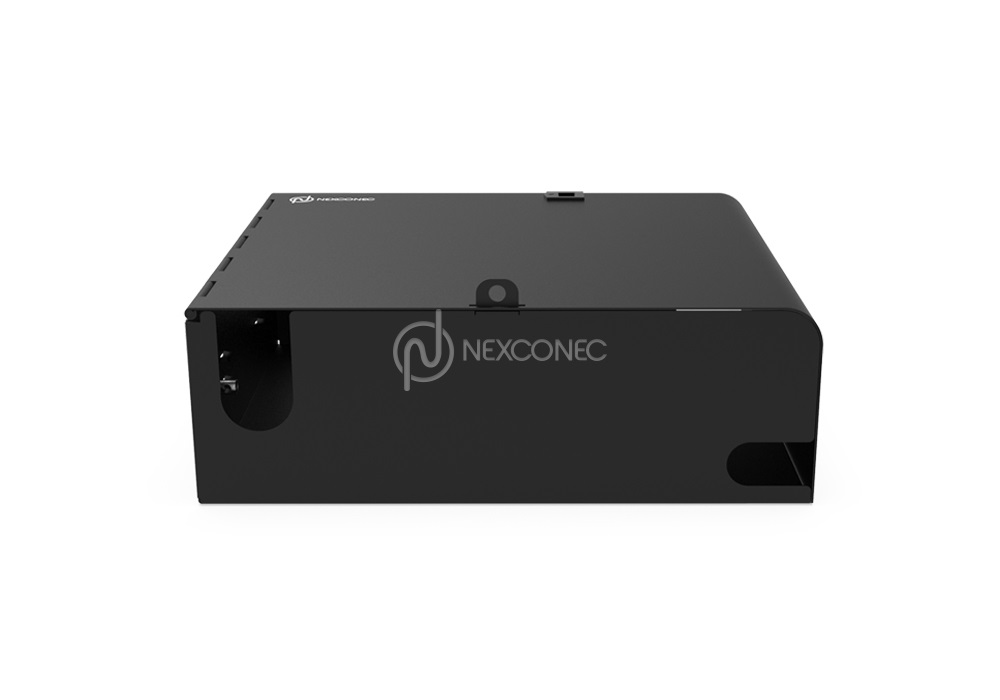

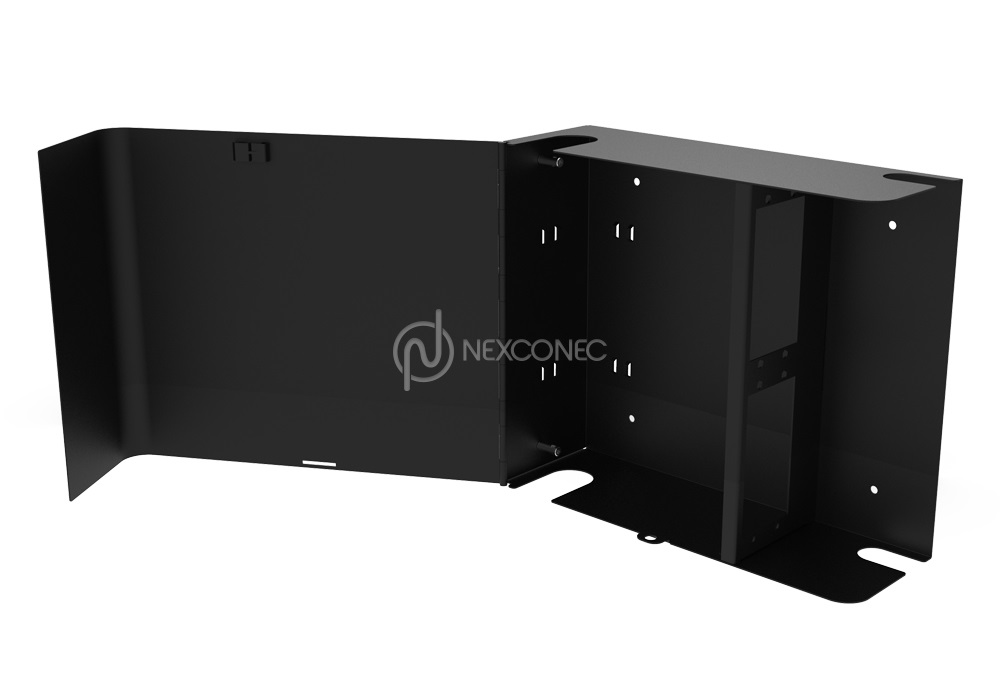

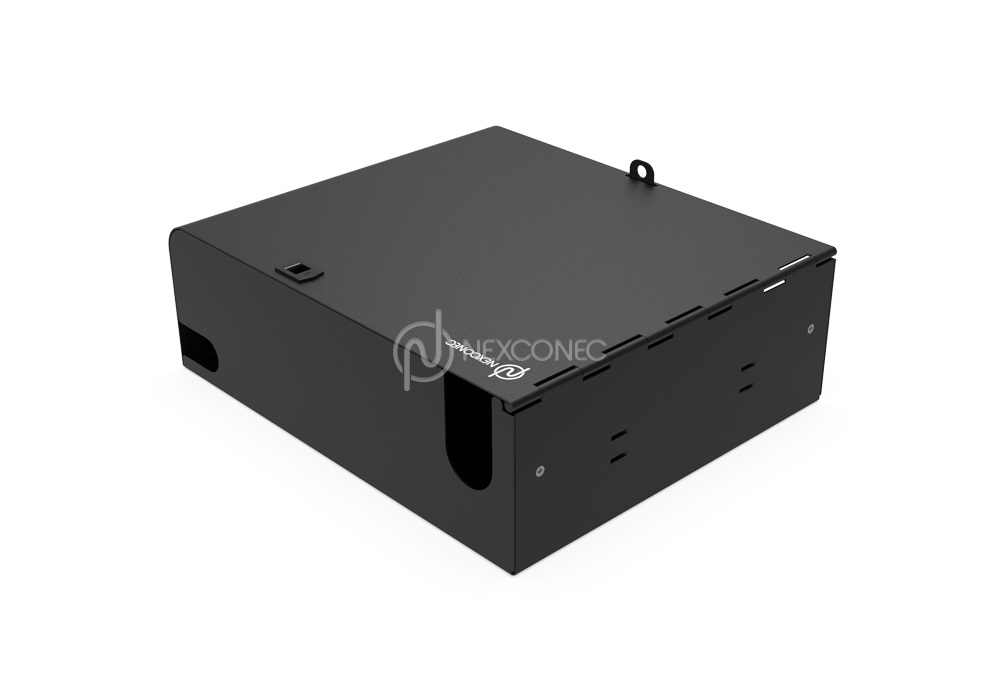

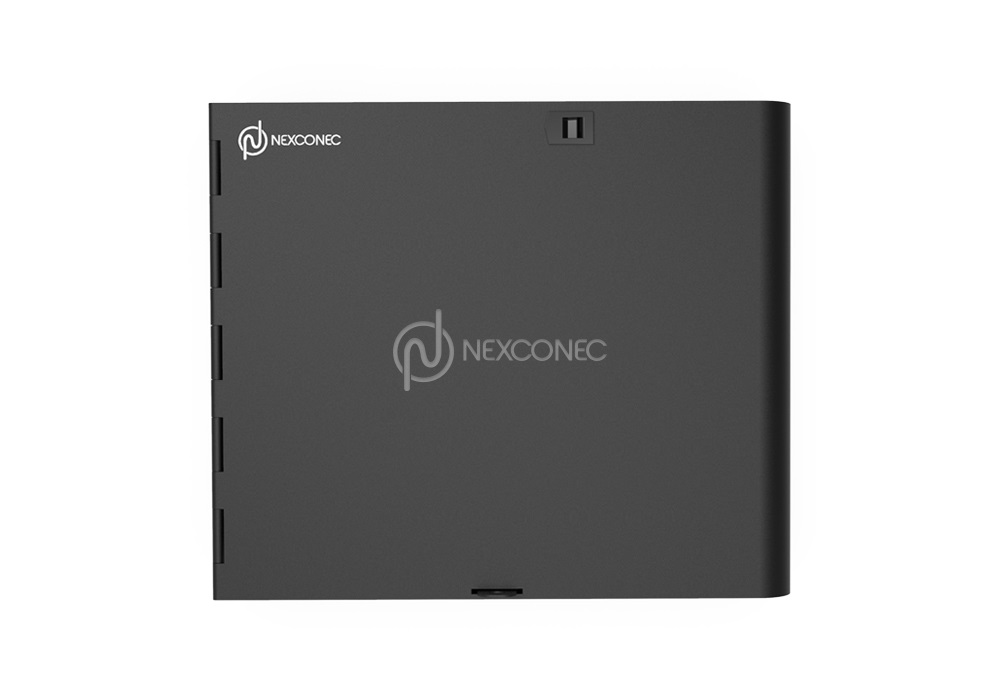

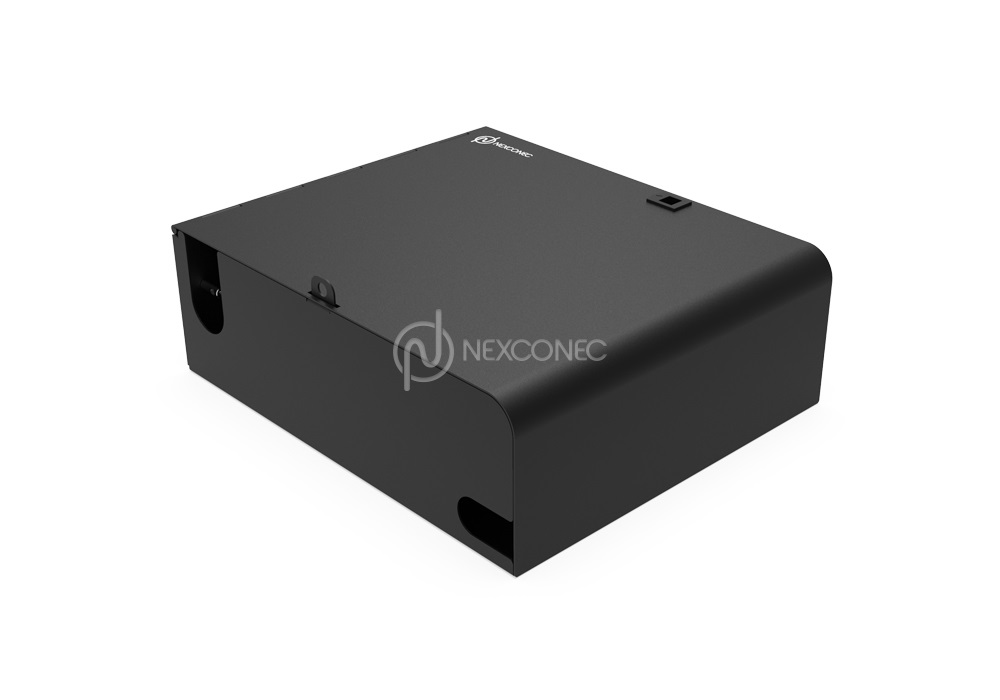

Wall Mount Modular Box 4 Slots LGX - FW4MP3
Nexconec modular wall box accepts 4 LGX Modules or LGX pass-thru adapter plates for a total of 96FO with LC configuration. Modular small factor box for multi-application with MPO System, Pre-terminated cables or conventional splicing.
Box is supplied unloaded and the modules and plates are supplied separately, as well as splicing accessories.
FEATURES AND APPLICATIONS
- 4 Slot LGX
- Up to 96FO in LC

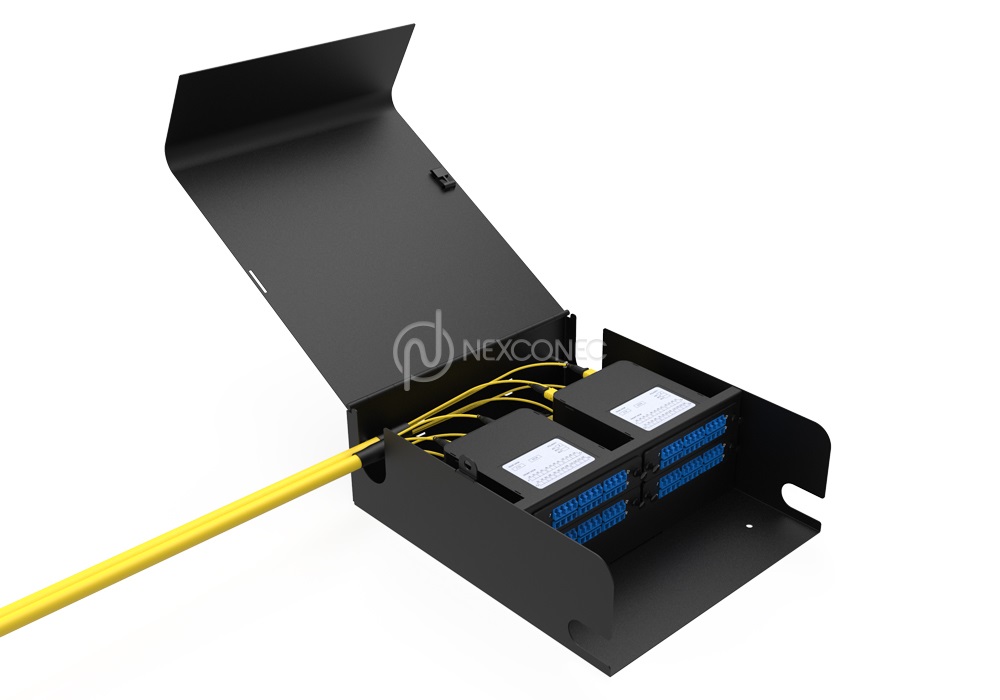

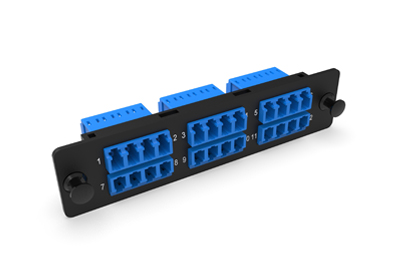

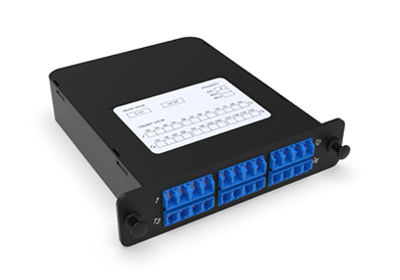

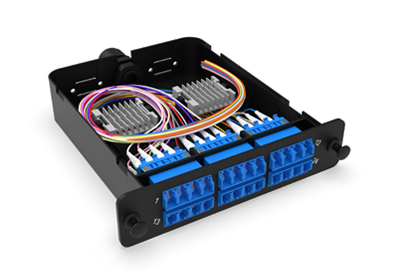

- Modular with MPO Cassette or Adapter plates
- Cable slack storage
- FTTx Deployment & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP system or Splicing
| Mounting Type | Wall |
|---|---|
| Material | Cold rolled steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | Yes |
| Dimensions (W x D x H in MM) | 330 x 280 x 115 |
| Net Weight | 4.0 Kg |
| Opening Type | Hinged Door |
|---|---|
| Access Type | Side access |
| Cable Entry Direction | Sides (Top/Bottom) |
| Slot Type | LGX Module and LGX Plate |
| Number of Slots | 4 |
| Fiber Capacity | 96 in LC |
| Part Number | Product Description |
|---|---|
| FW4MP3 | Wall Mount Modular Box 4 slot LGX Unloaded |
