HD CASSETTE MTP®/MPO 1x(BASE-24) - MP4CAxxX

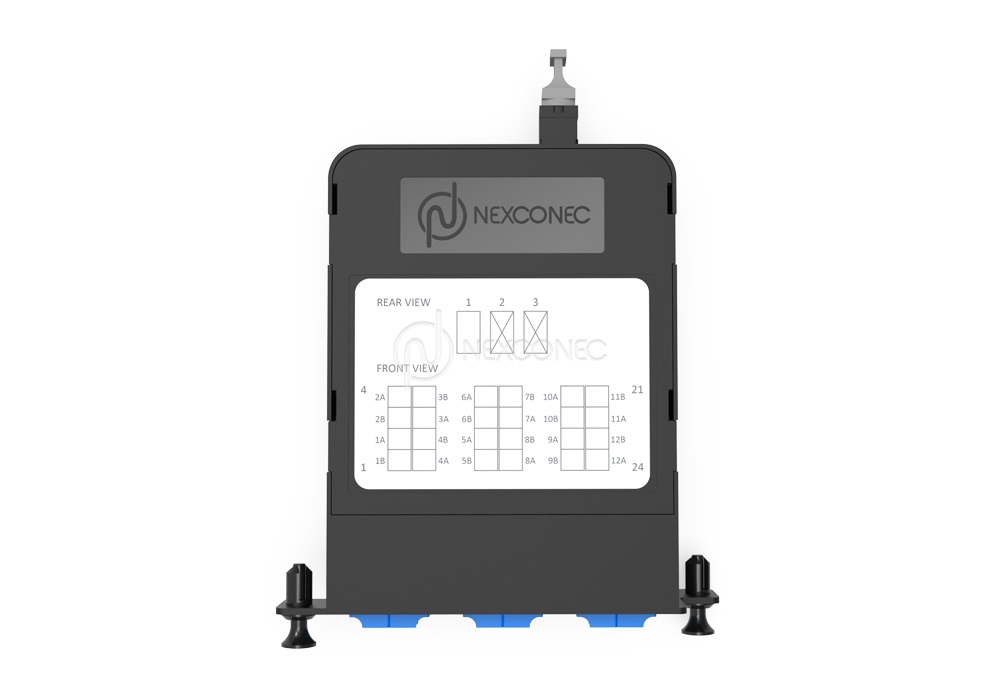

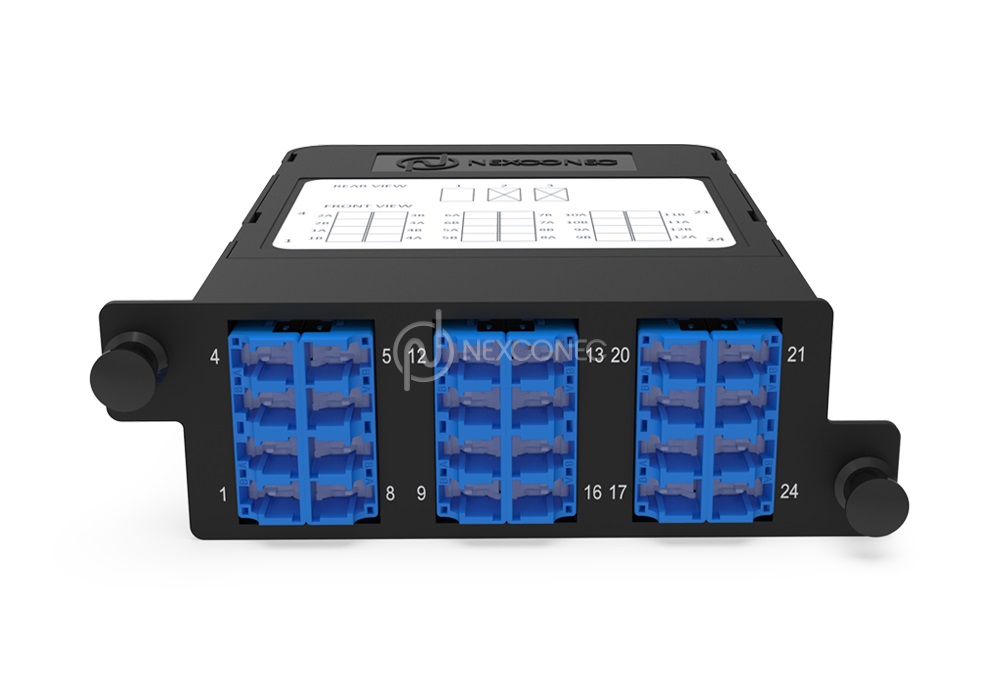

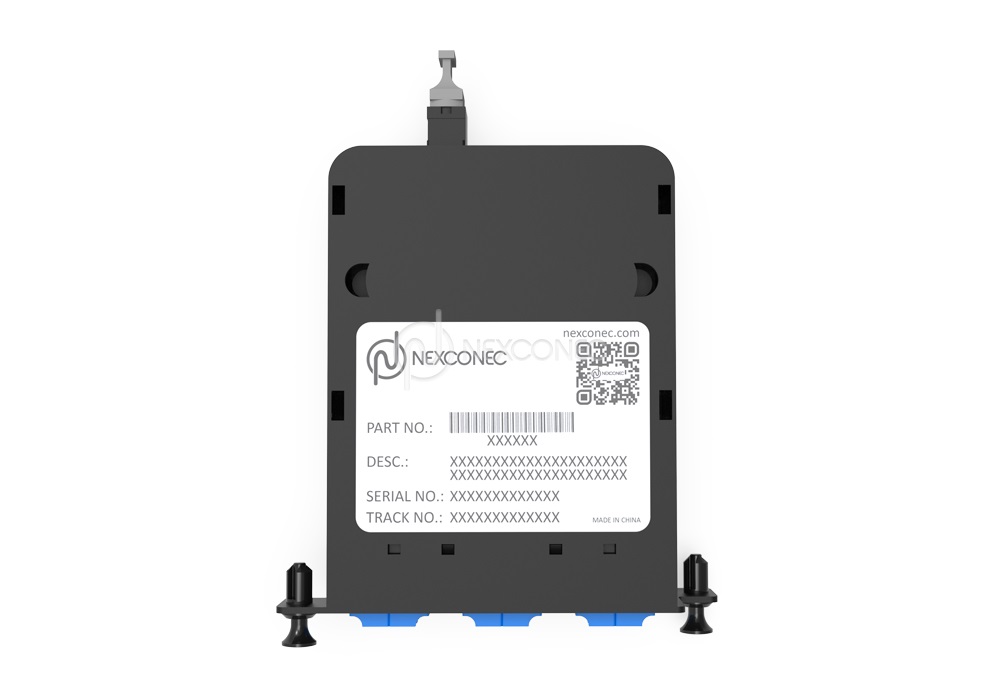

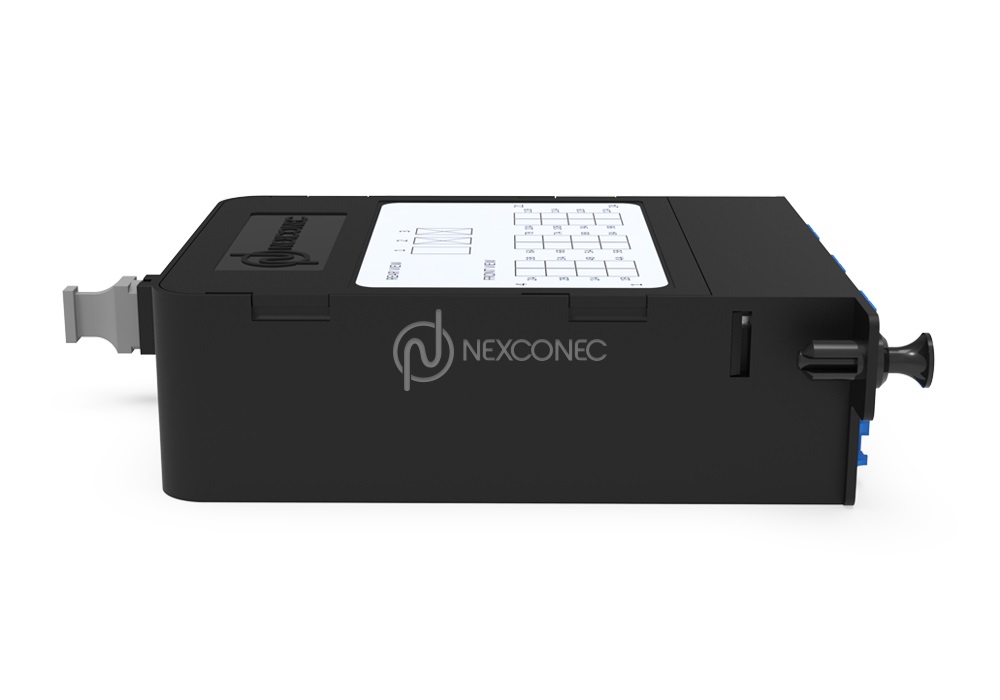

NEXCONEC® HD MPO transition cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The HD cassettes are designed to easily plug into NEXCONEC HD 1U 4 slot chassis and each chassis can populate up to 96F. The cassettes eliminate the need for splicing reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater to the customer’s power budget requirements.
For the 24 Fibers 100G to 10G version cassette can hold 1x(Base-24) MPO - 24F LC fanout.
PRODUCT HIGHLIGHTS
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 40G to 10G and 100G to 10G transition
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Supports SFP, QSFP, CFP applications
PRODUCT INFORMATION
 DATASHEET.pdf |
View | Download |
| TECHNICAL DRAWING.pdf |
View | Download |
| FIBER MAPPING.pdf |
View | Download |
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in 40G to 10G and 100G to 10G transition
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Flame retardant PC+ABS material
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | HD MP4 |
| Dimensions (WxDxH) | 106 x 110 x 33.60 mm |
| Material | PC+ABS |
| Housing Color | Black |
| Application | HD Panels |
| Fiber Capacity | 24FO in LC |

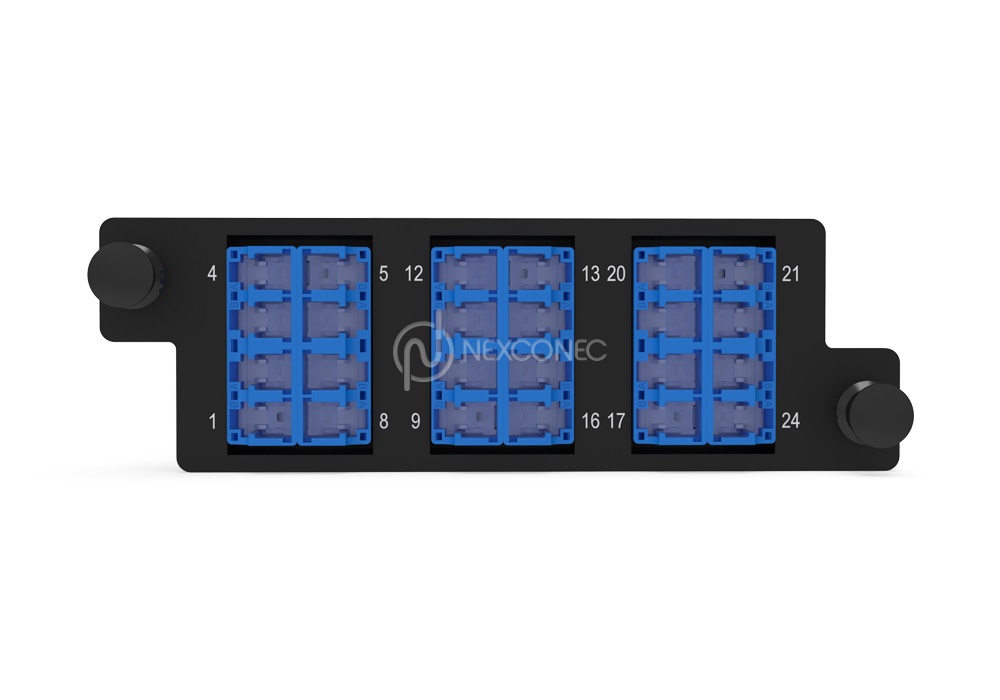

| Front Adapter Type | LC Quad (Shuttered laser & Dust proof) |

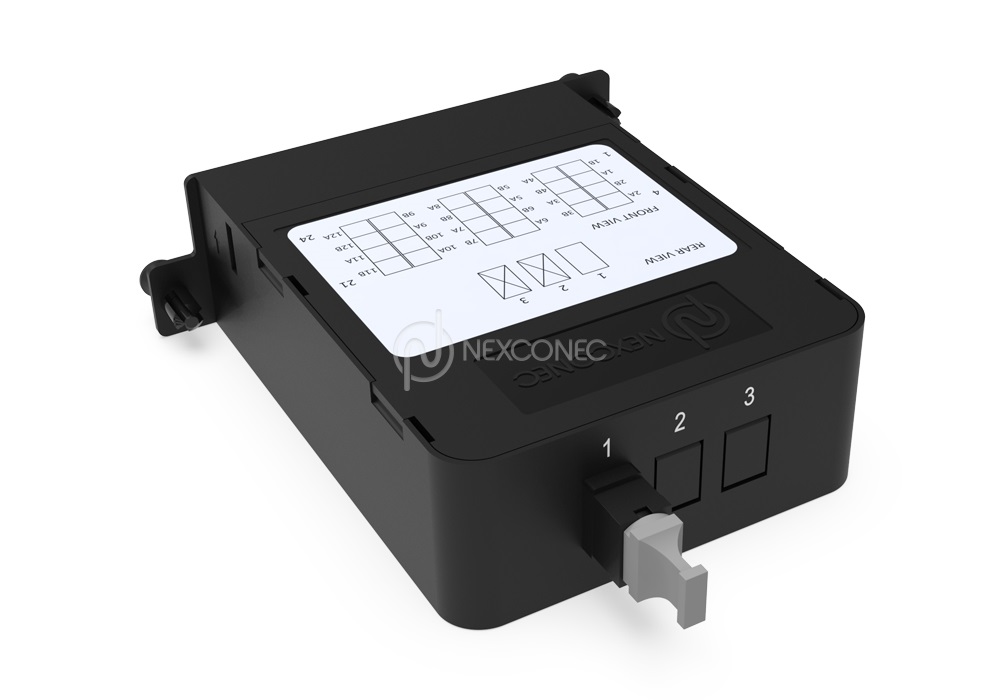

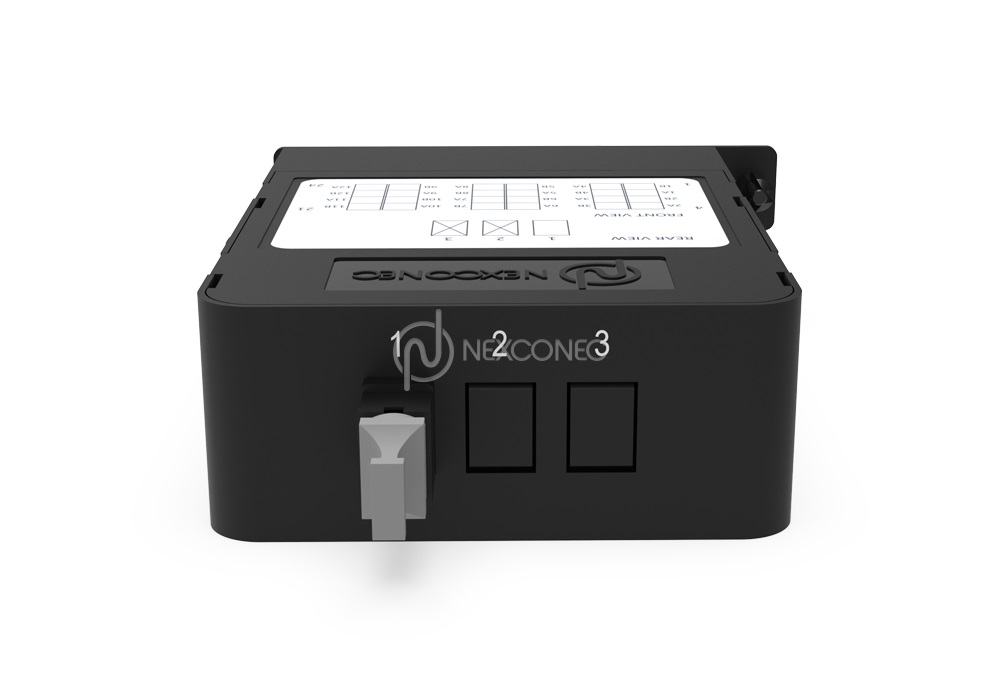

| Rear Adapter Type | MTP®/MPO Base-24 |
| Number of LC Quad Ports | 6 Ports |
| Number of MTP®/MPO Ports | 1 Port |
| Polarity | A/B/C as per TIA/EIA-568-C.3 |
| Compliance | RoHS, REACH & SvHC |
| Operating Temperature | -10 ~ +60°C |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC | MM MPO | MM LC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| MP4CA01X | HD Module 1xMPO-24 (ELITE) M-LC/UPC 24FO SMF OS2 100G to 10G Base-24 (Blue) |
| MP4CA02X | HD Module 1xMPO-24 (ELITE) M-LC/APC 24FO SMF OS2 100G to 10G Base-24 (Green) |

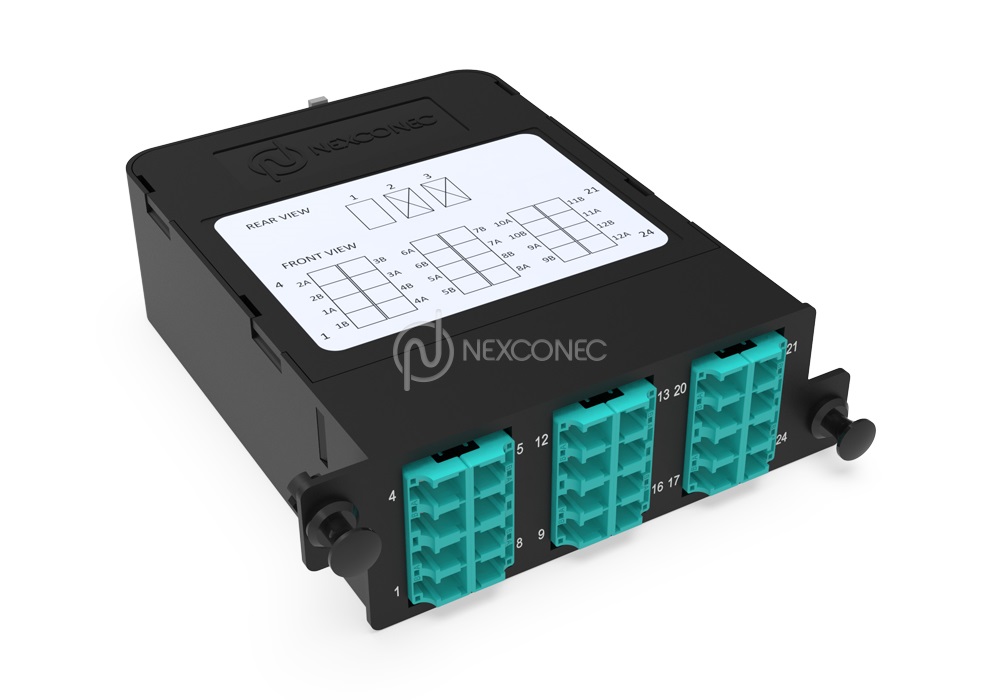

| MP4CA03X* | HD Module 1xMPO-24 (ELITE) M-LC/UPC 24FO MM OM3/OM4 100G to 10G Base-24 (Aqua) |
* Add ‘V’ at the end of the Part Number for LC Adapters in Erika Violet color. (Example: MP4CA03XV).
Note: MTP®/MPO from Usconec available on request.
